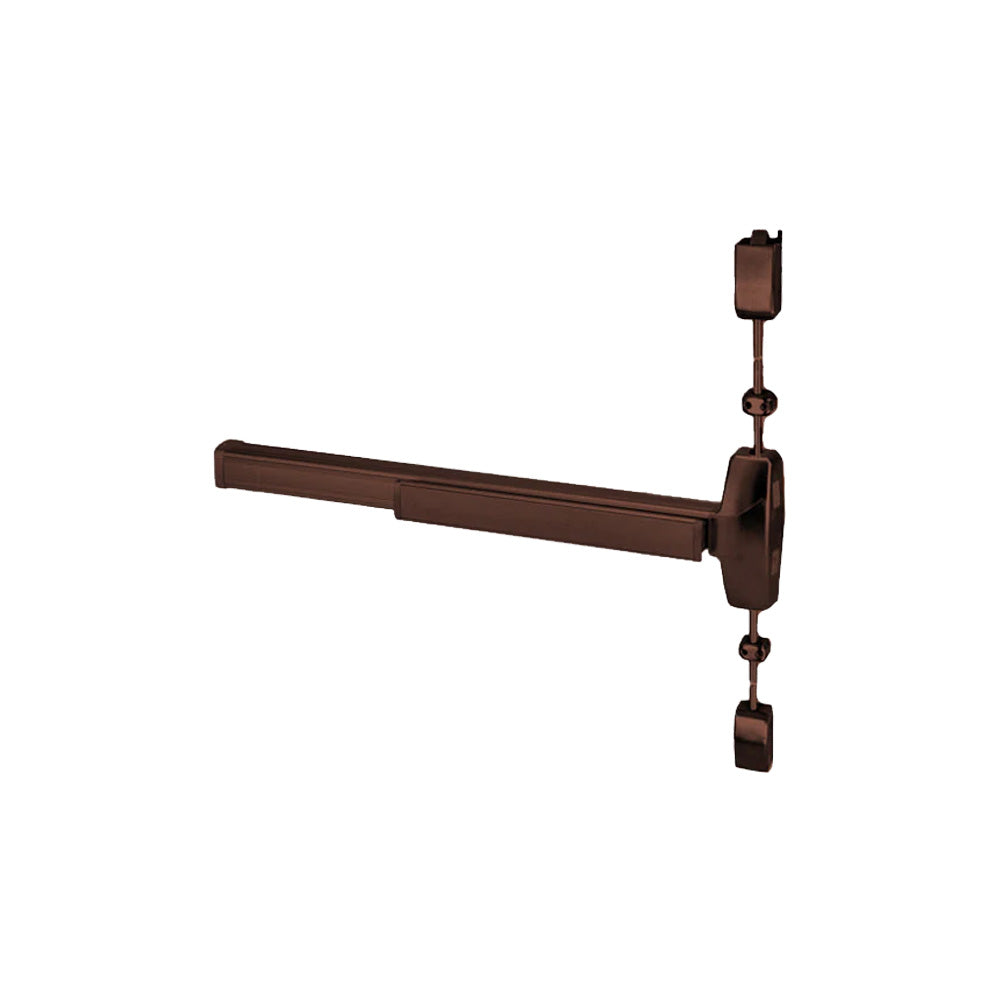

Cal-Royal - A7780V4896 - Surface Vertical Rod Exit Device with 48" Door Width Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)

Cal-Royal - A7780V4896 - Surface Vertical Rod Exit Device with 48" Door Width Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)

$677.44 USD
$880.67 USD $677.44 USD
Sale Sold out

Cal-Royal - A7780V4896 - Surface Vertical Rod Exit Device with 48" Door Width Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)

Features:
  • Retrofits Sargent 8800 Series using 9800 Escutcheon trim.
  • Rail assemblies and end caps are made of brass, bronze, or stainless steel. Rail travels in direction of the door swing.
  • Trims are thru bolted for additional security.
  • Conforms & Meets ADA Regulations.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • UL Listed for Fire Exit Hardware. 3 hours.
  • ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
  • (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions.
  • Chassis mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
  • Uncompromising security and safety in single and double fire exit doors.
Specifications:
Size 48" x 96"
Doors 1-3/4" thick standard
Trims Lever, thumbpiece, and escutcheon trims available
Backset 2-3/4"
Minimum Stile Width (Single Door) 3-3/4"
Minimum Stile Width (Double Door) 3-1/2"
Top & Bottom Chassis Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade)
Cover Brass, Bronze, or Stainless Steel. Covers stock hollow metal doors with 161 cut out.
Mounting Furnished with wood and machine screws. Thru bolts are included and standard packaging on fire-rated devices.
End Cap Brass, Bronze, or Stainless Steel construction.
Alarm Available
Hand Easily field reversible
Latch Bolt, Spring Stainless Steel
Rail Assembly Heavy gauge brass, bronze, or stainless steel
Strike See strike page.
Dogging Feature Allen-type key furnished standard on non-fire labeled devices
Finish US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
UL and ULC Listed A9860V Series for panic. AF9860V Series for fire exit hardware for all types or 8' x 10' double doors for up to 3-hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
Electronic Functions (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
