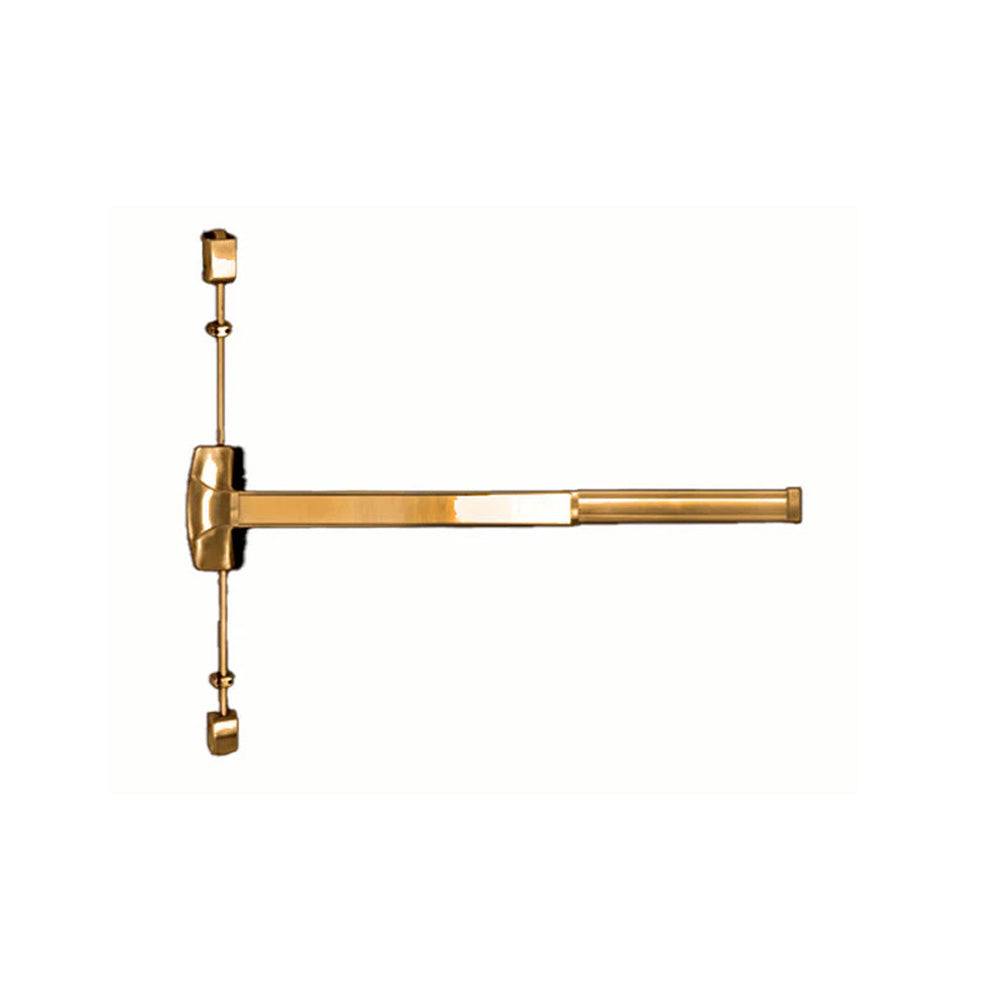

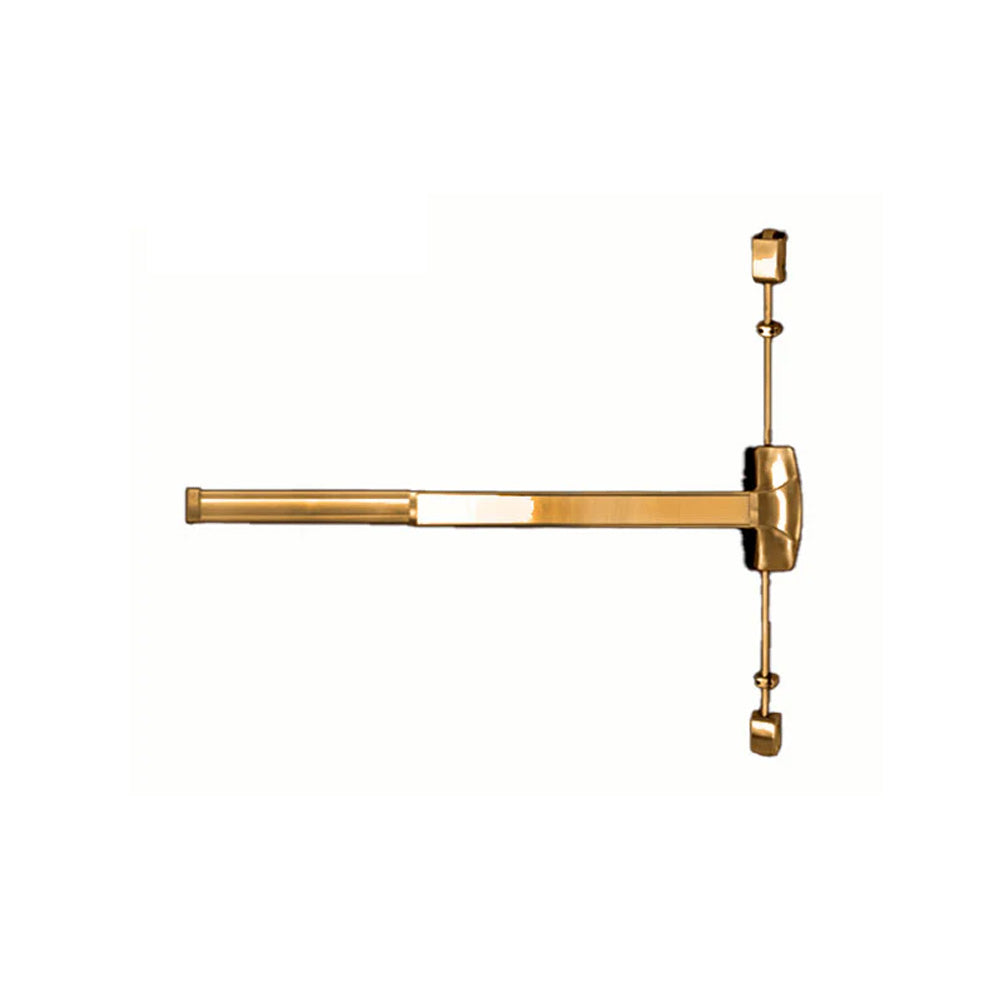

Cal-Royal - A7760V3684 - Surface Vertical Rod with 36" x 84" - Grade 1 - US3 - Bright Polished Brass (605)
Features:
- Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
- ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
- Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps.
- Trims are thru bolted for additional security.
- (A) label rating on pairs of doors up to 8’0" x 8’0" swinging in same or opposite directions.
- Uncompromising security and safety in single and double fire exit doors.
- Chassis mounted unit construction.
Specifications:
| Door Thickness | 1-3/4" |
| Top Chassis | Non-Ferrous Alloy (Panic Grade), Steel (Fire Grade) |
| Cover | Non-Ferrous plated material |
| Mounting | Wood and machine screws |
| Material | Aluminum |
| End Cap | Brass, Bronze or Stainless Steel |
| Latch Bolt & Spring | Stainless Steel |
| Alarm | Available |
| Handed | Right Left |
| Spring | Stainless Steel |
| Rail Assembly | Heavy gauge extruded aluminum body with Stainless Steel push pad |
| Dogging | Allen key |
| Applications | Wood or Hollow Metal Doors |
| Dimensions | 36" x 84" |
| Fire Rated | 3 hours |
| Certifications | ANSI A156.3, GRADE 1, UL Listed 10C, ADA |
| Finish | US3 - Bright Polished Brass (605) |
