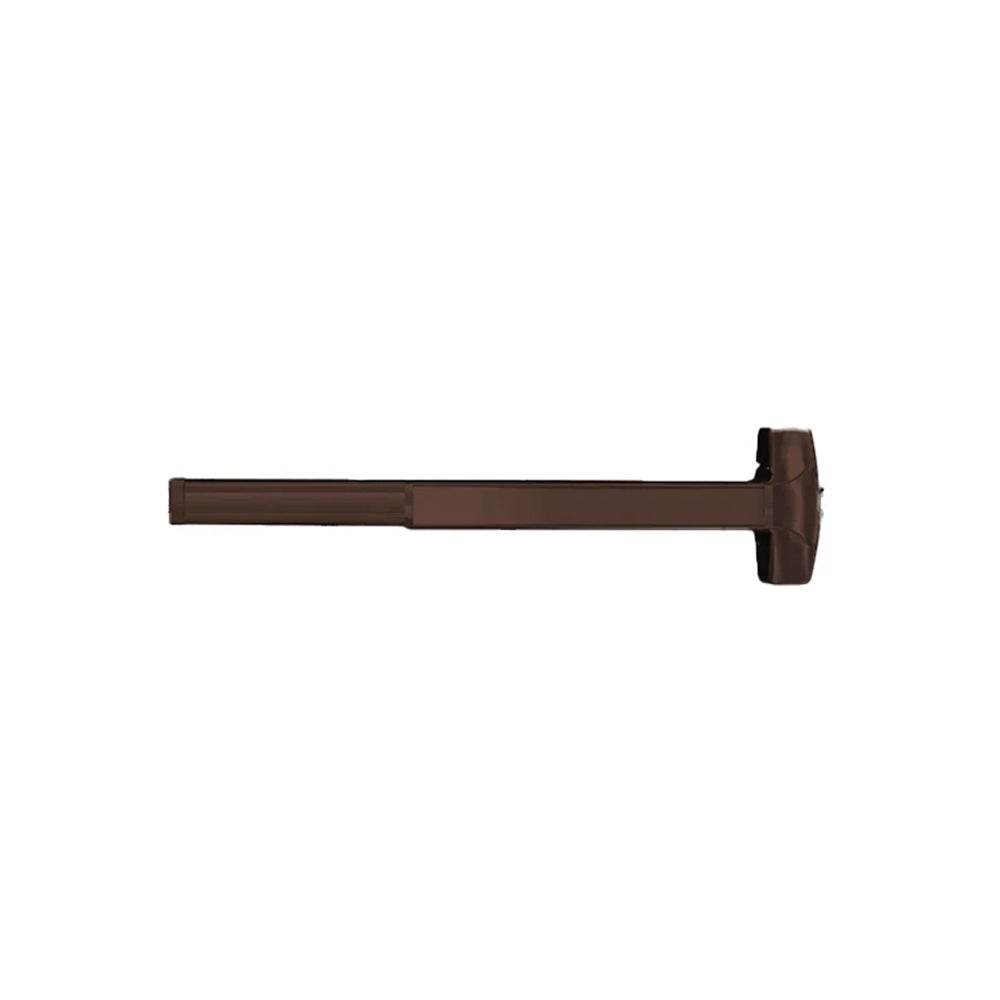

Cal-Royal - A7720EO48 - Rim Exit Device with 48" Door Width - Grade 1 - US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)

Features:
  • Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
  • ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
  • Trims are thru bolted for additional security.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
  • UL Listed for Fire Exit Hardware. 3 hours.
  • (A) label rating on pairs of doors up to 8’0" x 8’0" swinging in same or opposite directions.
  • Uncompromising security and safety in single and double-fire exit doors.
  • Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
For Doors 1-3/4" thick standard optional 2-1/4" thick. 4-1/2" minimum stile width for single or double door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims.
Cover Non-ferrous plated material. Covers stock hollow metal doors with 161 cut out.
Backset 2-3/4"
Chassis Non-ferrous Alloy (Panic Grade), Steel (Fire Grade)
Mounting Furnished with wood and machine screws. Available thru-bolts on request.
Handing Non handed, center hub. 2-3/4" backset
End Cap Brass, Bronze or Stainless Steel construction
Latch Bolt Stainless Steel 3/4" throw with anti-pick feature
Dogging Feature Allen-type key furnished standard on non-fire labeled devices
Rail Assembly Heavy gauge extruded aluminum body with Stainless Steel push pad
ANSI Standard A156.3, Grade 1
Spring Stainless steel throughout
Strike 938 packed standard
Mullion Available
Finish US10B - Dark Oxidized Satin Bronze Oil Rubbed (613)
UL and ULC Listed A7700 Series for panic. AF7700 Series for fire exit hardware for
all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up
to 3 hour fire labeled installations. Conforms to standards
UL10C and UBC 7-2-1997 codes
