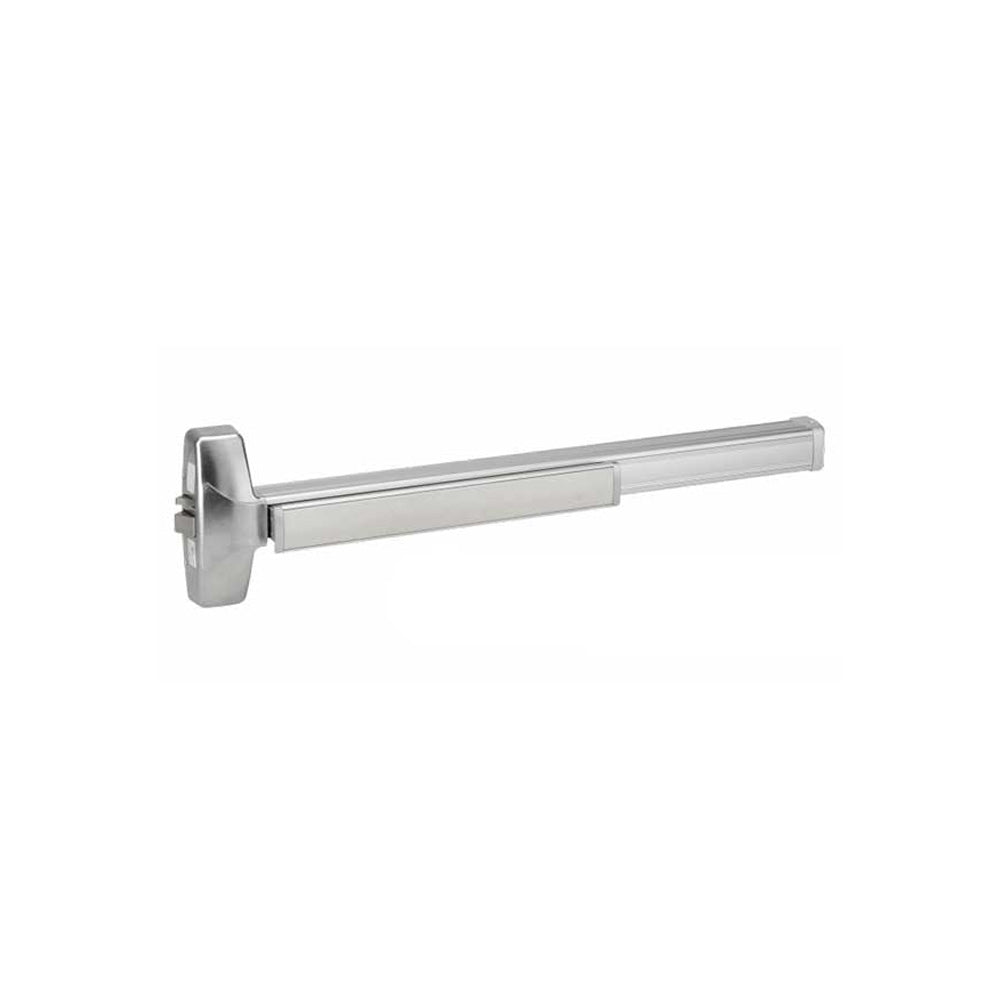

Cal-Royal - A7700EO36 - Rim Exit Device with Fire Rated and 36" Door Width - US32D - Satin Stainless Steel (630)

Cal-Royal - A7700EO36 - Rim Exit Device with Fire Rated and 36" Door Width - US32D - Satin Stainless Steel (630)

$432.63 USD
$561.86 USD $432.63 USD
Sale Sold out

Cal-Royal - A7700EO36 - Rim Exit Device with Fire Rated and 36" Door Width - US32D - Satin Stainless Steel (630)

Features:
  • ANSI A156.3, GRADE 1 heavy duty exit device in surface vertical rod and rim designs.
  • Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim.
  • Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
  • Trims are thru bolted for additional security.
  • Conforms & Meets ADA Regulations.
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • UL Listed for Fire Exit Hardware. 3 hours.
  • (A) label rating on pairs of doors up to 8â’0" x 8’0" swinging in the same or opposite directions.
  • Uncompromising security and safety in single and double-fire exit doors.
  • Chassis-mounted unit construction. Rim and vertical rod devices are non-handed and easily reversible.
Specifications:
For Doors 1-3/4" thick standard optional 2-1/4" thick. 4-1/2" minimum stile width for single or double-door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims. 2-3/4" backset.
Function Exit Only
Handing Non-Handed
Backset 2-3/4"
Door Thickness 1-3/4" (standard), 2-1/4" (optional)
Minimum Stile Width 4-1/2"
Trim Exit Only
UL Listed Fire Exit Hardware, 3 hours
Mounting Wood and machine screws (thru-bolts available on request)
Dimensions 32" actual length, 6" max cut down door size
Finish US32D - Satin Stainless Steel (630)
