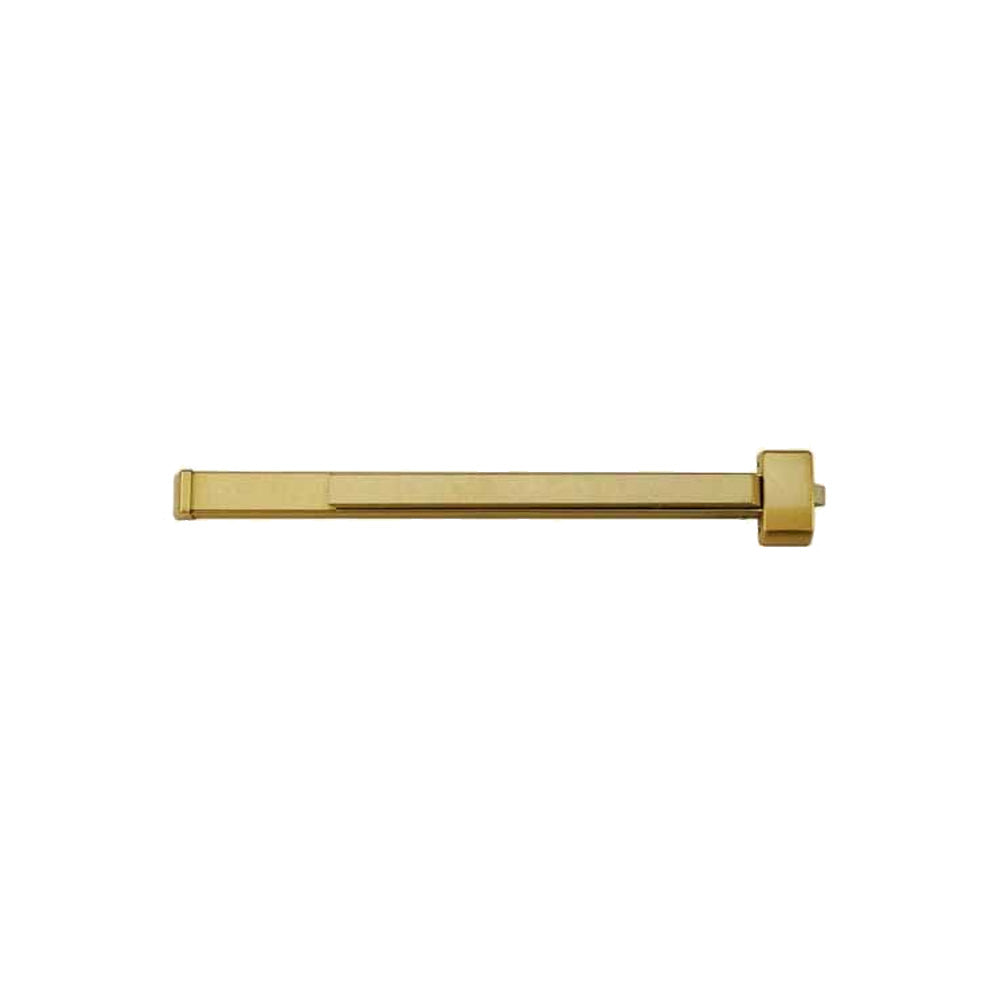

Cal-Royal - A2220EO48 - Rim Push Bar Exit Panic Device with 48" Door Width - Grade 1 - Gold Finish
Cal-Royal - A2220EO48 - Rim Push Bar Exit Panic Device with 48" Door Width - Grade 1 - Gold Finish
Regular price
$141.99 USD
Regular price
$184.58 USD
Sale price
$141.99 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - A2220EO48 - Rim Push Bar Exit Panic Device with 48" Door Width - Grade 1 - Gold Finish
Features:
- ANSI A156.3, Grade 1
- For 36" - 48"
- Conforms and Meets ADA Regulations
- (A) label rating on pairs of doors up to 8’0" x 8’0" swinging in same or opposite directions
- Chassis mounted unit construction
Specifications:
| Door Size | 1-3/4" thick 4-1/2" minimum stile width |
| Chassis | Non-ferrous alloy. Covers stock hollow metal doors with 161 cutout |
| Mounting | Furnished standard with wood and machine screws |
| End Cap | Steel construction |
| Hand | Non handed |
| Latch Bolt | Stainless steel |
| Spring | Stainless steel |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Heavy gauge steel |
| Strike | 239 packed standard |
| Rail Assembly | Powder Coated Steel |
| Dogging | Allen-type key furnished standard |
| Finish | Gold |
| Certifications | ANSI/BHMA A156.3, Grade 1 UL Listed for Panic Americans with Disability Act (ADA) Compliant, 5 lbs. opening force |
Download:
