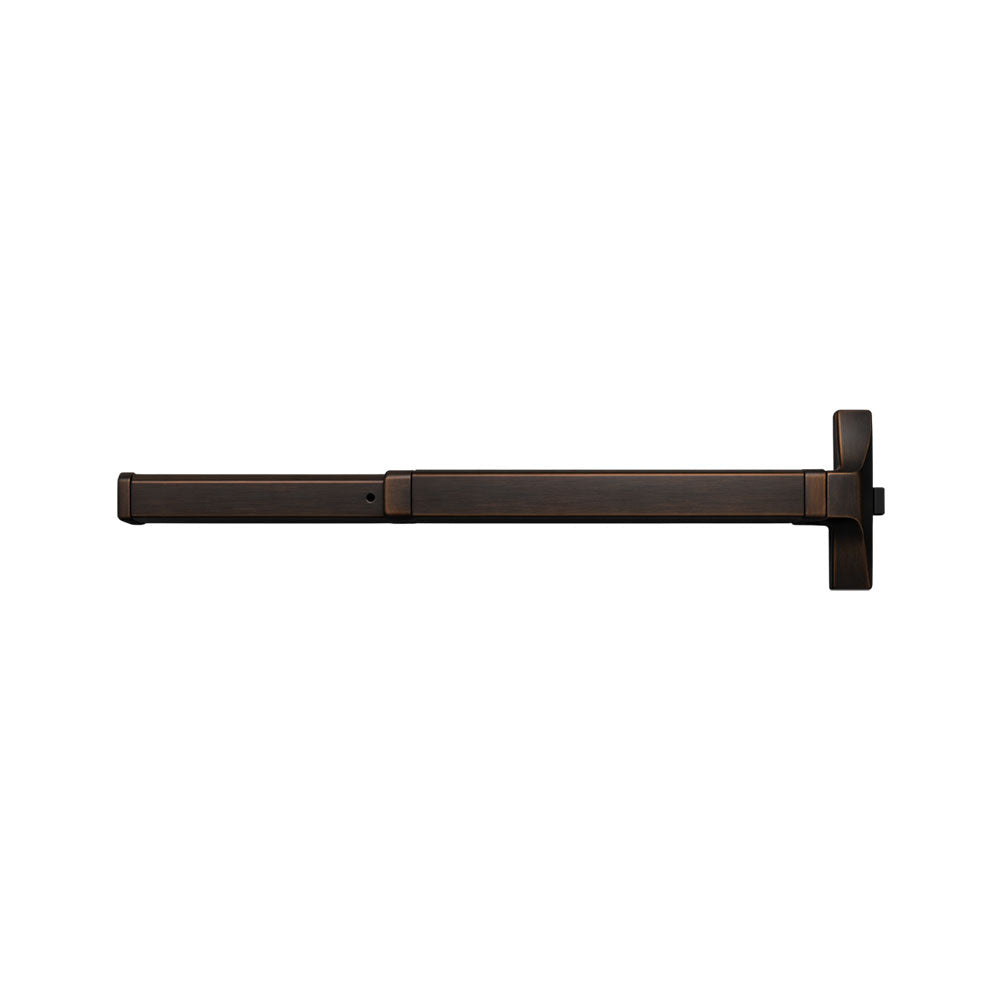

Cal-Royal - 7700 Series GLS Narrow Stile Rim Exit Device - Grade 1

Cal-Royal - 7700 Series GLS Narrow Stile Rim Exit Device - Grade 1

$1,679.81 USD
$2,399.73 USD $1,679.81 USD
Sale Sold out
Color
Door Width
Fire Rating

Cal-Royal - 7700 Series GLS Narrow Stile Rim Exit Device - Grade 1

Features:
  • Designed for narrow stile aluminum door applications
  • Compatible with 7700 and 9800 Series exit devices
  • Complements CVR and SVR vertical rod device designs for a consistent appearance
  • Durable construction for dependable performance in commercial applications
  • Clean, streamlined design ideal for modern storefront installations
Specifications:
For Doors Wood, Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application
Chassis Steel Material
Chassis Cover Zinc Material
Mounting Furnished standard with wood and machine screws. Thru-bolts available upon request.
End Cap Aluminum Material
Hand Non-Handed
Latch Bolt Stainless Steel, 3/4" throw
Spring Steel Material
ANSI Standard A156.3, Grade 1
Rail Assembly Aluminum Material
Strike 246 (Copper), Optional 247 Strike (Copper)
Dogging Feature Allen-type key furnished standard. Cylinder Dogging kit available for 36" bar only. Use PART# 48CD7700
Mullion Available
UL and ULC Listed N-GLS7700 Series for Panic & Safety, N-FGLS7700 Series for Fire Exit hardware for all types of 4' x 8' single doors and 8' x 10' double doors for up to 3 hour fire labeled installations. Conforms to ANSI/UL 10C, ANSI/UL 305 standards
