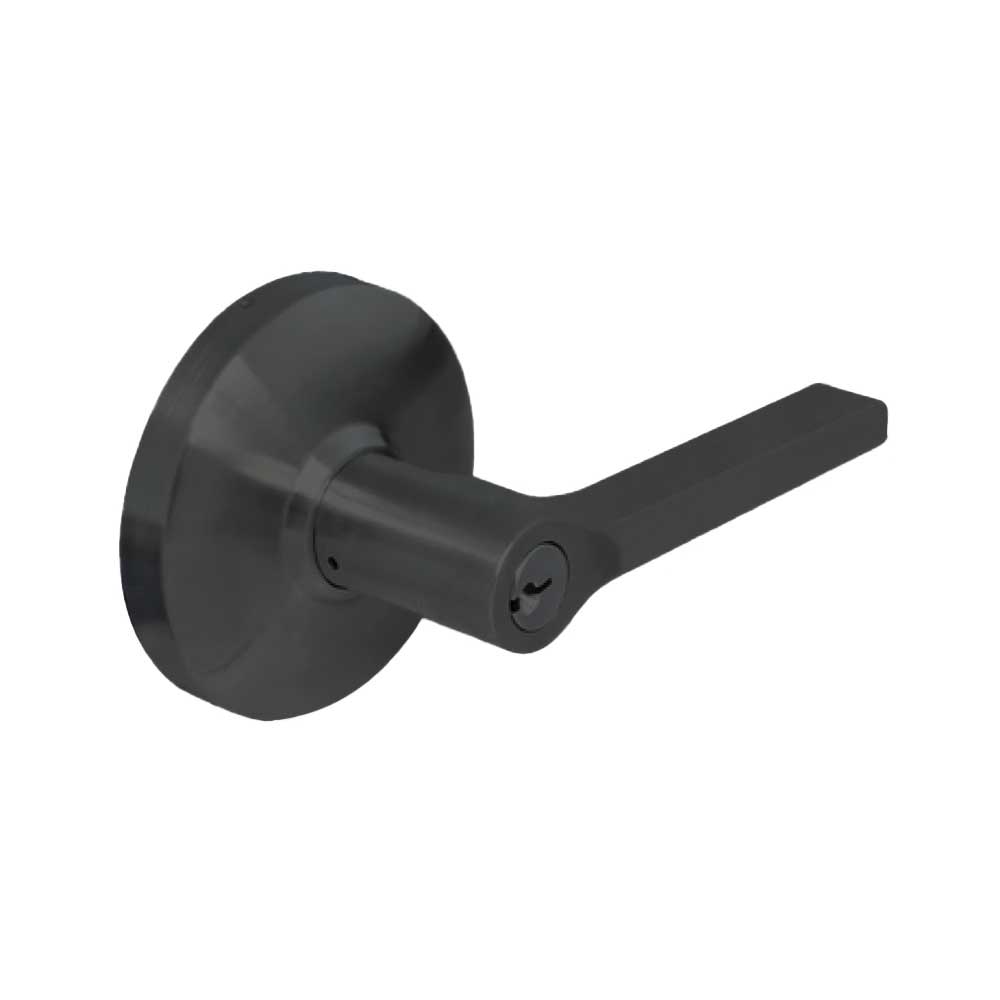

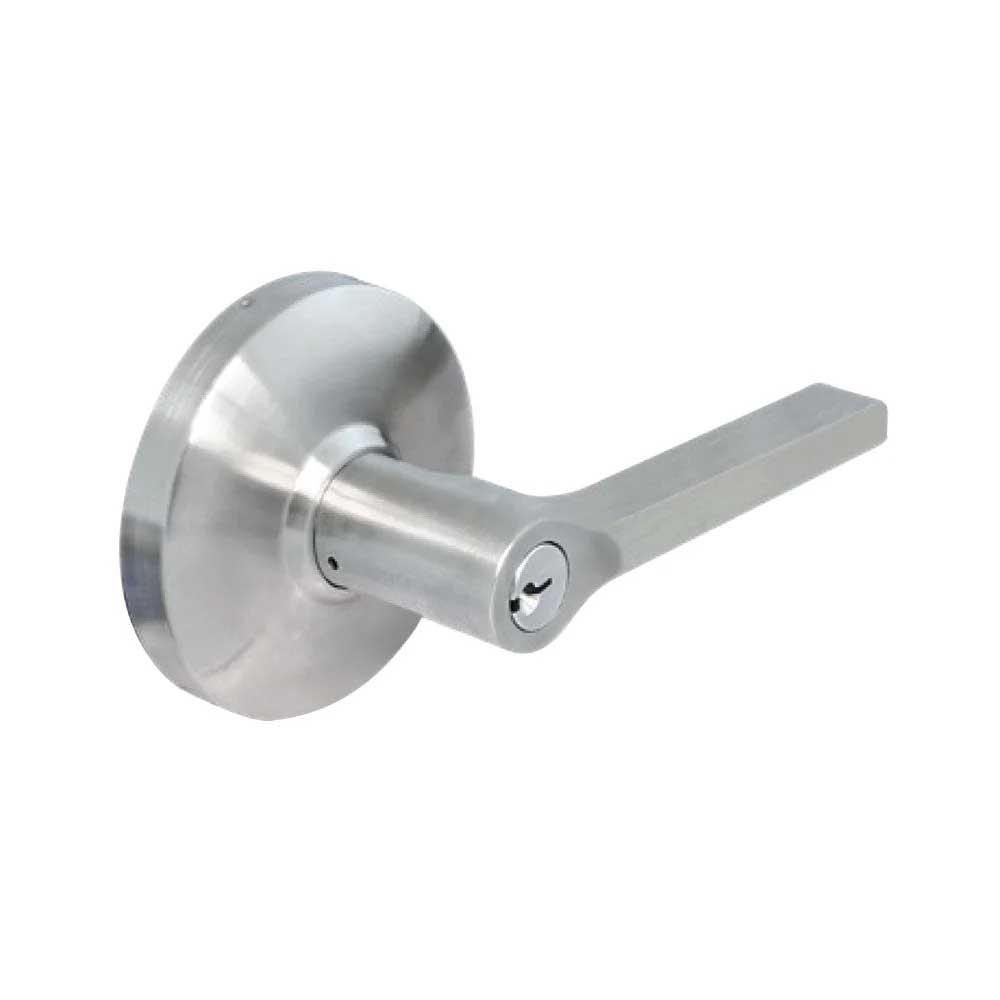

Cal-Royal - 2-LON50 - Cylindrical Clutch Mechanism Exit Tuscany Series Lever Lock - Grade 2
Cal-Royal - 2-LON50 - Cylindrical Clutch Mechanism Exit Tuscany Series Lever Lock - Grade 2
Regular price
$148.66 USD
Regular price
$198.21 USD
Sale price
$148.66 USD
Unit price
per
Couldn't load pickup availability
Cal-Royal - 2-LON50 - Cylindrical Clutch Mechanism Exit Tuscany Series Lever Lock - Grade 2
The Cal-Royal 2-LON50 Tuscany Series Exit Lever Lockset is designed for safe, code-compliant egress in commercial and public buildings. It features a blank plate on the outside with no trim or key access, while the inside lever is always unlocked to allow free and immediate exit. A cylindrical clutch mechanism helps protect against forced rotation and vandalism.
Features:
- ANSI F89 Grade 2 exit lock
- Inside lever always free for immediate egress
- Outside blank plate (no lever, no key access)
- Cylindrical clutch mechanism to deter forced rotation
- For exit-only applications
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Durable construction for commercial applications
- Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
| Applications | Offices, schools, hospitals, apartments, hotels/motels, commercial and public buildings |
| Product Type | Exit Lever Lock |
| Function | Blank plate outside; inside lever always unlocked |
| ANSI Grade | Grade 2 |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 (FF-H 106C) |
| Clutch | Yes (free-turning clutch mechanism) |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Backset | 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional) |
| Latch Faceplate | 2-1/4" x 1-1/8" |
| Latch Throw | 1/2" (Standard brass latch) |
| Strike Plate | ASA 1-1/4" x 4-7/8" (Standard) |
| Housing Material | Cold-rolled steel with zinc dichromate finish |
| Retractor | Precision cast steel |
| Handing | Non-handed |
| Mounting | Concealed screws; optional thru-bolted trim |
| Fire Door Options | Anti-friction deadlatch available for paired fire doors |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
