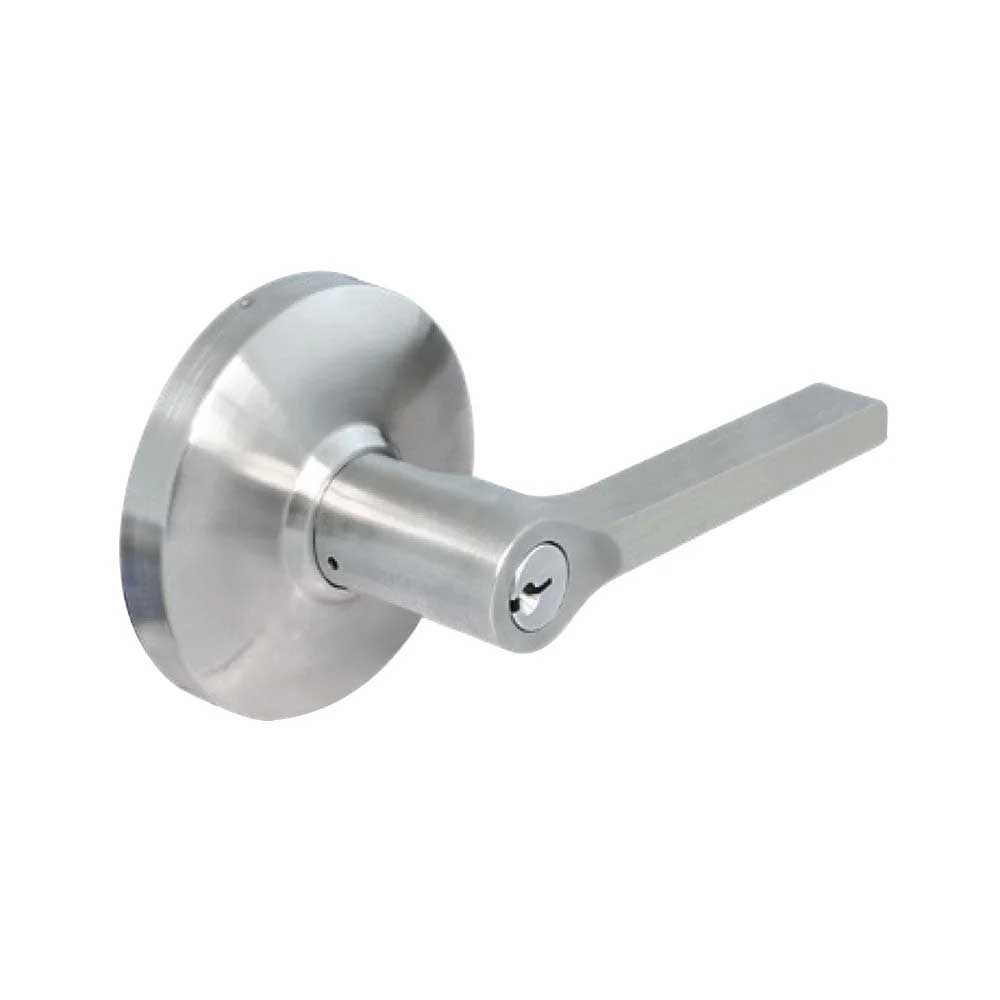

Cal-Royal - 2-LON40 - Cylindrical Clutch Mechanism Tuscany Series Single Dummy Lever Trim - Grade 2
Dummy Lever - Single dummy trim for one side of the door only. Pull-only, non-operational lever with no latch, locking, or internal mechanism. Designed to provide a clean, decorative appearance while matching active Tuscany Series locksets. Ideal for applications where mechanical operation is not required.
Features:
- Single dummy non-operational lever trim
- One side of door only
- Pull-only application
- No latch or locking mechanism
- Full-length 4-3/4" lever handle with 3/8" return
- Non-handed for left- or right-hand doors
- Concealed mounting screws for a clean appearance
- Durable construction for commercial applications
- Designed to match Tuscany Series active locksets
- Meets or exceeds BHMA/ANSI A156.2 Grade 2 standards (trim only)
Specifications:
| Product Type | Single Dummy Lever Trim |
| Function | Pull only, non-operational |
| ANSI Grade | Grade 2 (Trim) |
| ANSI Standard | BHMA/ANSI A156.2 Series 4000 |
| Applications | Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings |
| Door Thickness | 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional) |
| Lever Length | 4-3/4" |
| Lever Return | 3/8" |
| Rose Diameter | 3-3/8" |
| Bore Diameter | 2-1/8" |
| Handing | Non-handed |
| Mounting | Concealed mounting screws |
| Finish | US26D, US1, US10BE, US10, US3, US26, US4 |
