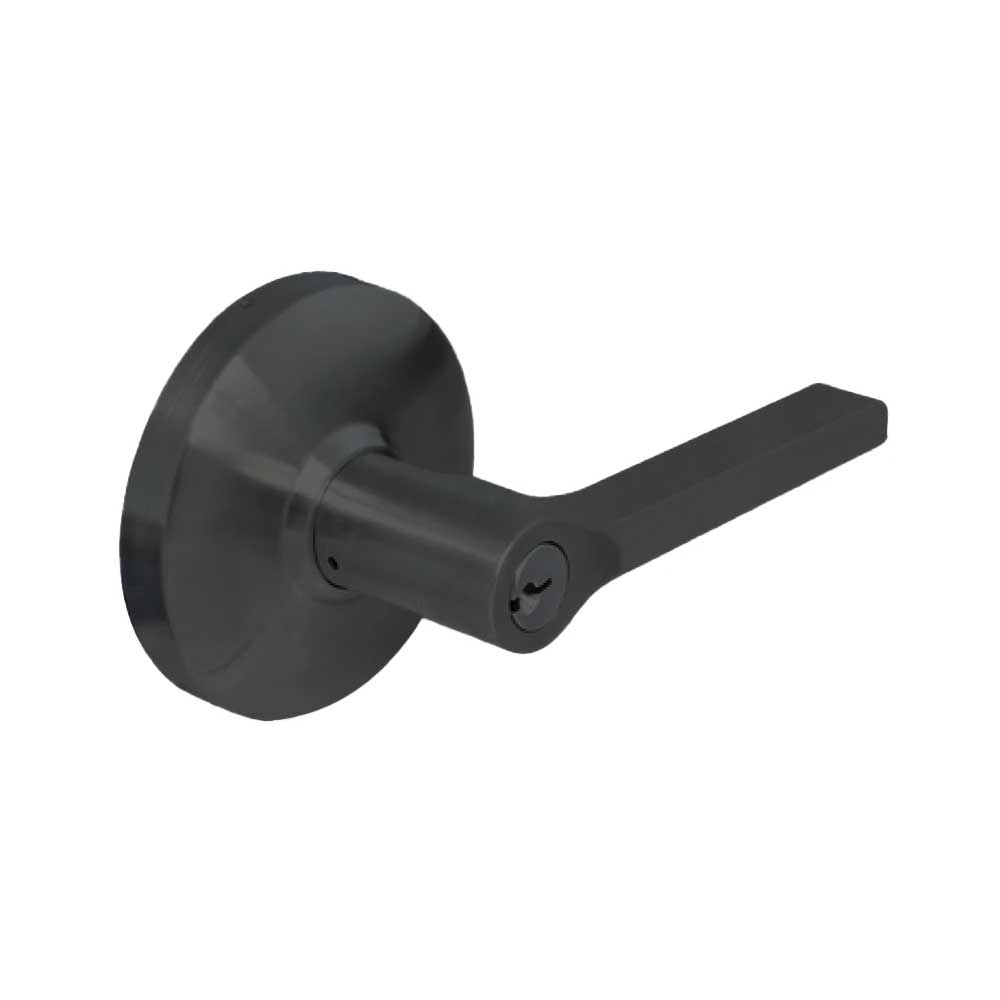

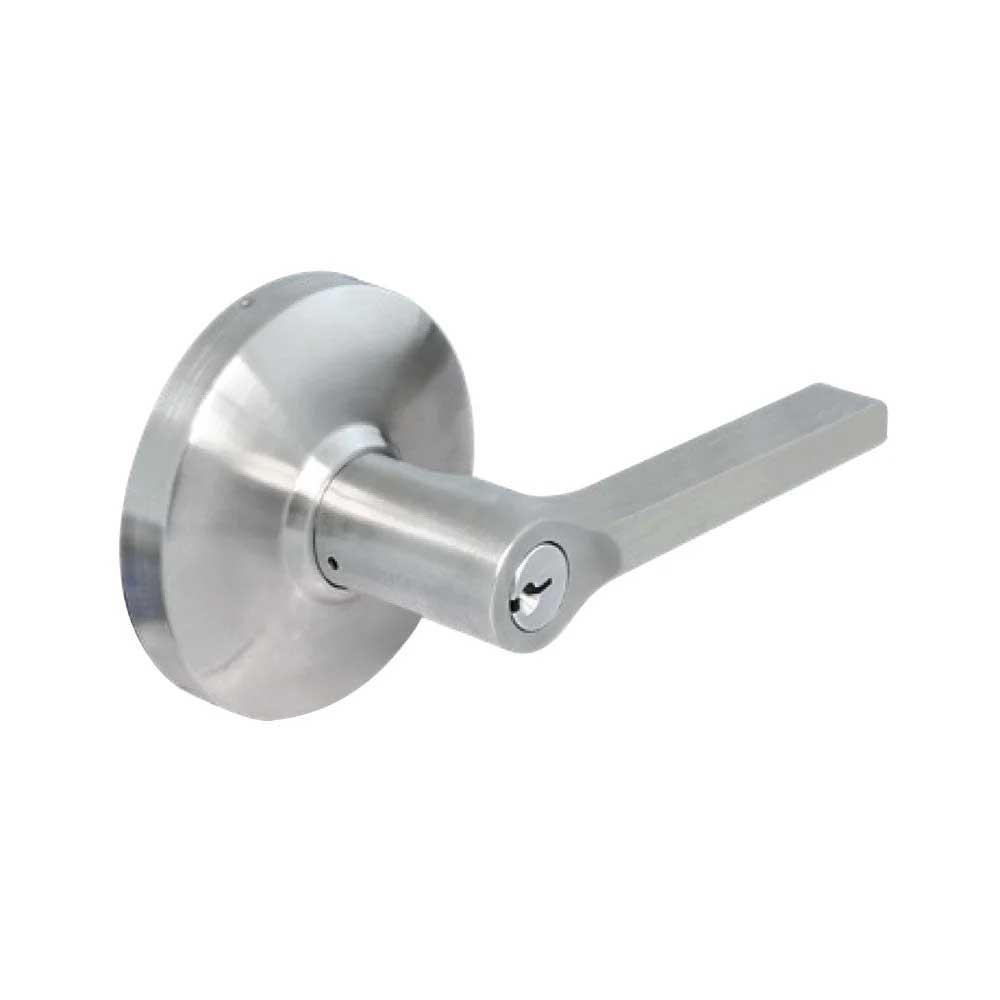

Cal-Royal - 2-LON30 - Cylindrical Clutch Mechanism Passage Tuscany Series Lever Lock - Grade 2

Cal-Royal - 2-LON30 - Cylindrical Clutch Mechanism Passage Tuscany Series Lever Lock - Grade 2

$143.31 USD
$191.08 USD $143.31 USD
Sale Sold out
Color
Lever Style

Cal-Royal - 2-LON30 - Cylindrical Clutch Mechanism Passage Tuscany Series Lever Lock - Grade 2

Passage Lock - Latch bolt operated by lever from either side at all times. Ideal for hallways and non-locking applications where a simple passage function is required.

Features:
  • ANSI F75 Grade 2 Passage Lock
  • No locking function
  • Latch operated by lever from either side
  • For hallways and non-locking applications
  • Full-length 4-3/4" lever handle with 3/8" return
  • Non-handed levers for left- or right-hand doors
  • Concealed mounting screws for a clean appearance
  • Key-removable outside lever for quick and easy re-keying
  • Durable construction designed for commercial applications
  • Meets or exceeds BHMA/ANSI A156.2 Series 4000 standards
Specifications:
Applications Offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Product Type Passage Lock
ANSI Grade Grade 2
ANSI Standard BHMA/ANSI A156.2 Series 4000 (FF-H 106C)
Locking Function No locking function
Clutch Yes (Free-turning handle)
Door Thickness 1-3/8" to 1-3/4" (Standard), 2" to 2-1/4" (Optional)
Lever Length 4-3/4"
Lever Return 3/8"
Rose Diameter 3-3/8"
Bore Diameter 2-1/8"
Backset 2-3/4" (Standard), 2-3/8", 3-3/4", 5" (Optional)
Latch Faceplate 2-1/4" x 1-1/8"
Latch Throw 1/2" (Standard brass latch)
Strike Plate ASA 1-1/4" x 4-7/8" (Standard)
Cylinder 6-pin solid brass
Keyway "C" keyway (Standard)
Housing Material Cold-rolled steel with zinc dichromate finish
Retractor Precision cast steel
Handing Non-handed
Mounting Concealed screws; optional thru-bolted trim
Fire Door Options Anti-friction deadlatch available for paired fire doors
Finish US26D, US1, US10BE, US10, US3, US26, US4
