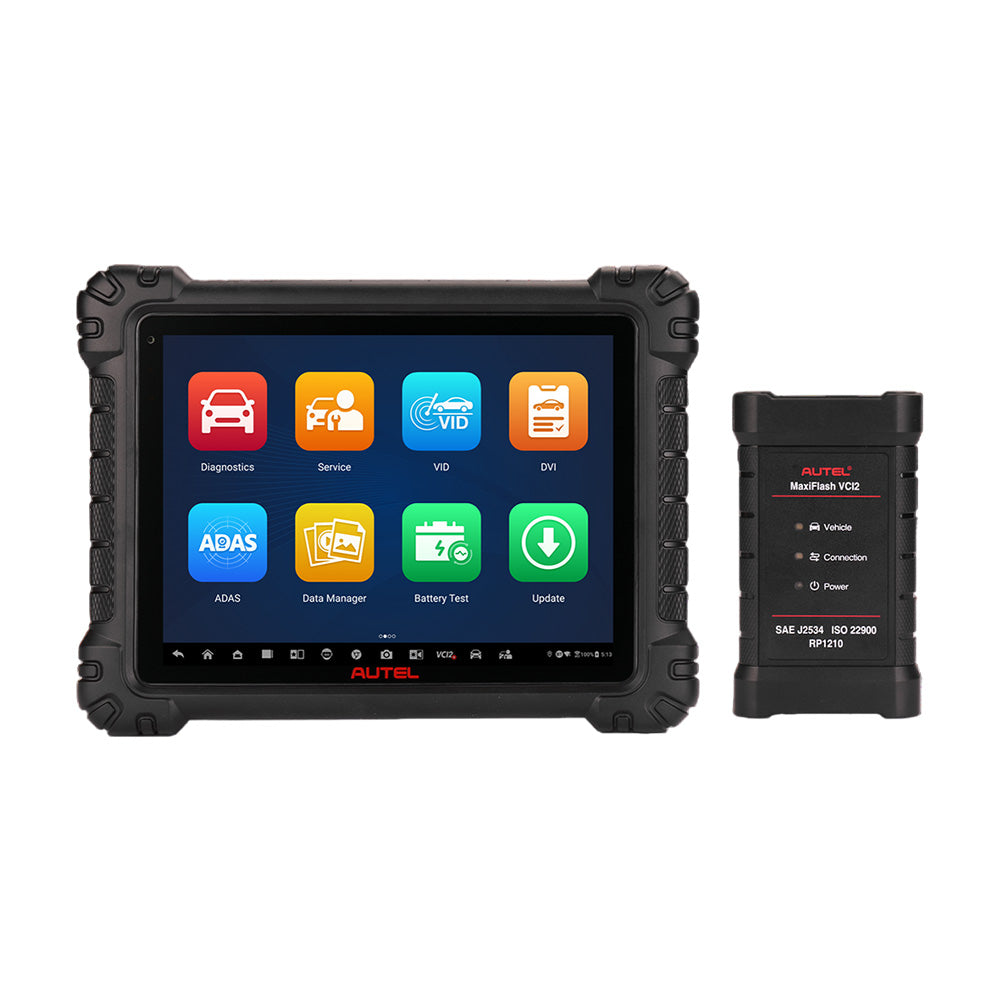

Autel MaxiSys MS909 S2 Advanced AI Diagnostic Tool with MaxiSys Grade VCI2
Autel MaxiSys MS909 S2 Advanced AI Diagnostic Tool with MaxiSys Grade VCI2
Regular price
$3,267.53 USD
Regular price
$4,667.90 USD
Sale price
$3,267.53 USD
Unit price
per
Couldn't load pickup availability
Autel MaxiSys MS909 S2 Advanced AI Diagnostic Tool with MaxiSys Grade VCI2
The Autel MaxiSys MS909 S2 is an advanced AI-powered diagnostic scanner built on the proven MaxiSys platform. Designed for professional technicians, it introduces Topology 3.0 with a clear visual layout of vehicle systems, enhanced Live Data analysis for faster troubleshooting, and MaxiSys-grade VCI2 supporting J2534, D-PDU, RP1210, DoIP, and CAN-FD protocols
Features:
- Topology 3.0 with color-coded ECU map and direct ping tests
- Enhanced Live Data with custom PID groups, overlays, and pre/post snapshots
- Scope-from-Live-Data for faster diagnostics
- MaxiSys VCI2 Pass-Thru supporting J2534, D-PDU, RP1210, DoIP, CAN-FD, and 4 CAN channels
- Remote Expert access for OEM-level programming and coding
- Advanced AI Diagnostic Tool for ADAS calibration and EV battery testing
- OEM resources including wiring diagrams and TSBs
Specifications:
| Processor | 2.7GHz 8-core |
| Storage | 12GB + 256GB |
| Screen | 11" Anti-glare Screen (2176x1600) |
| Android System | Android 13 |
| Battery | 15000 mAh |
| Camera | Rear: 16MP, Front: 16MP |
| DC Fast Charging | DC |
| Wi-Fi | Dual Wi-Fi 6 |
| Bluetooth | Supported |
| VCI | VCI 2 |
| Oscilloscope | Not Included |
| Multimeter | Not Supported |
| Charging Dock | Not Included |
| Voice Assistance | Supported |
| Topology | Based on ECU Network + Module Location |
| Auto Scan | Yes |
| Graphic Live Data Screen | Multi-system |
| DoIP | Supported |
| CAN-FD | Supported |
| J2534 | Supported |
| D-PDU | Supported |
