AUTEL

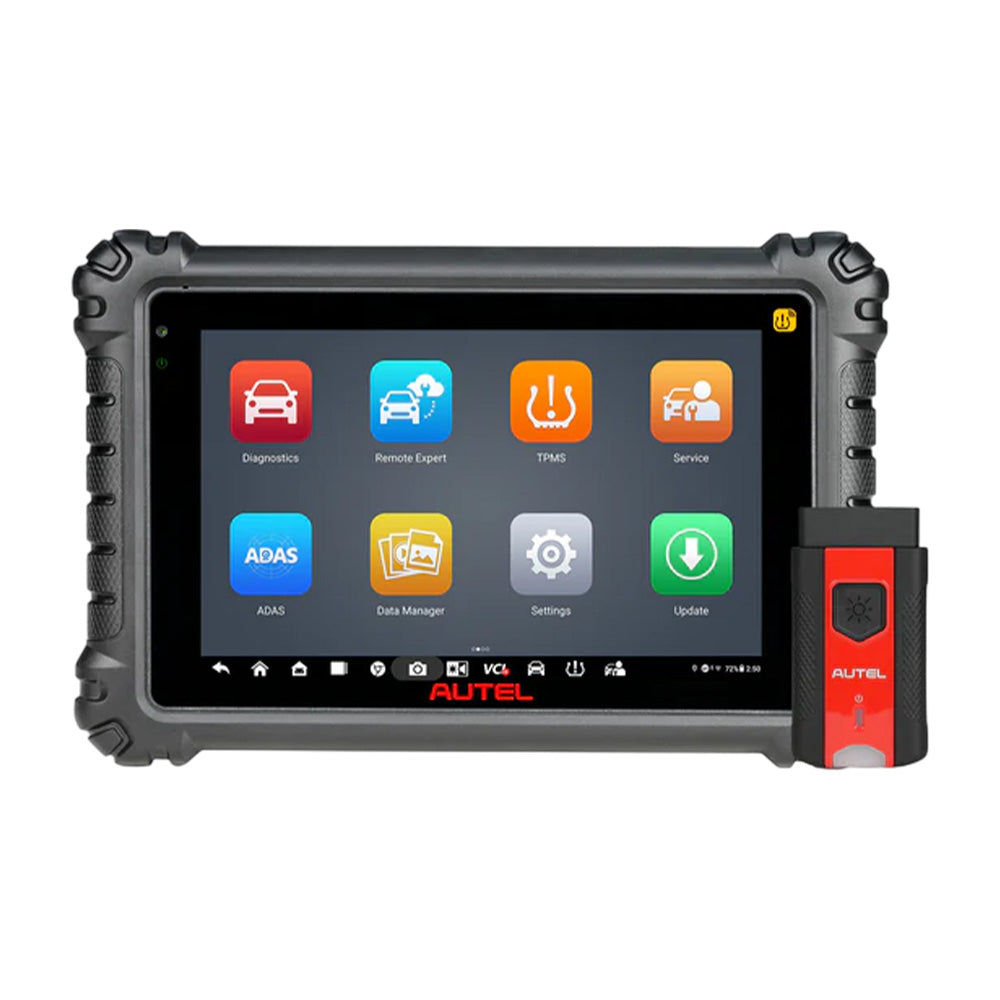

Autel MaxiSYS MS906 Pro2-TS OE Level Full System Wireless Diagnostic Scanner with Full TPMS Coverage
Autel MaxiSYS MS906 Pro2-TS OE Level Full System Wireless Diagnostic Scanner with Full TPMS Coverage
Regular price
$1,975.05 USD
Regular price
$2,567.57 USD
Sale price
$1,975.05 USD
Unit price
per
Couldn't load pickup availability
Autel MaxiSYS MS906 Pro2-TS OBDII Bi-Directional and OE Level Wireless Diagnostic Scanner with Full TPMS Coverage
The Autel MS906 PRO2-TS is an advanced 8-inch diagnostic and TPMS tablet, offering all-systems diagnostics, OE-level coding and full TPMS programming. With an octa-core processor, 4GB RAM/128GB storage, and built-in TPMS antenna, it ensures faster performance, Tesla coverage, and secure gateway access.
Features:
- Professional 8-inch wireless diagnostic tablet with MaxiVCI V200 and full TPMS service support.
- Wide coverage for U.S., Asian, and European vehicles, supporting diagnostics, service, and TPMS functions.
- Performs complete system diagnostics: read/clear codes, live data, freeze frame, active tests, special functions, adaptations, and coding.
- Advanced TPMS features including sensor activation, reading, relearning, and 1-Sensor programming for nearly all vehicle makes.
- Built-in TPMS antenna (315/433MHz; 2.4GHz BLE) with Tesla compatibility and broad vehicle support.
- Equipped with an octa-core processor, 4GB RAM + 128GB storage, 16MP camera, and responsive 8-inch touchscreen for smooth performance.
- Supports AutoVIN and AutoScan 2.0 with ADAS component recognition, Pre/Post Scan reporting, and cloud-based data management.
- Offers 40 plus maintenance and reset functions with direct-to-service access and step-by-step guidance.
- Authorized for secure gateway access via AutoAuth for Mercedes-Benz, Nissan, Stellantis, and supports VAG SFD with license purchase.
- Comes with one year of free software updates, a 1-year limited warranty, and a protective blow-molded carrying case.
Specifications:
| Operating System | Android 10 |
| Processor | Octa-core processor (2.2 GHz + 1.8 GHz) |
| Memory | 4 GB RAM & 128 GB on-board memory |
| Display | 8.0-inch TFT-LED capacitive touch screen, 1920 x 1200 P resolution |
| Connectivity | Wi-Fi (802.11 b/g/n), USB 2.0, USB Type-C, Bluetooth V2.1+EDR Class1, HDMI, SD Card (up to 32 GB) |
| Camera | Rear: 16 MP autofocus with flashlight; Front: 16 MP |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio | Input: Microphone; Output: Speaker, 3.5 mm stereo headset jack |
| Battery | 11,600 mAh 3.7 V lithium-polymer, charging via 12 V AC/DC or USB Type-C |
| Input Voltage | DC 12V/3A; USB-C 5V/3A |
| Power Consumption | 5W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Housing | Durable plastic with protective rubber boot |
| Dimensions (WxHxD) | 260 x 170 x 30 mm (10.0" x 6.9" x 1.4") |
| Weight | 0.962 kg (2.12 lb) |
| Protocols | ISO 9142-2, ISO 13400, ISO 14230-2, ISO 15765-4, K-Line, L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898 (High, Mid, Low, Single Wire), GM UART, UART Echo Byte, Honda Diag-H, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN, CAN FD |
Package Includes:
- MS906Pro2-TS 8-inch wireless diagnostic tablet
- MaxiVCI V200 vehicle communication interface (wireless)
- Power adapter and USB-C cable included
- Protective carrying hard case
- Quick reference guide and user manual
