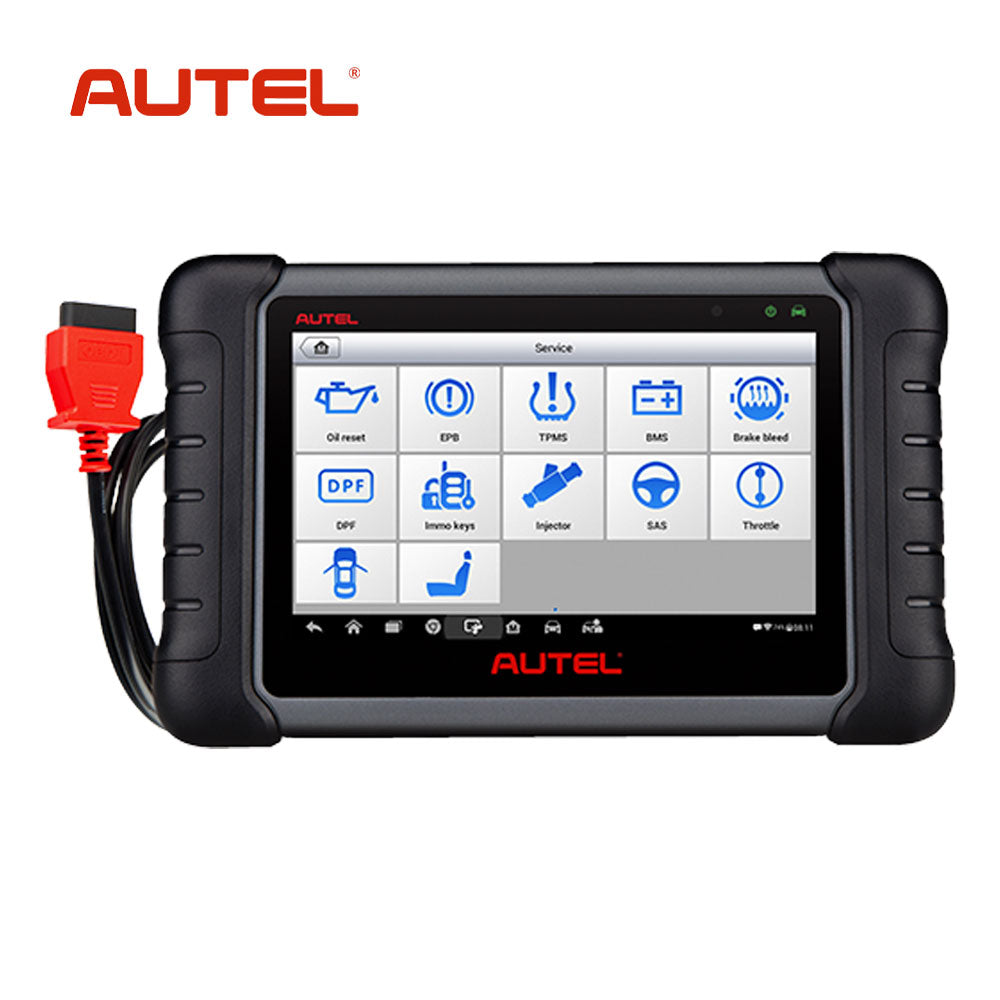

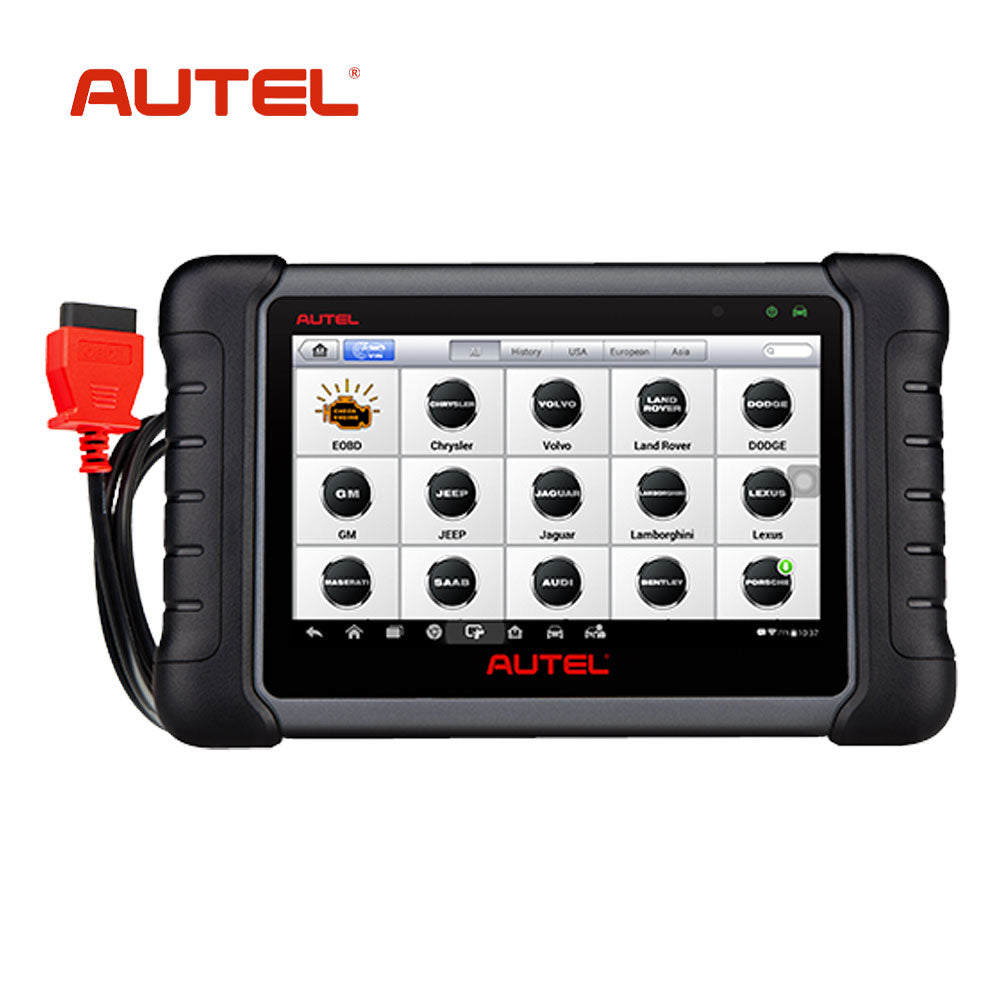

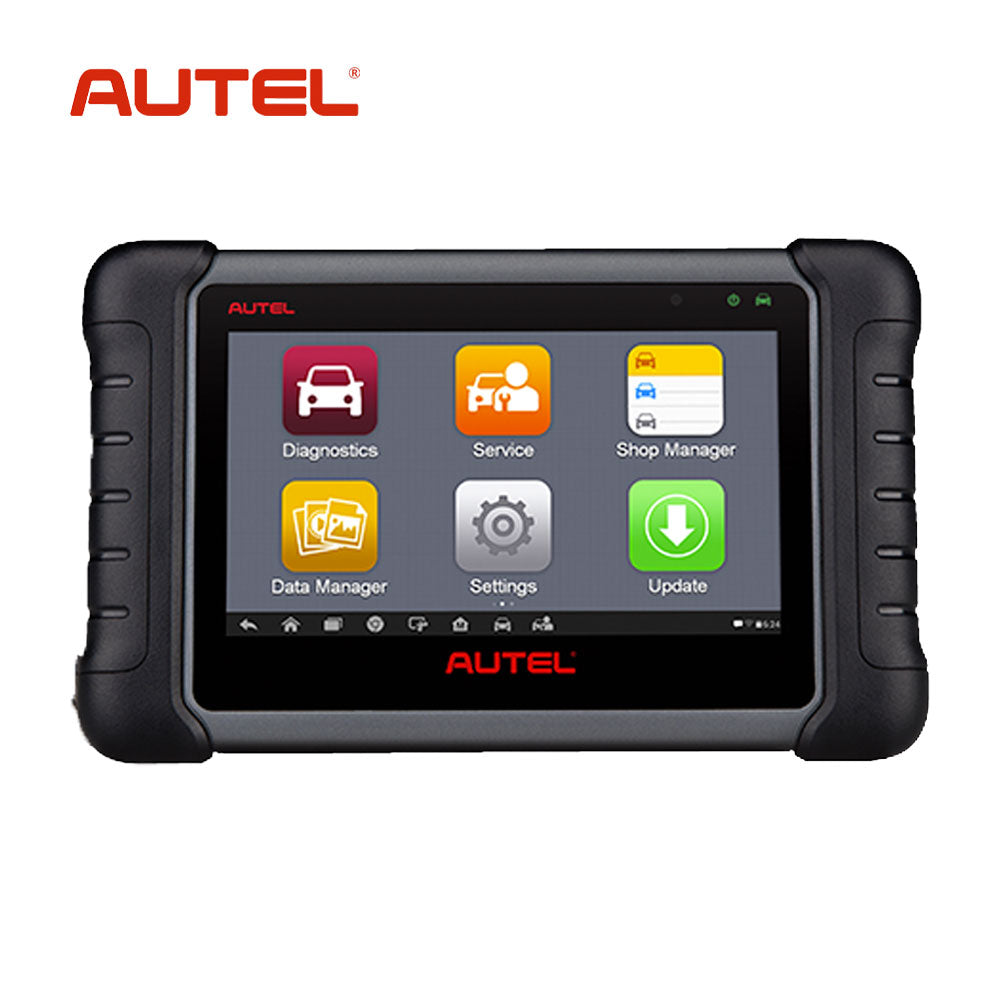

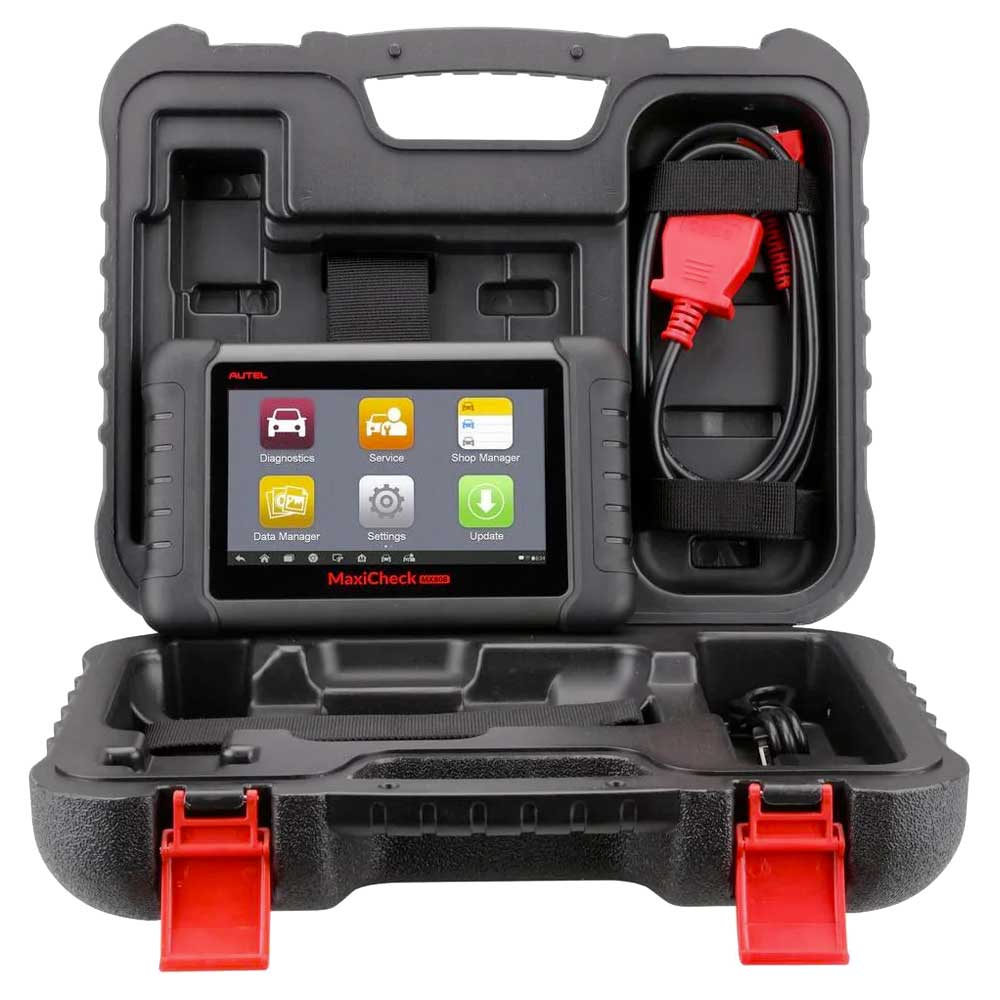

Autel MaxiCheck MX808 OBD2 All System Diagnostic Scanner
When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.
Description:
- Read/clear codes for all available systems
- Display live data in text, graph & analog for easy data review
- Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
- NEW! Support active test and complete special functions
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- Relearn parking brake pad after replacement
- Support forced DPF regeneration and adjusting injectors
- Support battery registration and reset
- NEW! Compatible with Videoscope
Specification
| Recommended Use | Indoor |
| Operating System | Android™ 4.4.4, KitKat |
| Processor | Cortex-A9 processor(1.6 GHz) |
| Memory | 64G |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi HDMI Type A Micro SD card slot(supports up to 32GB) |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A Output: buzzer |
| Power and Battery |
3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 7 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V |
| Operating Temp | -10to60°C(14to140°F) |
| Storage Temp | -20to70°C(-4to158°F) |
| Operating Humidity | 5%-95%non-condensing |
| Dimensions(WXHXD) | 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4) |
| Net Weight | 885g(2.31|b.) |
| Protocols |
ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610,GM UART UART Echo Byte Protocol Honda Diag-H Protocol,TP2.0,TP1.6 |
Comparison:
MaxiCheck MX808 Flyer
MaxiCheck MX808 Quick Start Guide
