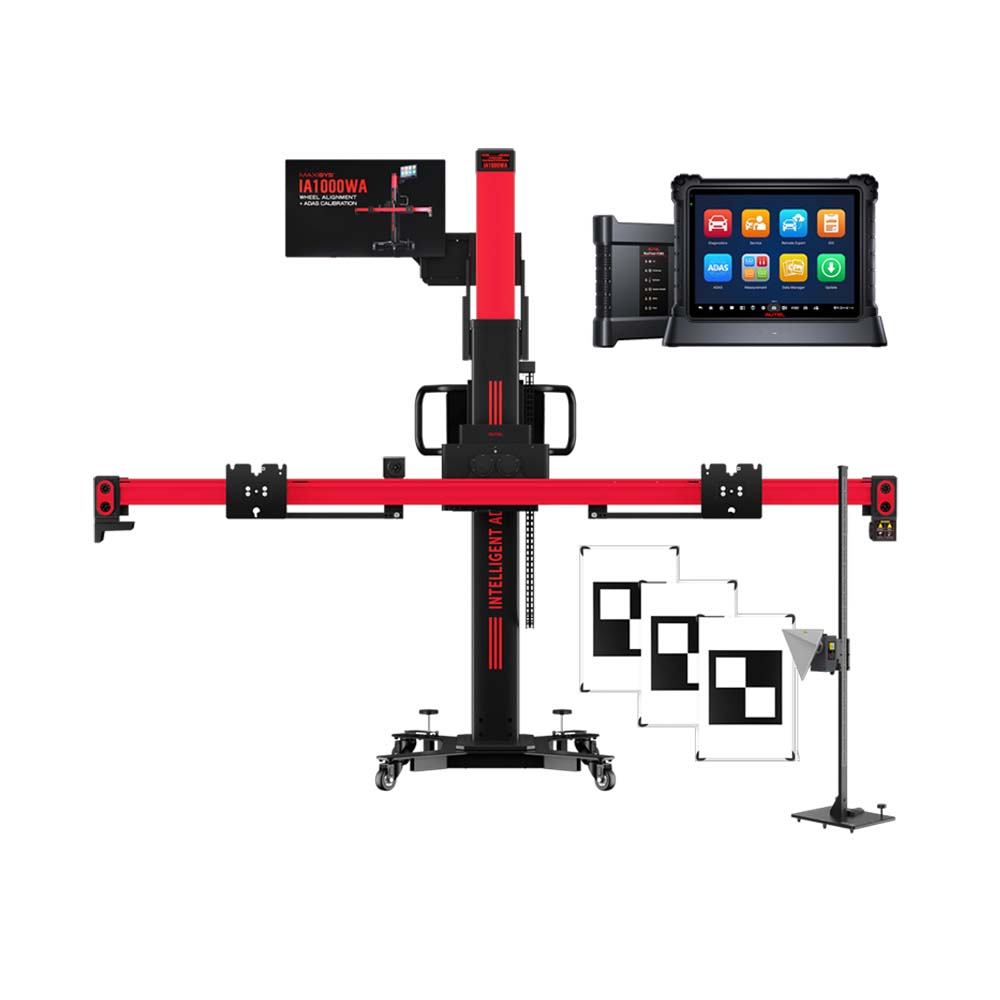

Autel IA1000AST Automated Wheel Alignment and ADAS Calibration System with MaxiSYS Ultra S2 Diagnostic Tablet

Autel IA1000AST Automated Wheel Alignment and ADAS Calibration System with MaxiSYS Ultra S2 Diagnostic Tablet

The Autel IA1000 is a next-generation automated ADAS calibration, wheel alignment, and advanced diagnostic system engineered to maximize productivity, precision, and workflow efficiency. Featuring robotic one-step target positioning, laser-guided calibration, and automated floor compensation, the IA1000 minimizes setup errors while delivering highly accurate calibration and alignment results. Powered by the MaxiSYS Ultra S2 platform, it combines advanced diagnostics, automated target placement, and OEM-compliant procedures into a comprehensive solution for modern automotive repair facilities.

Features:

• Fully automated ADAS calibration, wheel alignment, and vehicle diagnostics platform.
• Six high-definition cameras provide industry-leading measurement accuracy of up to 0.02°.
• 5-way robotic forward-facing target positioning automates calibration setup and improves efficiency.
• Laser-guided positioning for Blind Spot Monitoring (BSM), Adaptive Cruise Control (ACC), and Around View Monitor (AVM) calibrations.
• Automated floor compensation eliminates manual adjustments and setup errors.
• Advanced wheel alignment functions provide detailed measurements beyond standard camber, caster, and toe readings.
• Validated target position reporting records every calibration step for documentation and compliance requirements.
• OEM-sourced calibration procedures help ensure manufacturer-compliant service operations.
• Digital Go/No-Go confirmation verifies proper target placement before calibration begins.
• Powered by the MaxiSYS Ultra S2 diagnostic platform with Topology 3.0 for advanced system analysis.
• Comprehensive coverage for U.S., Asian, and European vehicle manufacturers.
• Scalable platform with multiple ADAS calibration and wheel alignment package options.
• Optional digital Lane Departure Warning (LDW) targets eliminate manual target selection and storage requirements.
• Auto-projected digital targets reduce setup time and minimize technician error.
• Self-adjusting display brightness ensures optimal visibility in varying workshop environments.
• Over-the-air software updates provide access to the latest OEM calibration procedures and target coverage.
• Ideal solution for collision centers, alignment shops, dealerships, and advanced automotive service facilities.

Specifications:

• Model: AUTEL-CSC1000
• Rated Power: 360 W
• Power Supply: 100-264 V, 50/60 Hz
• Calibration Frame Folded Dimensions: 800 x 1000 x 1900 mm (31.50 x 39.37 x 74.80 in)
• Crossbar Unfolded Length: 2700 mm (106.30 in)
• Crossbar Folded Length: 400 mm (15.75 in)
• Calibration Frame Height Range: 1670–2770 mm (65.75 - 109.06 in)
• Crossbar Height Range: 300–2500 mm (11.18 - 98.43 in)
• Number of Cameras: 6
• Single Camera Resolution: 3072 x 2048 Pixels
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Compatible Tablet: MaxiSYS Ultra Tablet Series

What's Included:

• IA1000 Calibration Frame
• Accessories
• Ultra S2 Tablet
• IA1000 Activation Card
• LDW Targets
• All Systems Calibration Equipment

Downloads:

• MaxiSYS IA1000 Package List & Quick Reference Guide 1
• MaxiSYS IA1000 Package List & Quick Reference Guide 2
• MaxiSYS IA1000 User Manual
