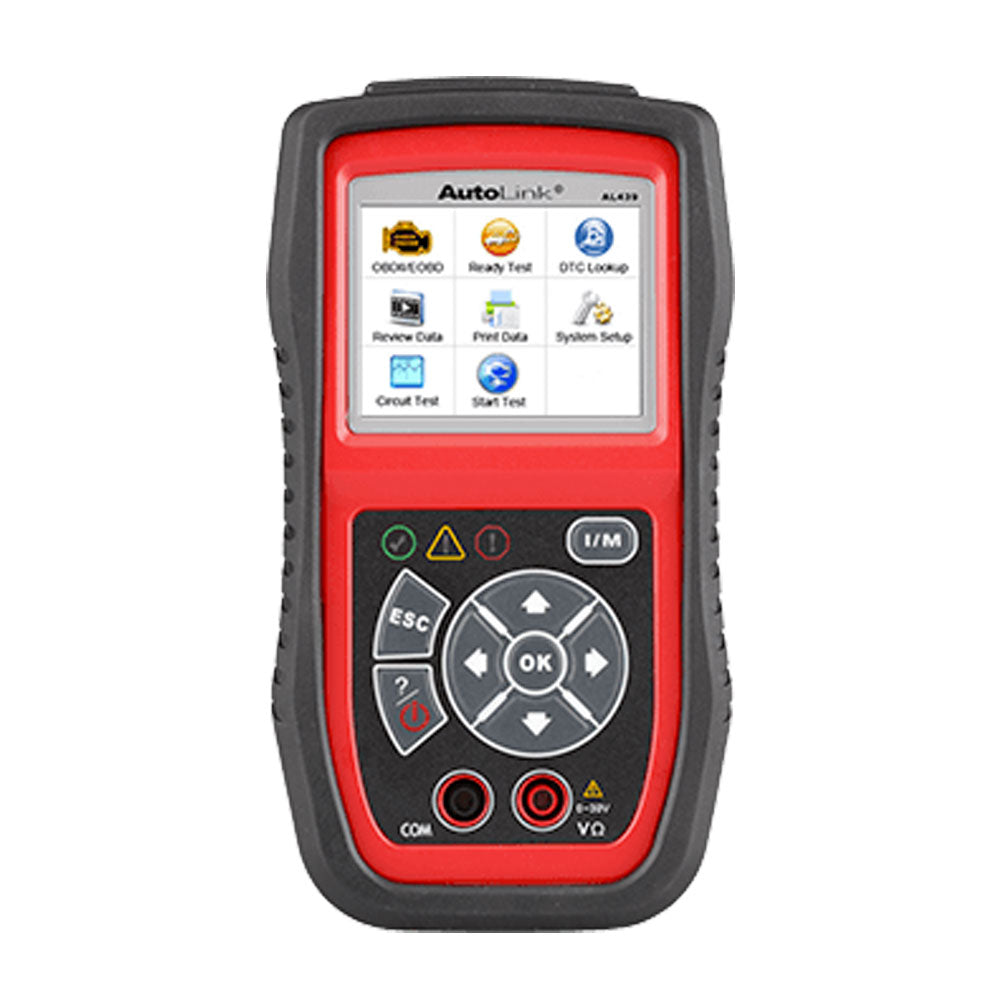

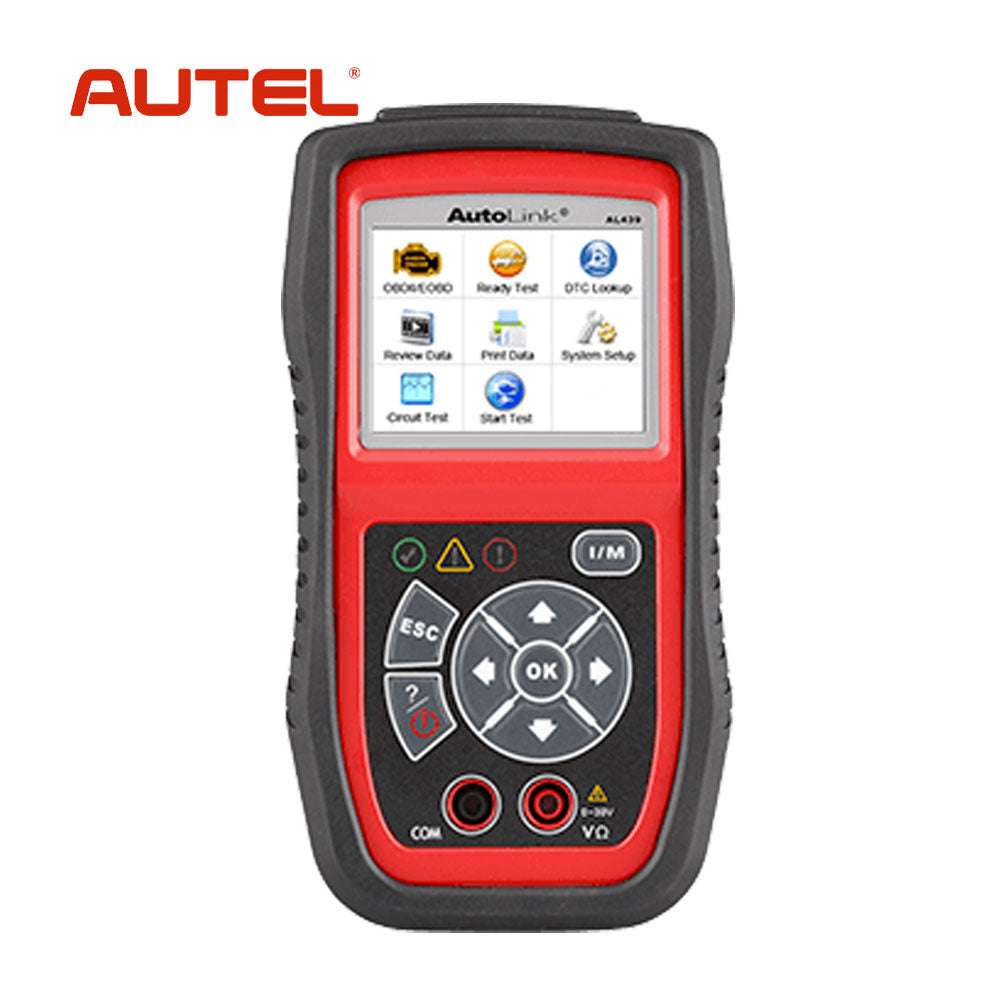

Autel AutoLink AL439 OBD2/EOBD Code Reader and Electrical Testing Tool
Autel AutoLink AL439 OBD2/EOBD Code Reader and Electrical Testing Tool
Regular price
$88.99 USD
Regular price
$106.79 USD
Sale price
$88.99 USD
Unit price
per
Couldn't load pickup availability
Autel AutoLink AL439 OBD2/EOBD Code Reader and Electrical Testing Tool
The AutoLink AL439 OBD II/EOBD Scanner supports all 10 OBDII test modes, and performs I/M readiness/emissions testing. An OBDII cable, voltage test probes and an AVO meter included for testing the starting, circuit, voltage, resistance, and charging systems. It is updatable via PC, and a 1-year tool warranty and free lifetime software updates are available with purchase.
Features:
- Works on most 1996 and newer vehicles (OBD II & CAN)-domestic and import
- Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
- Easy-to-read AVOmeter allows you to read voltage and resistance at the fingertip
- Capable of diagnosing 12V charging systems, starting systems and condition of discharged battery
- Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
- Easily determines the cause of the Check Engine Light ( MIL)
- Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
- Turns off Check Engine Light (MIL), clears codes and resets monitors
- Displays monitor and I/M readiness status (emissions)
- Reads live PCM datastream, live O2 sensor test data, freeze frame data
- Graphs data (1996 and newer)
- Troubleshooter code tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
- Memory/battery backup for off-vehicle data review and analysis
- Multilingual menu and DTC definitions- English, Spanish and French, etc.
- Retrieves vehicle information (VIN, CIN and CVN)
- Internet updateable
- Prints data via PC
- Read and Erase Engine DTCs
- Tests Starting, Circuit and Charging Systems
- AVO Meter Tests Voltage and Resistance
- Covers Domestic, Asian and European Vehicle Manufacturers (1996+)
- Display Live and Freeze Frame Data
- One-Touch I/M Readiness/ LED Indicator
- FREE Lifetime Software (lifetime of tool)
- Includes Voltage Test Probes and OBDII Cable
- Support All 10 OBDII Test Modes
- Easy-To-Use Navigation/ Software Updates via PC
Specification:
| Display | TFT color display (320 x 240 dpi) |
| Operating Temperature | 0 to 60°C (32 to 140 F°) |
| Storage Temperature | -20 to 70°C (-4 to 158 F°) |
| Length\Width\Height | 147 mm (5.79”)\96.4 mm (3.80”)\37 mm (1.46”) |
| Weight | 0.3kg (0.8lb, without wire) or 0.68kg (1.82lb, with wire) |
