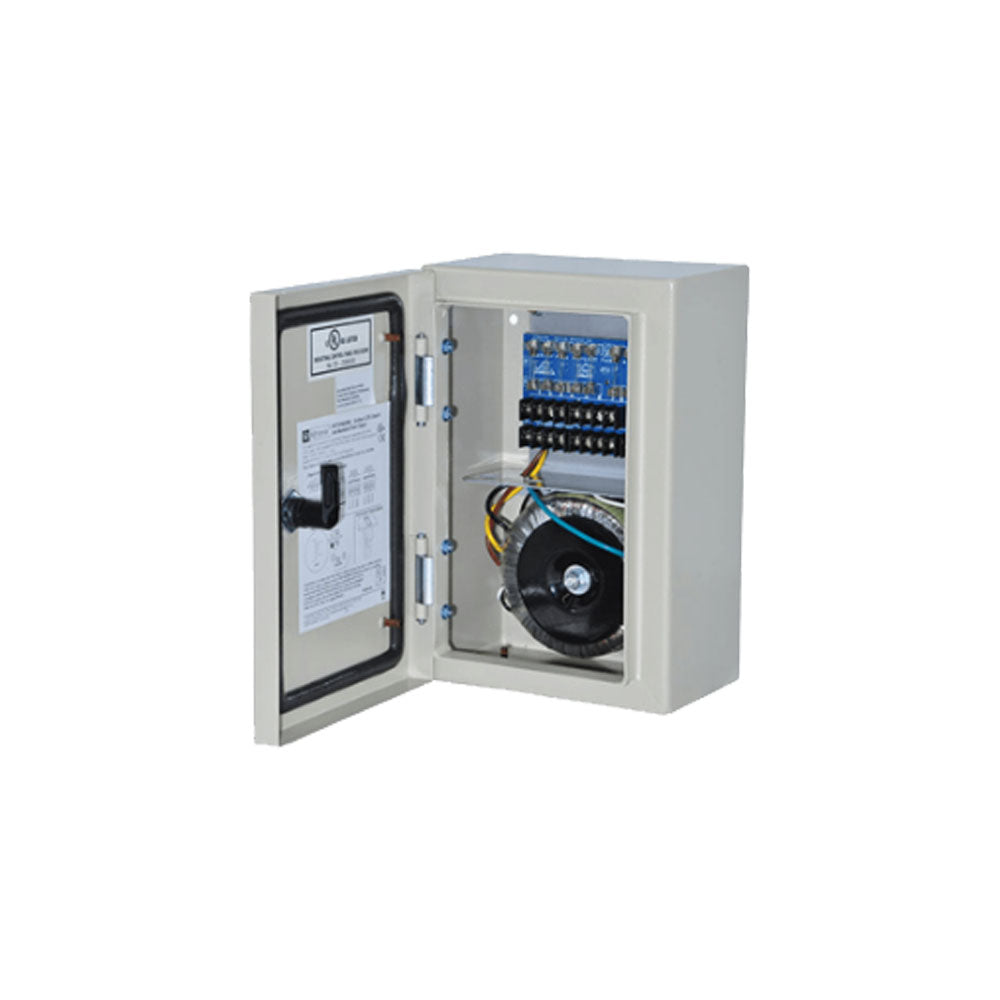

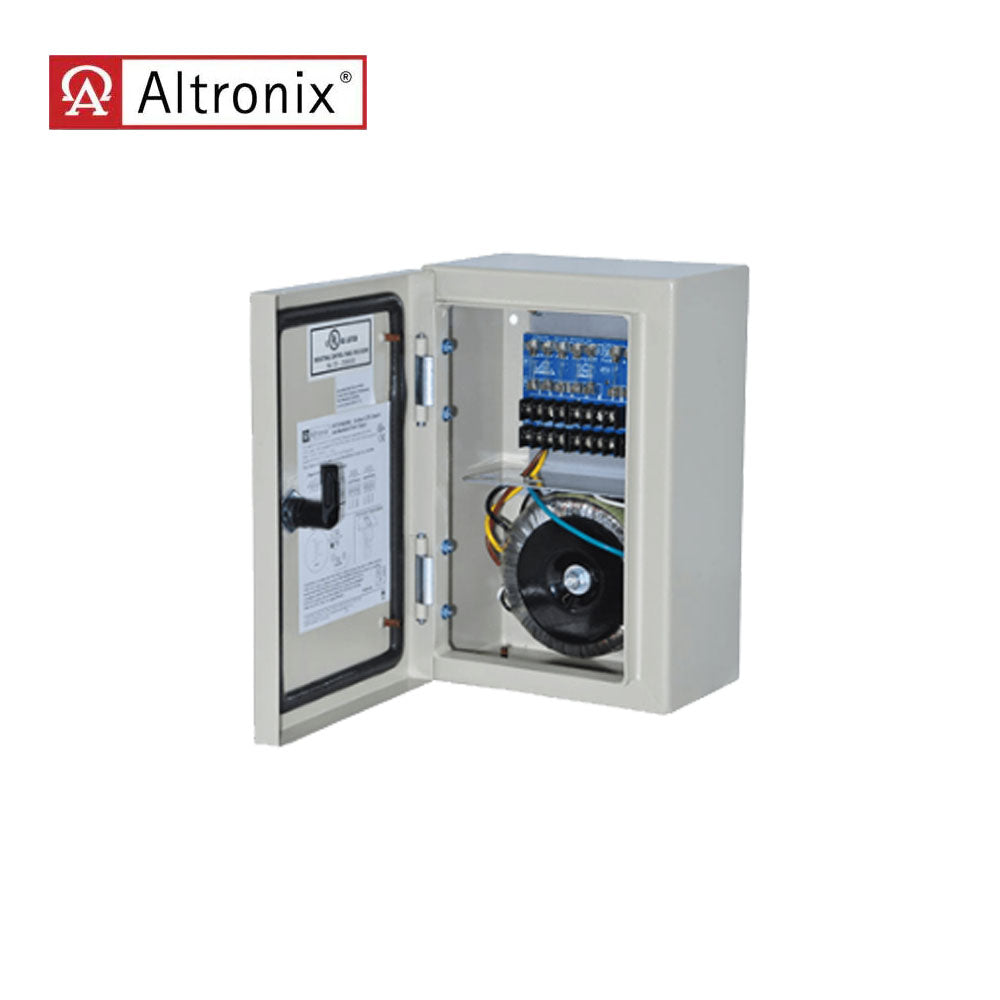

Altronix - WPTV248300UL - Outdoor CCTV AC Power Supply - 115VAC(50 or 60Hz) at 2.7A Input - 8 Fuse Protected Outputs 24VAC at 12.5A or 28VAC at 10A - Grey Enclosure

Altronix - WPTV248300UL - Outdoor CCTV AC Power Supply - 115VAC(50 or 60Hz) at 2.7A Input - 8 Fuse Protected Outputs 24VAC at 12.5A or 28VAC at 10A - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC, 50/60Hz, 2.7A.

Output:

• Eight (8) fuse protected outputs.
• 24VAC @ 12.5A (300VA) supply current. or 28VAC @ 10A (175VA) supply current.
• Outputs are rated @ 3.5A.
• Surge suppression.

Features:

• Secondary fuse rated @ 5A/250V.
• Unit maintains camera synchronization.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).
• NEMA 4 Rated enclosure for outdoor use.

Temperature:

• Operating Temperature: 0�� C to 49�� C (32�� F to 120�� F)
• Storage Temperature: - 20�� C to 70�� C ( - 4�� F to 158�� F)
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.): 154 BTU/Hr.
• System AC input VA requirement: 202.4VA.


Enclosure:

• NEMA 4/IP 65 Rated enclosure for outdoor use.
• Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).

Download:

• Installation Instruction
