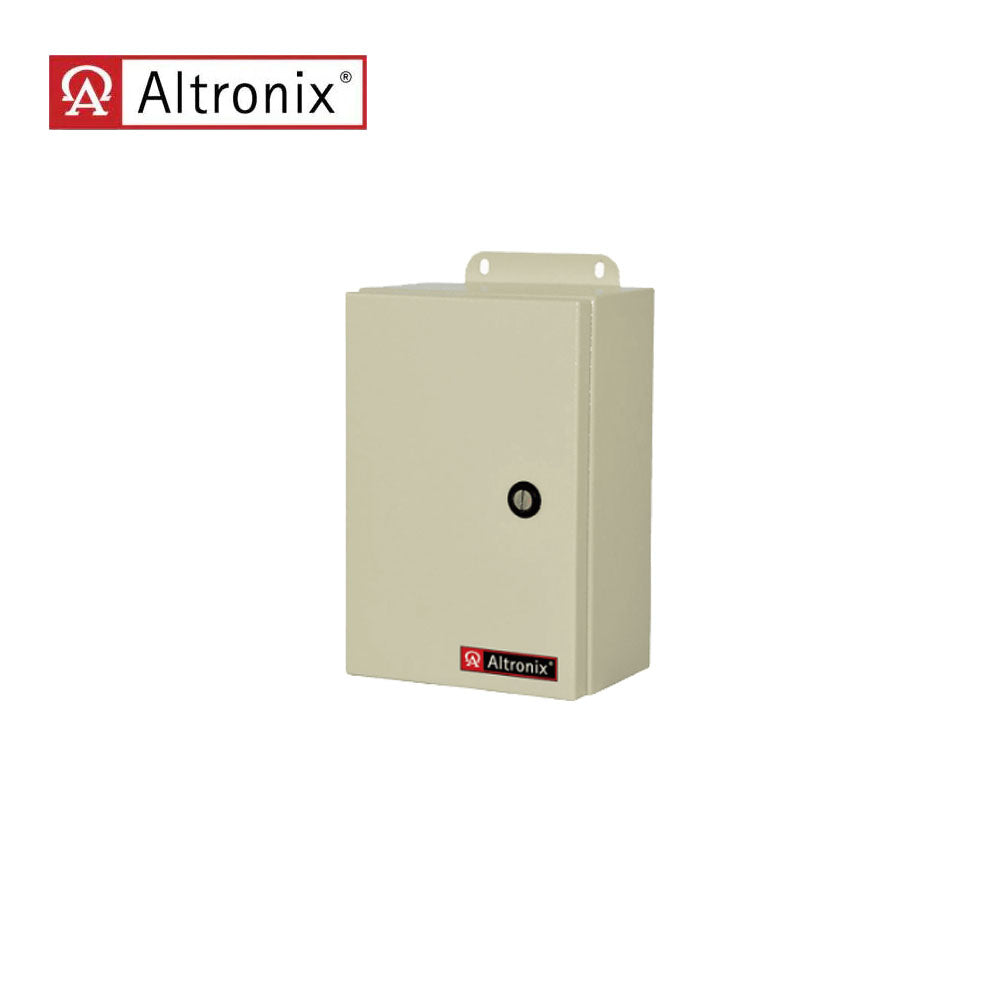

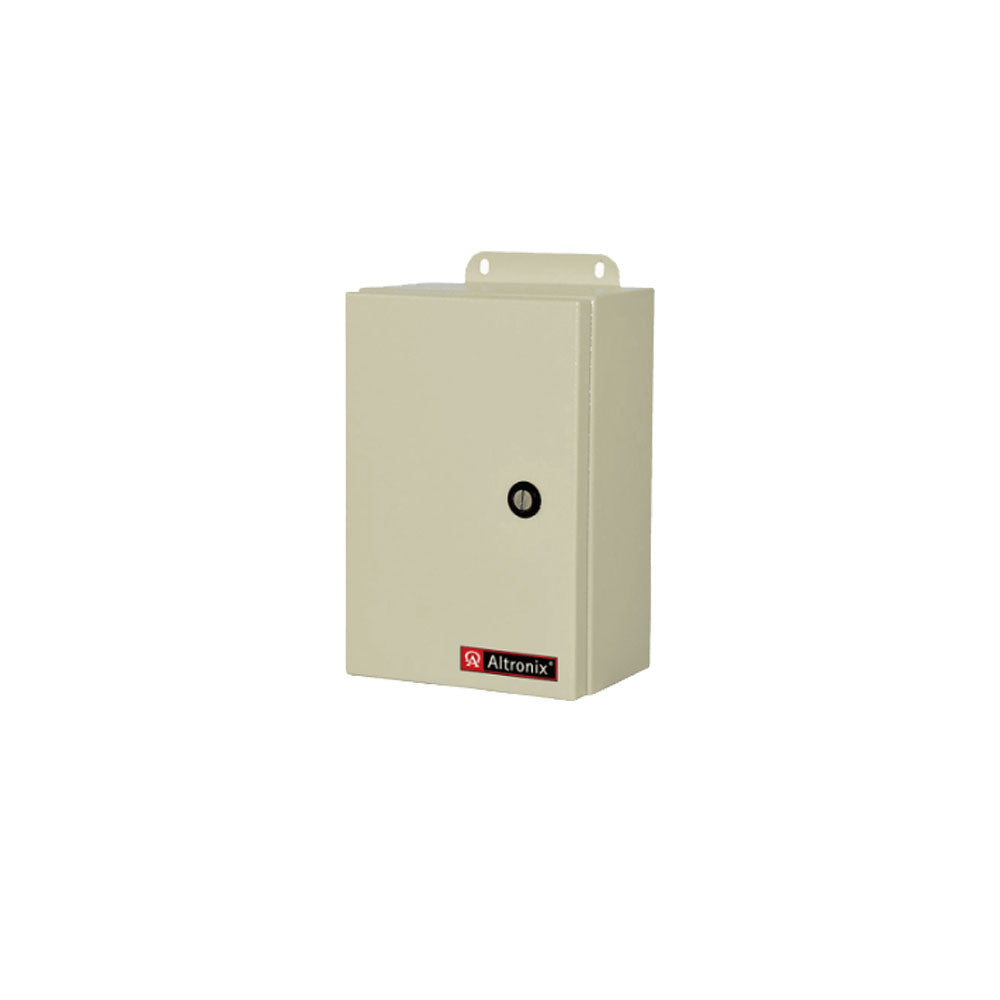

Altronix - WPTV248175ULCB - Outdoor CCTV AC Power Supply - 115VAC(50 or 60Hz) at 1.76A Input - 8 PTC Protected Outputs 24VAC at 7A or 28VAC at 6.25A - Grey Enclosure

Altronix - WPTV248175ULCB - Outdoor CCTV AC Power Supply - 115VAC(50 or 60Hz) at 1.76A Input - 8 PTC Protected Outputs 24VAC at 7A or 28VAC at 6.25A - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC, 50/60Hz, 1.76A.

Output:

• Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
• 24VAC @ 7A (170VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (0.375A per device, 3.5A max.).
• Outputs are rated @ 2.5A.
• Surge suppression.

Features:

• Secondary fuse rated @ 5A/250V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).
• NEMA 4 Rated enclosure for outdoor use.

Temperature:

• Operating Temperature: 0�� C to 49�� C (32�� F to 120�� F)
• Storage Temperature: - 20�� C to 70�� C ( - 4�� F to 158�� F)
• Relative Humidity: 85% +/- 5%
• BTU/Hr. (approx.): 89 BTU/Hr.
• System AC input VA requirement: 202.4VA.


Enclosure:

• NEMA 4/IP 65 Rated enclosure for outdoor use.
• Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).

Download:

• Installation Instruction
