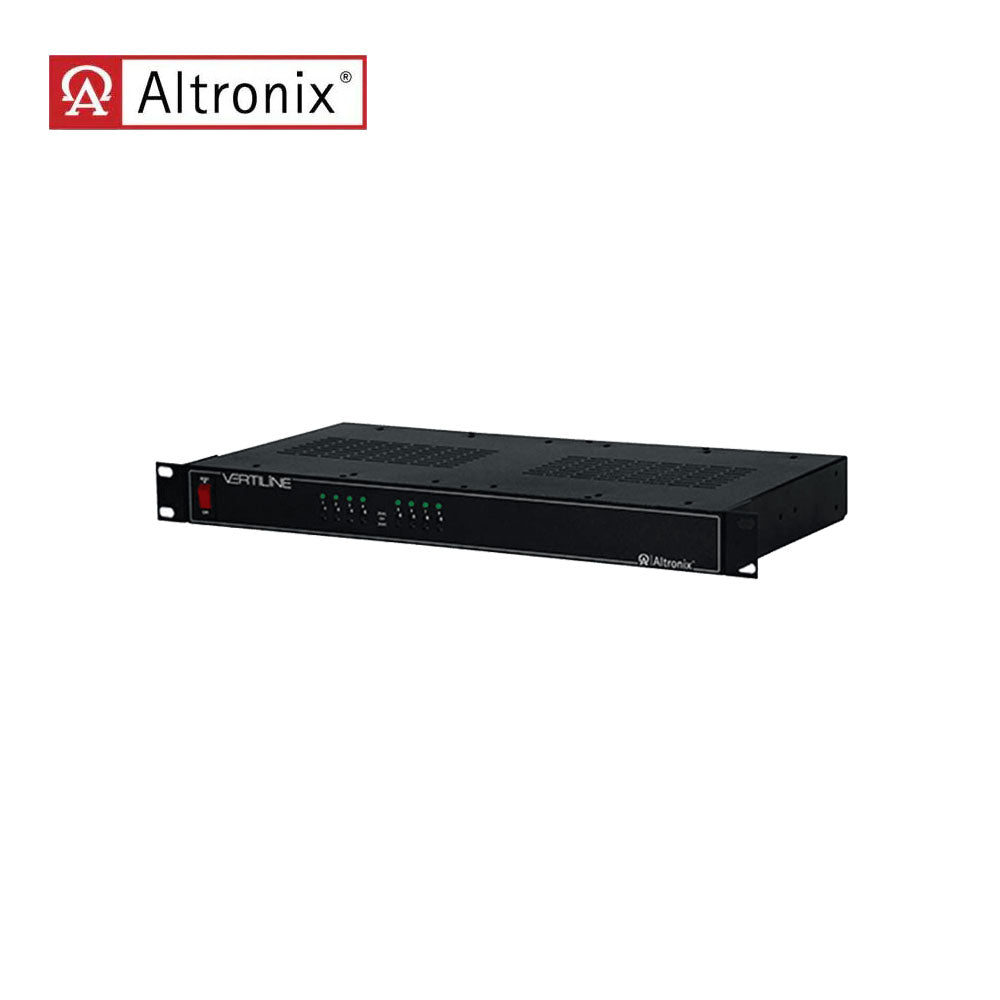

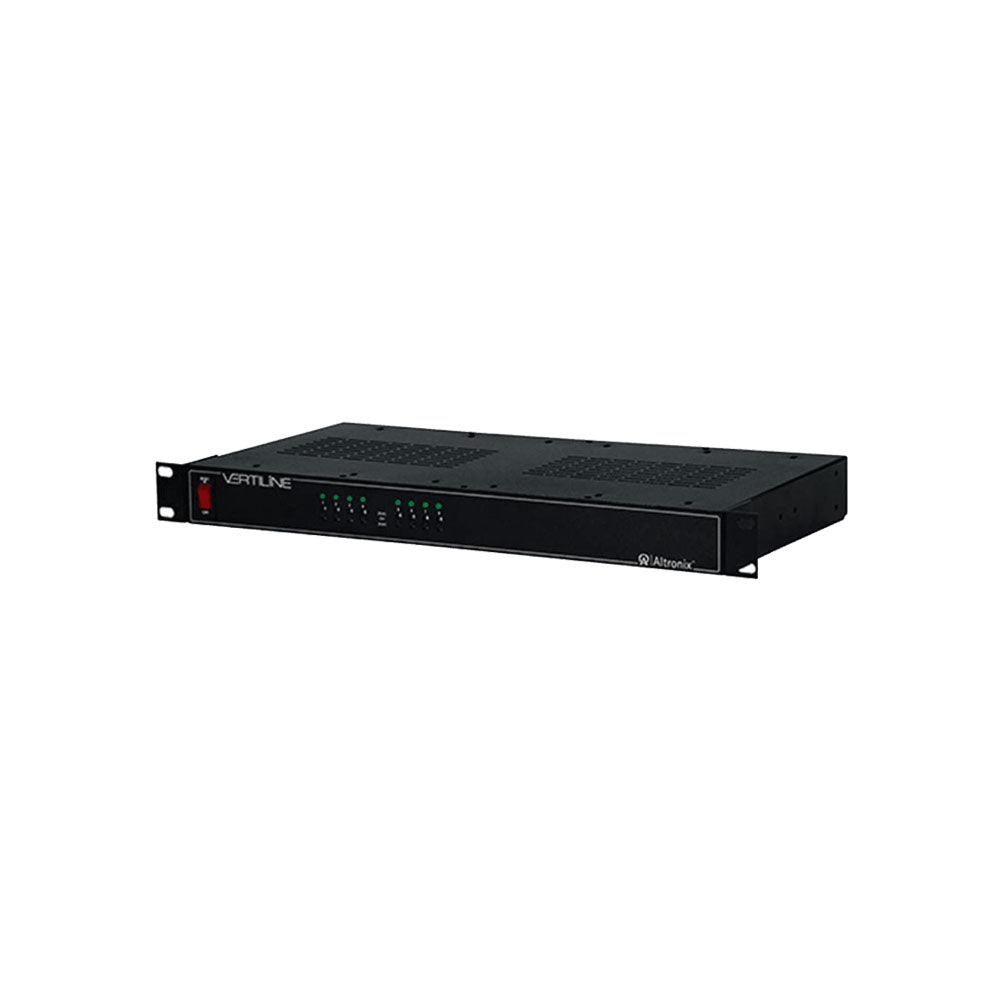

Altronix - VERTILINE83 - AC CCTV Rack Mount Power Supply - 8 Fuse Protected Outputs 24 or 28VAC at 10A Max

Altronix - VERTILINE83 - AC CCTV Rack Mount Power Supply - 8 Fuse Protected Outputs 24 or 28VAC at 10A Max

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Selectable 115VAC 60 Hz or 240VAC 50/60 Hz input.
• 115VAC 60 Hz., 3A.
• 240VAC 50/60 Hz., 1.5A.

Output:

• Eight (8) individually selectable 24VAC or 28VAC power outputs with OFF position.
• 24VAC or 28VAC @ 10A max. total (1.25A per device, 3A max.).
• Eight (8) external blade fuse protected outputs rated @ 3A.
• Main fuse rated @ 10A.
• Surge suppression.

Features:

• Eight (8) power LEDs.
• Illuminated master power disconnect circuit breaker with manual reset.
• IEC 320 - 3-wire grounded line cord (detachable).
• Removable terminal blocks with locking screw flange.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F).
• Storage - 20�� C to 70��C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  • 24VAC: 123 BTU/Hr.
  • 28VAC: 143 BTU/Hr.
• System AC input VA requirement:
  • 115VAC: 345VA
  • 230VAC: 360VA.

Enclosure:

• Modular 1U standard EIA 19" rack mount chassis.
• Dimensions 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D).

Download:

• Installation Instruction
