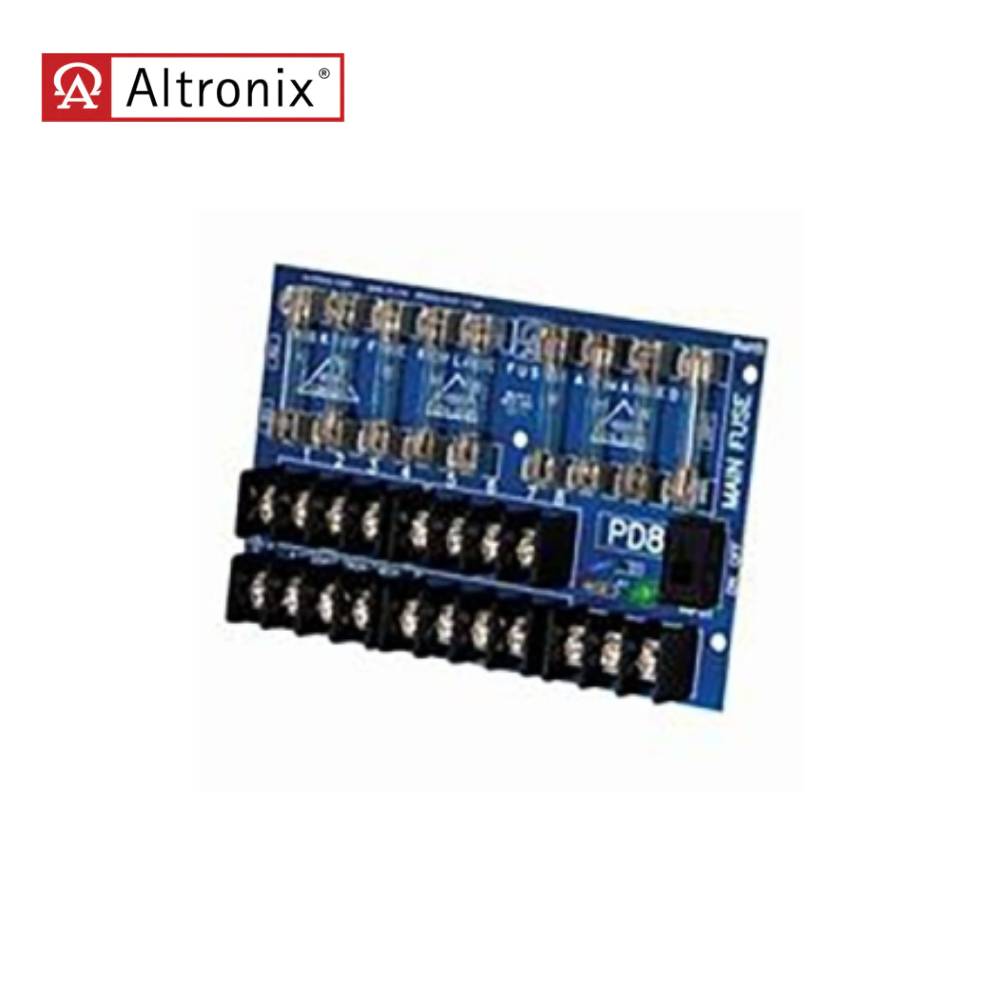

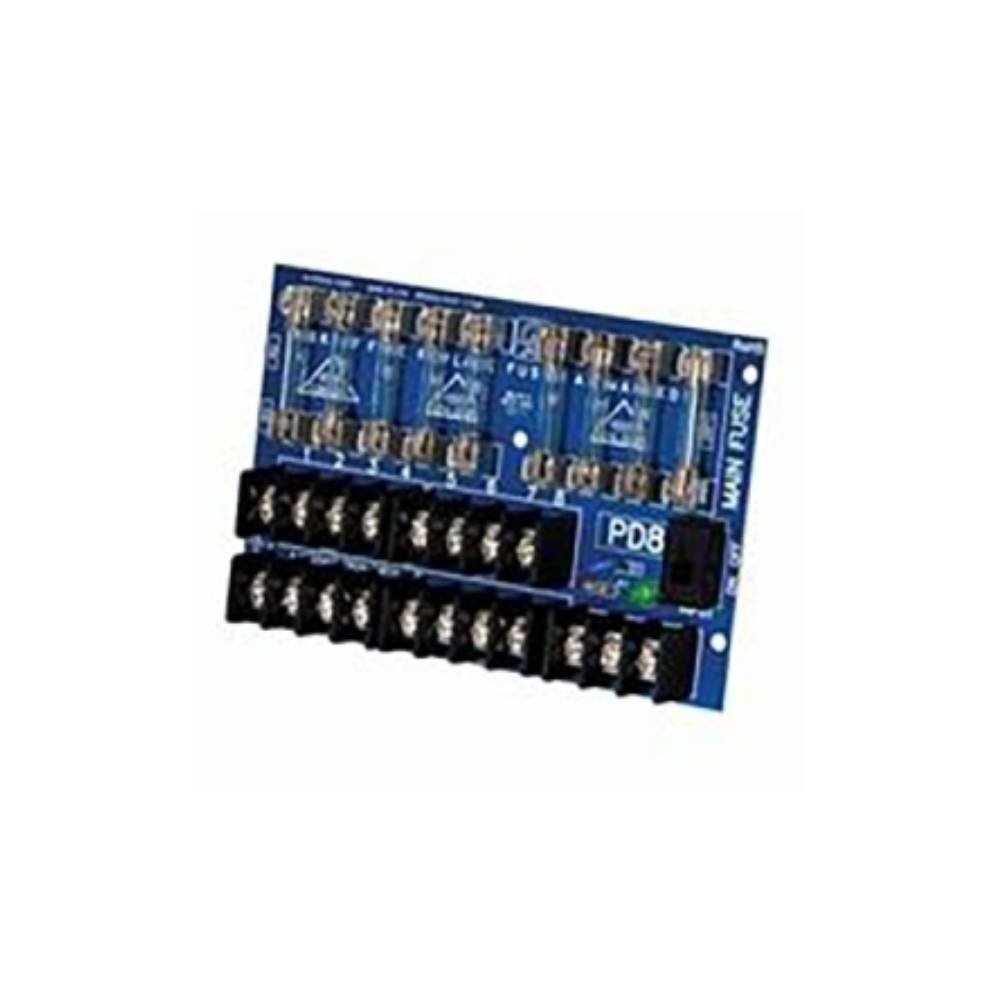

Altronix - PDS8CB - Power Distribution Module Steer Power From 2 Low Voltage Ac Or Dc Power Sources - Eight Outputs

Altronix - PDS8CB - Power Distribution Module Steer Power From 2 Low Voltage Ac Or Dc Power Sources - Eight Outputs

PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.

Features:

• Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
• Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.
• PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
• Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).

Product Specifications:

Download:

• Installation Instructions
