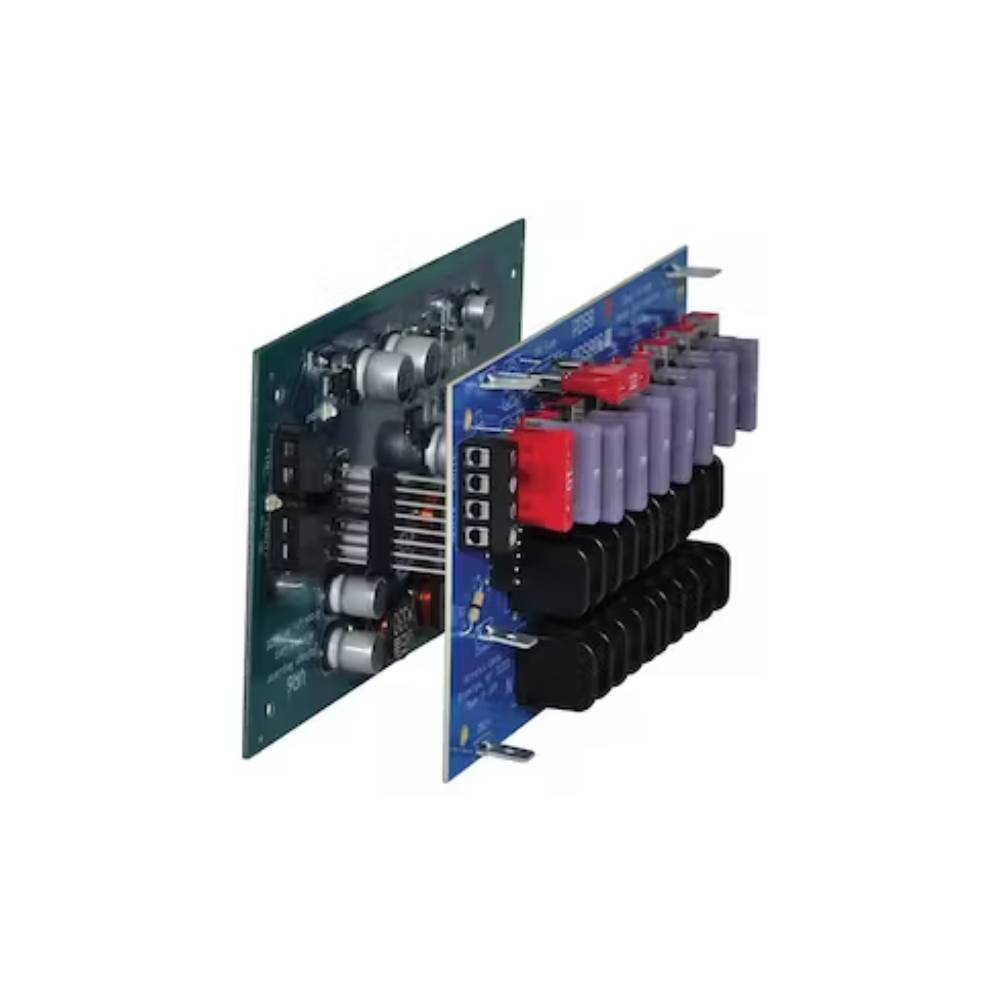

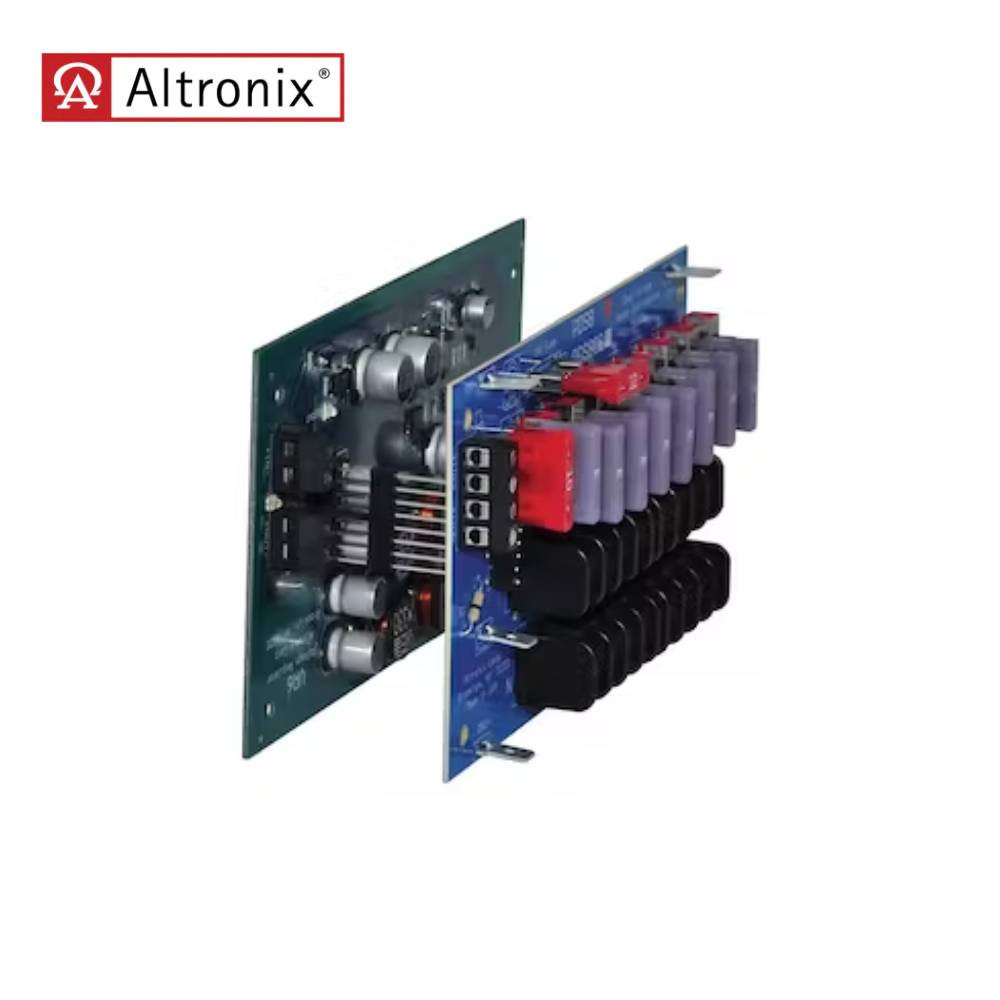

PDS8 dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) fused protected outputs.

Features:

• Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 10A each or 16VAC to 28VAC up to 14A each.
• Any of the eight (8) fuse protected power outputs are selectable to follow power input 1 or input 2.
• Individual outputs may be set to OFF position for servicing.
• Output ratings: PDS8 - fuse protected outputs rated @ 3A (total output current should not exceed max current rating of power supply employed).
• Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).

Product Specifications:

Download:

• Installation Instructions
