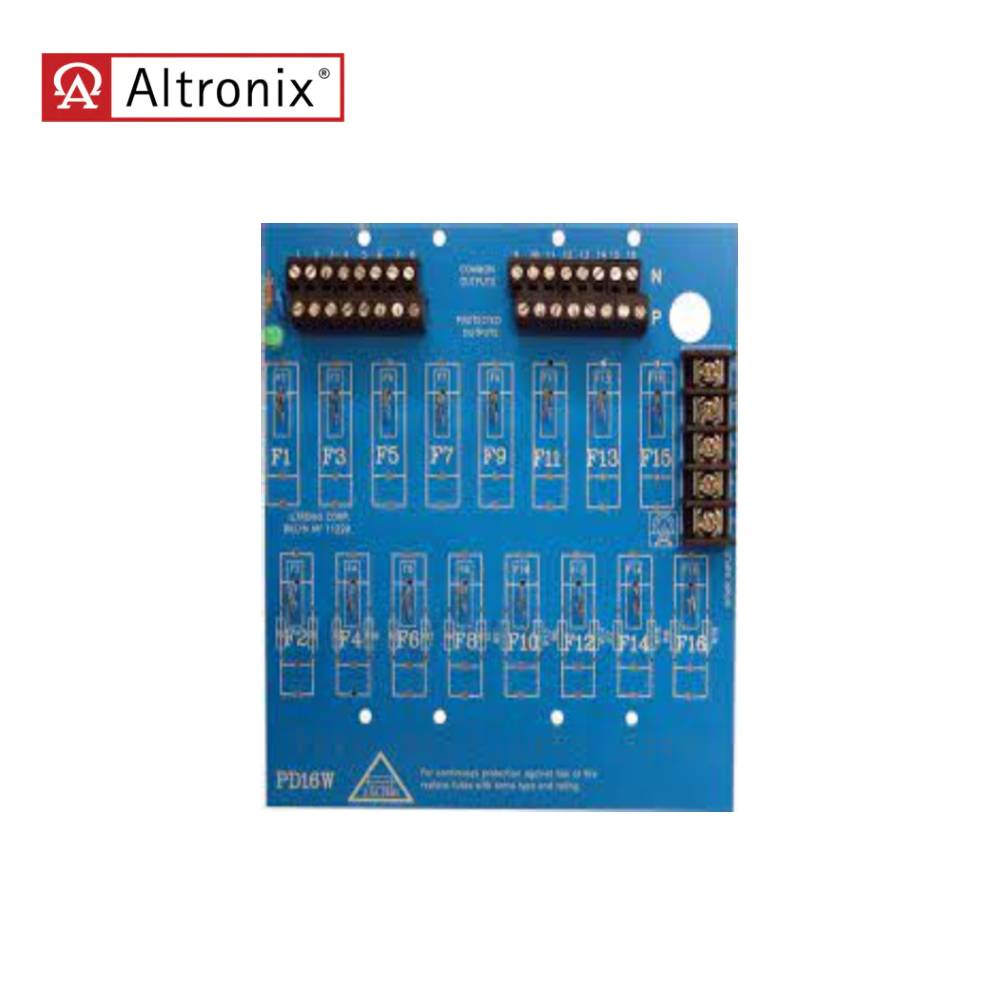

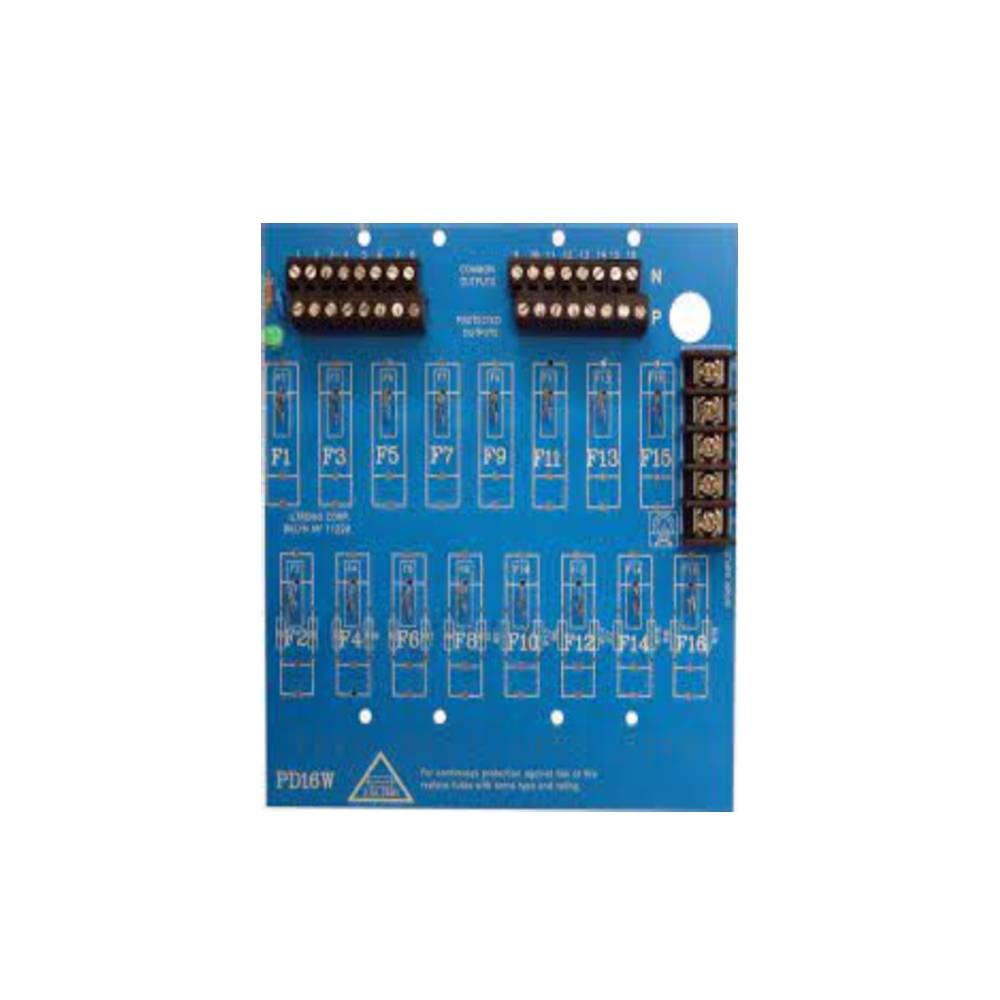

Altronix - PD16WCB - Power Distribution Module 16 PTC Power Supply
Altronix - PD16WCB - Power Distribution Module 16 PTC Power Supply
Regular price
$46.06 USD
Regular price
$55.27 USD
Sale price
$46.06 USD
Unit price
per
Couldn't load pickup availability
Altronix - PD16WCB - Power Distribution Module 16 PTC Power Supply
Altronix PD16WCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) PTC protected Class 2 Rated power-limited outputs.
Features:
- Sixteen (16) PTC protected Class 2 Rated power-limited outputs (auto-resettable).
- 2A per output max.
- Total output current should not exceed max current rating of power supply employed.
- PTCs are rated @ 2A/250V.
- Power LED indicator.
Product Specifications:
| Vendor | Altronix Corporation |
| Manufacturer | Altronix |
| SKU | PD16WCB |
| UID | ALT100PD16WCB |
| Installation | Commercial |
| Unit of Measure | Each |
| Type | Hardwired |
| Input | 12/24VDC at 10A |
| Output | 28VAC/DC |
| Transformer Type | AC/DC |
| Product Type | Boards and Modules |
