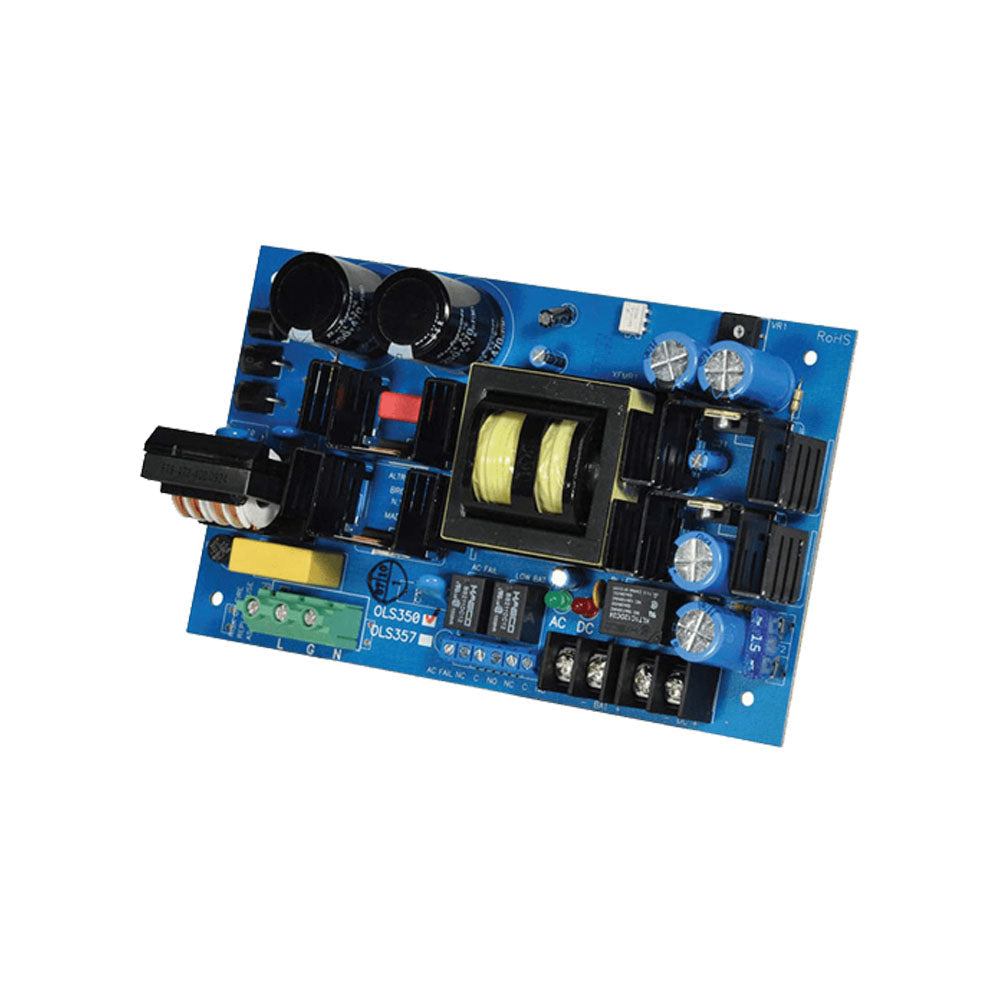

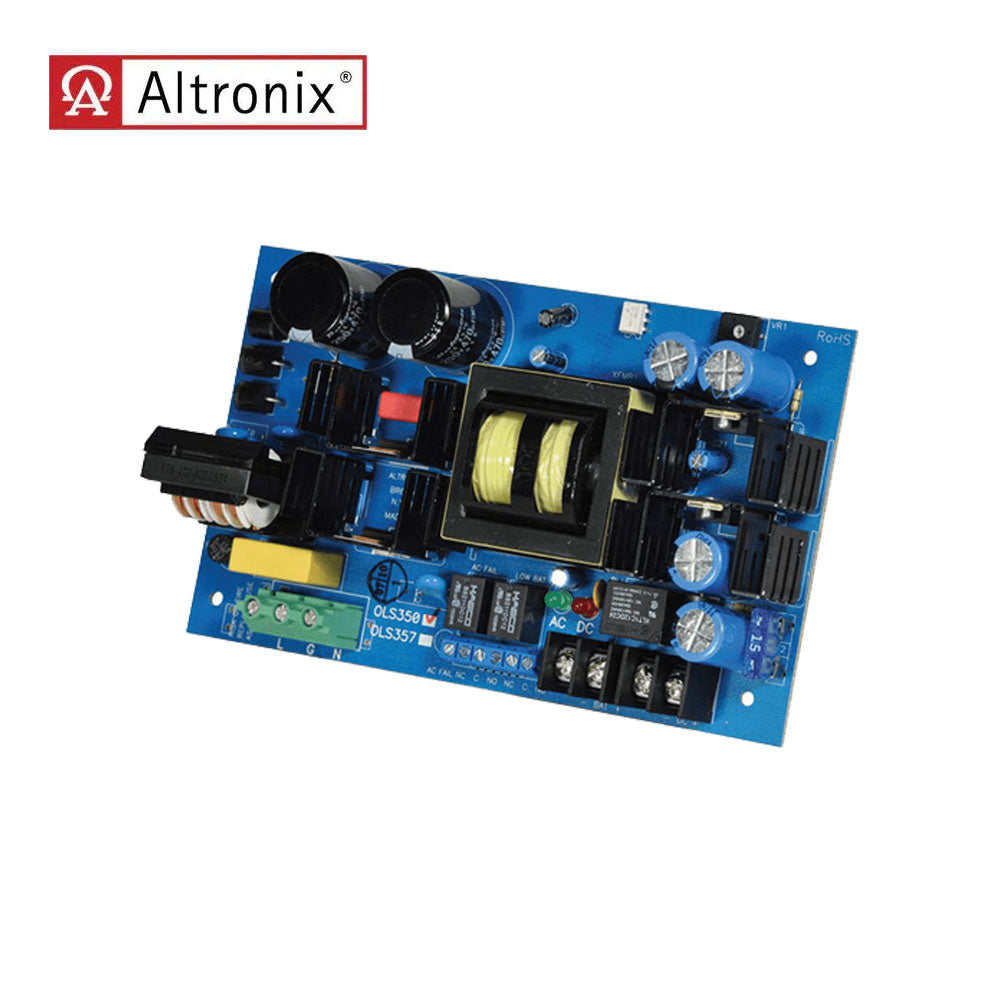

Altronix - OLS350 - Offline Switching Power Supply Board - 115VAC 60Hz at 5A Input

Altronix - OLS350 - Offline Switching Power Supply Board - 115VAC 60Hz at 5A Input

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 115VAC, 60Hz, 5.0A.

Output:

• 24VDC output.
• 12A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries.
• Battery leads included.
• Maximum charge current 0.7A.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating: 0�� C to 55�� C (32�� F to 131�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 147 BTU/Hr.
• System AC input VA requirement: 575VA.

Dimensions (approximate):

• 4.5"W x 7.25"L x 1.75"H (114.3 mm W x 184.1 mm L x 44.45 mm H).

Download:

• Installation Instruction
