Altronix

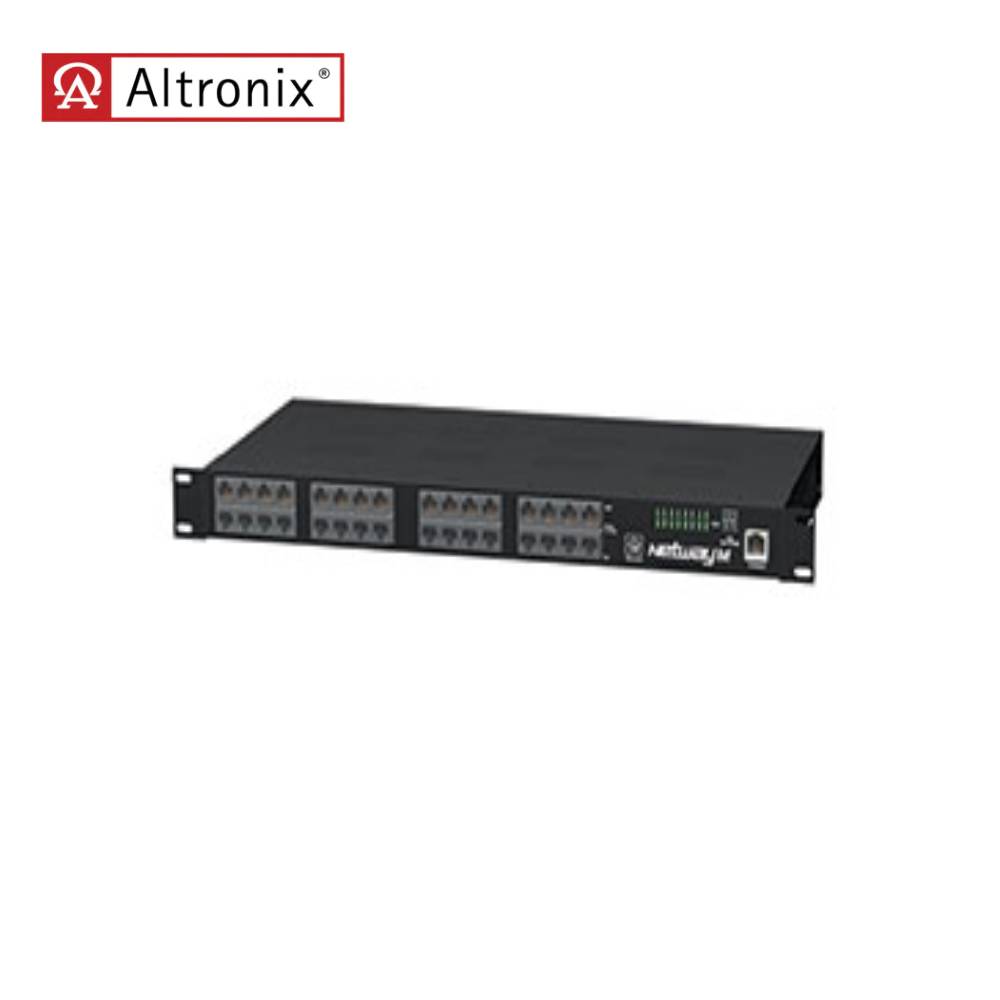

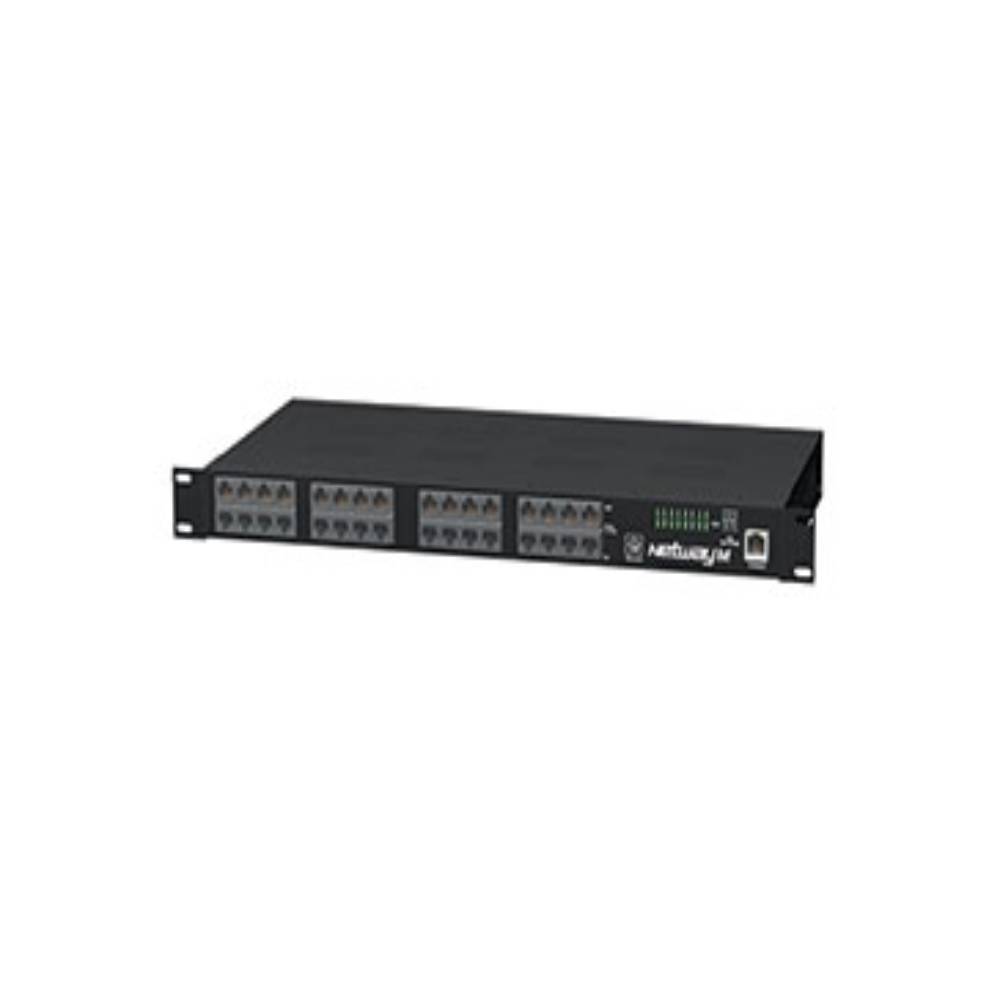

Altronix - NETWAY16M - Power Supply POE Managed Midspan Injector 16 Port

Altronix - NETWAY16M - Power Supply POE Managed Midspan Injector 16 Port

Regular price $895.68 USD
Regular price $1,074.82 USD Sale price $895.68 USD
Sale Sold out

Altronix - NETWAY16M - Power Supply POE Managed Midspan Injector 16 Port

Altronix NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 or NetWay3012 adapters.

Features:
  • 115VAC 60Hz at 4.9A Input.
  • Sixteen (16) ports of cameras/edge devices over ethernet (CAT5) cable up to a distance of 100m per port.
  • Unit provides up to 30W max. full power per port.
  • Total power: 300W.
  • IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
  • Short circuit protection.
  • Programmable PoE shutdown for each port. Utilized to reset cameras/edge devices.
  • Auto detection and protection of legacy non-PoE cameras/edge devices.
  • LAN or laptop connection enables programming of PoE shutdown and port monitoring.
  • User interface.
  • Illuminated master power disconnect circuit breaker with manual reset (switch).
  • Individual port status LEDs.
  • IEC 320 - 3-wire grounded line cord (detachable).
Product Specifications:
Vendor Altronix Corporation
Manufacturer Altronix
SKU NETWAY16M
UID ALT100NETWAY16M
Installation Commercial
Unit of Measure Each
Purpose Power Over Ethernet (POE)
Product Type Power Over Ethernet (POE) Adaptors
Download:
View full details
