Altronix - MOM5C - Power Distribution Module 5 Class 2 Power Limited PTC Protected Power Supply

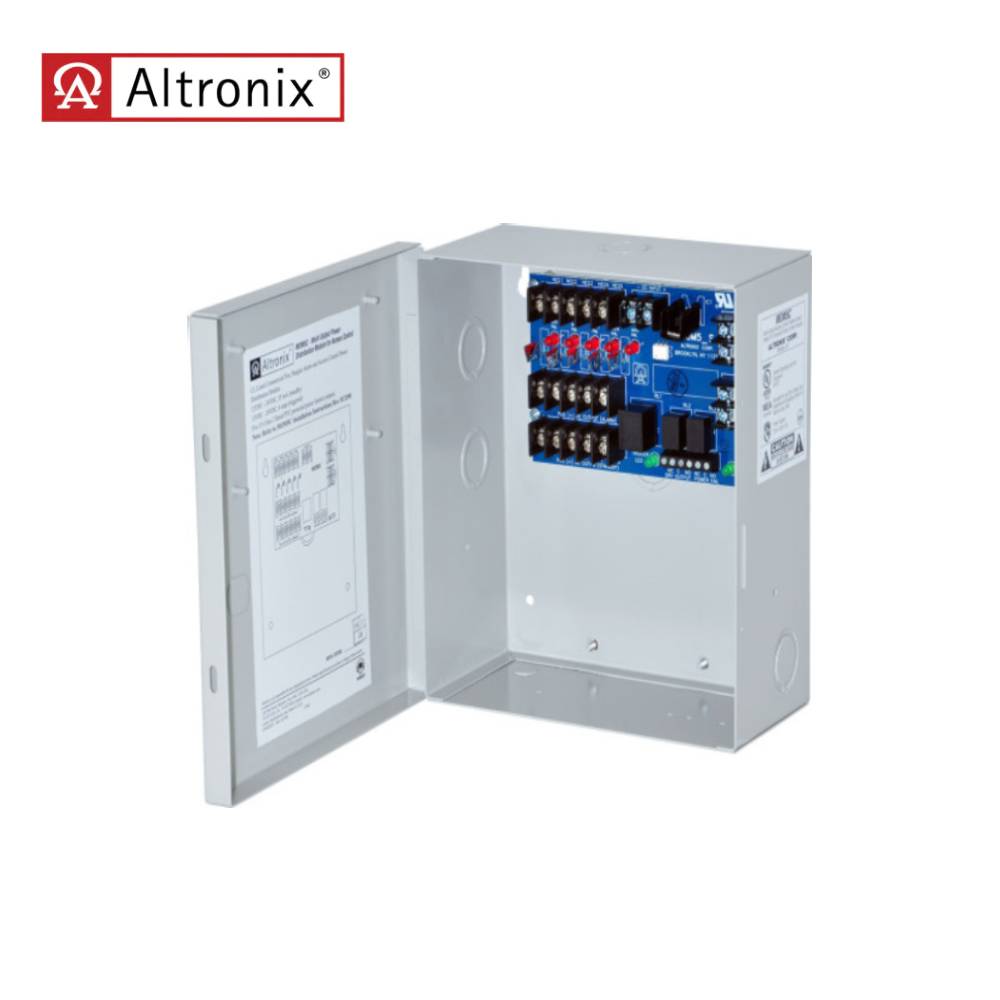

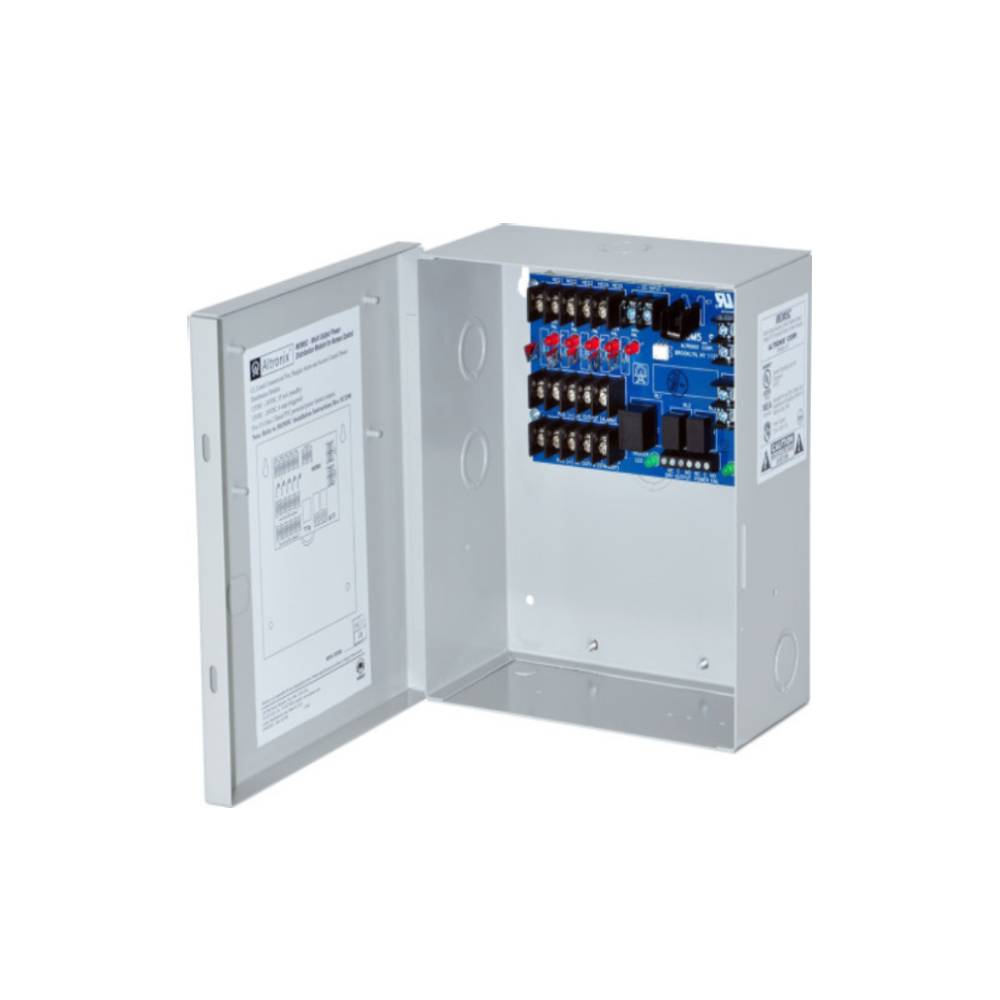

Altronix MOM5C power distribution module converts one (1) non power-limited DC voltage input to five (5) power-limited outputs. Each output will route power to a variety of access control hardware and devices which includes Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both fail-safe and fail-secure modes. Controlled trigger input is achieved through normally open (NO) or normally closed (NC) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form "C" dry output relay will enable HVAC Shutdown, Elevator Recall or trigger auxiliary devices.
Features:
- Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
- Red LED's indicate condition of each power output.
- Power & input trigger LED's.
- Fire Alarm Panel or Access Control System trigger inputs. (NO or NC supervised trigger input and polarity reversal trigger input).
- Power fail supervision relay (Form "C" contact rated 1A @ 28VDC).
- Interfaces with most UL Listed Power Supplies.
Product Specifications:
Vendor | Altronix Corporation |
Manufacturer | Altronix |
SKU | MOM5C |
UID | ALT100MOM5C |
Installation | Commercial |
Unit of Measure | Each |
Type | Hardwired |
Input | 12/24VDC |
Output Volts | 12/24VDC at 2A |
Transformer Type | DC |
Transformer Output | Up to 5 Amps |
Product Type | Boards and Modules |
