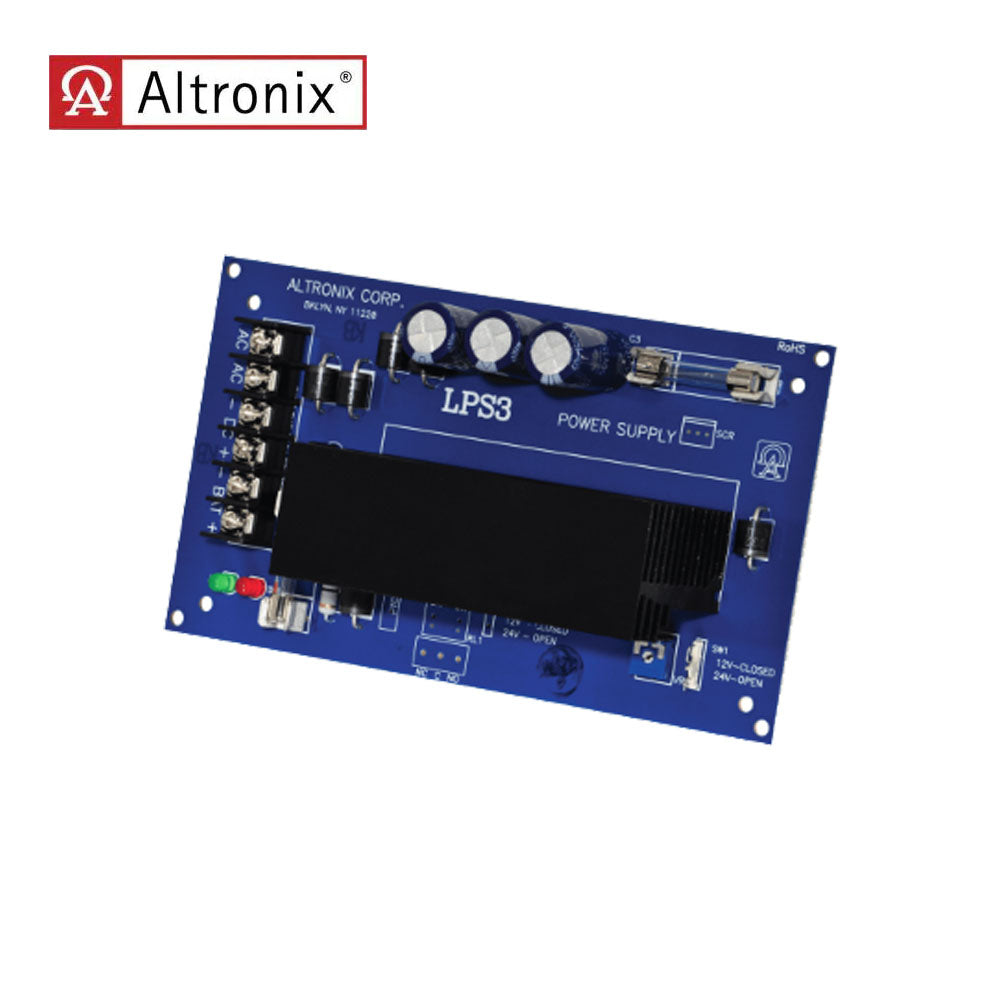

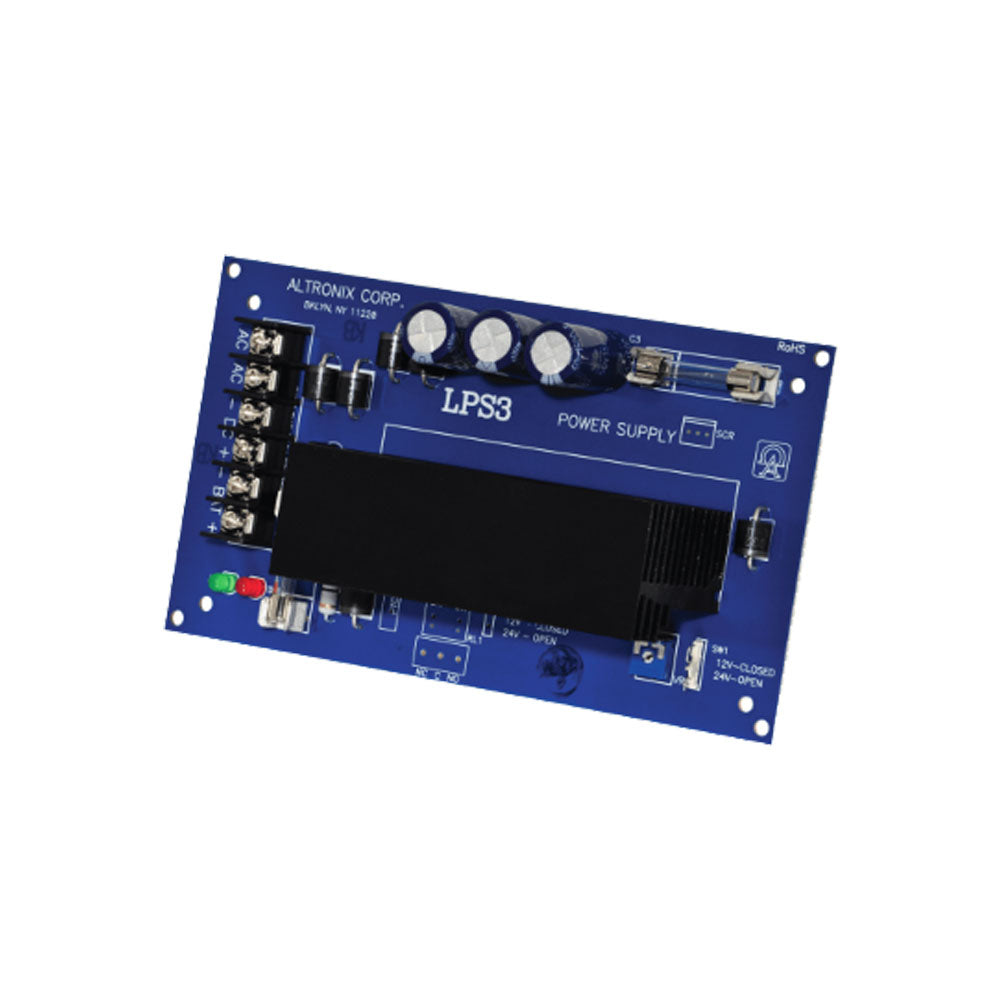

Altronix - LPS3 - Linear Power Supply Board with 2.5A Output

Altronix - LPS3 - Linear Power Supply Board with 2.5A Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 16VAC or 28VAC.

Output:

• 12VDC/24VDC selectable output.
• 2.5A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup:

• Battery leads included.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery.
• Fused battery protection (circuit breaker available).

Visual Indicator:

• AC/DC power LED indicator.

Temperature:

• Operating: 0�� C to 49�� C (32�� F to 120�� F).
• Storage: - 20�� C to 70�� C ( - 4�� F to 158�� F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.):
  12VDC: 15 BTU/Hr.
  24VDC: 31 BTU/Hr.

Dimensions (approximate):

• 4"W x 7"L x 2"H (101.6 mm W x 177.8 mm L x 50.8 mm H).

Download:

• Installation Instruction
