Altronix - LINQ2 - Network Module For Eflow/MaximalF

Altronix - LINQ2 - Network Module For Eflow/MaximalF

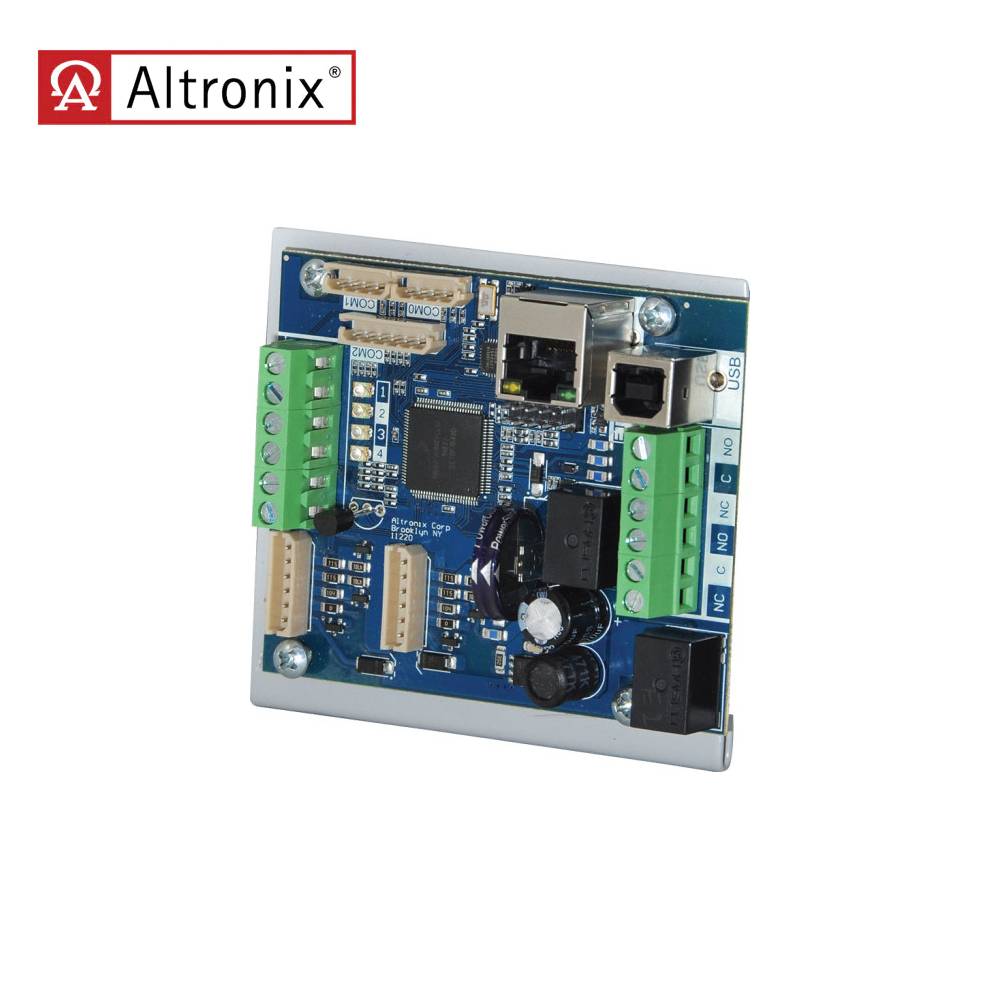

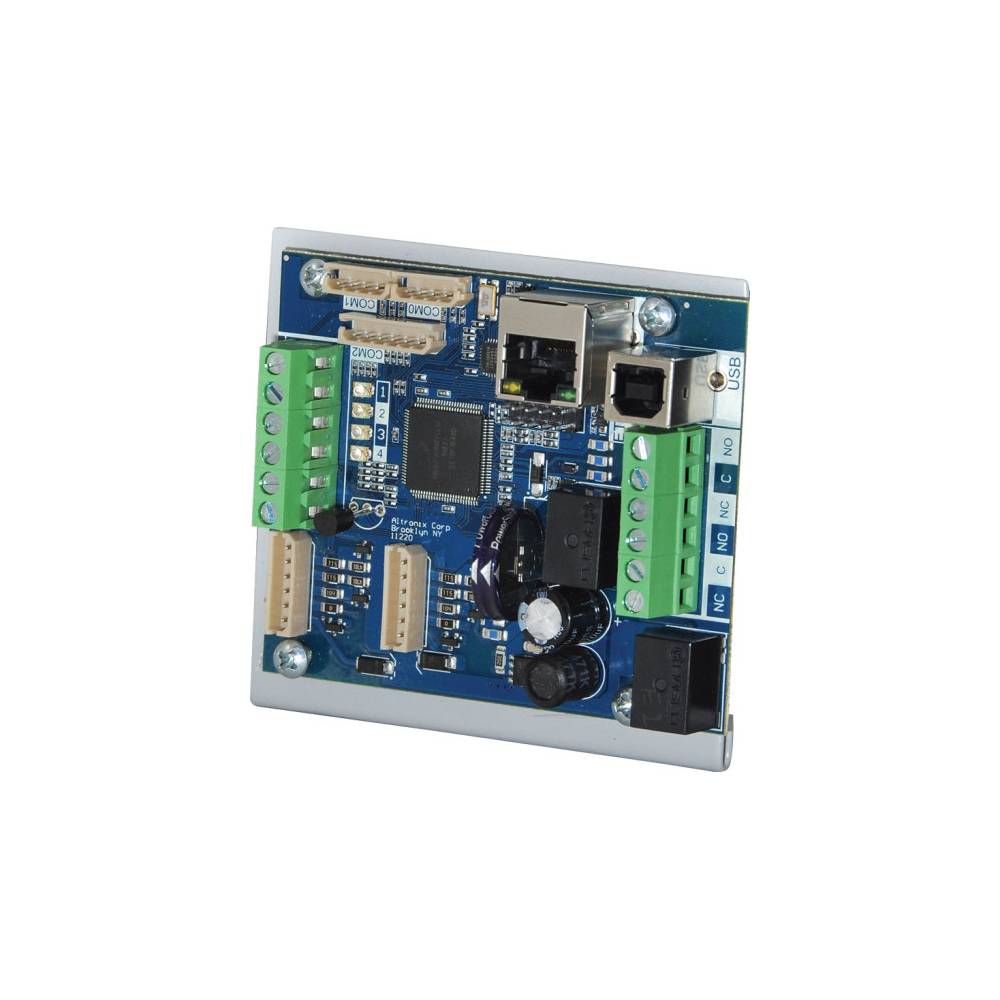

Altronix LINQ2 network module is designed to interface with eFlow Series, MaximalF Series, and Trove Series power supply/chargers. It enables power supply status monitoring and control of two (2) eFlow power supply/chargers over a LAN/WAN or USB connection. LINQ2 provides values on demand for AC fault status, DC current and voltage, as well as Battery fault status, and reports conditions via email and Windows Dashboard Alert. LINQ2 can also be used as a standalone network controlled relay powered from any 12VDC to 24VDC power supply.

Features:

• Current consumption 100mA to be subtracted from the eFlow power supply's output.
• Power output(s) can be locally or remotely controlled.
• Management interface for up to two (2) eFlow power supply/chargers.
• Two (2) network controlled Form "C" relays (contact rated @ 1A/28VDC resistive load).
• Three (3) monitored input triggers.
• Management interface software included (USB flash drive).
• Includes interface cables and mounting bracket.

Product Specifications:

Download:

• Installation Instructions
