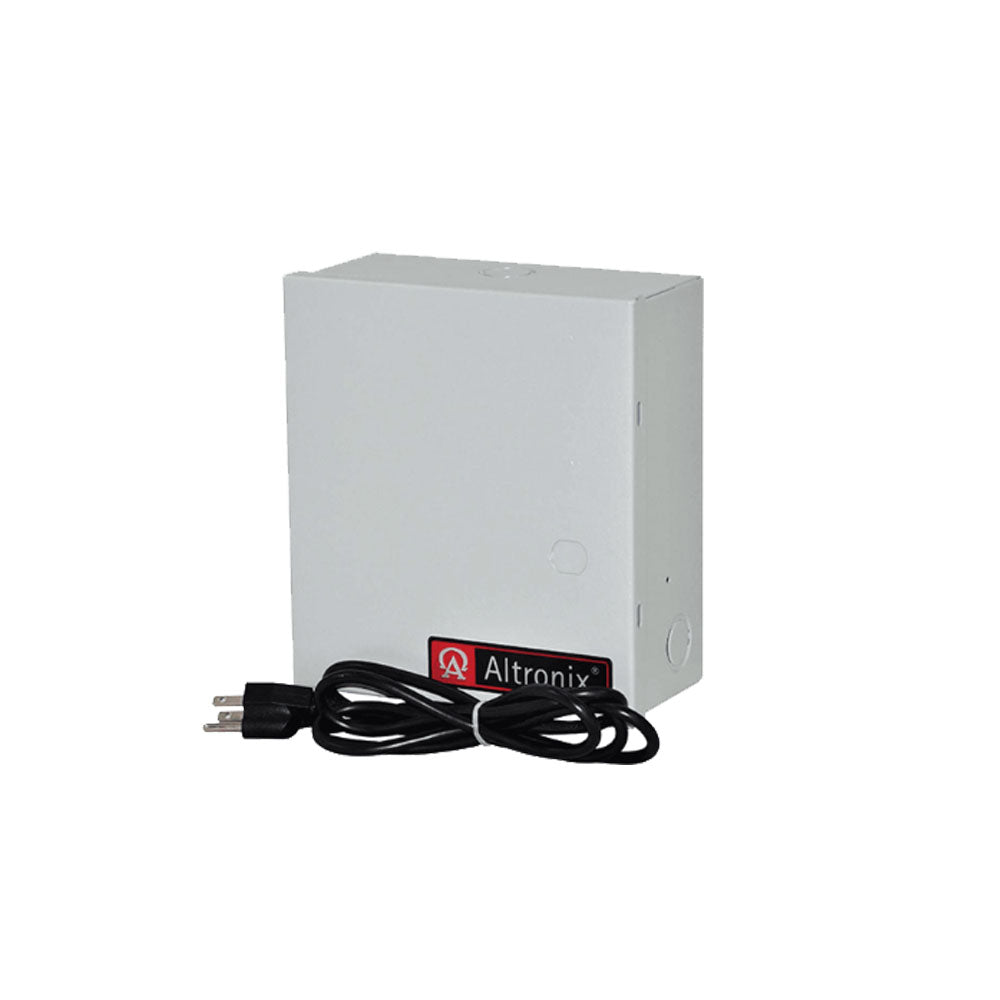

Altronix - ALTV248300ULM3 - CCTV Power Supply with 3 Wire Line Cord - 8 Fused Outputs Class 2 - BC100M Enclosure

Altronix - ALTV248300ULM3 - CCTV Power Supply with 3 Wire Line Cord - 8 Fused Outputs Class 2 - BC100M Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Secondary fuse rated @ 15A/32V.
• AC power LED.
• Power ON/OFF switch.
• Spare fuses provided. (all models w/primary and/or secondary fuses).
• Factory installed 3-wire line cord.

Input:

• 115VAC, 50/60Hz, 2.7A.

Output:

• Eight (8) fuse protected outputs.
• 24VAC @ 12.5A (300VA) supply current (1.563A per device, 3.5A max.) or 28VAC @ 10A (280VA) supply current (1.25A per device, 3.5A max.).
• Outputs are rated @ 3.5A.
• Surge suppression

Temperature:

• Operating 0��C to 49��C (32��F to 120��F).
• Storage - 20��C to 70��C ( - 4��F to 158��F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 24VAC: 154 BTU/Hr. and 28VAC: 143 BTU/Hr.
• System AC input VA requirement: 310.5VA.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
• 1/2" and 3/4" combination knockouts.

Download:

• Installation Instruction
