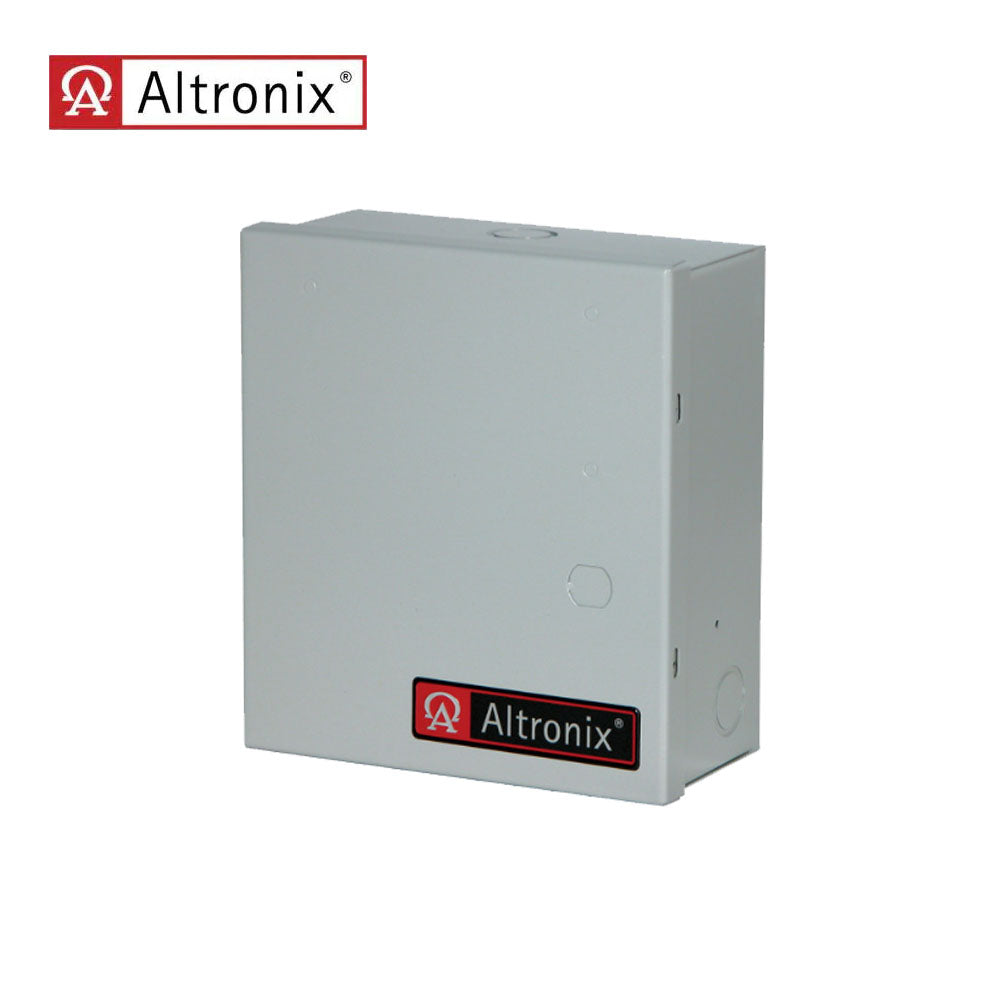

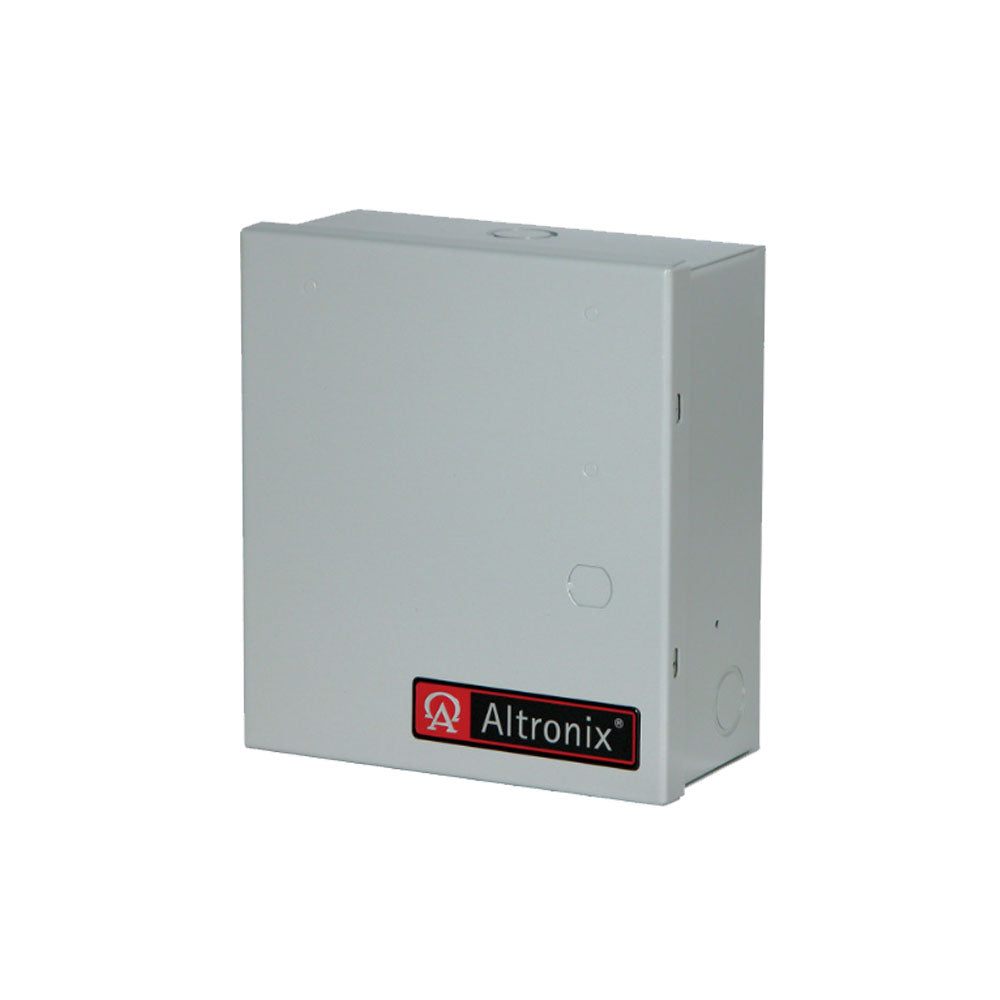

Altronix - ALTV164 - AC CCTV Power Supply - Grey Enclosure

Altronix - ALTV164 - AC CCTV Power Supply - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Features:

• Spare fuse included.
• Power ON/OFF switch.
• Unit maintains camera synchronization(Except ALTV1224DC)
• Ease of installation saves time and eliminates costly labor.

Input:

• Input 115VAC, 50/60 Hz, 0.9A.)

Output:

• 16VAC @ 6A or 18VAC @ 5A supply current.
• Four (4) fuse protected outputs.
• Surge protection.

Fuse Ratings

• Output fuses are rated @ 3.5A/250VAC.
• Main fuse is rated @ 10A/250VAC

Visual Indicators

• AC power LED indicator.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 49.1 BTU/Hr.

Enclosure:

• Wall mount enclosure for indoor use.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.
