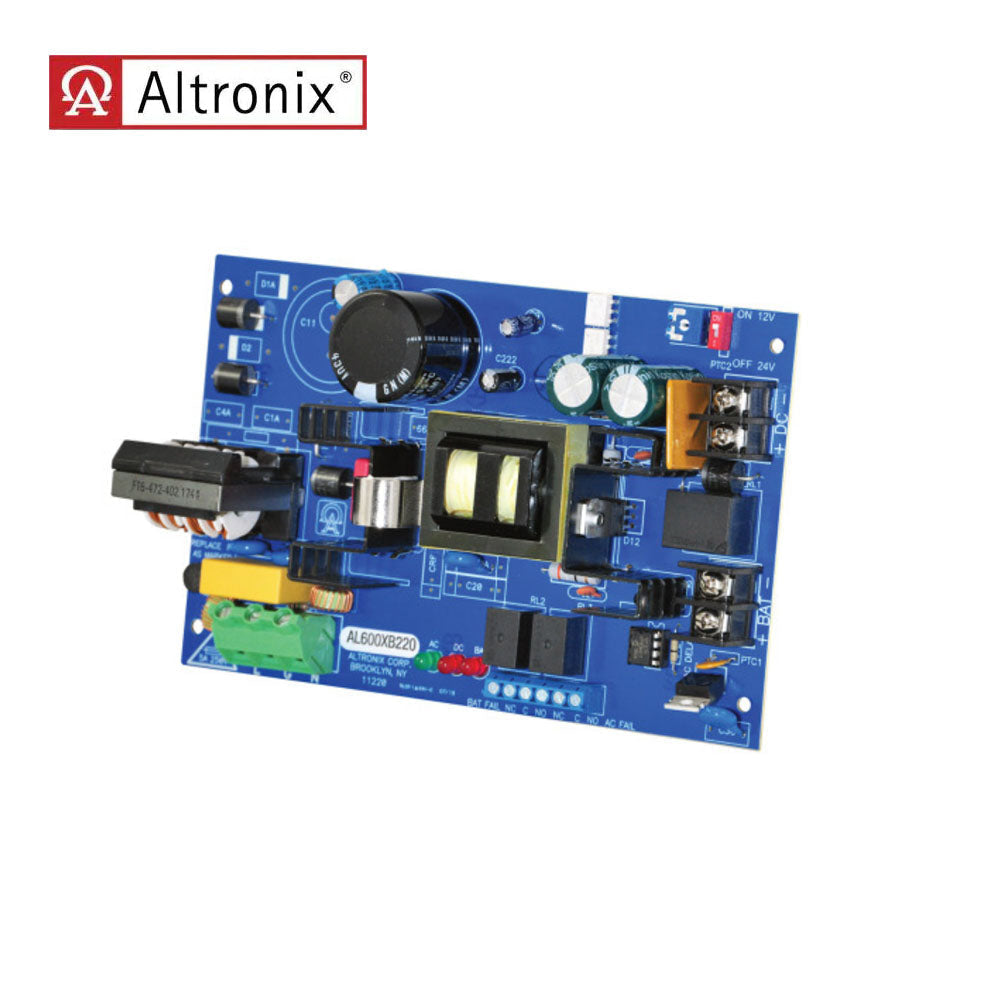

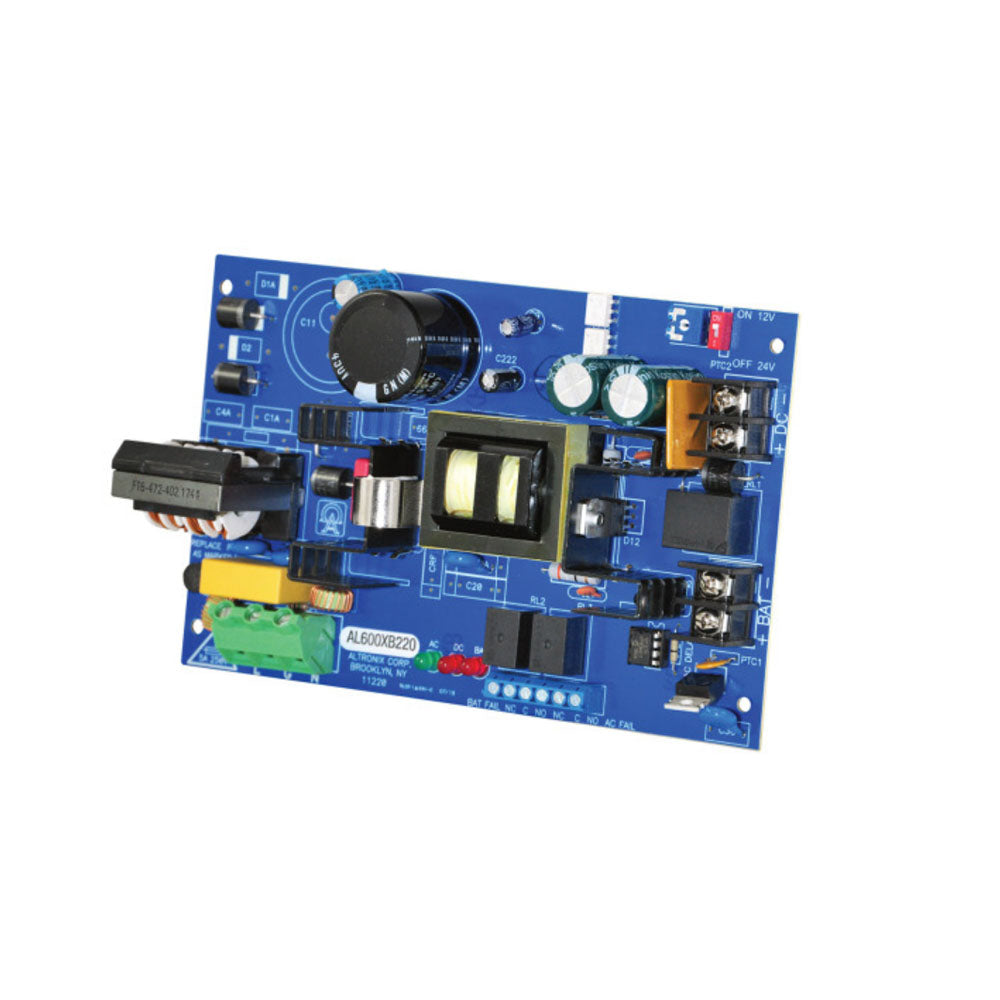

Altronix - AL600XB220 - Power Supply Charger Board with Single Output

Altronix - AL600XB220 - Power Supply Charger Board with Single Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A.
• Input fuse rated @ 5A/250V.

Output:

• 12VDC or 24VDC selectable outputs
• 12VDC @ 4A or 24VDC @ 3A supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup
• (Batteries are sold separately)

Supervision:

• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contact).
• Battery presence supervision (form "C" contact).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr. (approx.):
  12VDC: 37 BTU/Hr.
  24VDC: 74 BTU/Hr.
• System AC input VA requirement: 330VA

Dimensions (approximate):

• 4.5"W x 7.8"L x 2.6"H (114.3 mm W x 198.12 mm L x 66.04 mm H).

Download:

• Installation Instruction
