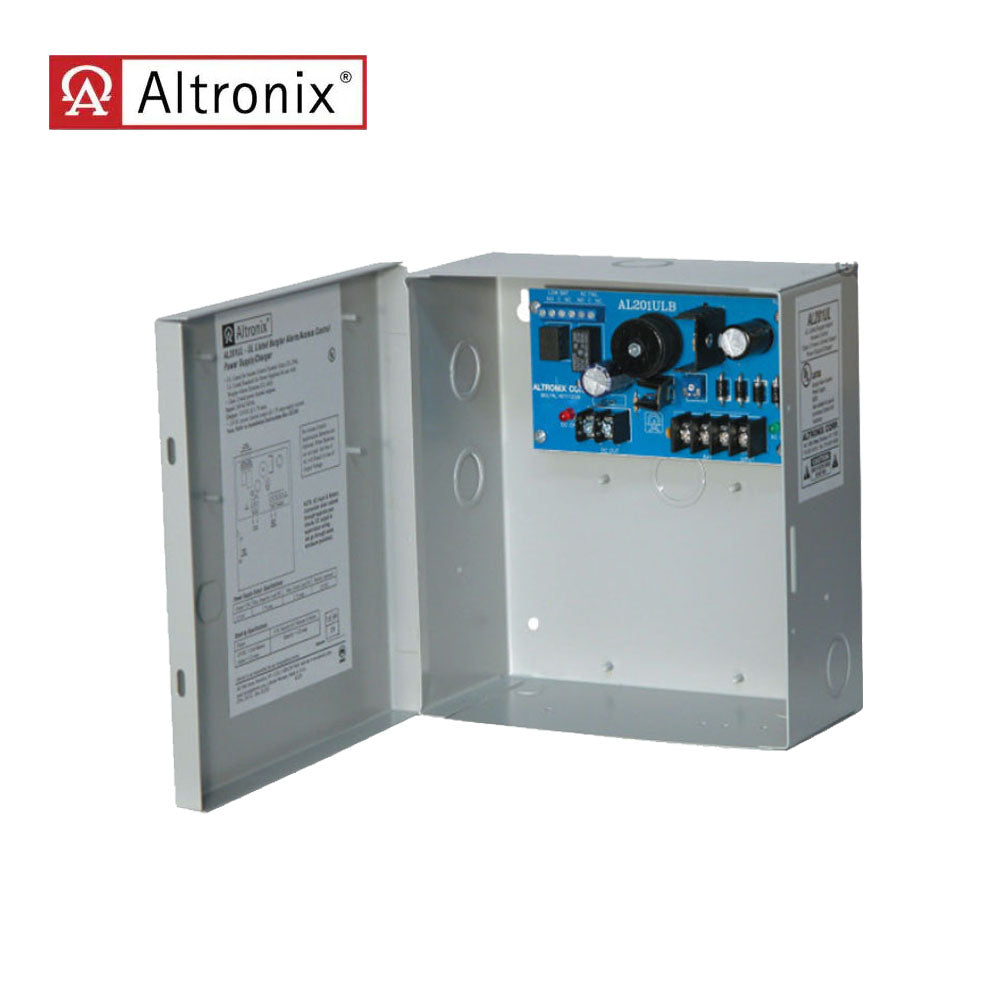

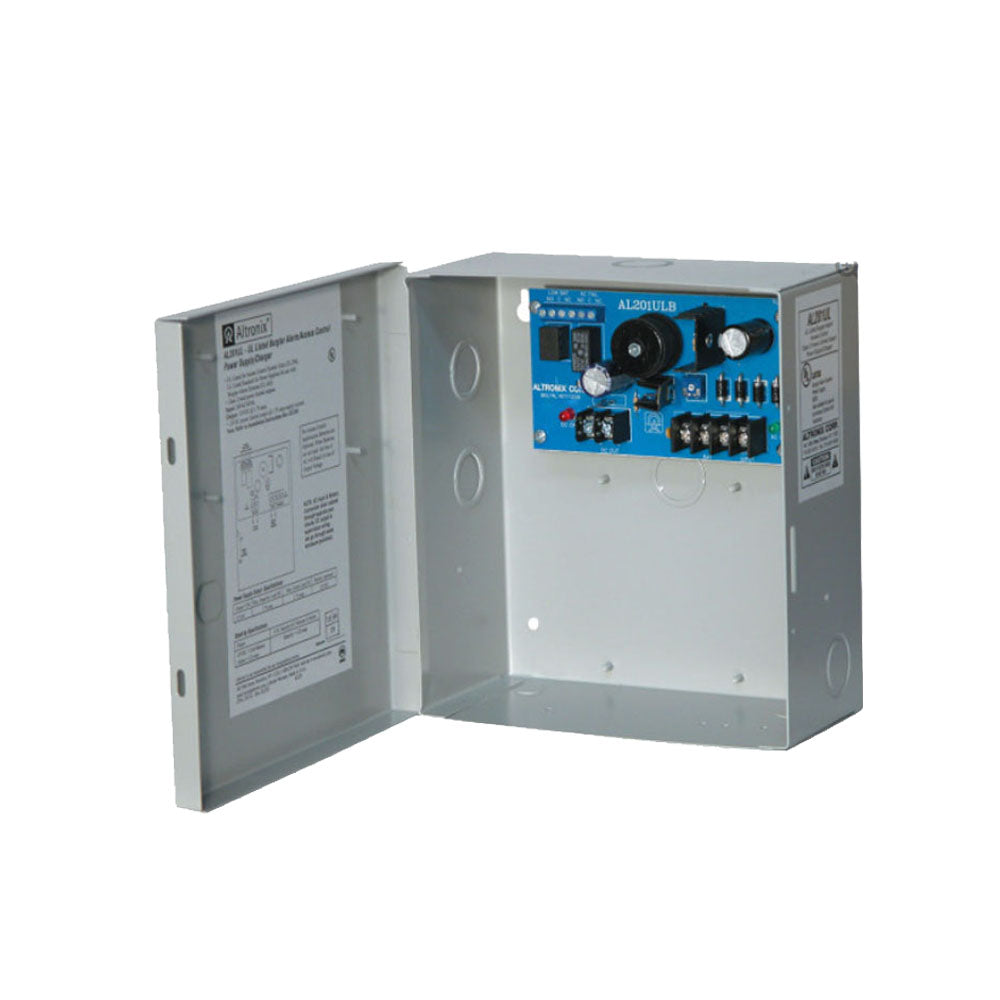

Altronix - AL201UL - Power Supply Charger with Single Output - Grey Enclosure

Altronix - AL201UL - Power Supply Charger with Single Output - Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• 24VAC, 40VA from UL Listed, Class 2 transformer

Output:

• 12VDC output
• 1.75A supply current.
• Class 2 Rated power limited outputs.
• Filtered and electronically regulated output
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails.

Supervision:

• AC fail supervision (form "C" contacts)
• Low battery supervision (form "C" contacts).

Visual Indicators:

• AC input and DC output LED indicators

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 11 BTU/Hr
• System AC input VA requirement: 69VA

Enclosure:

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D)
• 1/2" and 3/4" combination knockouts

Download:

• Installation Instruction
