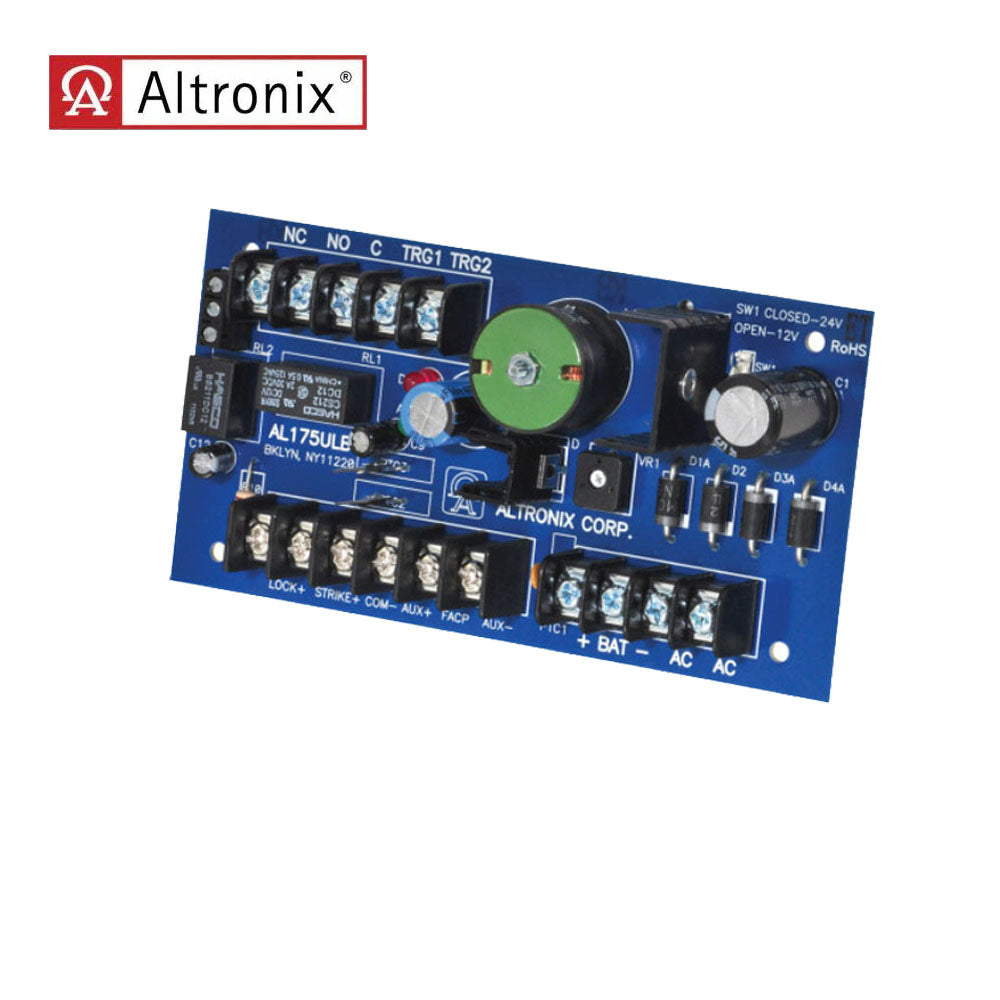

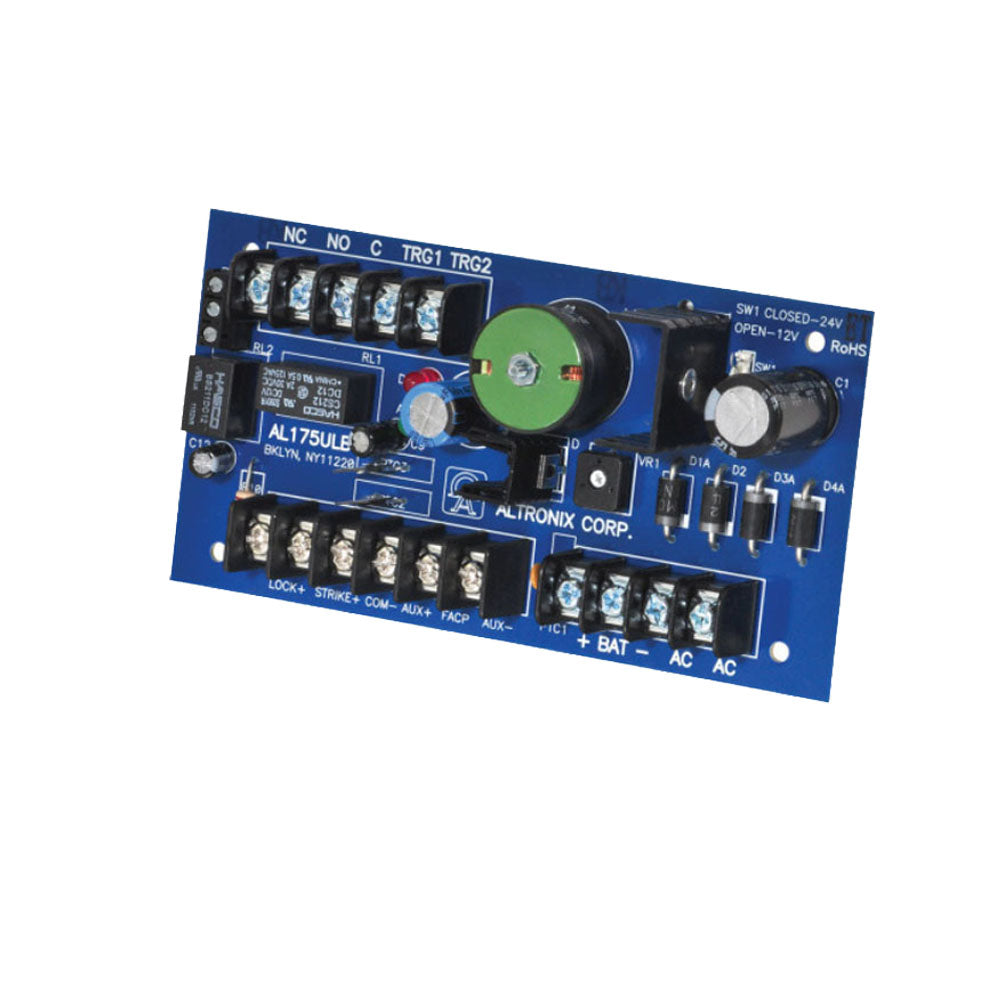

Altronix - AL175ULB - Power Supply Board with Access Control

Altronix - AL175ULB - Power Supply Board with Access Control

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

Input:

• Input 24VAC, 40VA. Class 2 transformer
• Fire Alarm Panel or Access Control trigger input.

Output:

• 12VDC or 24VDC selectable outputs
• 12VDC @ 1.75A or 24VDC @ 0.9A supply current
• Two (2) Class 2 Rated power limited outputs.
• Fail-Safe/Fail-Secure lock output (switched)
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output
• Short circuit and thermal overload protection.

Battery Backup:

• Built-in charger for sealed lead acid or gel type batteries
• Automatic switch over to stand-by battery when AC fails
• Maximum charge current: 0.4A
• (Batteries are sold separately).

Supervision:

• AC fail supervision (form "C" contacts).
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching)

Visual Indicators:

• AC input and DC output LED indicators.

Temperature:

• Operating 0�� C to 49�� C (32�� F to 120�� F)
• Storage: - 20�� C to 70��C ( - 4�� F to 158�� F)
• Relative Humidity 85% +/- 5%
• BTU/Hr (approx.): 11 BTU/Hr.

Board:

• 3.1"W x 5.8"L x 1.5"H (78.74 mm W x 147.32 mm L x 38.1 mm H)

Download:

• Installation Instruction
