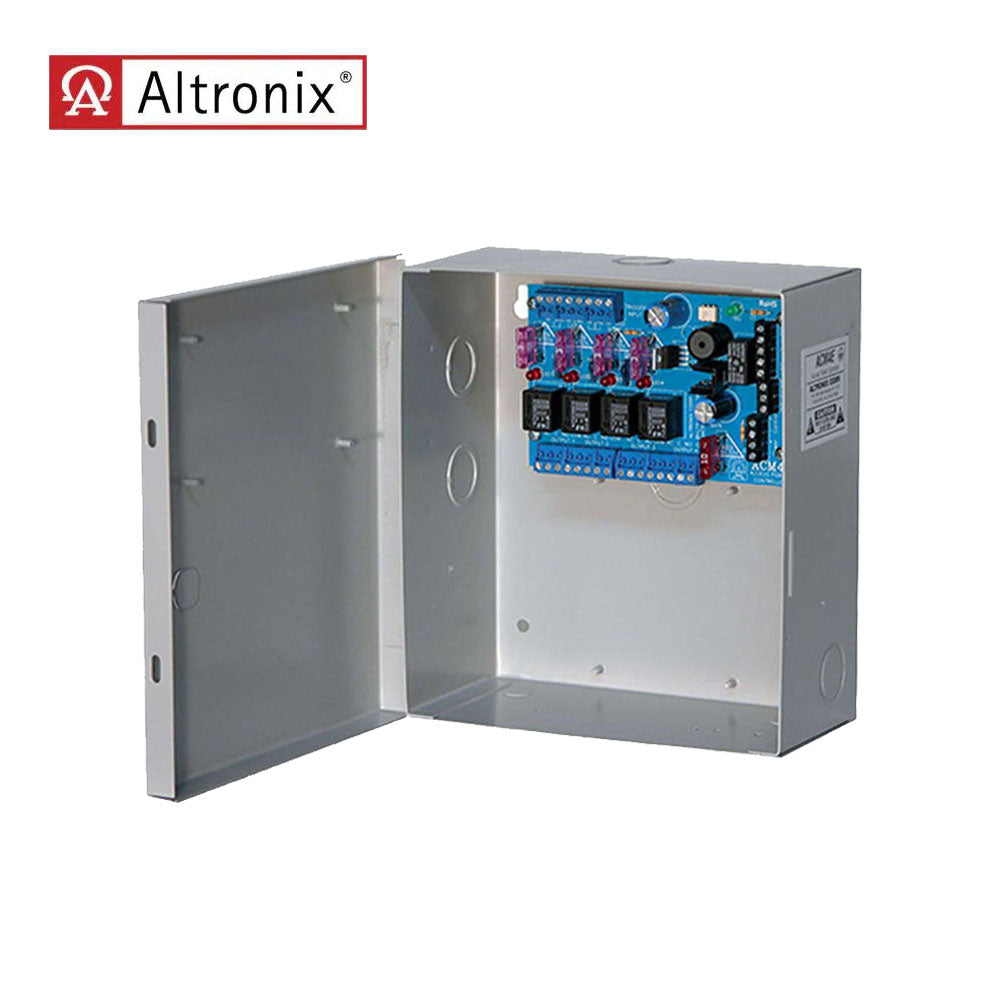

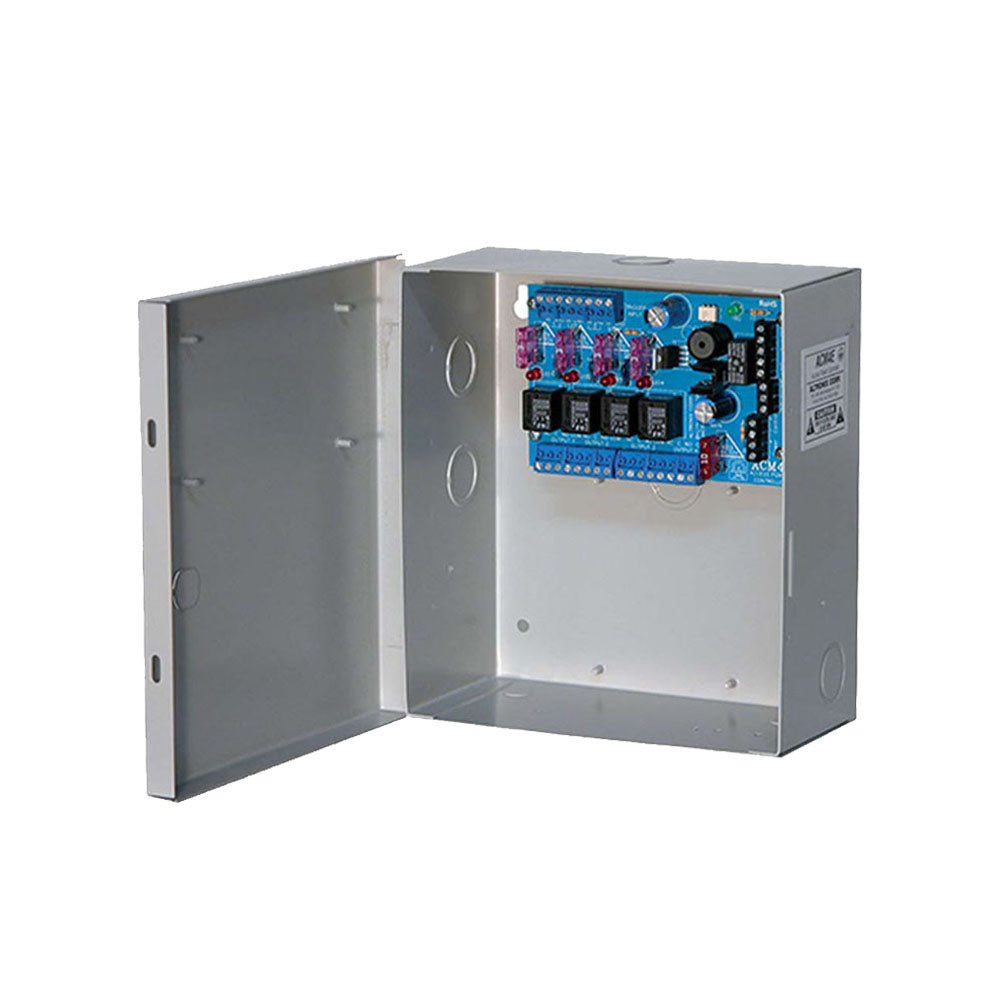

Altronix - ACM4E - Access Power Controller - 4 Fused Relay Outputs - BC100 Enclosure
Altronix - ACM4E - Access Power Controller - 4 Fused Relay Outputs - BC100 Enclosure
Regular price
$126.45 USD
Regular price
$151.74 USD
Sale price
$126.45 USD
Unit price
per
Couldn't load pickup availability
Altronix - ACM4E - Access Power Controller - 4 Fused Relay Outputs - BC100 Enclosure
Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:
- General Use
- CCTV
- Fire Alarm
- POIP
Product Specifications:
| Manufacturer | Altronix |
| SKU | ACM4E |
| UID | ALT100ACM4E |
| Installation | Commercial |
| Unit of Measure | Each |
| Purpose | Access Control |
| Type | Hardwired |
| Product Type | Power Supplies |
Technical Specifications:
| Input |
Power supply input options: a) One (1) common power input (board and lock power). b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock/accessory power). Four (4) Access Control System trigger inputs: a) Four (4) normally open (NO) inputs b) Four (4) open collector sink inputs c) Any combination of the above. |
| Output |
Four (4) independently controlled outputs: a) Four (4) Fail-Safe and/or Fail-Secure power outputs. b) Four (4) dry form "C" 5A rated relay outputs c) Any combination of the above Output ratings: Fuses are rated 2.5A each. Total output current is determined by the power supply, not to exceed a maximum of 10A. total |
