ACSI - M1520M-AE-1-8205 - Entry Mortise Lever Lock - Fail Secure with LN Rose Design - Authorized Egress - Less Cylinder and Sargent 8200 Series Office
ACSI - M1520M-AE-1-8205 - Entry Mortise Lever Lock - Fail Secure with LN Rose Design - Authorized Egress - Less Cylinder and Sargent 8200 Series Office
Couldn't load pickup availability
ACSI - M1520M-AE-1-8205 - Entry Mortise Lever Lock - Fail Secure with LN Rose Design - Authorized Egress - Less Cylinder and Sargent 8200 Series Office

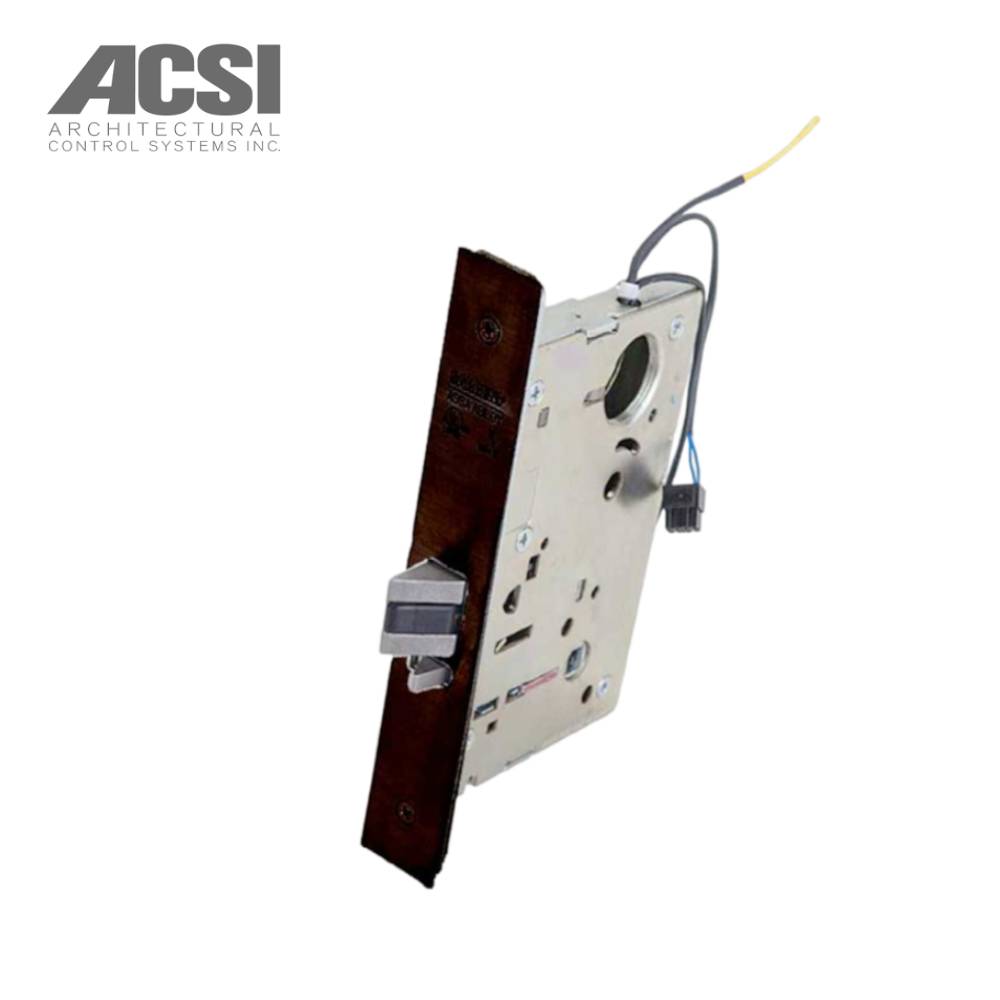

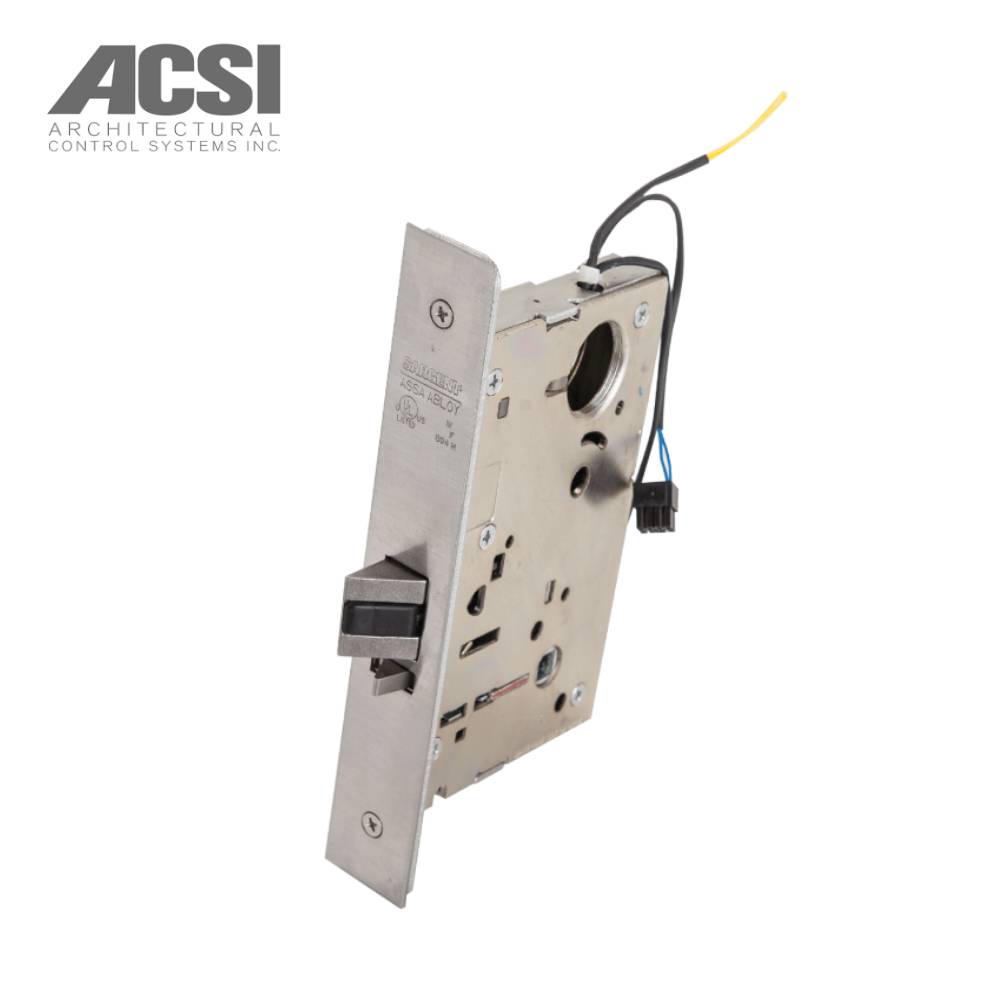

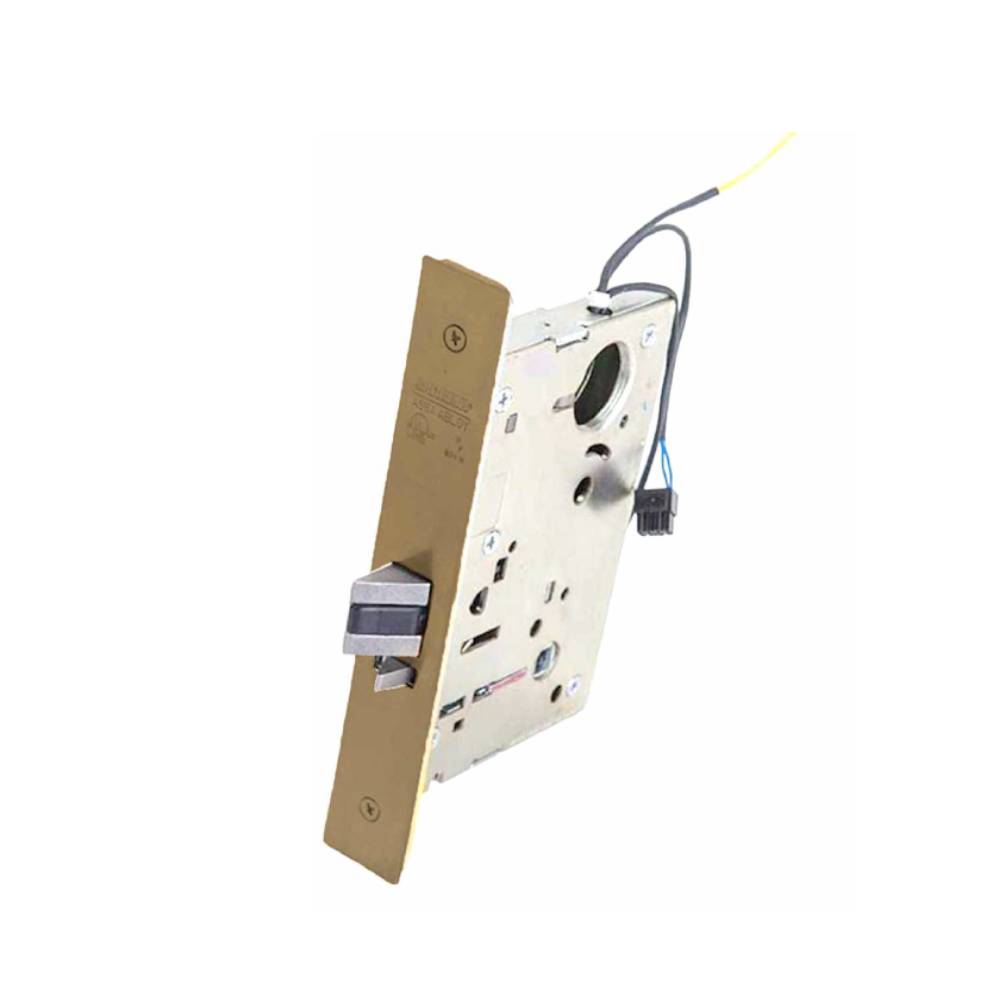

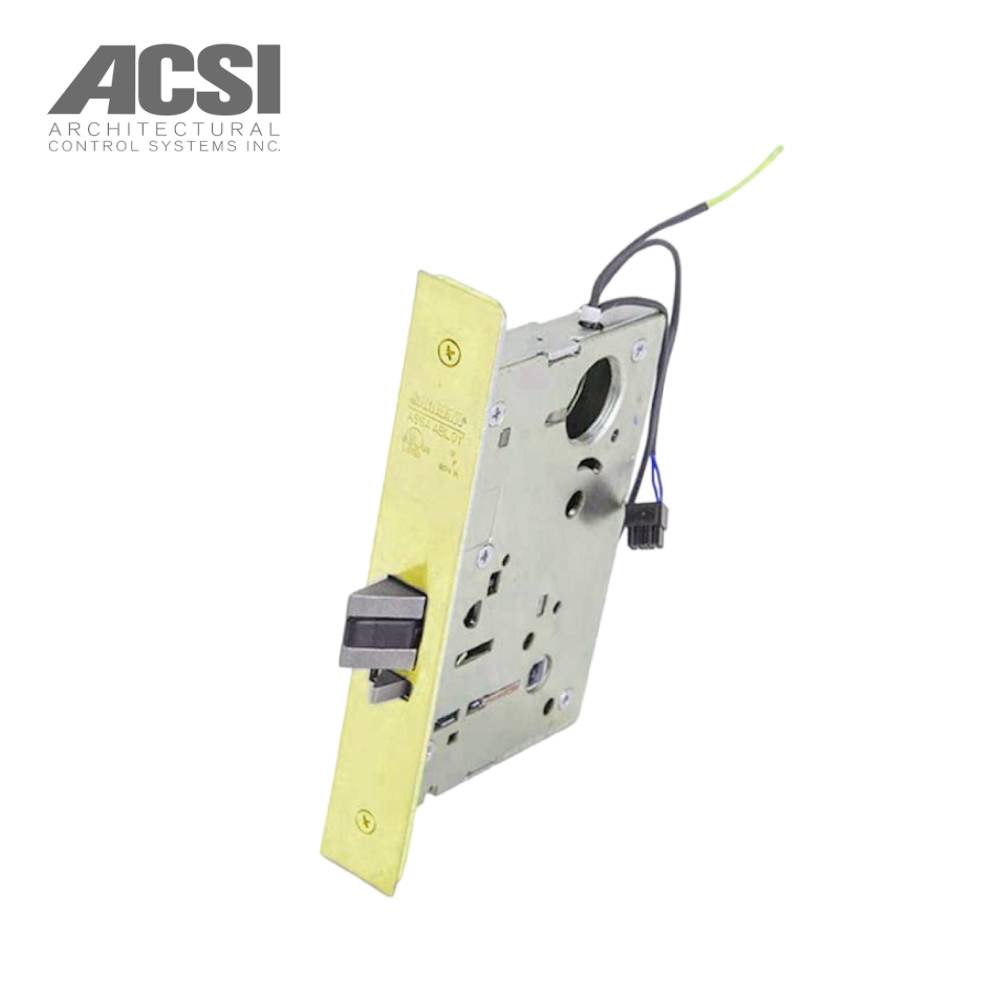

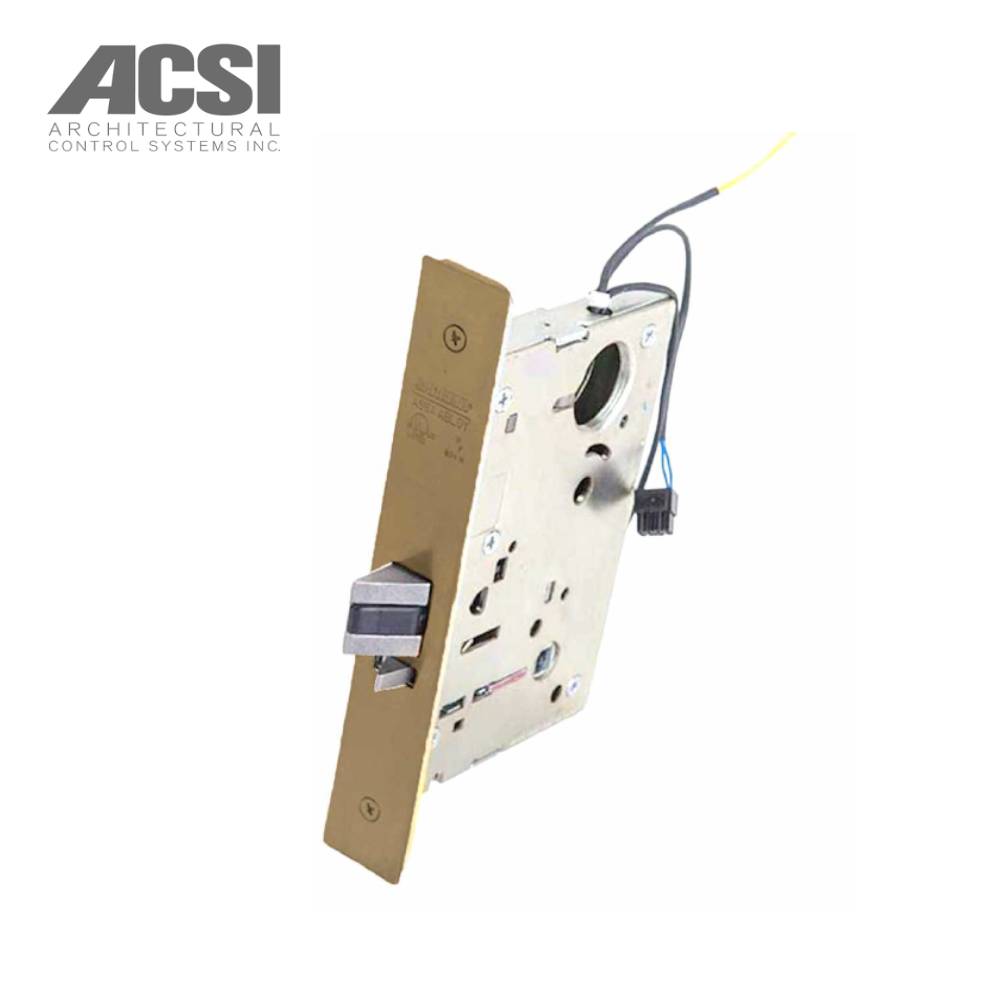

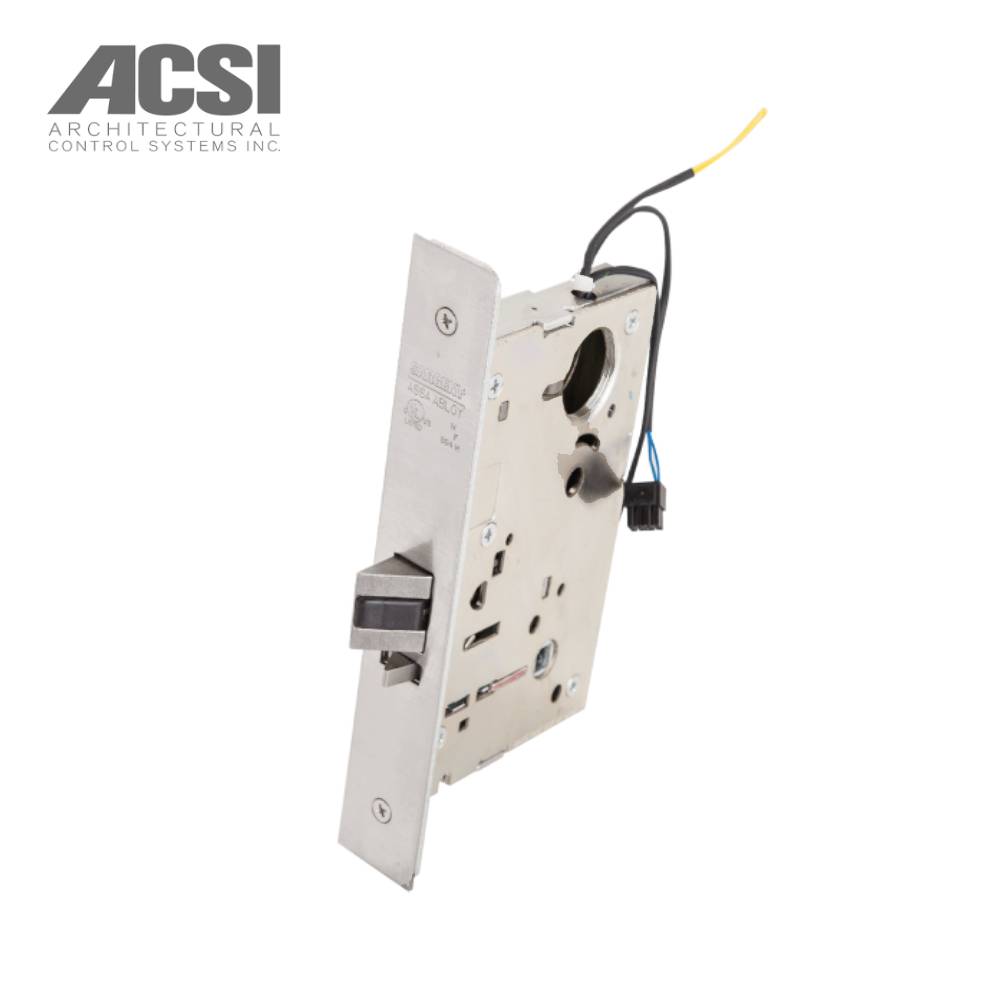

M1520M-AE-1-8205 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LN Rose Design Authorized Egress, Reversible. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Authorized Egress (Request To Exit), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1520M-AE-1-8205 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LN Rose Design Authorized Egress, Reversible for easy installation and dependable door hardware solution.
Design:
- LN Rose Design, B Lever Design
- LN Rose Design, F Lever Design
- LN Rose Design, J Lever Design
- LN Rose Design, L Lever Design
- LN Rose Design, P Lever Design
Specifications:
| Function | 1520M-Fail Secure Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Locks |
| Electric Options | Latchbolt Monitor |
| Strike Type | Curved Lip |
| Strike Size | 4-7/8" x 1-1/4" |
| Lever Size | 5 Inch |
| Hub Material | Cold Forged Steel |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| Function Description | Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure. |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Fire Doors |
| Finish | 10A - Satin Bronze Blackened 10B - Oil Rubbed Dark Bronze 26 - Bright Polished Chrome 26D - Satin Chrome US3 - Bright Polished Brass |
| Front Size | 8" x 1-1/4" |
| Strike Lip | 1-1/4 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Latchbolt Type | One Piece Anti-Friction Reversible Latch |
| Manufacturer Parent | ACSI |
