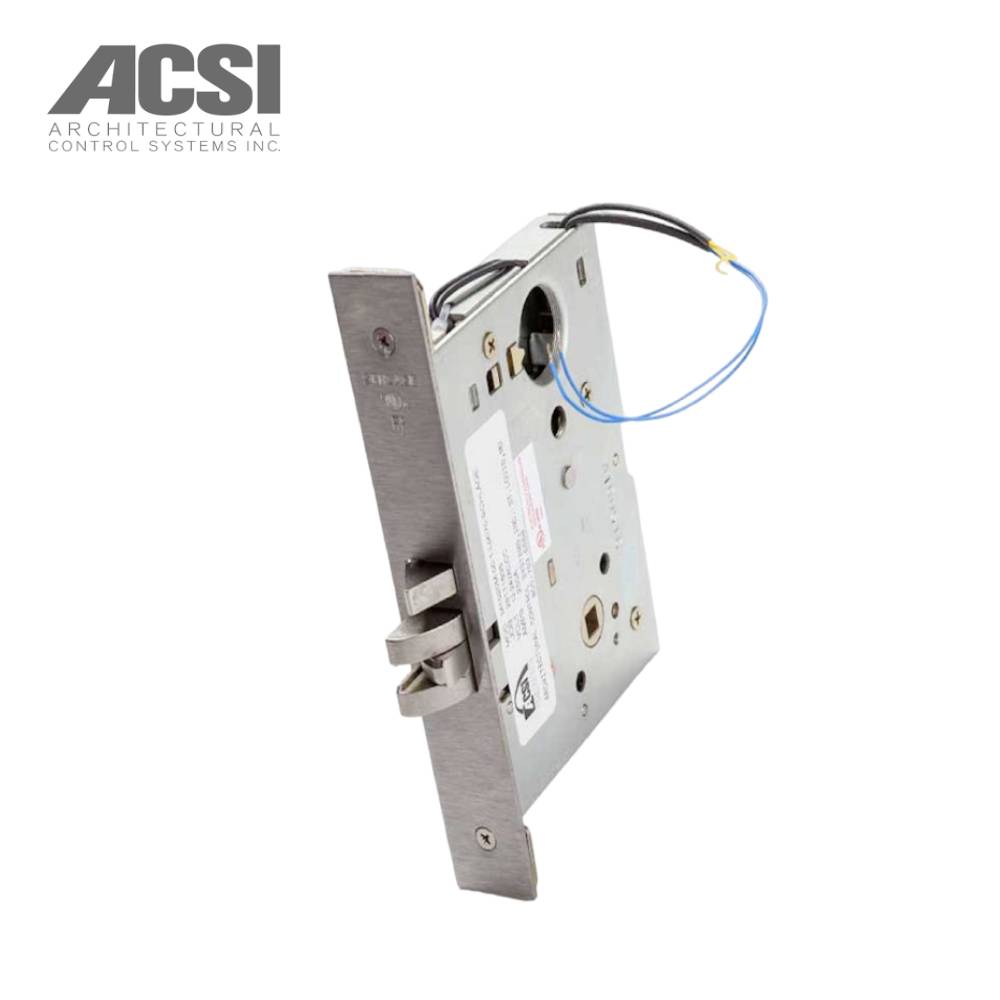

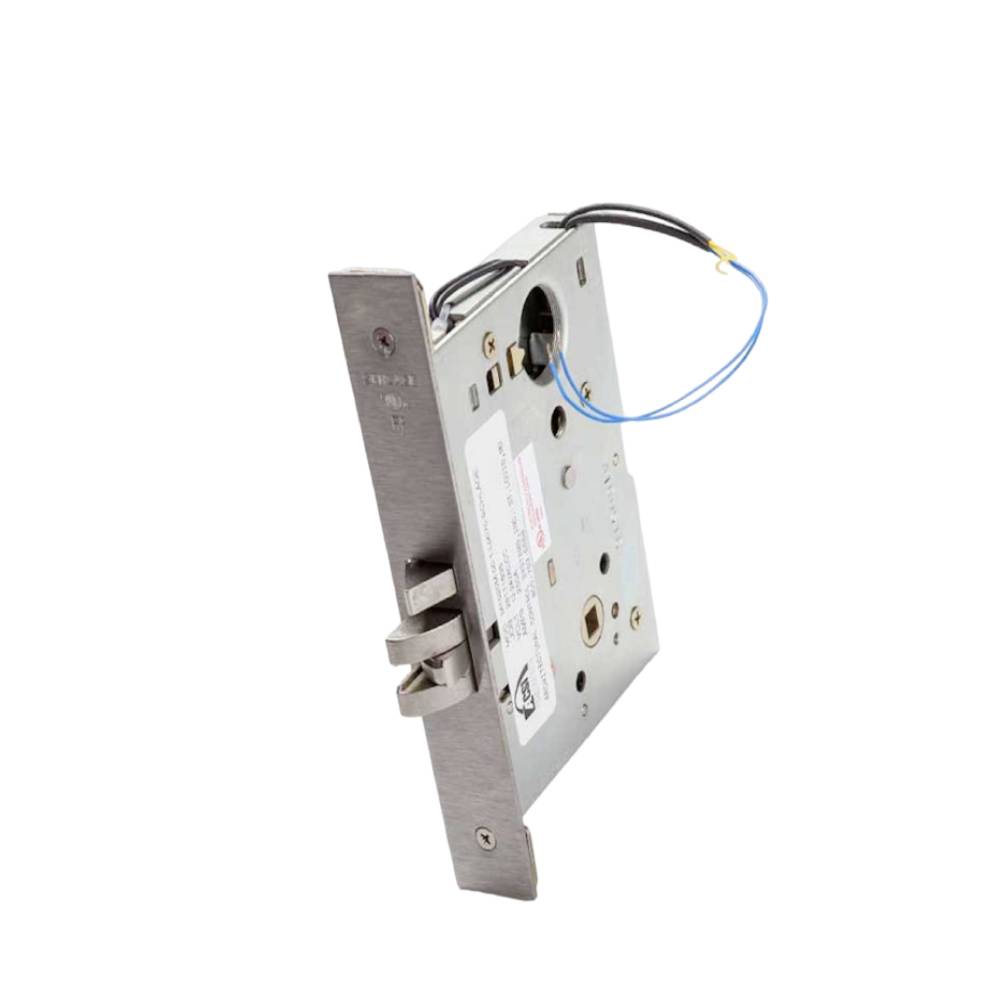

ACSI - M1510M-1-L9070L - Entry Mortise Lever Lock - Fail Safe with Motor Controlled and Schlage L Series Office - 26D (Satin Chrome)

ACSI - M1510M-1-L9070L - Entry Mortise Lever Lock - Fail Safe with Motor Controlled and Schlage L Series Office - 26D (Satin Chrome)

Regular price $639.46 USD
Regular price $767.35 USD Sale price $639.46 USD
Sale Sold out
Design

ACSI - M1510M-1-L9070L - Entry Mortise Lever Lock - Fail Safe with Motor Controlled and Schlage L Series Office - 26D (Satin Chrome)

M1510M-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled. Schlage L Series Classroom Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. Buy the ACSI M1510M-1-L9070L Schlage L Series Office, Entry Mortise Lever Lock Fail Safe Motor Controlled for easy installation and dependable door hardware solution.

Design:
  • 03 Lever Design, A Rose Design
  • 03 Lever Design, L Rose Design
  • 06 Lever Design, A Rose Design
  • 06 Lever Design, L Rose Design
  • 07 Lever Design, A Rose Design
  • 07 Lever Design, L Rose Design
  • 17 Lever Design, A Rose Design
  • 17 Lever Design, L Rose Design
Specifications:
Function 1510M-Fail Safe Control
Cylinder Type Less Conventional Cylinder
Product Type Electronic Mortise Lock
Strike Size 4-7/8" x 1-1/4"
Latch Throw 3/4 Inch
Standards UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security; ASTM F476-76 Grade 40; Complies with ICC A117.1; UL 10C and CAN/ULC-S104
Features Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems
Function Description Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function)
Grade ANSI/BHMA Grade 1
Finish 26D - Satin Chrome
ADA Compliant YES
Front Size: 1-1/4" x 8" x 7/32"
Latchbolt Type Stainless Steel Latch With Anti-Friction Tongue
Door Thickness 1-3/4 inch
Voltage 12 to 24VAC/VDC
Strike Type Curved Lip
Backset 2-3/4 Inch
Rose/Escutcheon Width 2-1/8 Inch
Rose/Escutcheon Length 2-1/8 Inch
Lever Size 4-3/4 Inch
Strike Lip 1-3/16 Inch
Manufacturer Parent ACSI
