ACSI - M1510M-1-8205 - Entry Mortise Lever Lock - Fail Safe with LN Rose A Lever Design - Less Cylinder and Sargent 8200 Series Office

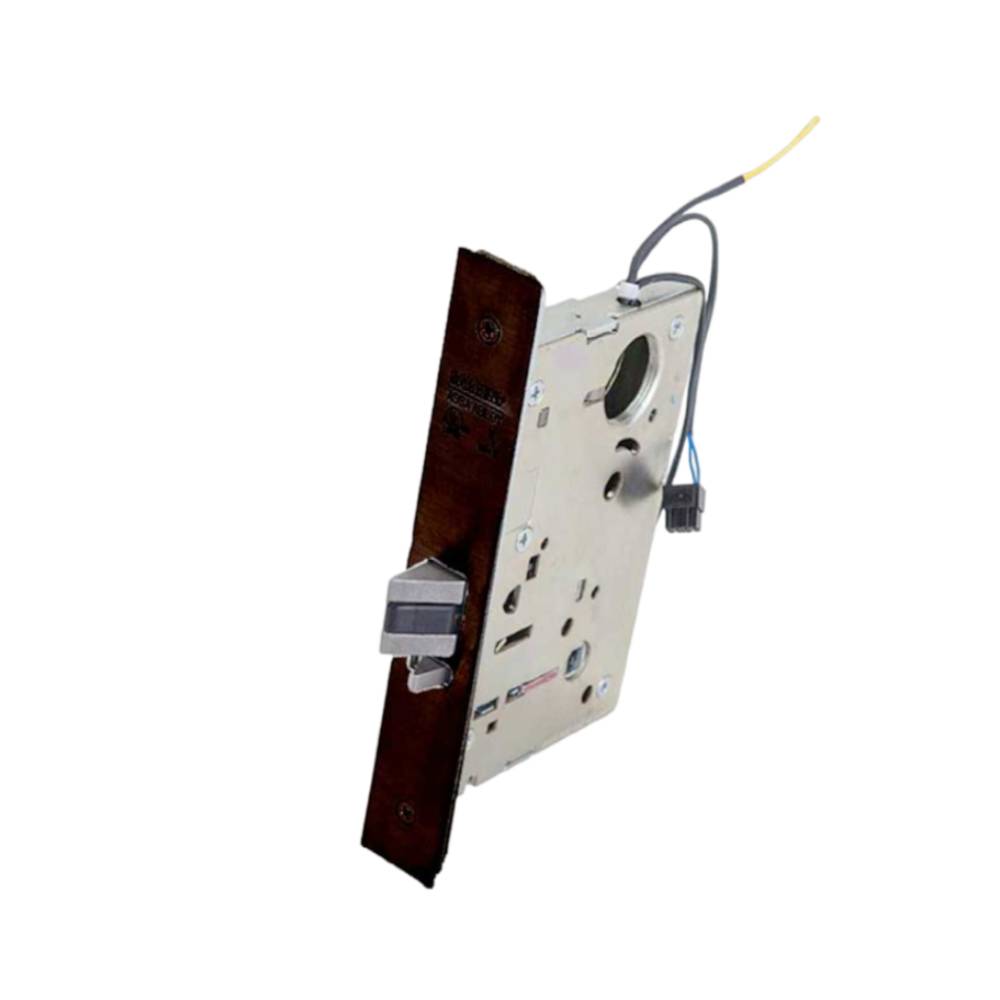

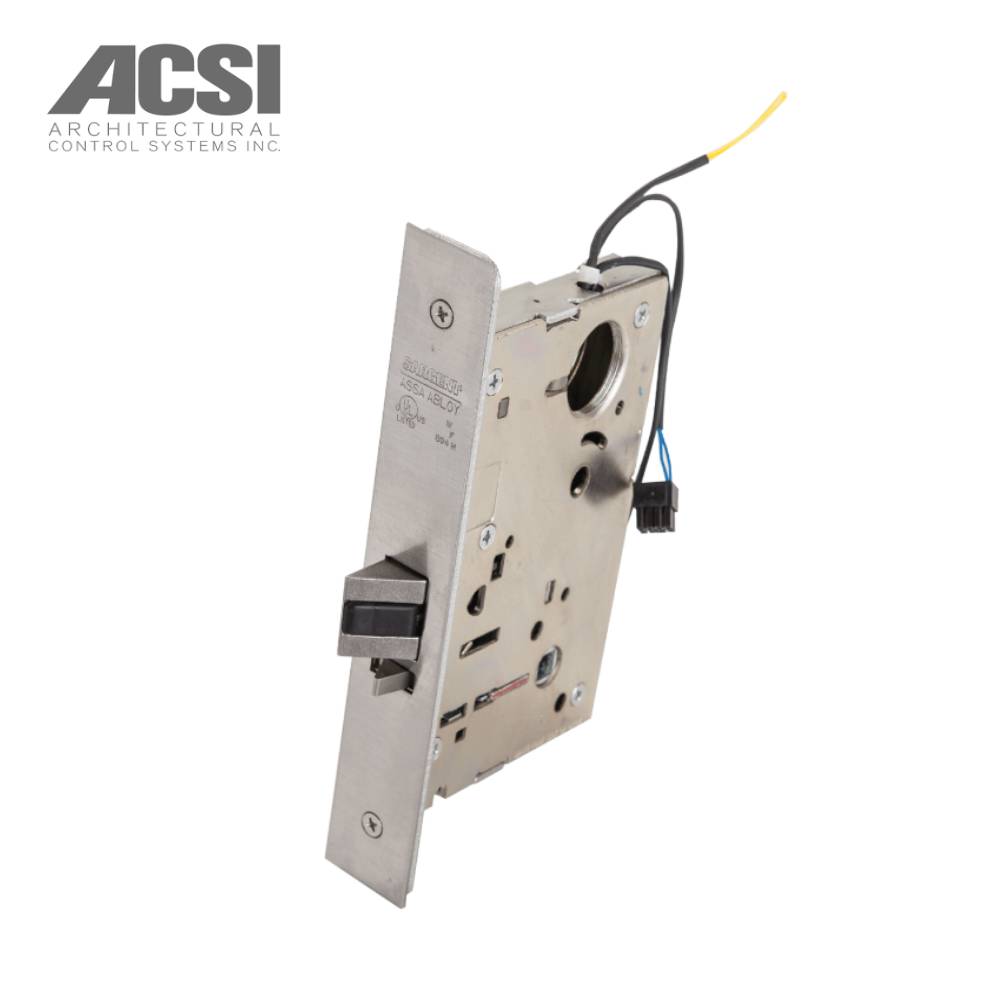

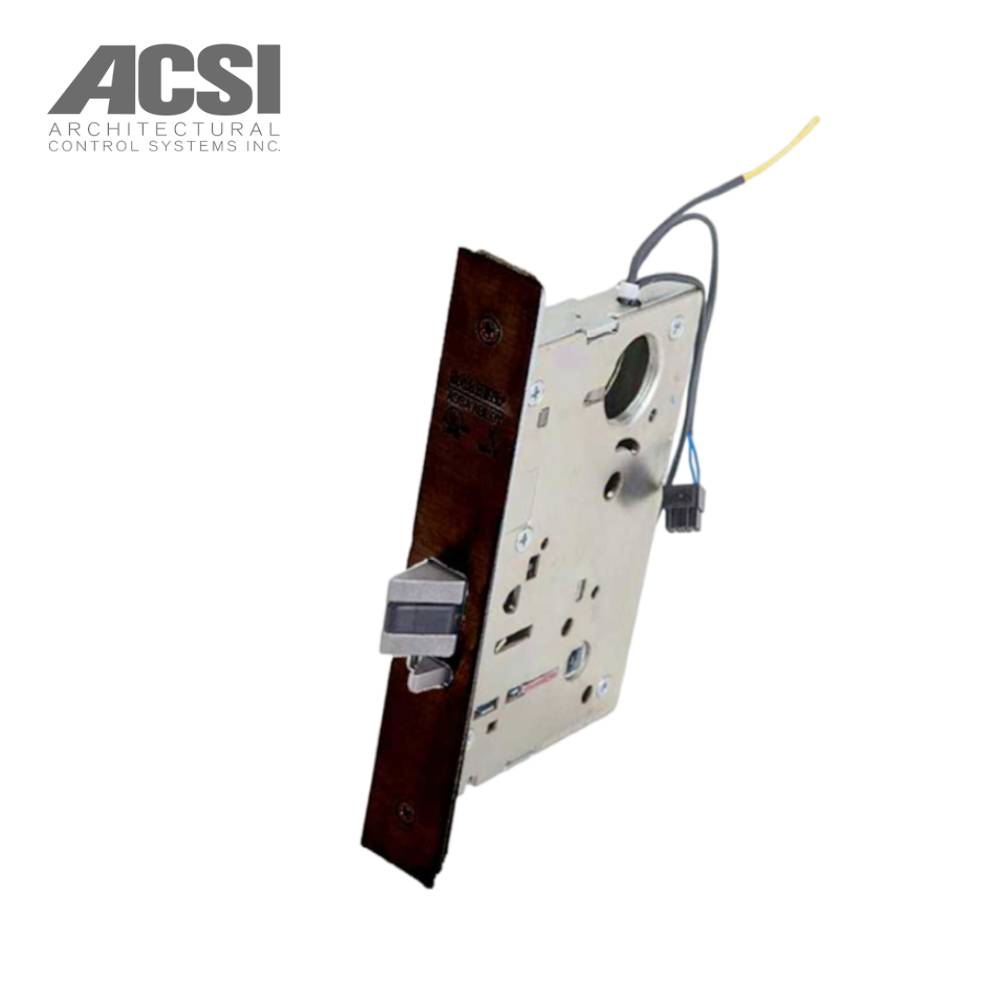

M1510M-1-8205 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Safe LN Rose Design, A Lever Design, Handed. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Safe Operation (Power Lock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder. ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Buy the ACSI M1510M-1-8205 Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Safe LN Rose Design, A Lever Design, Handed for easy installation and dependable door hardware solution.
Specifications:
| Function | 1510M-Fail Safe Control |
| Cylinder Type | Less Cylinder |
| Product Type | Electronic Mortise Lock |
| Electric Options | Latchbolt Monitor |
| Strike Type | Curved Lip |
| ADA Compliant | YES |
| Standards | UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with All Standard Trims; UL and cUL Listed; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| Function Description | Outside Trim is Locked When Power is Applied and Unlocked When Power is Removed (Storeroom Function When Energized); Lockset will Unlock in the Event of a Power Failure (Passage Function) |
| Features | Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems |
| Application | Fire Doors; Windstorm |
| Strike Size | 4-7/8" x 3/32" |
| Lever Size | 5 Inch |
| Hub Material | Cold Forged Steel |
| Handed | Right Hand Left Hand |
| Finish | 10B - Oil Rubbed Dark Bronze 26D - Satin Chrome |
| Front Size | 8" x 1-1/4" |
| Strike Lip | 1-1/4 Inch |
| Voltage | 12 to 24VAC/VDC |
| Grade | ANSI/BHMA Grade 1 |
| Backset | 2-3/4 Inch |
| Door Thickness | 1-3/4 inch |
| Latch Throw | 3/4 Inch |
| Latchbolt Size | 5/8" x 1" |
| Rose/Escutcheon Thickness | 5/16 Inch |
| Latchbolt Type | One Piece Anti-Friction Reversible Latch |
| Manufacturer Parent | ACSI |
