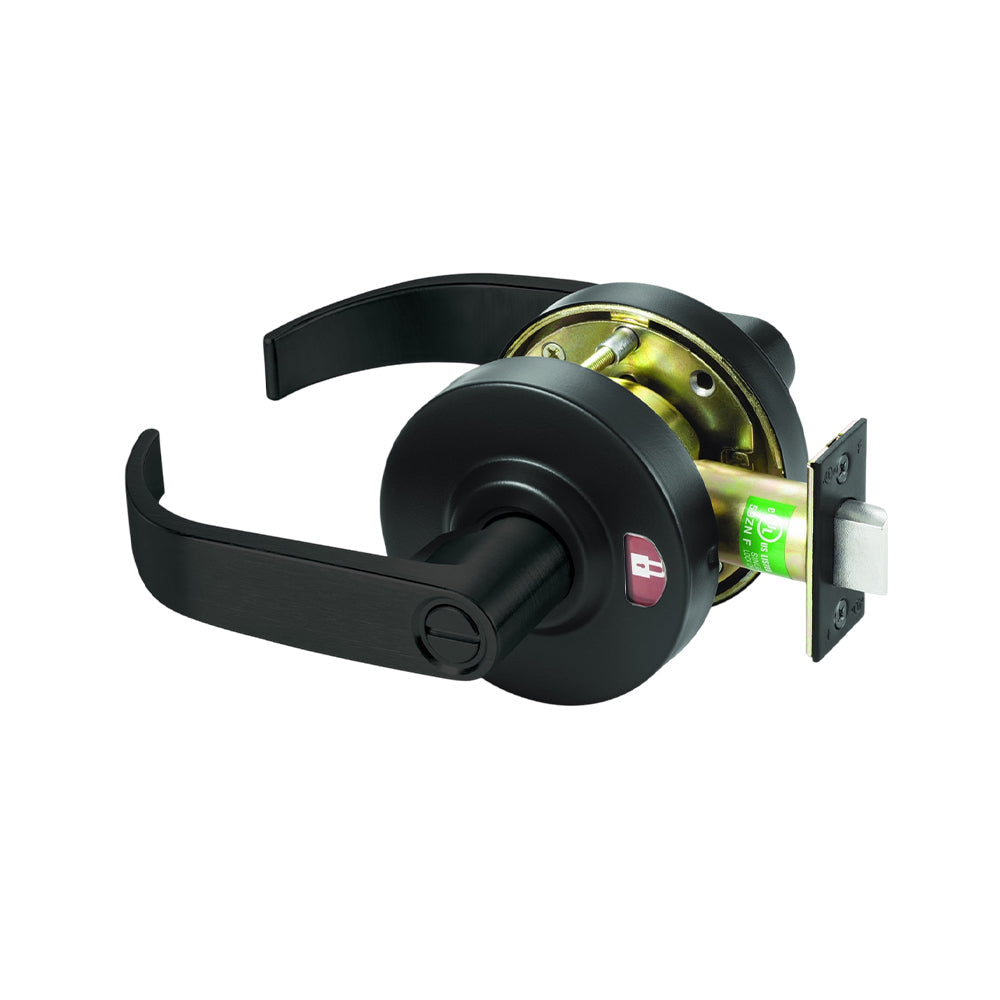

ACCENTRA YPL02 Non-Keyed Cylindrical Lock with Privacy Indicator - Grade 1
ACCENTRA YPL02 Non-Keyed Cylindrical Lock with Privacy Indicator - Grade 1
Regular price
$359.00 USD
Regular price
$466.23 USD
Sale price
$359.00 USD
Unit price
per
Couldn't load pickup availability
ACCENTRA YPL02 Non-Keyed Cylindrical Lock with Privacy Indicator - Grade 1
The YPL series is featured an Pacific Beach with a green/red "icons only" privacy indicator for clear locked/unlocked status visibility designed for standard bored door prep, this non-keyed, non-handed lock is ideal for both new construction and retrofit applications.
Features:
- Red/Green window display with padlock icon for clear visual door status indication
- Durable cylindrical lock construction designed for high-use applications
- Privacy function (F76A) with push-button locking and automatic unlock when inside lever is pressed
- One-motion egress with coin turn emergency access from outside
- Through-bolted design for robust operation; ideal for retrofit installations
- Lever returns to within 1/2" of door face for safety and ADA-friendly clearance
Specifications:
| Door Prep | ANSI/BHMA A156.115 |
| Door Thickness | 1-3/4" (44mm) standard; accommodates 1-3/8" (35mm) with APK-2 adapter plate kit (ordered separately) |
| Backset | 2-3/4" (70mm) standard; 2-3/8" (60mm) optional |
| Handing | Non-handed |
| Latchbolt | Plain; 2-3/4" (70mm) backset x 1-1/8" (29mm) square corner front with 1/2" (13mm) throw (standard); 2-3/8" (60mm) x 1" (25mm) optional |
| Strike | ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center |
| ANSI/BHMA Certification | 2-3/4" Backset: Certified Grade 1, ANSI/BHMA A156.2, Series 4000 2-3/8" Backset: Certified Grade 2, ANSI/BHMA A156.2, Series 4000 |
| Fire Rating | UL/cUL Listed for 3-hour fire doors |
| Warranty | 3 Years |
