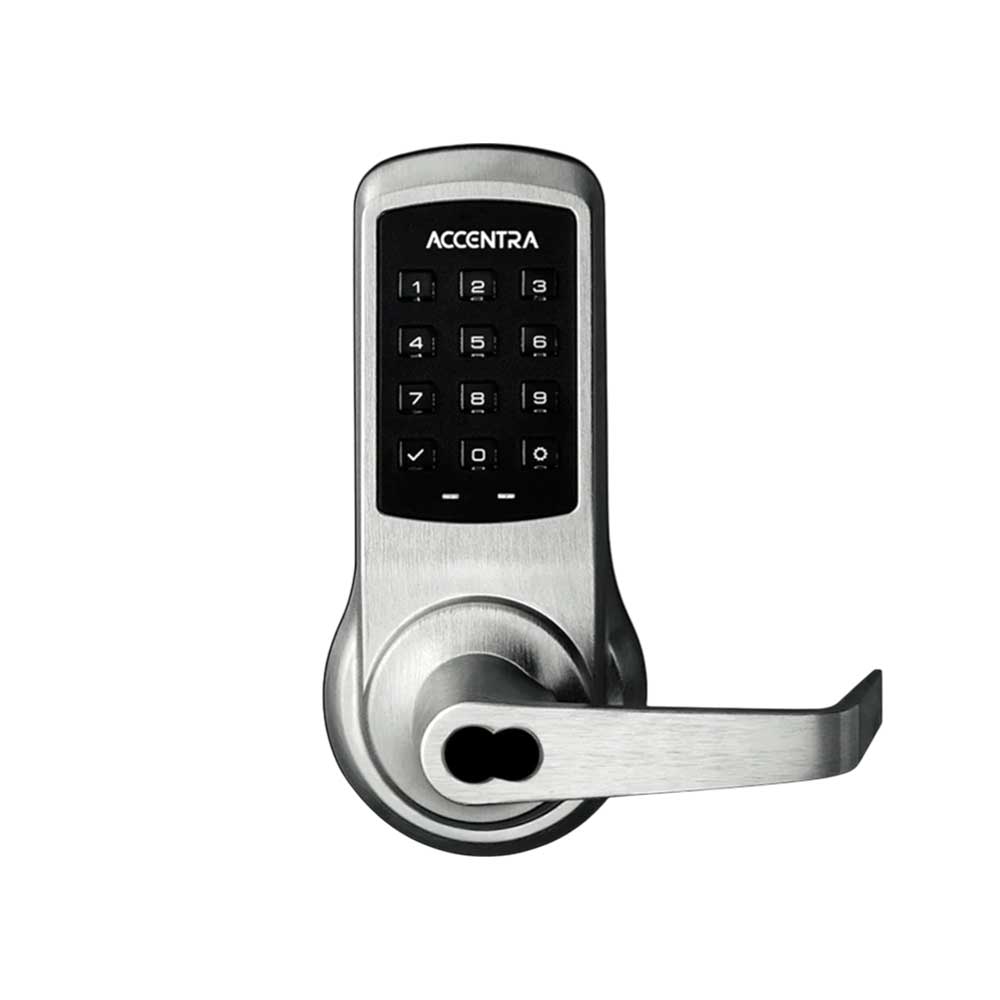

ACCENTRA - NexTouch - Pushbutton Keypad Cylindrical Lock - No Deadbolt with Cylinder Override - SFIC Prep, Less Core - Augusta Lever - 626 (Satin Chrome)

ACCENTRA - NexTouch - Pushbutton Keypad Cylindrical Lock - No Deadbolt With Cylinder Override - SFIC Prep, Less Core - Augusta Lever - 626 (Satin Chrome)

nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.

Features:

• Modular technology allows users to upgrade to data-on-card
• Capacitive touchscreen or pushbutton keypad available, for tactile environments and ADA compliance
• Privacy mode enabled by a button push
• Up to 500 user codes in keypad-only operation
• 9V battery power backup prevents lockout even if the batteries fail
• Available in four finishes and three lever designs
• A certified Integrator is required to configure this product with Accentra
• Non-handed, field reversible
• Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel
• Unique and versatile design enables upgrade of the lock's technology when needed
• Reduces investment and maintenance costs
• Windstorm: Certified (refer to local codes)
• 3-year limited warranty on mechanical and electrical components, one year limited warranty on the finish

NTB613 Cylinder:

• For doors that require mechanical key override.
• Latchbolt retracted by lever outside with valid pin code; by use of mechanical key, or by operating lever inside.
• Inside lever always active.
• Deadlocking latchbolt

Specifications:

Note: Yale products are now branded as Accentra - same trusted quality, new name.

Download:

• Installation Instruction
