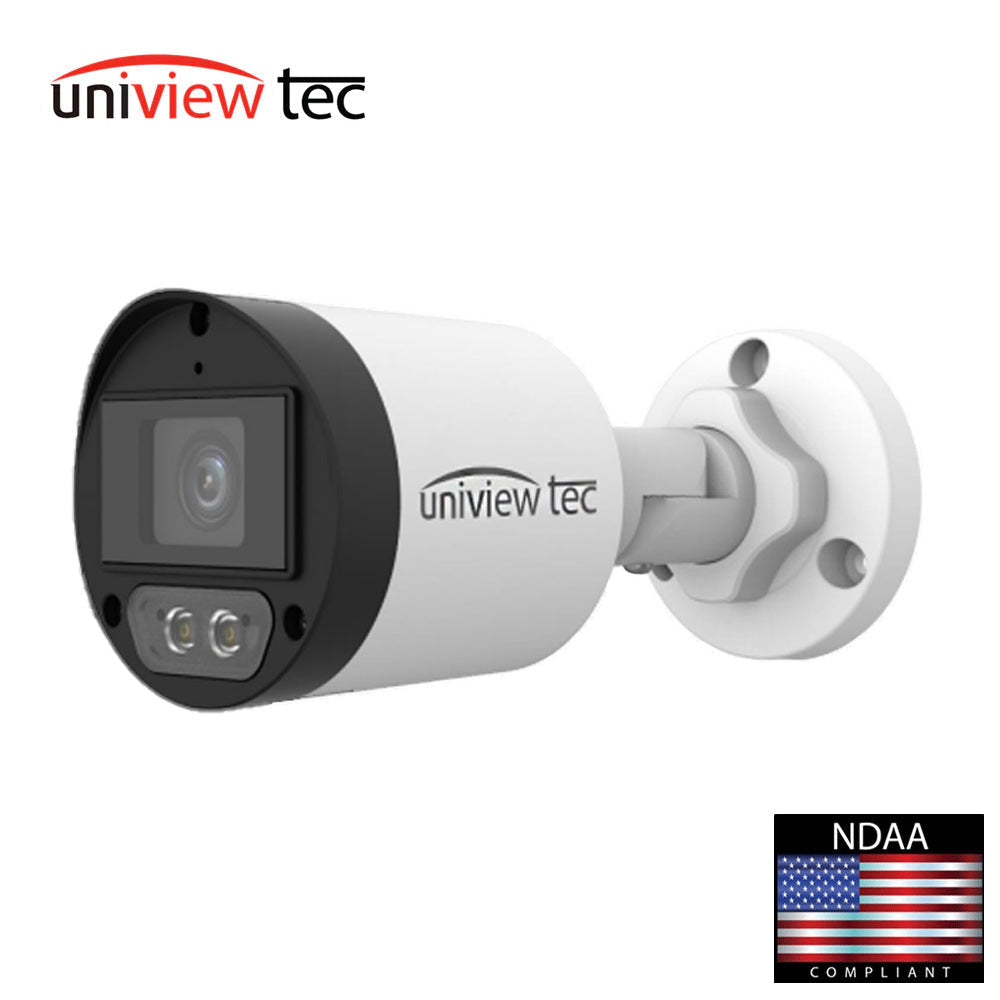

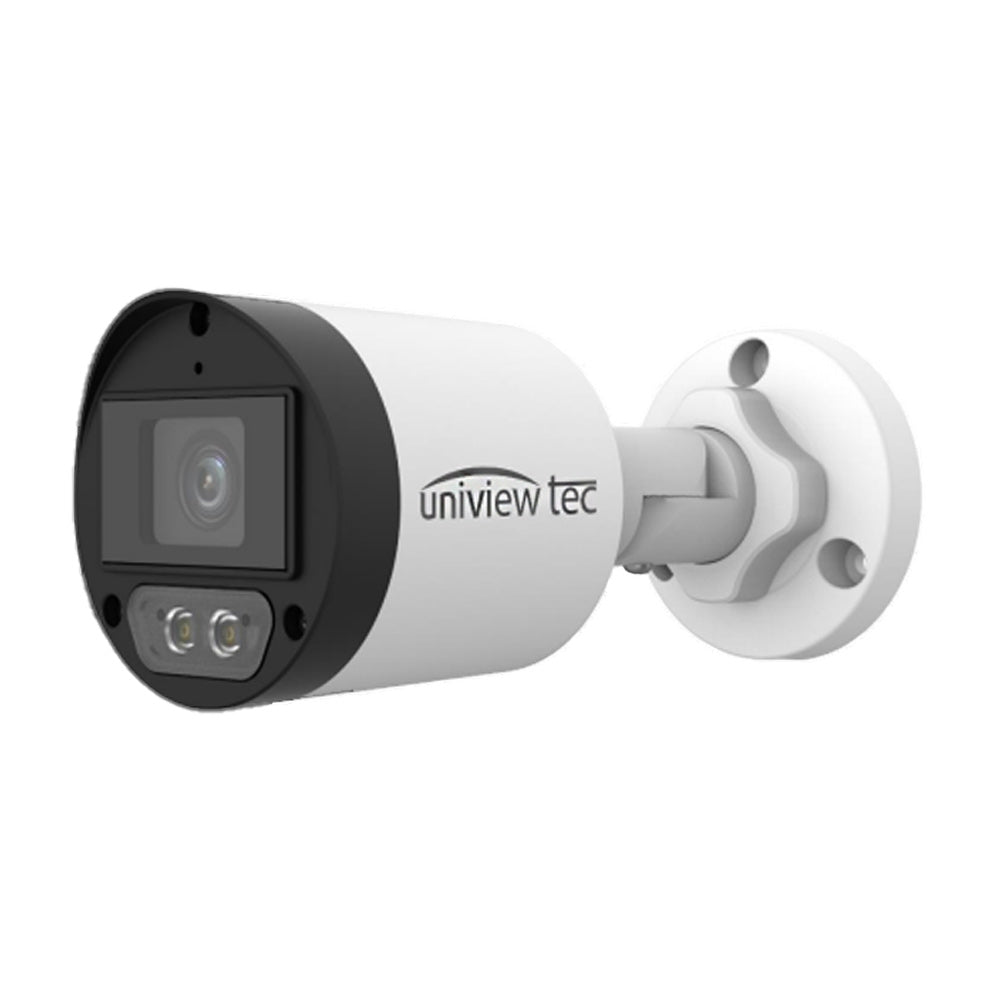

Uniview Tec UHDB5C28X 5MP HD Analog, DWDR, Color Hunter, Bullet Camera

Uniview Tec UHDB5C28X 5MP HD Analog, DWDR, Color Hunter, Bullet Camera

$129.00 USD
$154.80 USD $129.00 USD
Sale Sold out

Uniview Tec UHDB5C28X 5MP HD Analog, DWDR, Color Hunter, Bullet Camera

Features:
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • High Video Quality with 5MP, 2880 x 1620 Resolution
  • High-Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
  • TVI, AHD, CVI and CVBS Protocol selectable ��� Engineered to work with UVT Hybrid NVRs for Maximum Stability and Performance
  • Color Hunter Technology allows 24/7 Full-Color Imaging with White Light Illumination
  • 2.8mm fixed lens, Backlight Compensation and 2D DNR (Digital Noise Reduction)
  • TRUE Day/Night and DWDR functionality for all Lighting Conditions
  • Built-in Microphone for High Quality Audio Transmission via Coax Cables
  • Supports 180�� horizontal flip, 180�� vertical flip
  • Easy to Operation On Screen Display (OSD) Configuration Menu
  • 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
  • Supported by Uniview tec Guard Station Client Software and Guard Viewer Mobile App���s for iPhone and Android Devices
Specifications:
Sensor
Pixel 5MP
Size 1/2.9" CMOS
Minimum illumination 0.005 lux (F1.4, AGC ON)
0 lux (white light on)
Lens
Focal Length 2.8mm
Angle of View (H x V) 111.5�� x 58.9��
IR Illumination
White Light Two Illuminator; 40M (130ft)
Video
Resolution 5MP @ 25fps: 2880 �� 1620; 5MP @ 20fps: 2592 �� 1944; 5MP @ 12.5fps: 2592 �� 1944
4MP: 2560 �� 1440
1080P: 1920 �� 1080
Frame rate TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps
CVBS: PAL, NTSC
Shutter time PAL: 1/25s-1/50000s
NTSC: 1/30s���1/50000s
Exposure mode 4 modes: Global (default), BLC, HLC, DWDR
Day/Night 24/7 full-color imaging
Digital noise reduction 2D
White balance Two modes: Auto (default), Manual
WDR DWDR
Flip Supports 180�� horizontal flip, 180�� vertical flip.
Audio
Microphone Built-in
Camera Audio TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
Power 5.5mm power interface
Video output BNC, supports TVI / AHD / CVI / CVBS
Operating Environment
Temperature -30��� to 60��� (-22��� to 140���)
Humidity ���95% (RH, non-condensing)
Surge protection 4KV
Ingress protection IP67
General
Power DC 12V(��25%), with reverse polarity protection and surge protection, Max 3.28W
Mount 3D bracket supplied, surface mount (default); optional junction box and pole mount available
Dimensions (L x W x H) 157.4 x 67 x 66mm (5.6 x 2.4 x 2.6���)
Material Metal and Plastic
Weight 279g (0.62lb)
Certification CE, FCC
