Uniview Tec

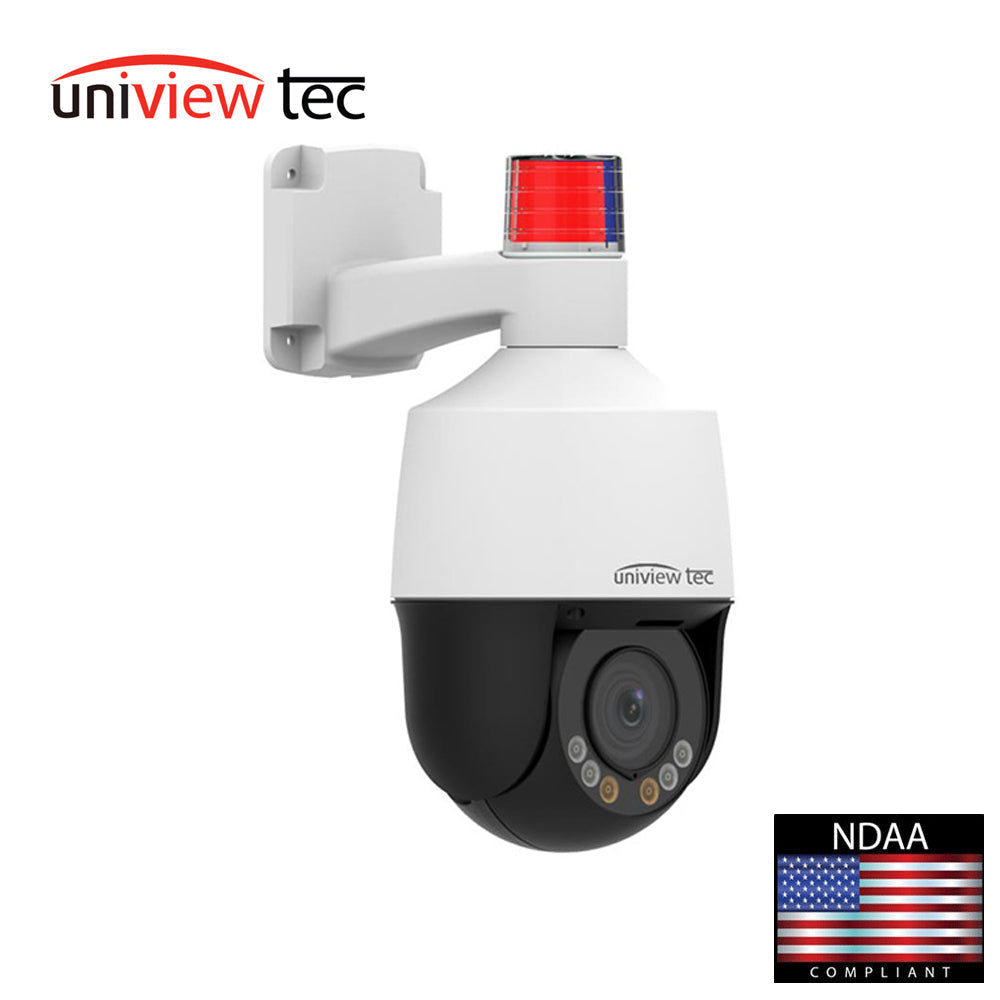

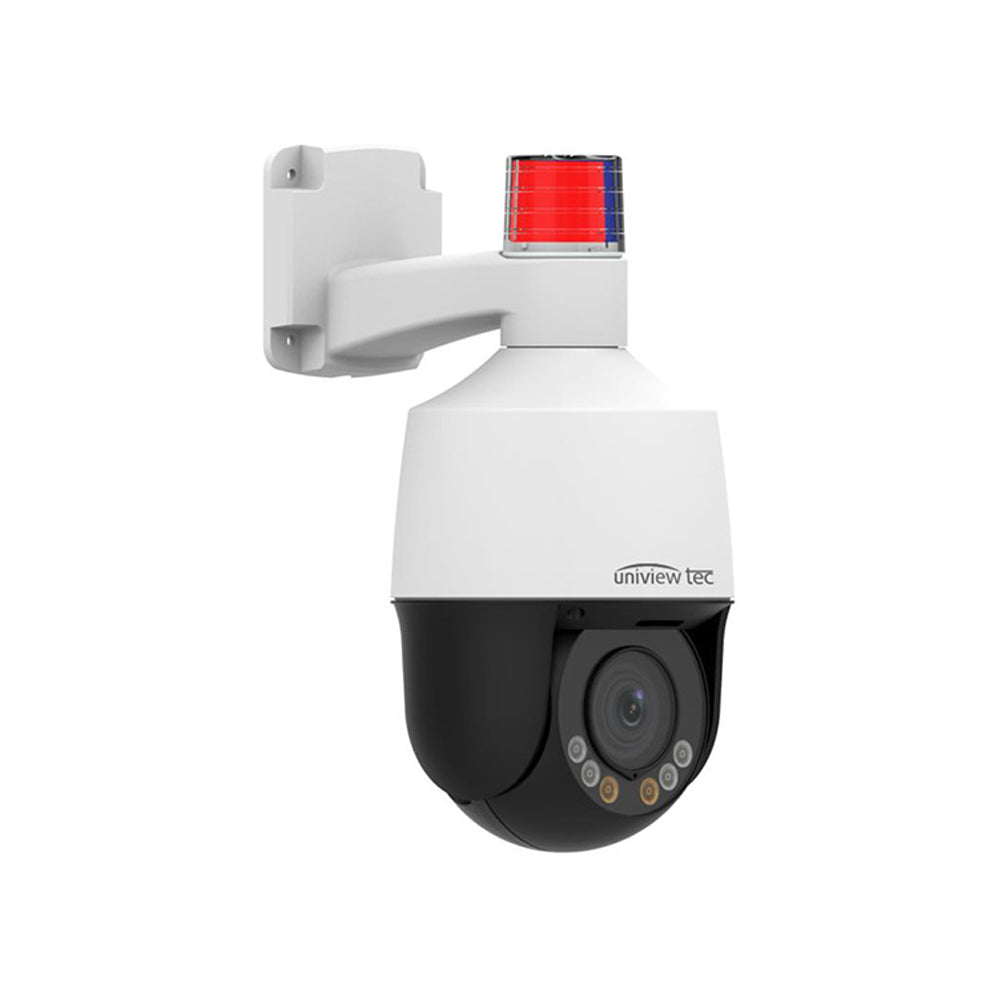

Uniview Tec IPCSD54X 5MP 4x Zoom Active Deterrence PTZ Dome Camera
Uniview Tec IPCSD54X 5MP 4x Zoom Active Deterrence PTZ Dome Camera
Regular price
$529.00 USD
Regular price
$634.80 USD
Sale price
$529.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec IPCSD54X 5MP 4x Zoom Active Deterrence PTZ Dome Camera
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP 2880 x 1620 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Light Hunter Technology for ultra-high image quality in low light applications and Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet
- 2.8 ~ 12mm, 4x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Wide Dynamic Range Functionality for all Lighting Conditions
- Built-In Mic & Speaker, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Pan / Tilt Speed up to 50��/sec with up to 256 Preset Positions
- Triple Video Streams; ONVIF Profile S Compliant
- Intelligent perimeter protection with Active Deterrence with Strobe Light and Audio Alarm
- 12VDC / PoE Power Options and Built-in Micro-SD Card Slot enables up to 256GB storage
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App���s for iPhone and Android Devices
Specifications:
| Camera | ||
|---|---|---|
| Sensor | 1/2.7", progressive scan , 5 megapixel CMOS | |
| Lens | 2.8 ~ 12mm, automatic focusing and motorized zoom lens | |
| Angle of View (H x V) | 30.6�� ~ 104.1�� x 17.4�� ~ 54.9��(wide ~ tele) | |
| Shutter | Auto/Manual, 1 ~ 1/100000 s | |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Digital noise reduction | 2D/3D DNR | |
| IR LED Range / Wavelength | Up to 50m (164ft) IR range / 850nm | |
| WDR | 120dB | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| Maximum Frame Rate/ Stream |
Main Stream: 5MP (2880 �� 1620) @ 30fps Sub Stream: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 �� 576) @ 30fps |
|
| HLC, BLC, Flip | Supported | |
| OSD, Privacy Mask, Motion Detection & RO | Up to 8 areas | |
| Pan and Tilt Speed; Presets | 0��~345�� Pan, 50��/s max speed; -10�� ~ 110�� Tilt, 40��/s max speed; 256 presets |
|
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL |
|
| Compatible Integration | ONVIF Profile S, API | |
| Network | RJ45, 10M/100M Base-TX Etherne | |
| Intelligent Perimeter Protection | Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection |
|
| Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
|
| General | ||
| Power | 12VDC +/- 25%, PoE (IEEE802.3 af); Max 18W | |
| Dimensions (�� x H) & Weight | ��133 x 269.4mm (��5.2 x 10.6���); 1.13kg (2.49lb) | |
| Audio I/O & Compression | Built-in Mic & Speaker; G.711U and G.711A | |
| Operating Temperature & Humidity |
-20��C ~ +60��C (-4��F ~ 140��F); Humidity: 10%~ 95% RH (non-condensing) |
|
| Conformity Certifications | IP66, CE, FCC | |
Download:
