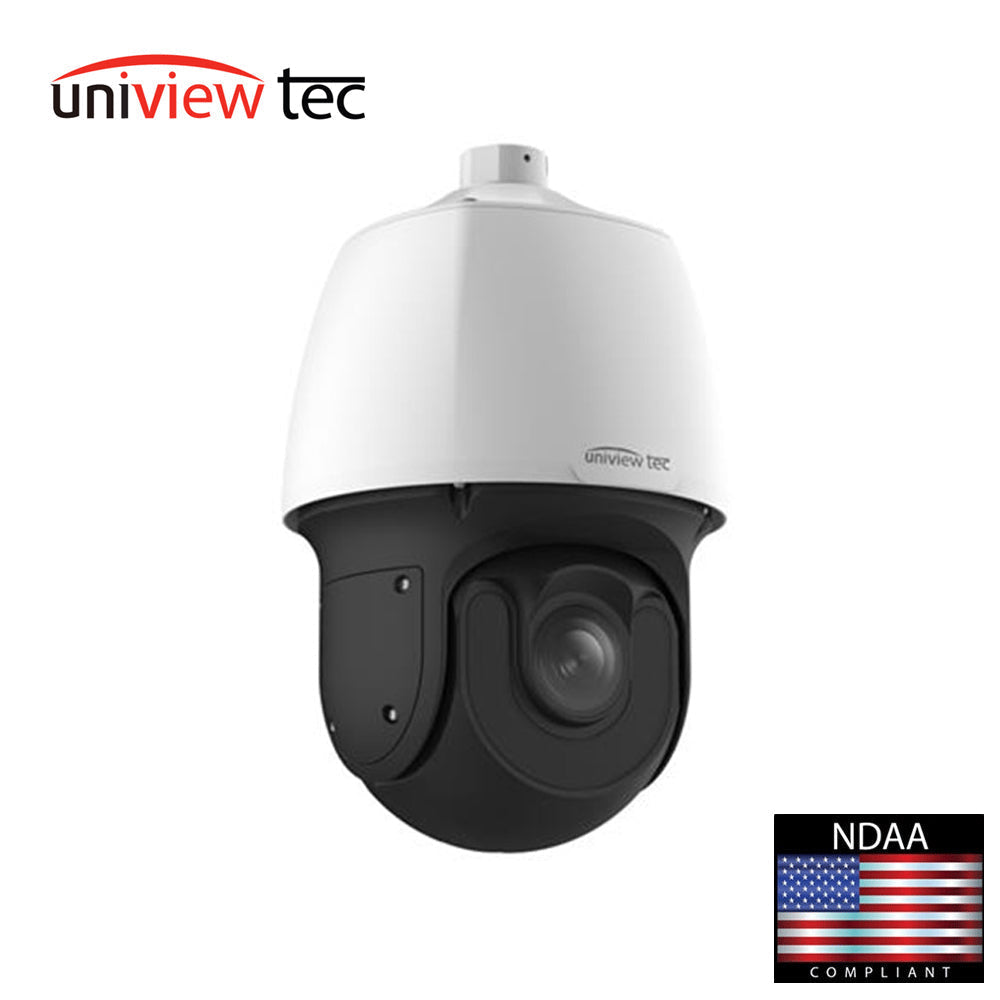

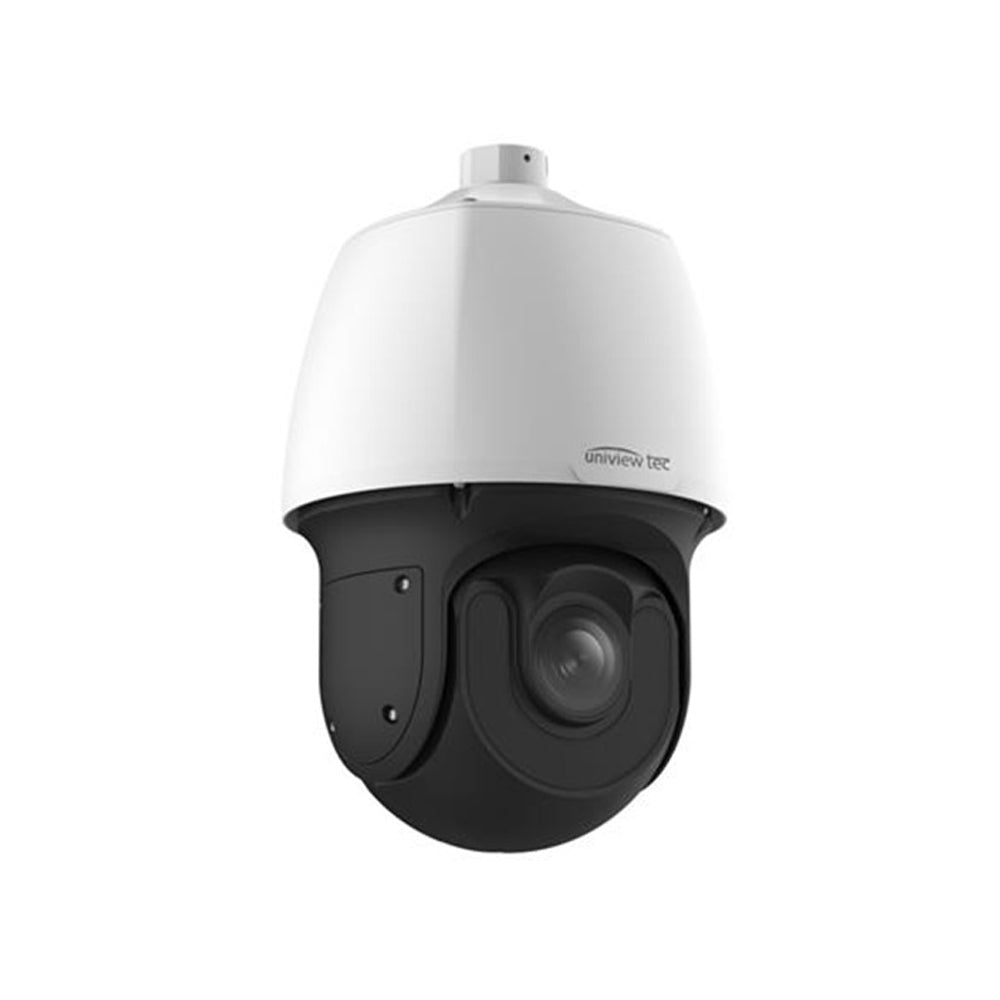

Uniview Tec IPCSD4K25X 4K True Day/Night, WDR, IR, 25x Zoom PTZ Dome Camera
Uniview Tec IPCSD4K25X 4K True Day/Night, WDR, IR, 25x Zoom PTZ Dome Camera
Regular price
$2,679.00 USD
Regular price
$3,214.80 USD
Sale price
$2,679.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec IPCSD4K25X 4K True Day/Night, WDR, IR, 25x Zoom PTZ Dome Camera
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Light Hunter illumination technology ensures ultra-high quality with 4K (8MP), Ultra-HD 3840 x 2160 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 656 Feet
- 6 ~ 150mm, 25x Optical motorized zoom and automatic focus lens
- TRUE Day/Night and Digital Wide Dynamic Range Functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 300��/sec and up to 1024 Preset Positions
- Triple Video Streams; ONVIF Profile Series Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- PoE (Optional Injector Required), 24VAC and 24VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB and ANR
- IP66 Weather Resistant Housing and Optional Mounts Available
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App���s for iPhone and Android Devices
Specifications:
Camera | |
---|---|
Sensor | 1/1.8", progressive scan , 8 megapixel CMOS |
Lens | 6 ~ 150 mm, automatic focusing and motorized zoom lens |
Angle of View (H x V) | 60.5�� ~ 3.1�� x 36.3�� ~ 1.8�� (wide ~ tele) |
Shutter | Auto/Manual, 1 ~ 1/100000 s |
Minimum Illumination | Color: 0.003 Lux (F1.5, AGC ON); 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
WDR; Digital noise reduction | Digital; 2D/3D DNR |
IR LED Range | Up to 200m (656ft) IR range |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Maximum Frame Rate / Stream |
Main Stream: 8MP (3840 �� 2160), Max.30fps (Max 20fps when AI functions enabled) Sub Stream: 2MP (1920��1080), Max. 30fps Third Stream: D1 (720��576), Max. 30fps |
HLC, BLC, Defog, Flip | Supported |
OSD, Privacy Mask, Motion Detection & ROI |
Up to 24 areas |
Pan and Tilt; Presets, Patterns, Patrols |
360�� Endless Pan, 300��/s max speed; -15�� ~ 90�� Tilt, 240��/s max speed; 1024 Presets; 16 Patterns; 16 Patrols |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP |
Compatible Integration | ONVIF (Profile S, G and T), API |
Network | RJ45, 10M/100M Base-TX Ethernet |
Smart Intrusion Prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection; Face capture |
Local & Network Storage | Micro-SD, up to 256GB; Automatic Network Replenishment (ANR) |
General | |
Power |
24VAC, 24VDC +/- 25%, PoE (Injector Req���d): Max 58W |
Dimensions (�� x H) & Weight | ��227 x 384.8mm (��8.9��� x 15.1���); 5.6kg (12.3lb) |
Audio I/O & Compression; Alarm I/O |
1 / 1; G711; 1/1 |
Operating Temperature & Humidity |
-40��C ~ +65��C (-40��F ~ 149��F); Humidity: 10%~ 95% RH (non-condensing) |
Conformity Certifications | IP66, CE, FCC |
