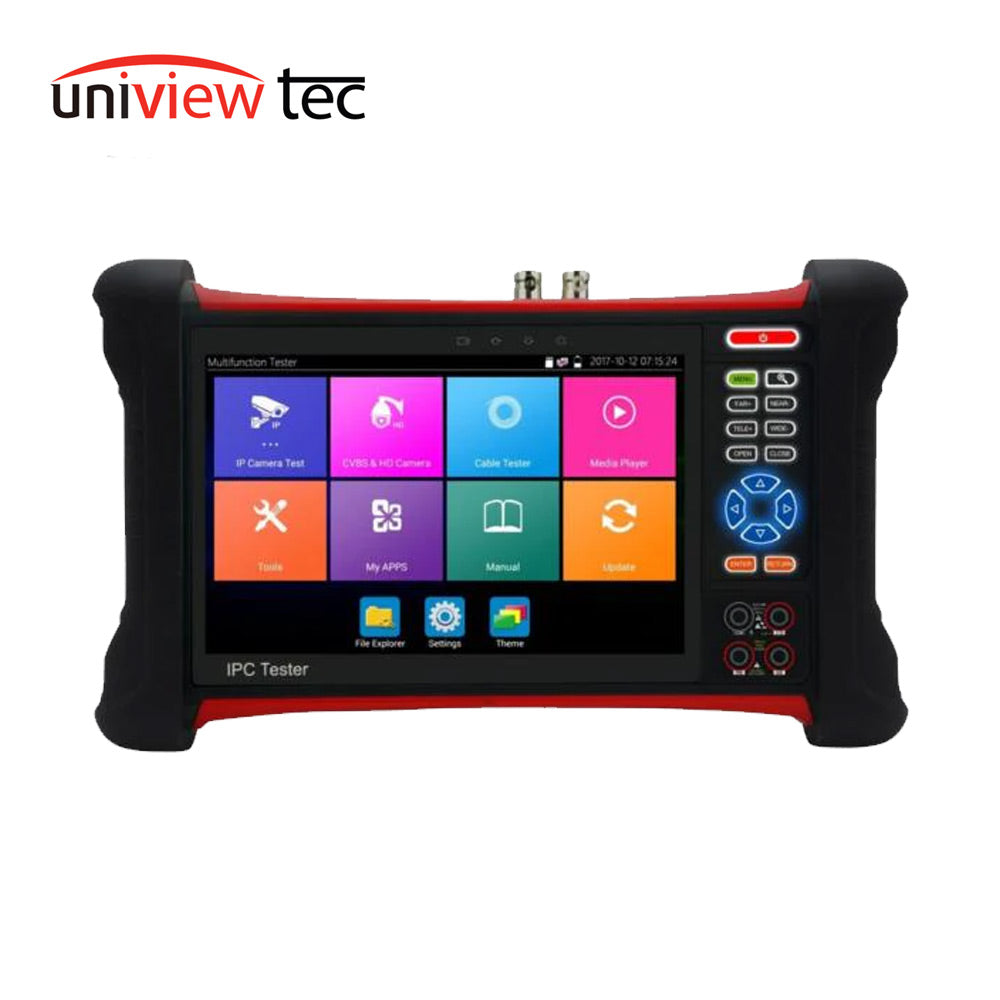

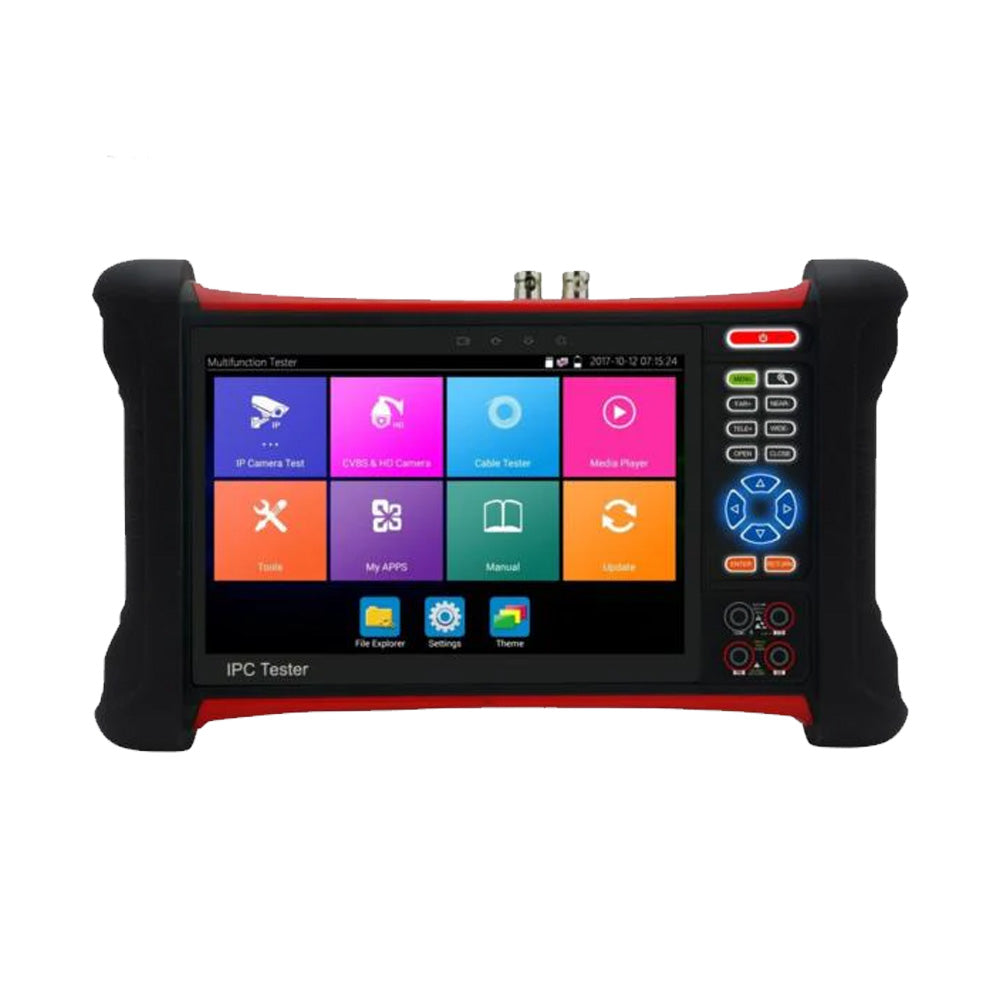

Uniview Tec 4KTESTMON Multi-Function Video Test Monitor
Uniview Tec 4KTESTMON Multi-Function Video Test Monitor
Regular price
$765.00 USD
Regular price
$918.00 USD
Sale price
$765.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec 4KTESTMON Multi-Function Video Test Monitor
Features:
- Designed for installation and maintenance of IP and Analog cameras
- Composite video (CVBS, TVI, CVI, AHD) and IP video input support
- 7��� Retina Touch-Screen, 1920 x 1200 resolution
- H.265 & H.264 standards support, up to 4K resolution
- RJ45 Ethernet cable, video level meter and cable trace test support
- PoE power voltage, PING and IP address searching support
- HDMI input and output
- ONVIF Profile S Compliant
- Rechargeable lithium battery and external 12VDC power supply
- Wi-Fi connection support
- Supports Audio, PTZ control and color bar generator
Specifications:
Video Test Monitor:
| Monitor | 7��� touch screen |
| IP Video | 1 x RJ-45, 10M/100M auto adjust |
| Analog Video |
1 x BNC input: CVBS, TVI, CVI, AHD 1 x BNC output |
| Serial Interface | 1 x RS-485 |
| HDMI | 1 x input and 1 x output |
| PoE | 1 x RJ45, 48V output, maximum 24W |
| Camera Power | 12VDC, 2A output power to camera |
| Audio | 1 x RCA input and 1 x RCA output |
| Micro SD Slot | 8GB card included |
| Power Supply | 12VDC, 2A |
| Operating Temperature | -10��C ~ + 50��C (4��F ~ 122��F) |
| Operating Humidity | 30% ~ 90% RH |
| Dimensions | 255 x 160 x 46mm (10 �� 6.3 �� 1.8") |
| Weight | 95kg (2.1lb) |
