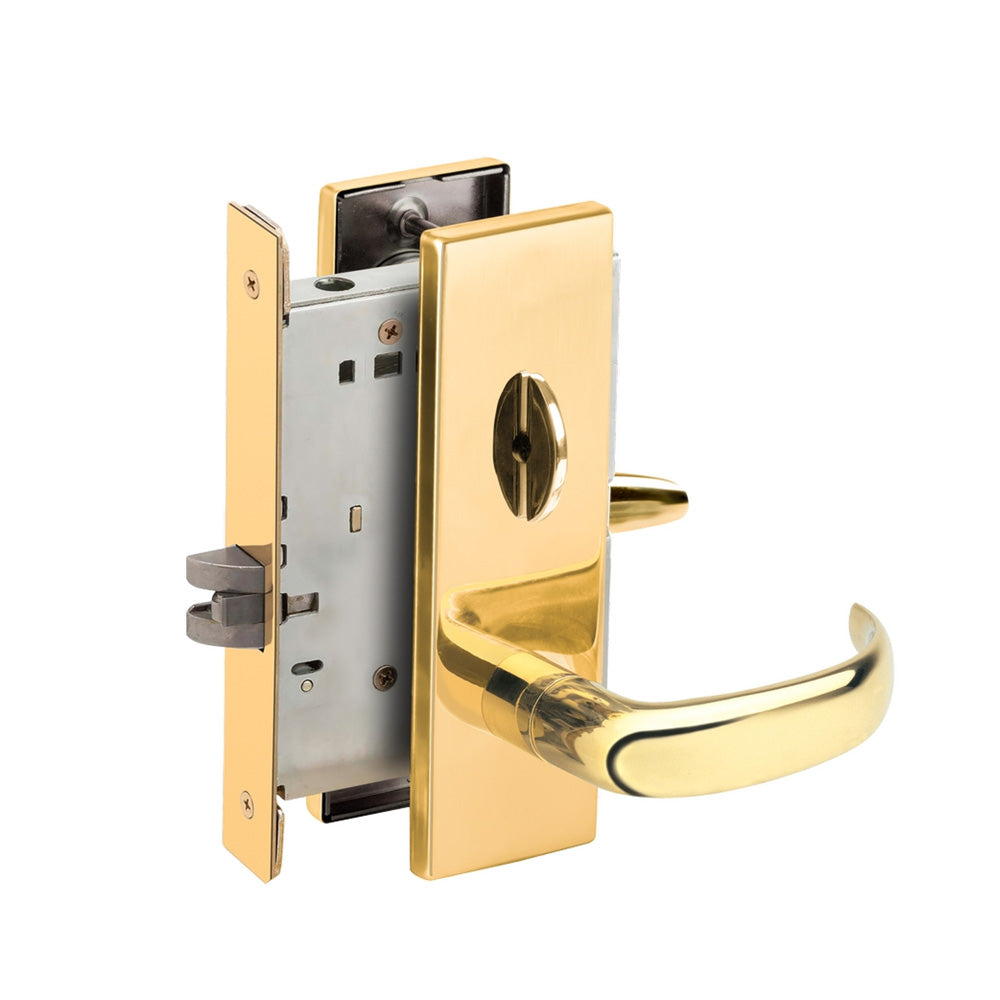

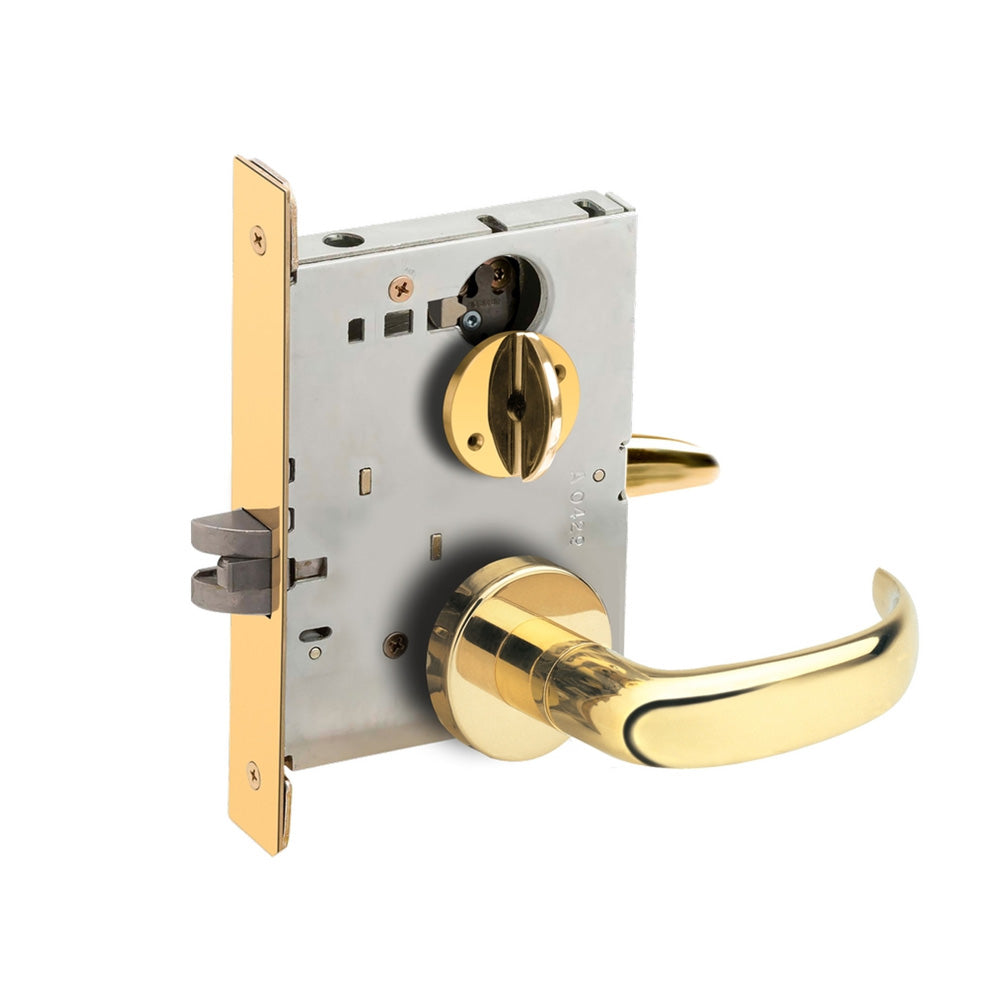

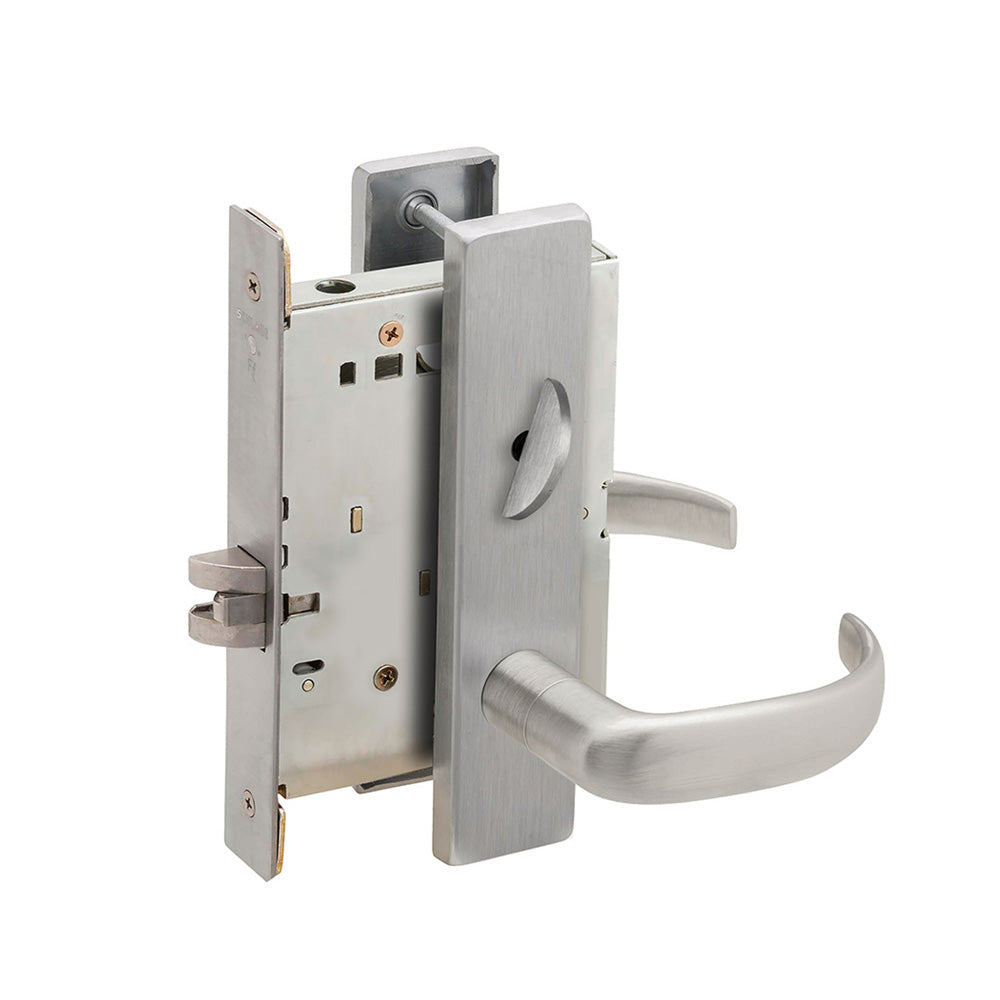

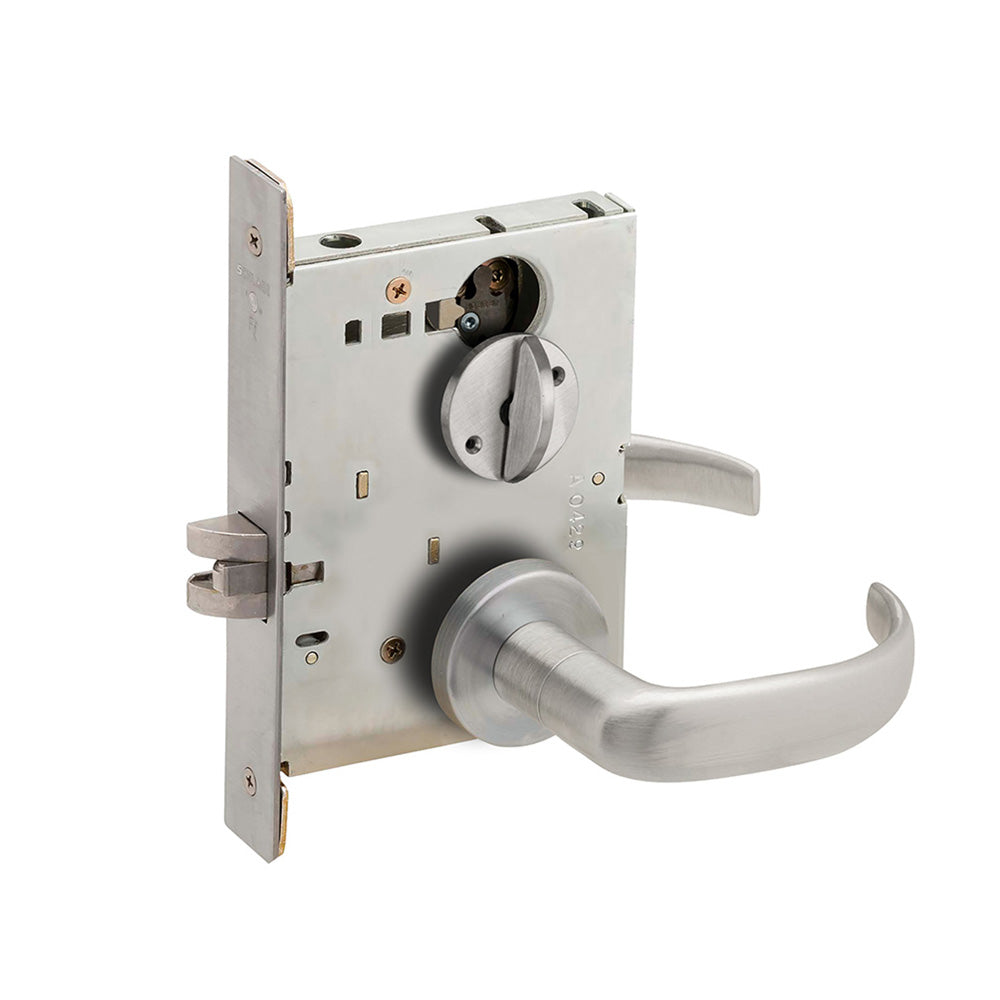

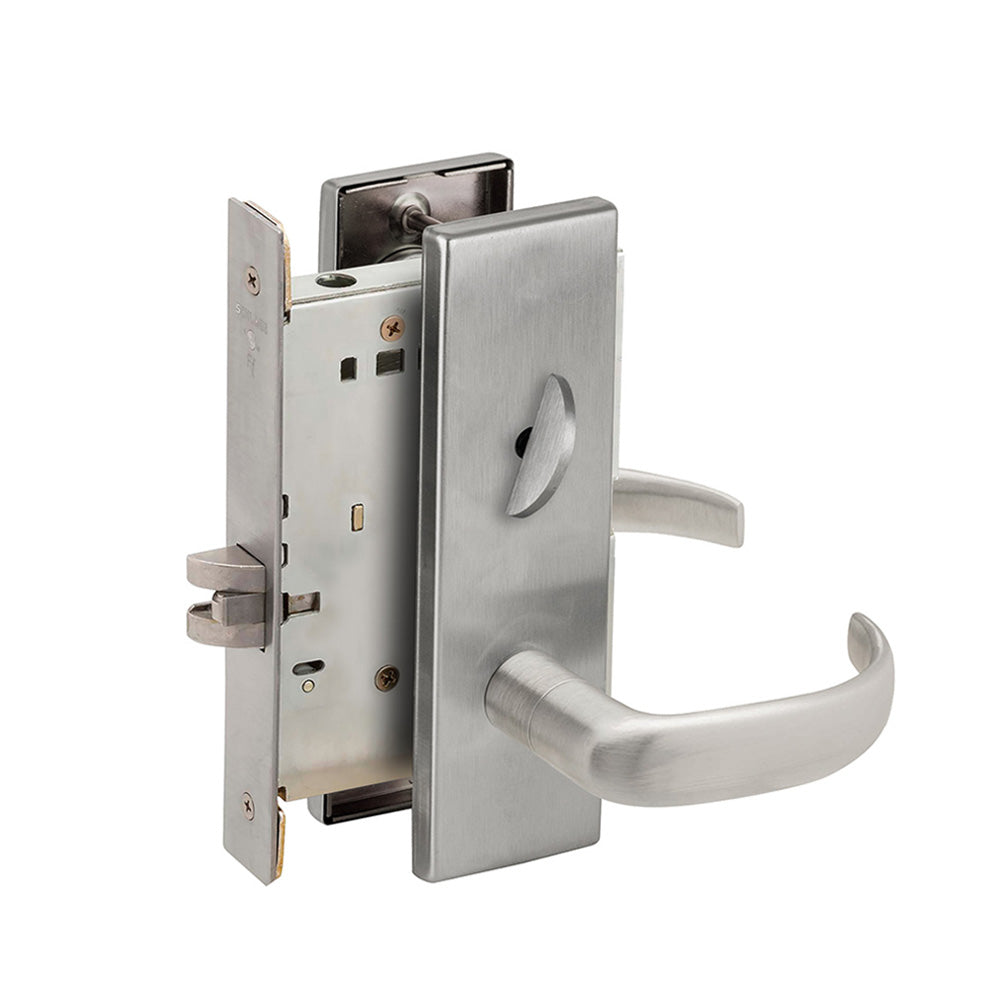

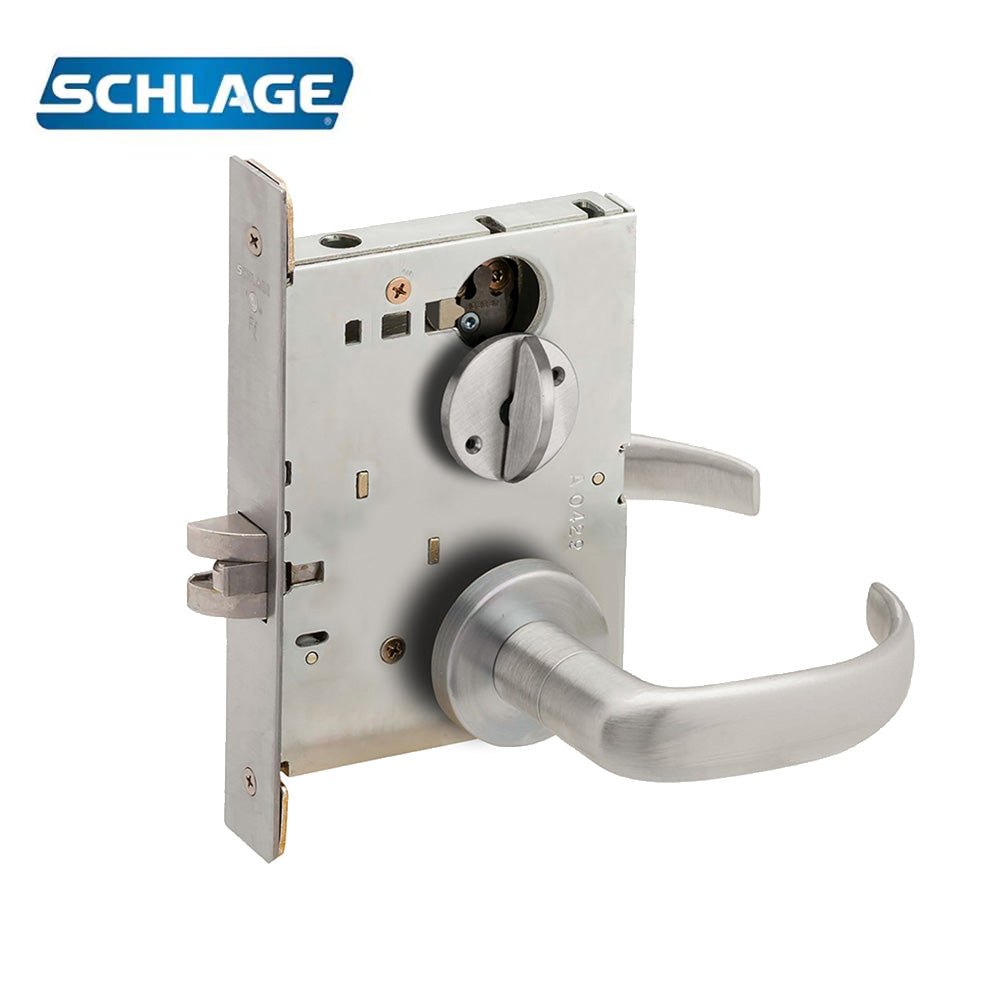

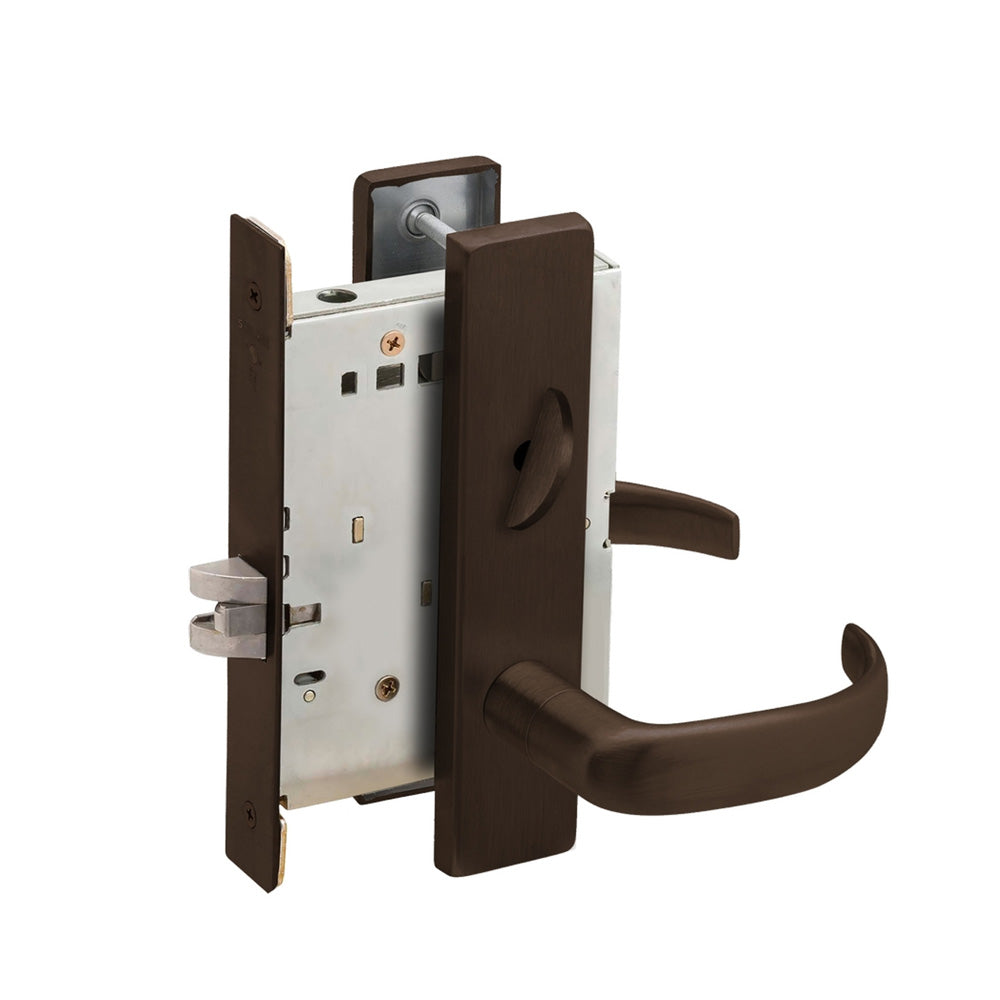

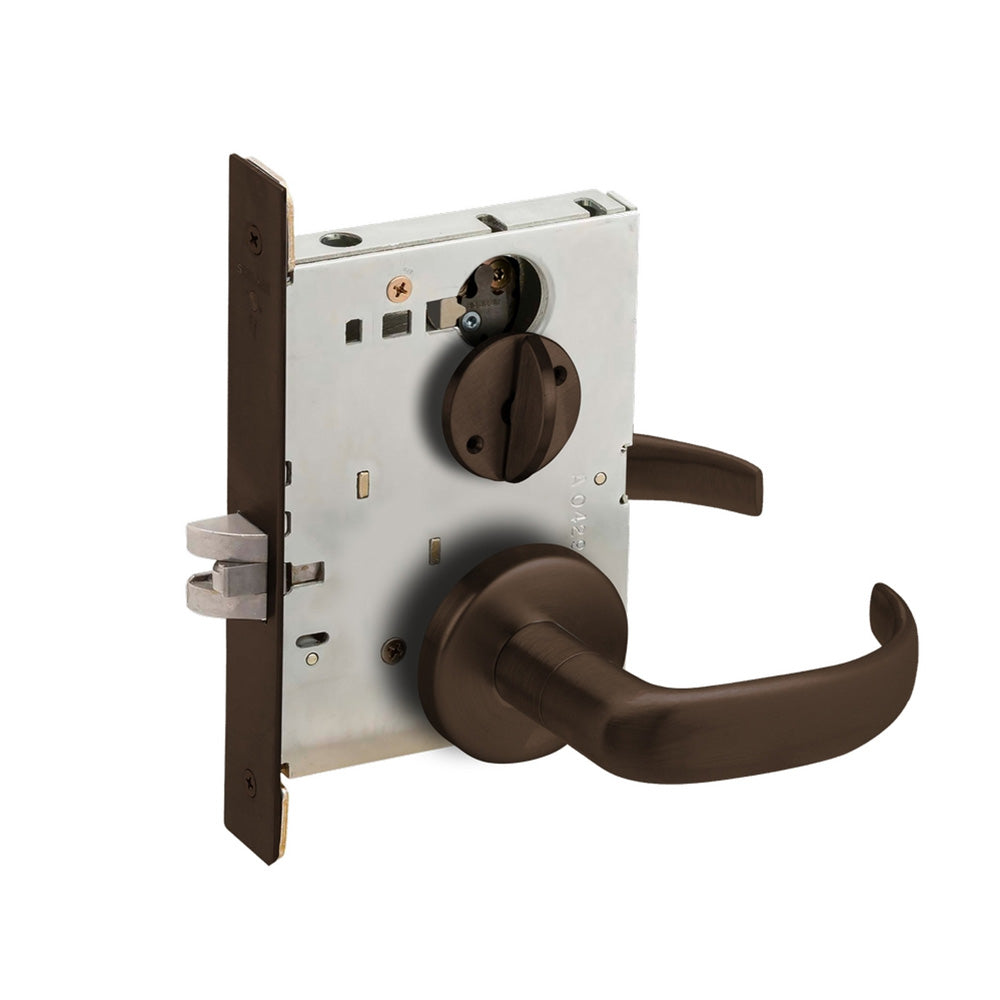

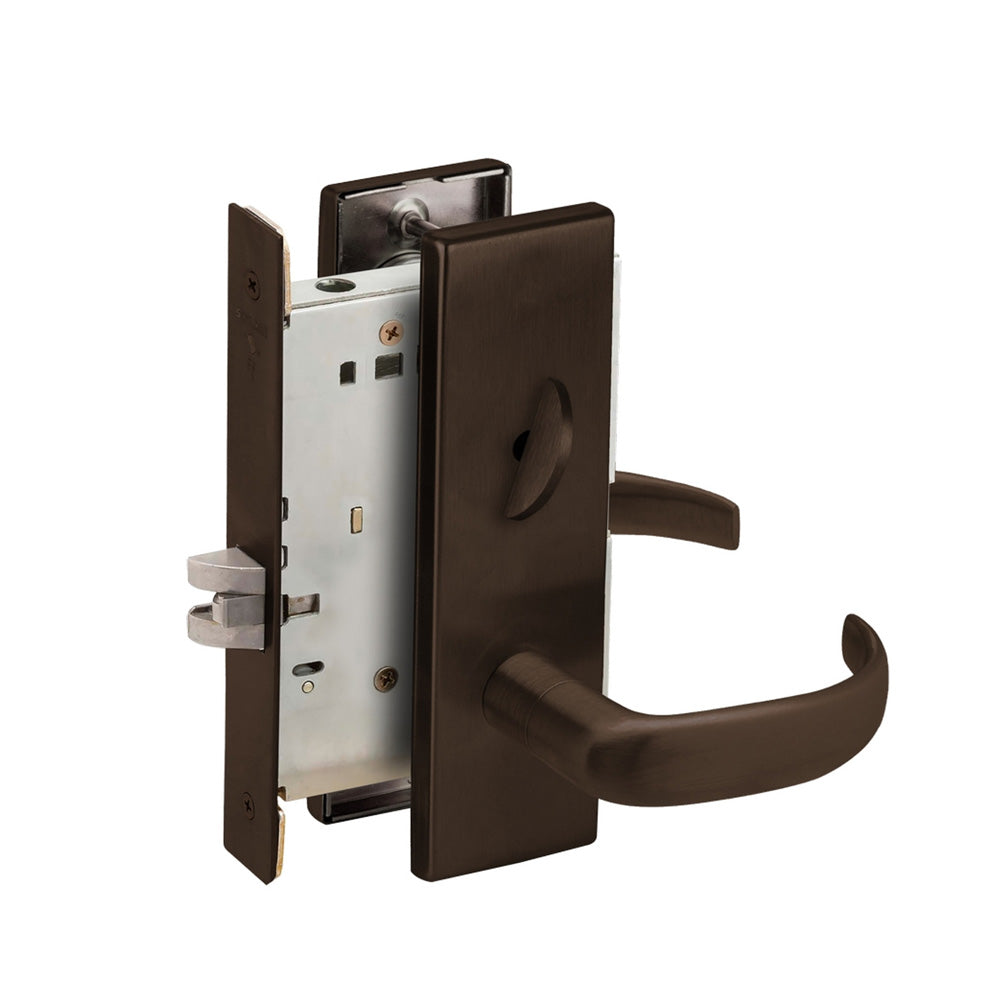

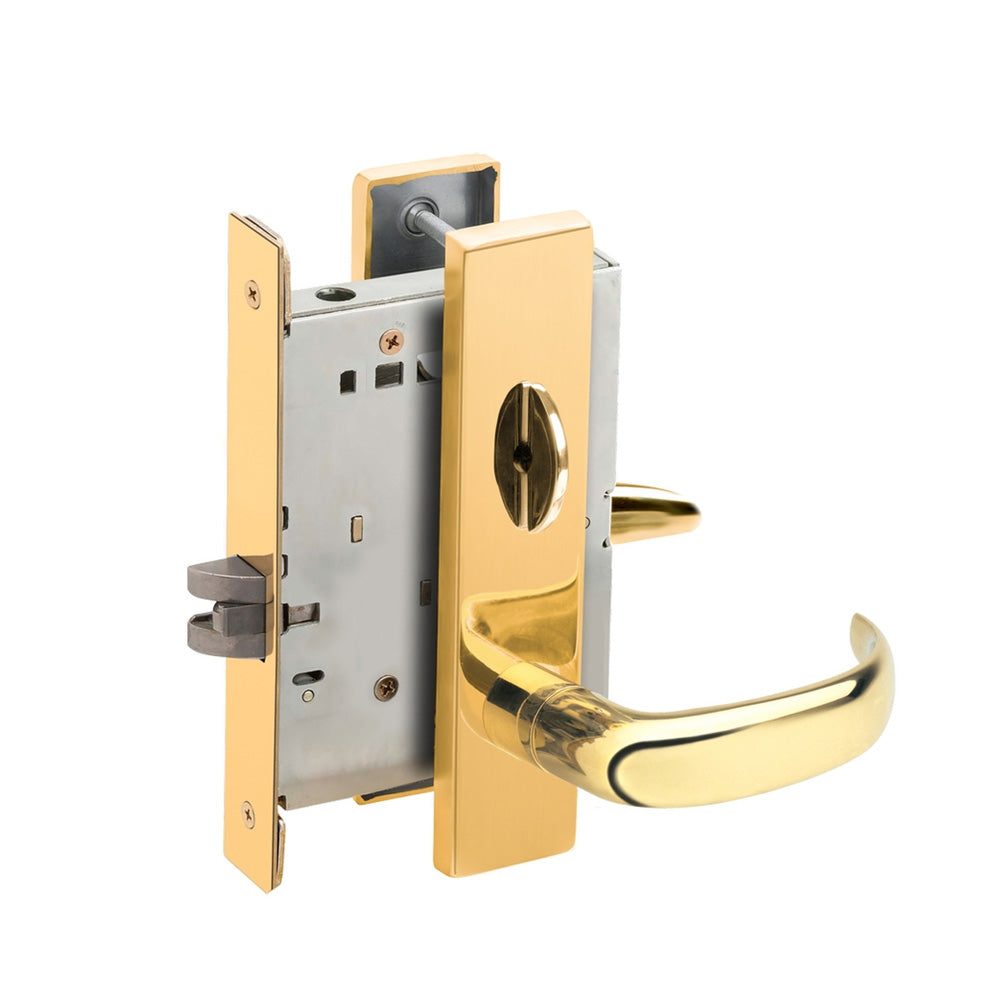

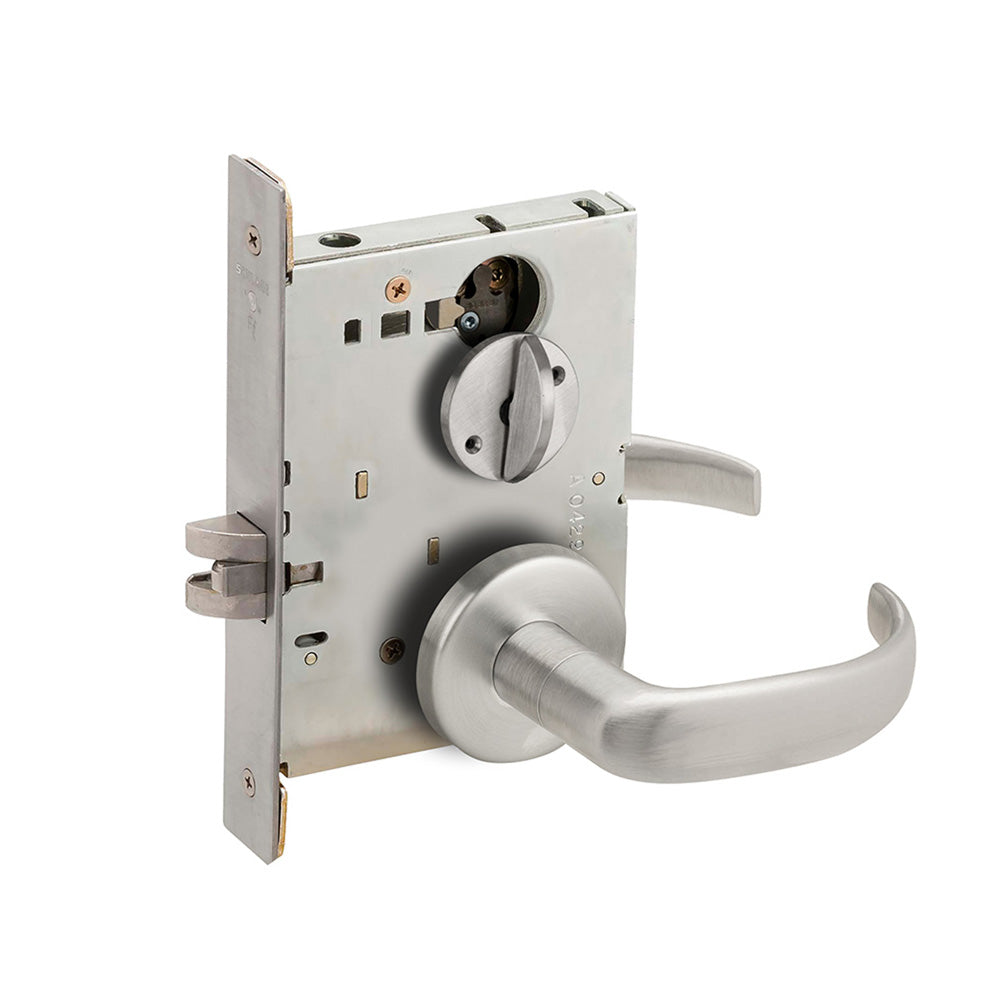

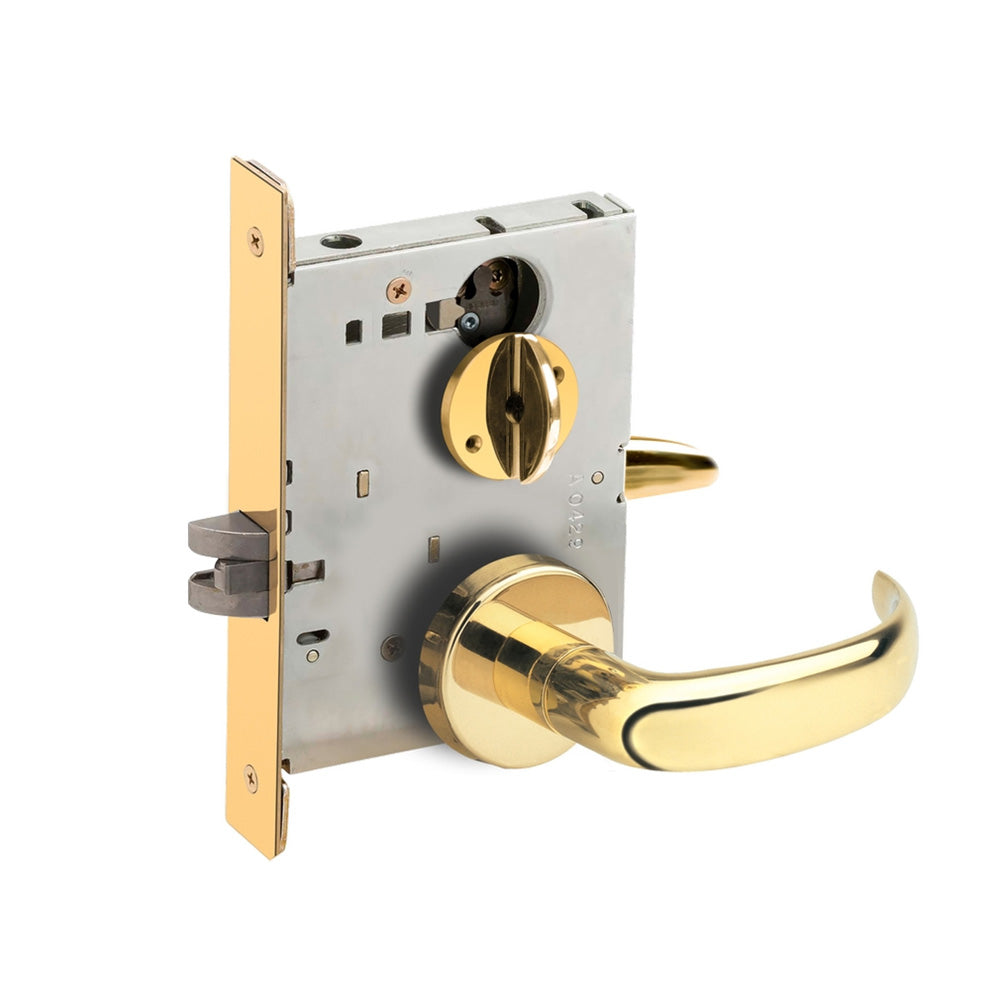

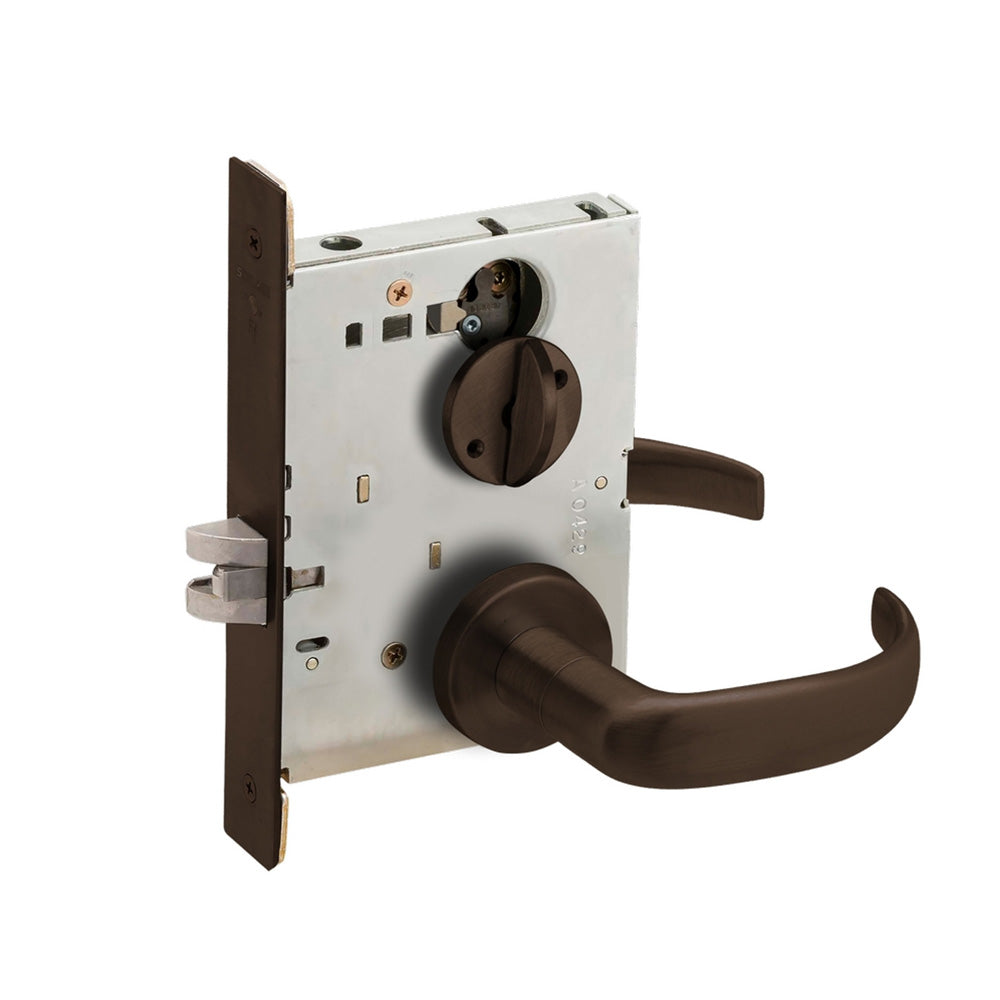

Schlage - L9040 - Bed Bathroom Privacy Mortise Lock - Grade 1
Schlage - L9040 - Bed Bathroom Privacy Mortise Lock - Grade 1
Regular price
$638.00 USD
Regular price
$765.60 USD
Sale price
$638.00 USD
Unit price
per
Couldn't load pickup availability
Schlage - L9040 - Bed Bathroom Privacy Mortise Lock - Grade 1
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security ��� it offers tremendous flexibility to allow it to meet the needs of almost every application.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.13-2017 Series 1000, Grade 1 |
| BAA Qualified | Yes |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9040-Bed Bathroom Privacy |
| ANSI Function | F22 - Privacy |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Dimensions | 2-1/8" |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 10-072 1316 626 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-3/16" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
