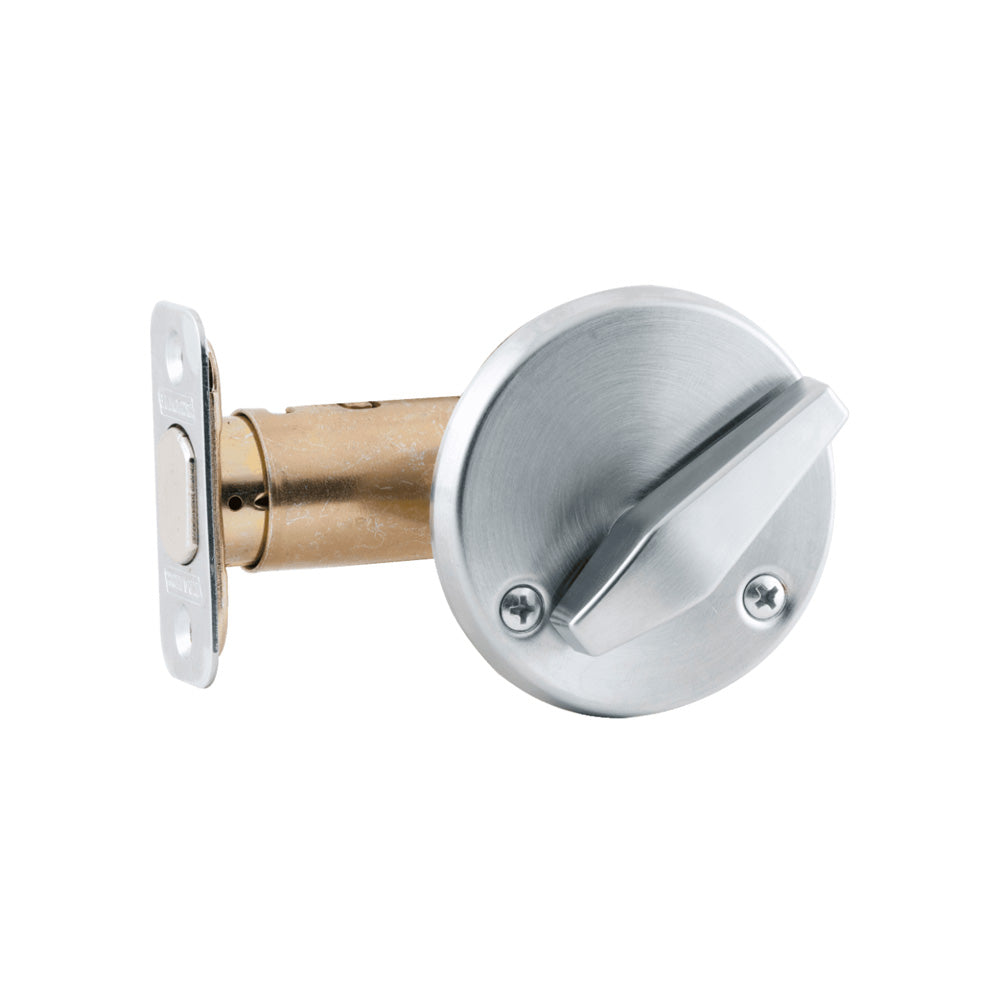

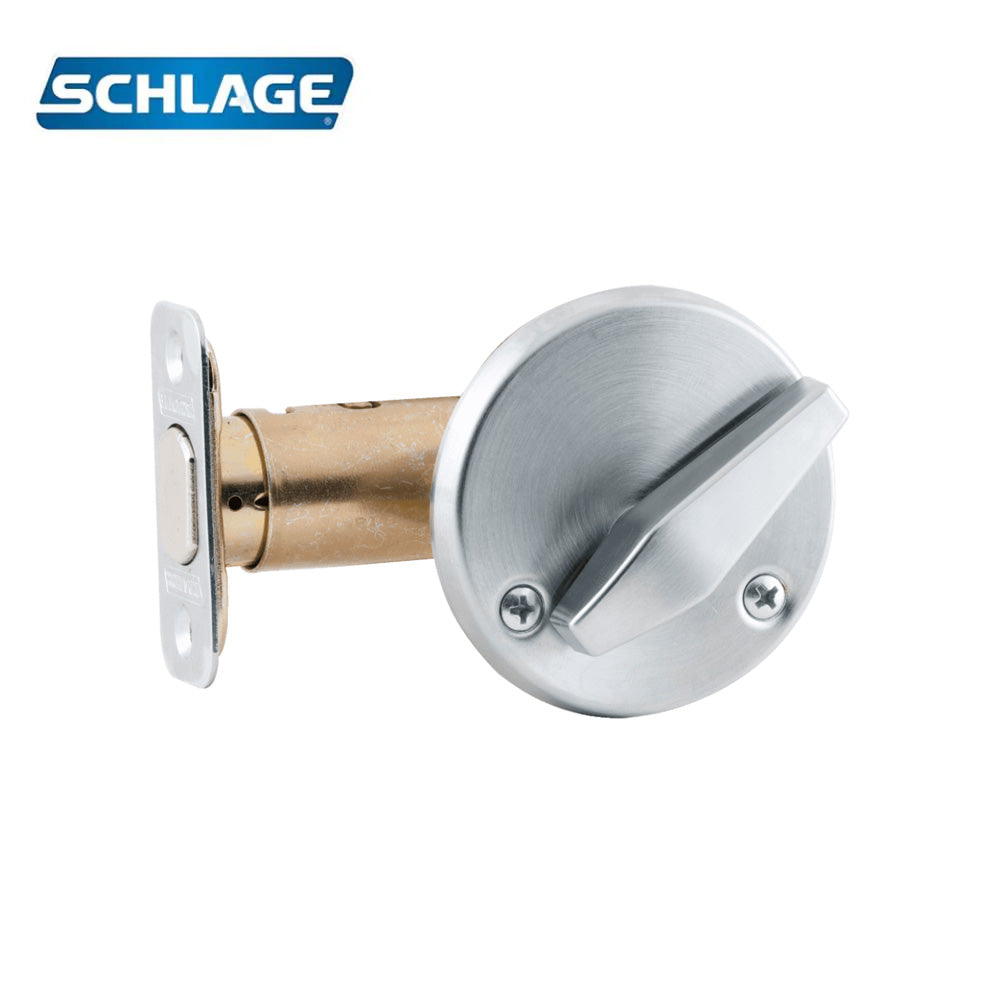

Schlage - B580 - Door Bolt Inside Turn Only with Adjustable 2-3/8 and 2-3/4 Backset - Grade 2 - Satin Chrome

Schlage - B580 - Door Bolt Inside Turn Only with Adjustable 2-3/8" and 2-3/4" Backset - Grade 2 - Satin Chrome

ANSI Function E0192: Deadbolt thrown or retracted by trim unit only. Requires 1 ����� cross bore prep.

• 2-3/8��� to 2-3/4��� Adjustable Backset (1��� x 2-1/4��� latch face)
• Quick, easy installation ��� Adjustable backset locks into place
• Can be suited with virtually all Schlage levers and knobs

Features:

• Adjustable backset with lock-in-place helix design
• Integrated anti-pry shield protects latch
• Thicker metal security strike back-up on jamb side
• Security strike on jamb has third screw for stronger, deeper anchoring
• Added space inside strike box for true deadlatch
• Seamless steel latch construction along the entire length of the bolt housing
• 10% larger diameter deadbolt
• Zinc bolt with spinning hardened steel pin inside
• Tapered front housing that can���t be unscrewed
• Integrated trim piece for fewer pieces out of the box
• Large, easy-to-use, ADA compliant thumbturn
• Meets UL 10B andd UL 10C requirements

Certifications:

• ANSI/BHMA A156.5 Grade 2 certified with Conventional or FSIC cylinder (SFIC is Grade 3)
• UL 10B/UL 10C listing optional for B500 Series as auxiliary locks (the letter F and UL symbol on latch front indicate listing)
• ADA compliant thumbturn design
• BAA (Buy American Act) compliant product

Product Specifications:

Technical Specifications:

Downloads:

• B500 Series Installation Instructions
