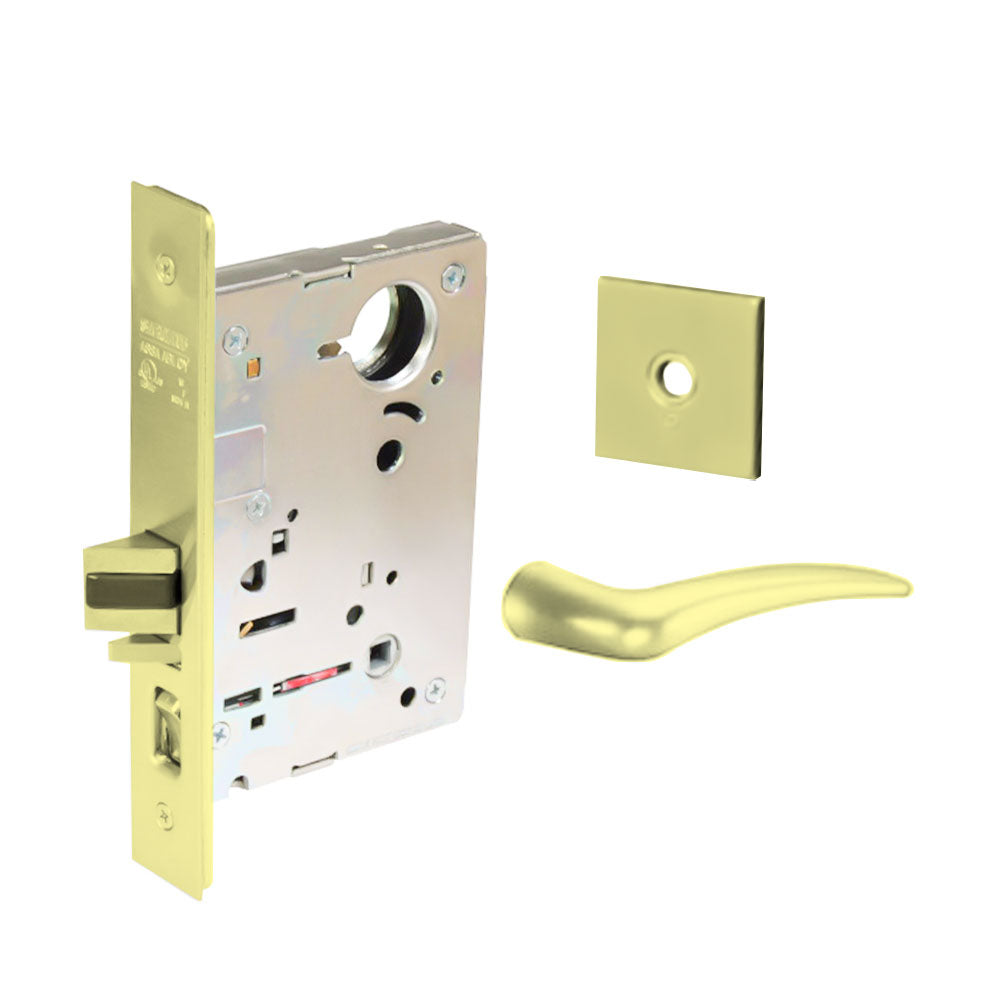

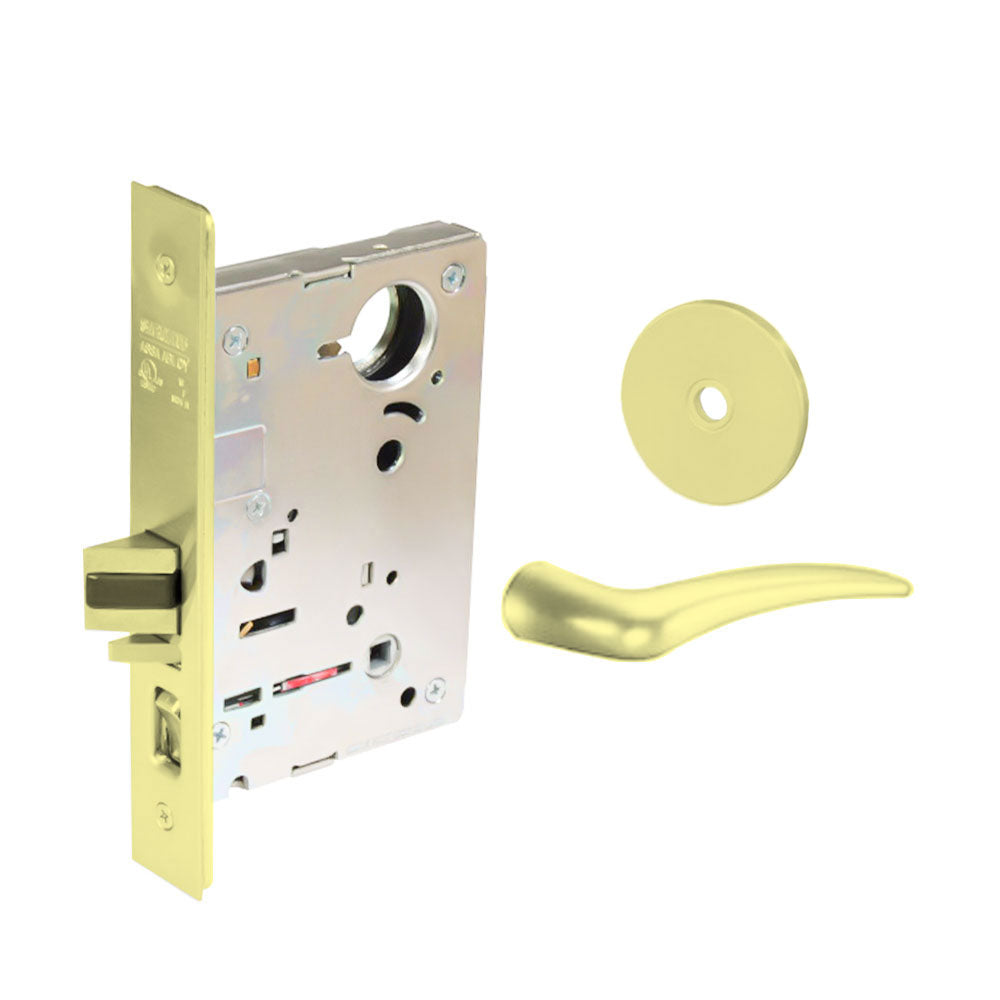

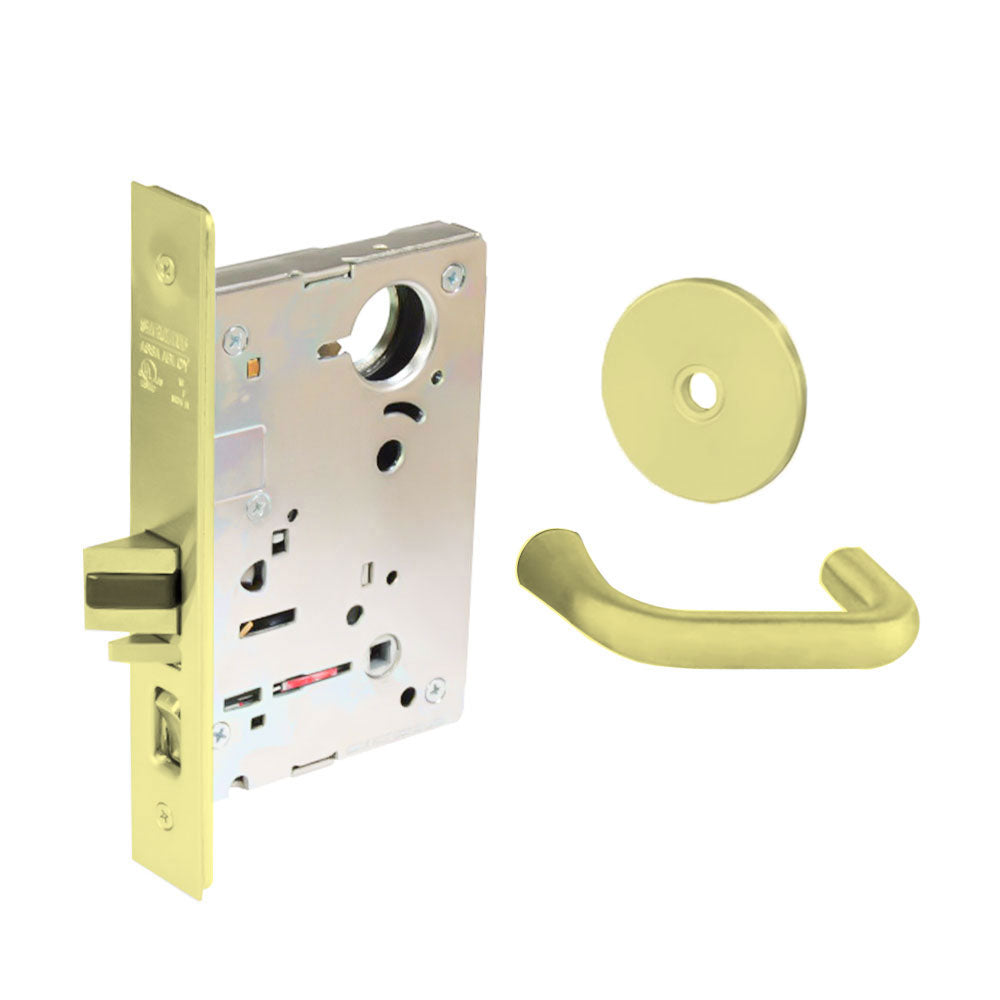

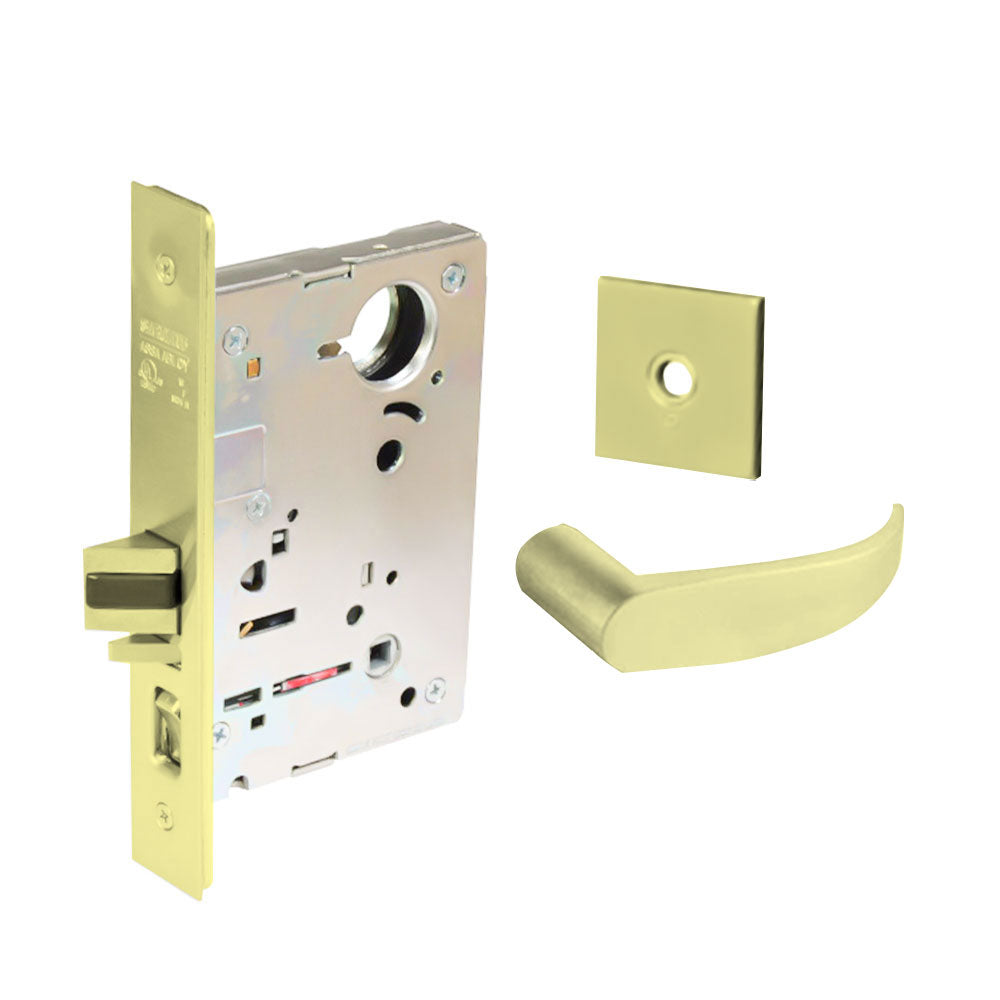

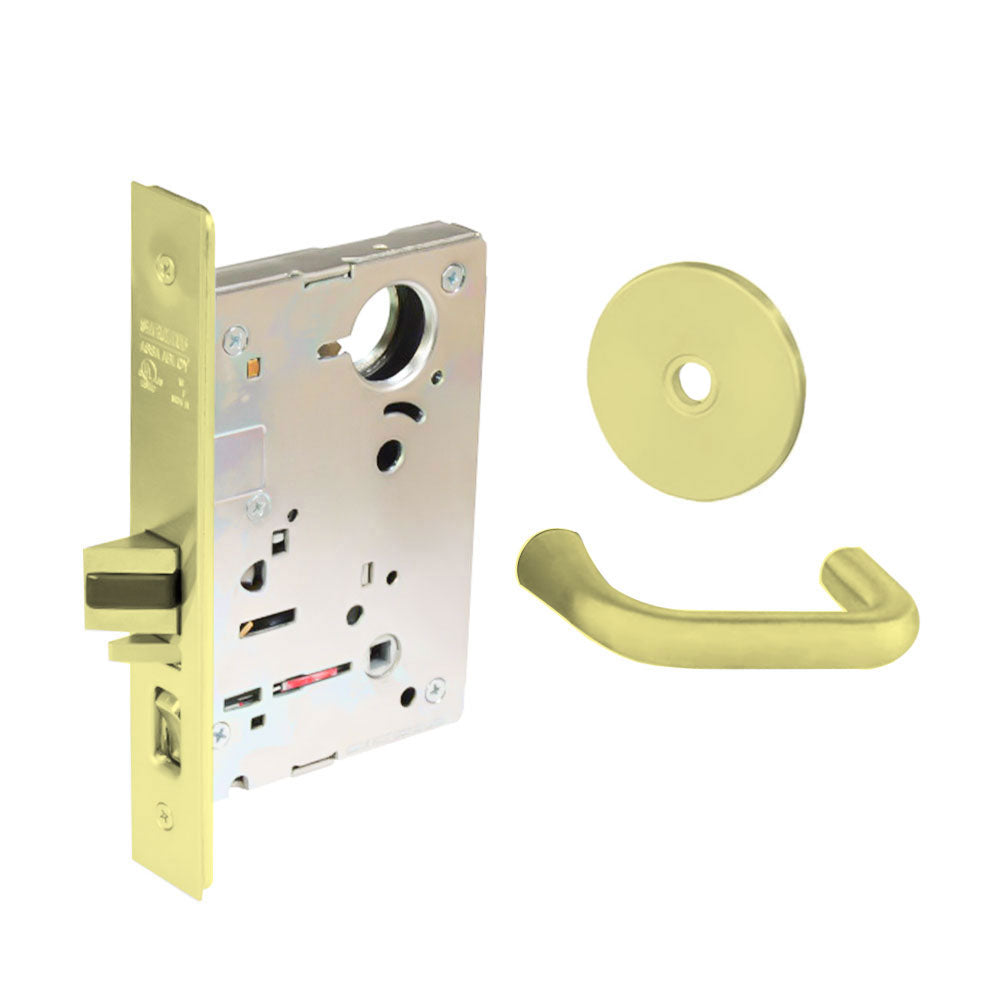

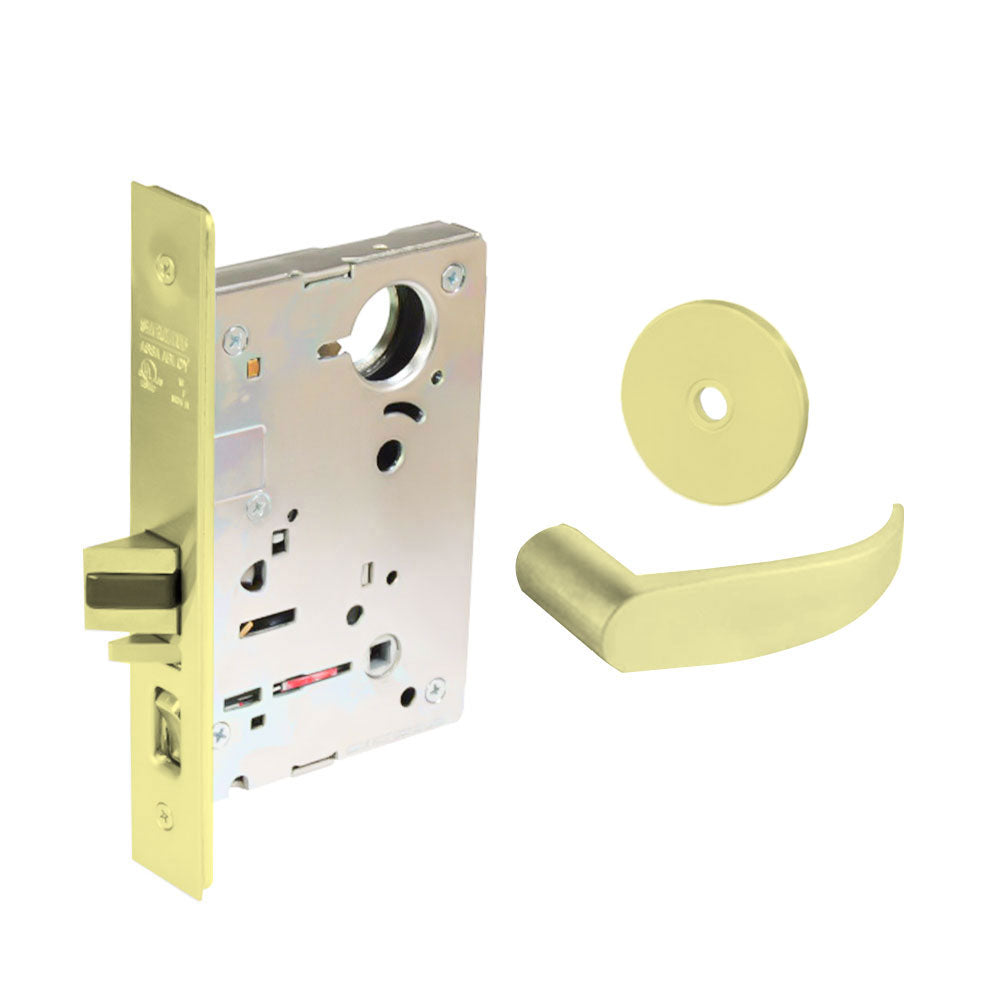

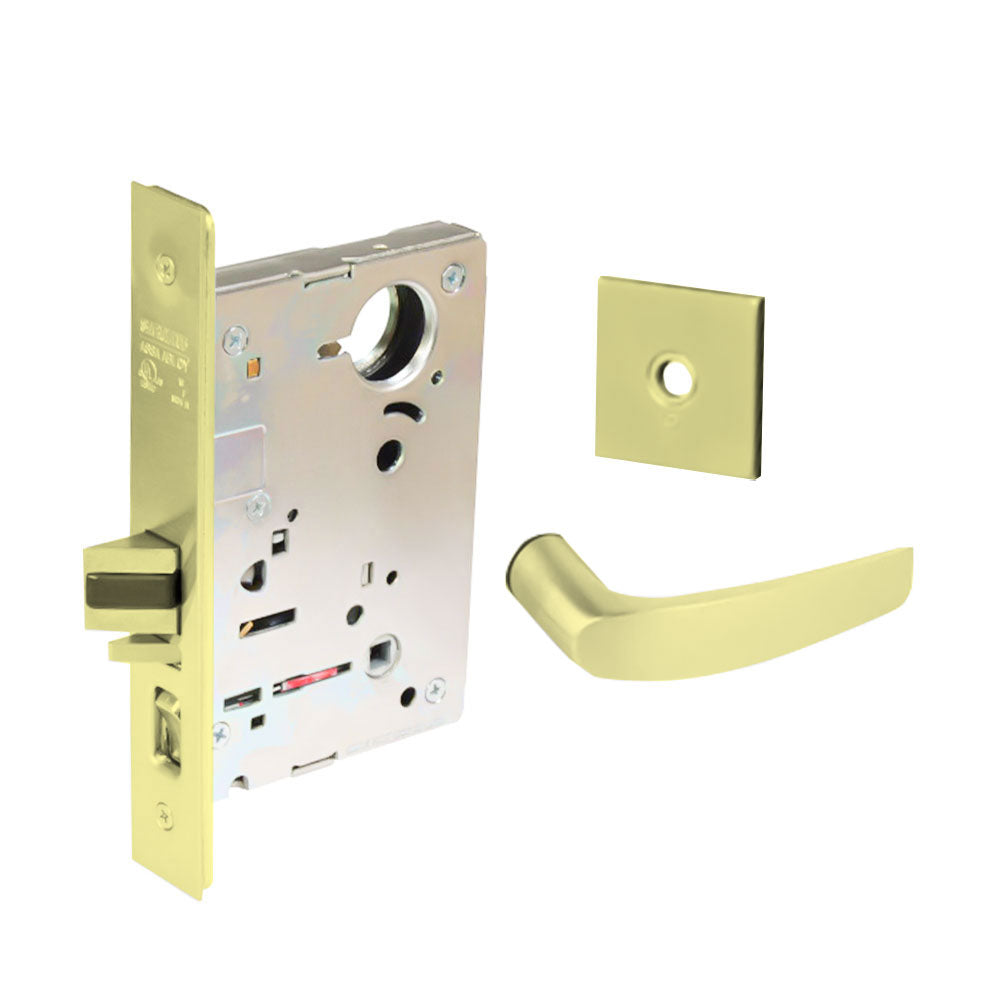

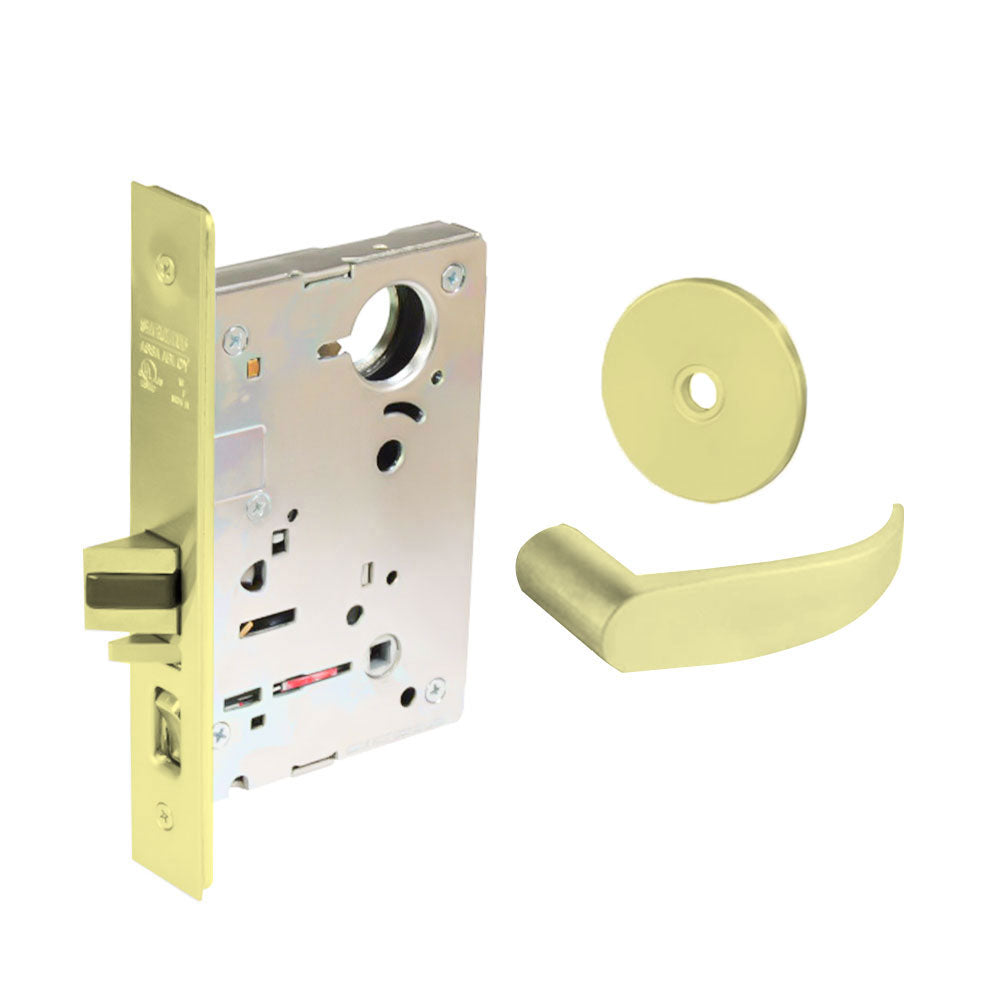

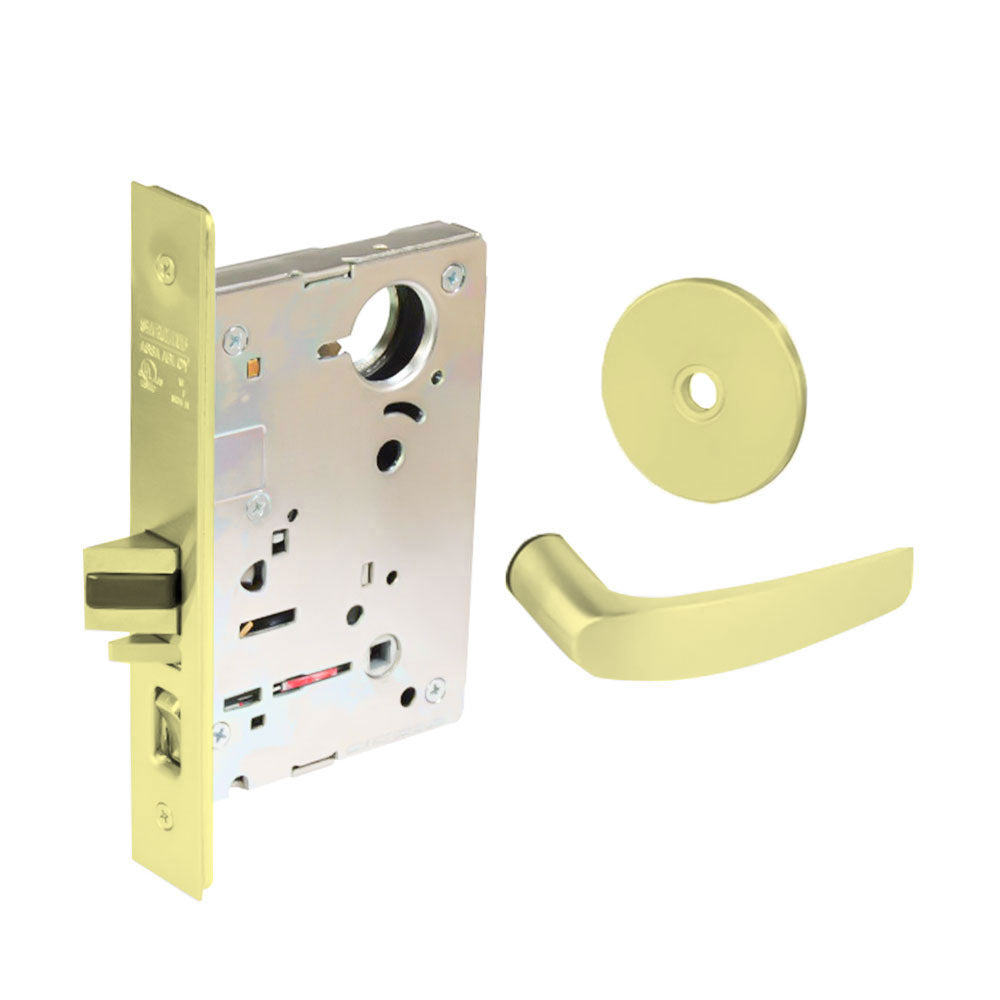

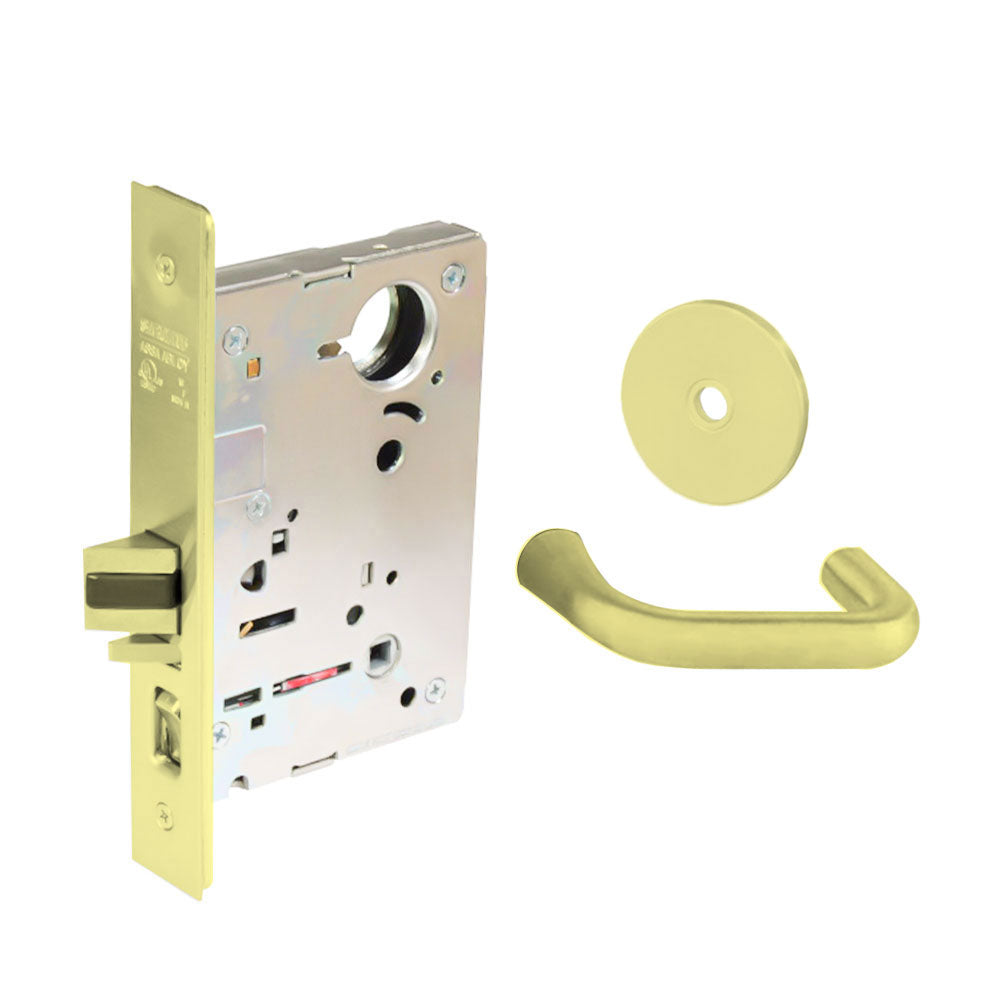

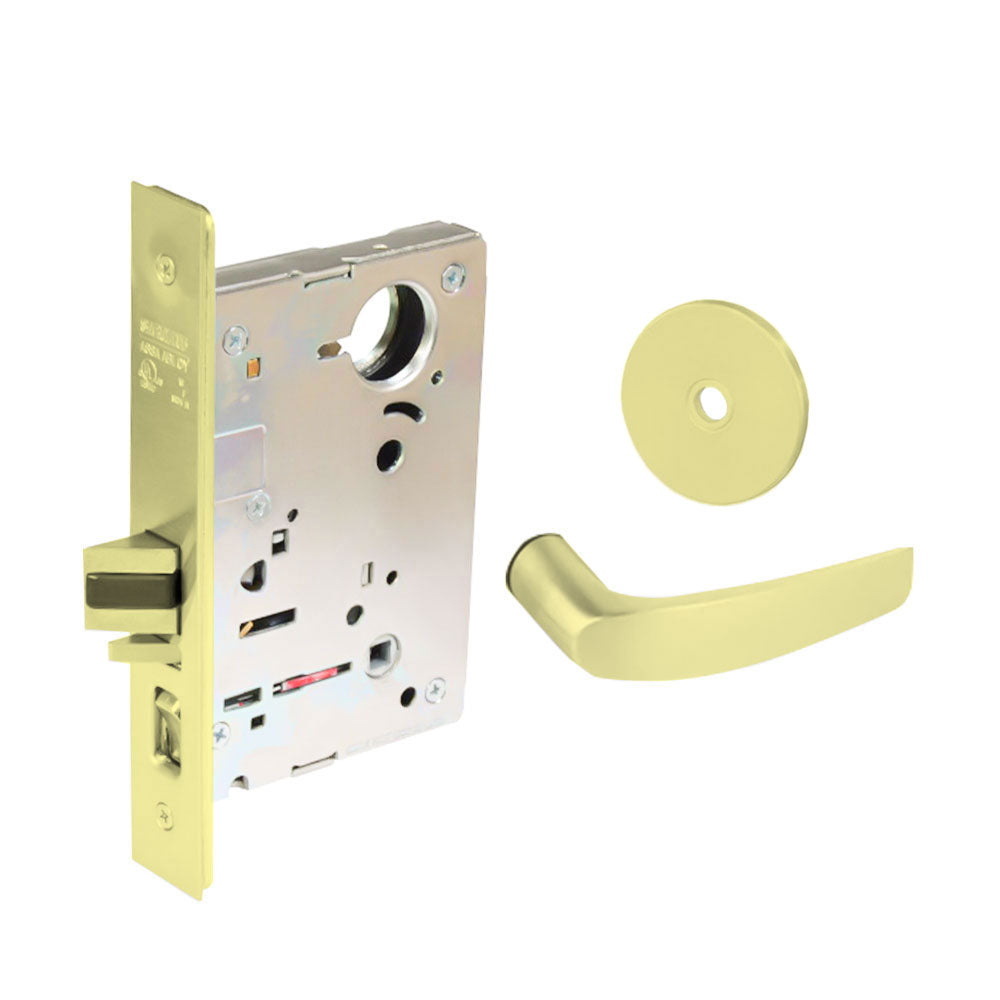

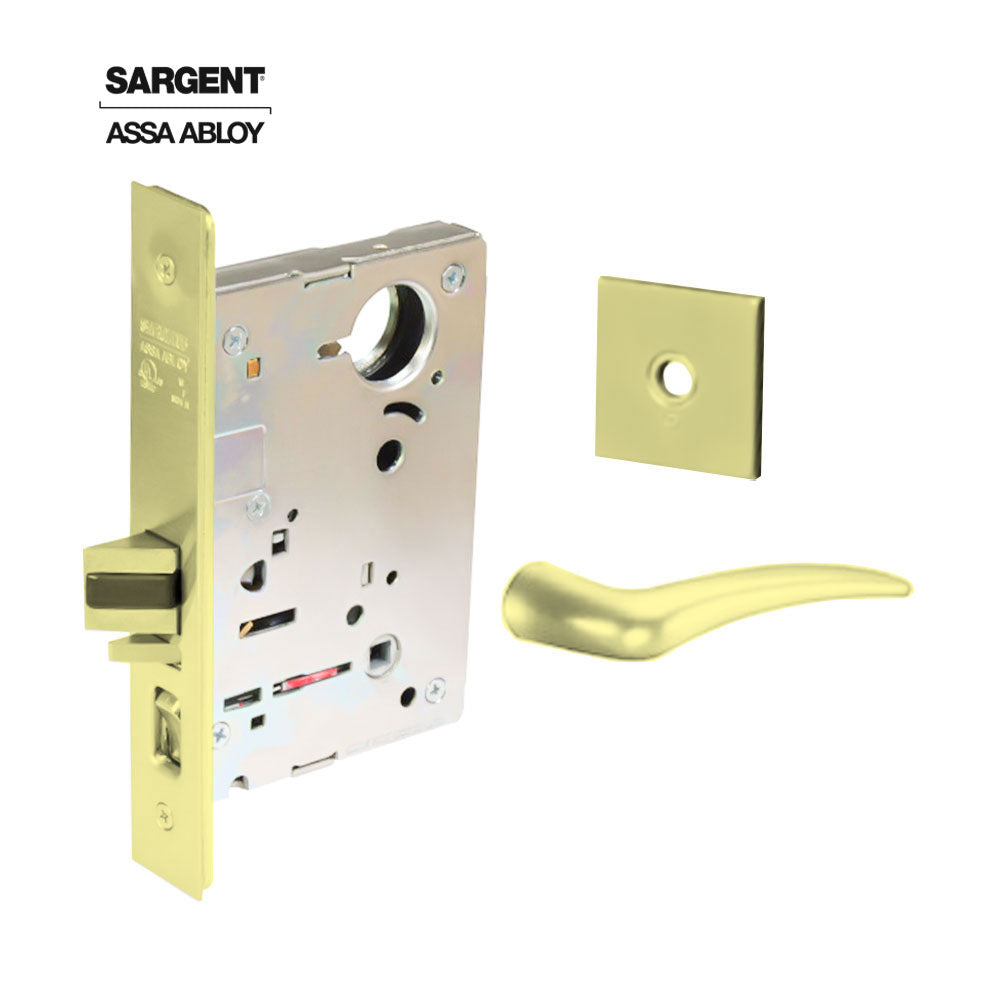

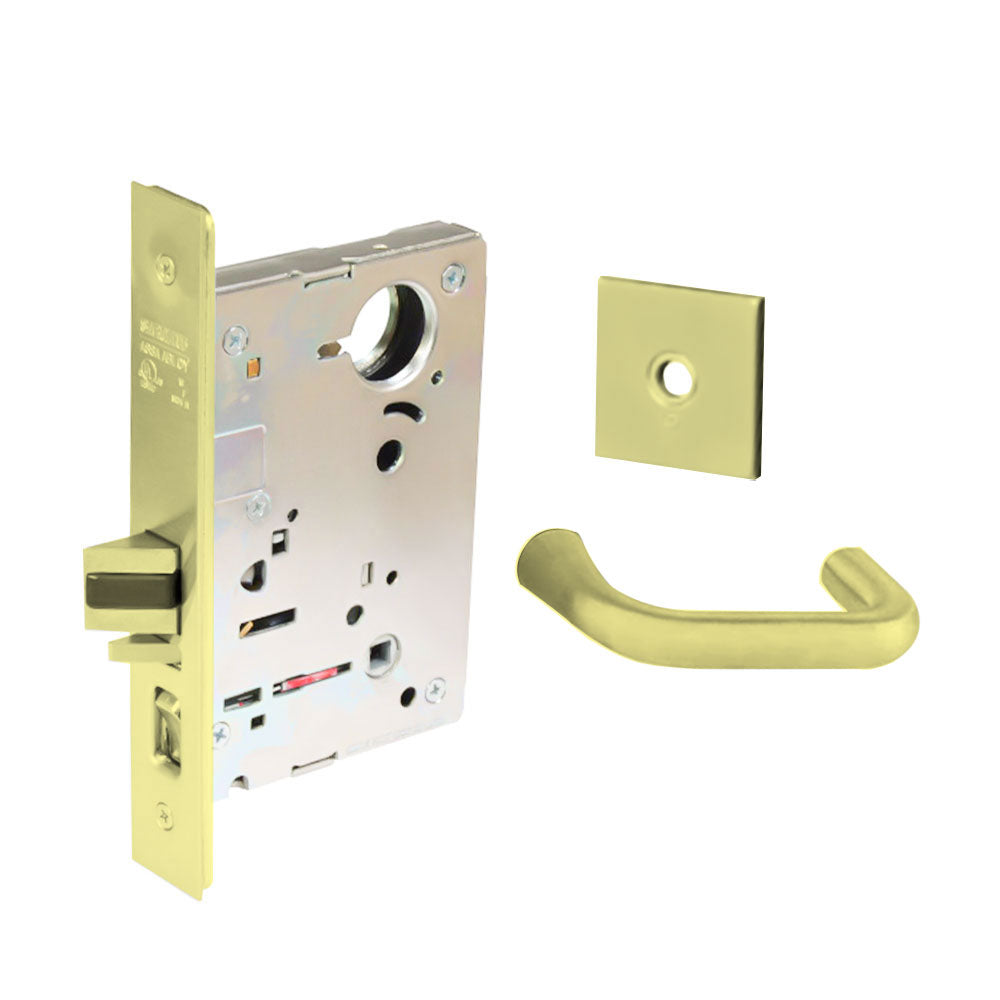

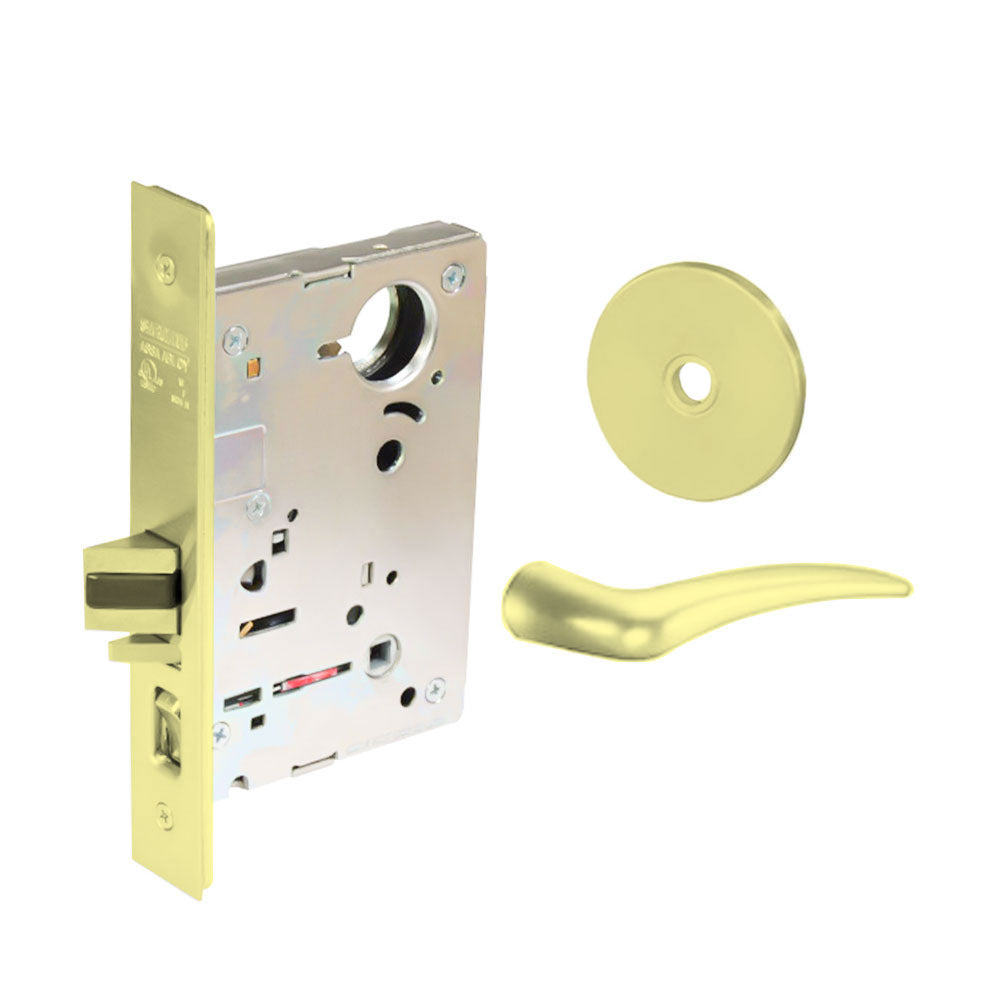

Sargent - 8237 - Classroom Mortise Lock - Heavy Duty Standard Cylinder - SFIC - Keyed Different - Rose Trim Function - Grade 1 - US3 (Bright Brass, Clear Coated)
Sargent - 8237 - Classroom Mortise Lock - Heavy Duty Standard Cylinder - SFIC - Keyed Different - Rose Trim Function - Grade 1 - US3 (Bright Brass, Clear Coated)
Regular price
$764.45 USD
Regular price
$917.34 USD
Sale price
$764.45 USD
Unit price
per
Couldn't load pickup availability
Sargent - 8237 - Classroom Mortise Lock - Heavy Duty Standard Cylinder - SFIC - Keyed Different - Rose Trim Function - Grade 1 - US3 (Bright Brass, Clear Coated)
8200 Series mortise locks offer maximum security, performance, and durability with high-quality components. It's the industry benchmark for mortise locks, featuring a multi-functional lock body with a variety of lever and escutcheon styles. The lock is robust, easy to install, and has a redesigned status indicator option with a large viewing window for assurance. The electromechanical version operates from 12 to 24VDC, with Eco-Flex technology that significantly reduces power consumption up to 96%.
Features:
- ANSI/BHMA Grade 1 certified for cycle and strength requirements
- UL-CUL listed for 3 hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- 6 lever designs, 4 roses designs, and 16 architectural finishes offered
- Available with behavioral health trim
- Patented design and construction
Product Specifications:
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| BAA Qualified | Yes |
| Fire Rated | 2 Hours {B} |
| Color | US3 (Bright Brass, Clear Coated) |
Technical Specifications:
| Function | 37-Classroom |
| ANSI Function | F05 - Classroom |
| Lever Design | A, B , E, F, J, L, P, W - Lever |
| Rose Design | E 3-1/16 Inch (78mm) L 3-1/2 Inch (89mm) O 2-3/4 Inch (67mm) LN 2 Inch (51mm) |
| Cylinder Type | SFIC Prep Less Core |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Standard Strike Number | 82-0110 |
| Standard Strike Type | ASA |
| Standard Strike Height | 4-7/8" |
| Standard Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
Benefits:
- Strength and Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry. Verified for over 14 million cycles.
- Security: Several security features provide additional resistance against vandalism and unauthorized entry.
- Flexibility and Aesthetics: Aesthetic design combined with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it ideal for all types of applications (e.g. offices, hospitals, behavioral health environments, schools/universities).
- Ease of Install and Maintenance: Multifunctional lock body makes switching functions on-site easy and reduces inventory requirements.
