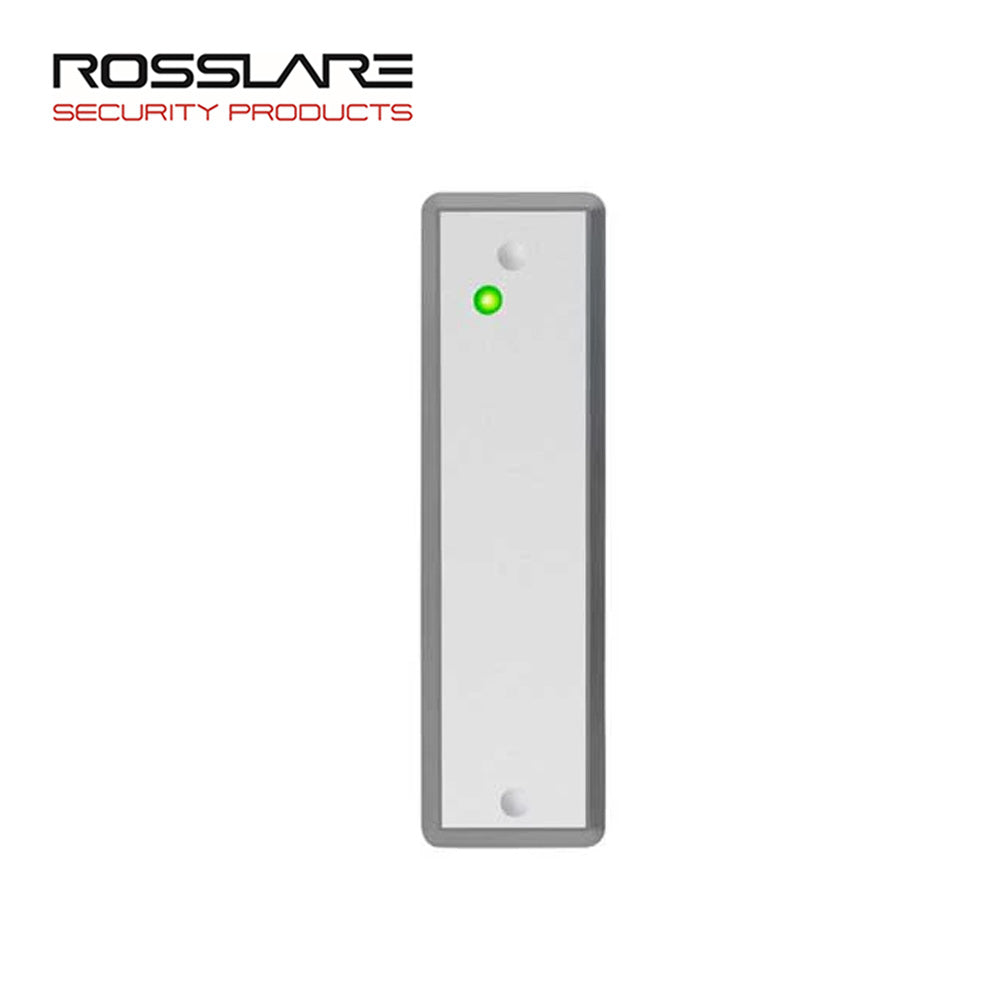

Rosslare - AY-E20 - Ultra-Slim Mullion PROX Reader and 5-16VDC - IP68

Rosslare - AY-E20 - Ultra-Slim Mullion PROX Reader and 5-16VDC - IP68

Regular price $198.45 USD
Regular price $327.44 USD Sale price $198.45 USD
Sale Sold out

Rosslare - AY-E20 - Ultra-Slim Mullion PROx Reader and 5-16VDC - IP68

The AY-E20 is one in a line of highly sophisticated proximity card readers developed by Rosslare, pioneers and market leaders in the access control field. Ideal for residential and commercial applications, this ultra-slim and attractively designed reader compliments any décor. The unit is water resistant but delicate, and is suitable for indoor or outdoor mounting. Compatible with a variety of Rosslare's Wiegand 26-bit supported single/double/multi door controllers (AC-215, AC-225, AC525), proximity cards and key fobs, and many third-party access control systems.

Features:
  • Ultra-slim flush-mount design on flat surface.
  • Reading distance: 3.5 cm (1.37 in.).
  • Built-In 125 kHz ASK EM proximity card reader.
  • Internal buzzer provides audible interface feedback.
  • Bi-colored ultra bright LED indicator.
  • Fully-potted, waterproof construction for outdoor use.
  • Mounting template for easier installation.
  • Back tamper signal report in Wiegand format, with Rosslare's AC-015, AC-020, AC- 115, & AC-215, AC-225 and AC-525.
Specifications:
Operating Voltage Range 5-16 VDC, from a regulated power supply (power usually supplied from host controller)
Input Current Standby: 40 mA @ 12 VDC
Maximum: 100 mA @ 16 VDC
Tamper Output Open collector, active low, 16 mA max sink current
Power Supply Type Linear type recommended
Cable Distance to Host Controller Up to 150 m (500 ft) using an 18-AWG cable
Read Range 3.5 cm (1.37 in.)
Modulation Options ASK at 125 KHz
Card Transmit Format Wiegand 26-Bit, Clock & Data, Serial RS232
Compatible Cards All 26-Bit EM cards
LED Indicator One bi-colored LED
Dimensions (L x W x D) 6.10 x 1.77 x 0.31 in.
Weight 135 g (4.76 oz)
