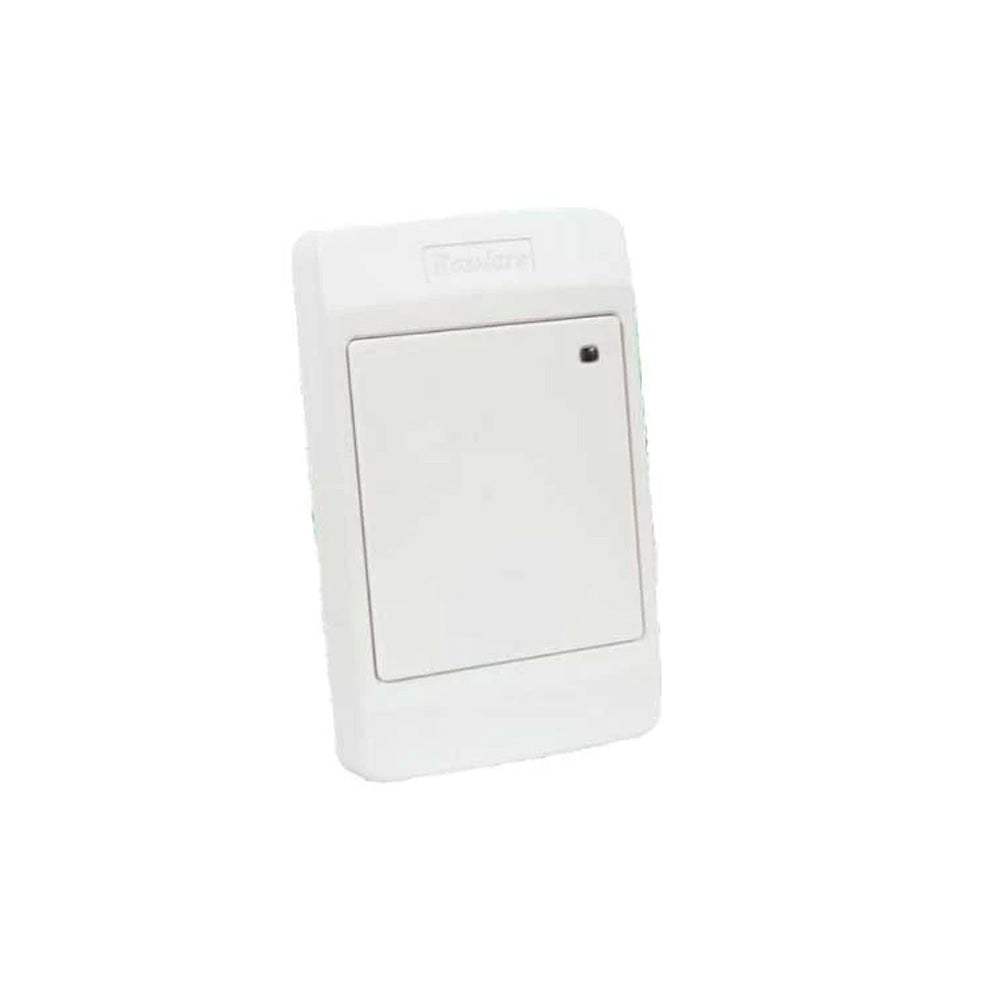

Rosslare - AY-DR12W - Indoor Proximity Reader
Rosslare - AY-DR12W - Indoor Proximity Reader
Regular price
$42.08 USD
Regular price
$77.85 USD
Sale price
$42.08 USD
Unit price
per
Couldn't load pickup availability
Rosslare - AY-DR12W - Indoor Proximity Reader
The AY-DR12W is one of a highly sophisticated line of proximity card readers developed by Rosslare. Ideal for residential and commercial applications, this attractively designed reader compliments any decor. The AY-DR12W is packed with advanced features such as an ultra-bright LED indicator, tamper detection feature, bell button, and a reading distance of 80 mm (3.2 in). The AY-DR12W supports multiple proximity card and keypad formats providing a high level of compatibility and connectivity with host controllers.
Features:
- Wiegand 26-bit reader
- Reading distance: 80 mm (3.2 in)
- Internal buzzer provides audible interface feedback
- Bi-colored ultra bright LED indicator
- Fits US Gang box
- 4-wire terminal-block connections
- Indoor use
- Easy installation
Specifications:
Operating Voltage Range | 12 to 16 VDC from a regulated power supply |
Input Current | Standby: 25 mA at 12VDC Maximum: 60 mA at 12VDC |
LED Control Input | Dry contact, Normally Open (N.O.) |
Tamper Output | Open collector, active low, 32 mA max sink current |
Read Range: | 3.2 in. |
RF Modulation | ASK, 125 kHz |
Transmission Formats | 26-Bit Wiegand: ASK at 125 KHz |
Compatible Cards | 26-bit EM cards |
Operating Temperature Range | -31°C to 63°C (-25°F to 145°F) |
RFI Protection | > 20 V/m up to 1000 MHz |
Dimensions | 122 x 74 x 18.5 mm (4.8 x 2.9 x 0.7 in) |
Weight | 100 g (3.5 oz) |
