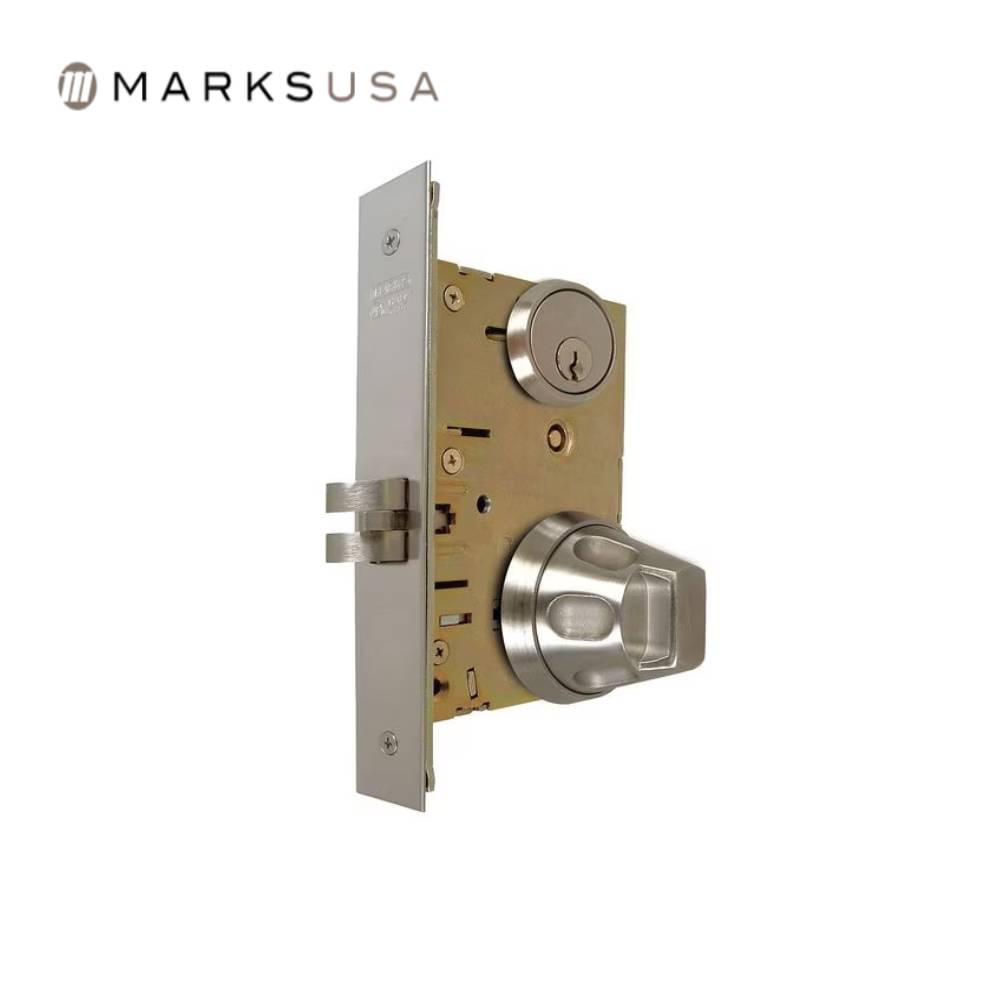

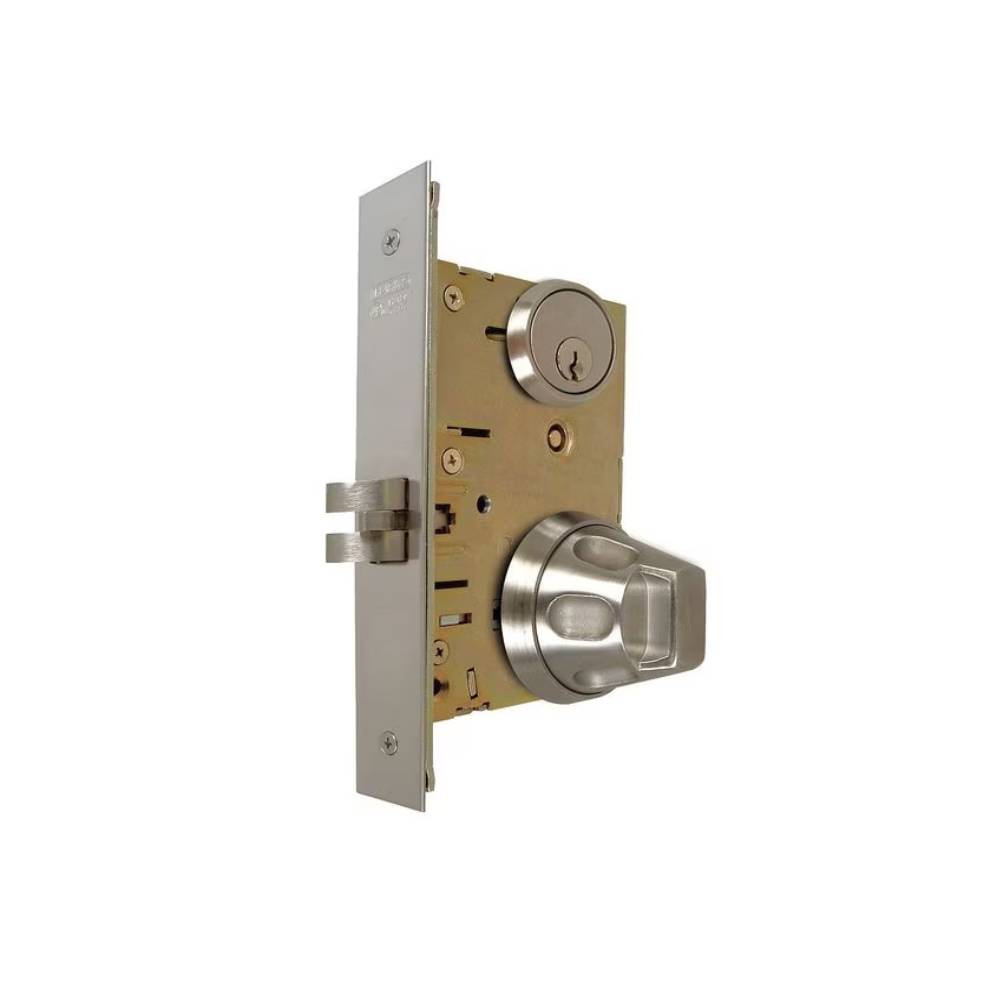

Marks USA - 5SS55EL - Electrically Locked Mortise Cylinder Lock - Anti-Ligature Lever - Field Reversible - Grade 1 - Satin Stainless Steel
Marks USA - 5SS55EL - Electrically Locked Mortise Cylinder Lock - Anti-Ligature Lever - Field Reversible - Grade 1 - Satin Stainless Steel
Regular price
$1,002.64 USD
Regular price
$1,203.17 USD
Sale price
$1,002.64 USD
Unit price
per
Couldn't load pickup availability
Marks USA - 5SS55EL - Electrically Locked Mortise Cylinder Lock - Anti-Ligature Lever - Field Reversible - Grade 1 - Satin Stainless Steel
Product Specification:
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 5SS55EL/32D |
| UID | MAR5SS55EL32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.13 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
Technical Specification:
| Function | EL-Electrically Locked |
| Lever/Knob Design | SS55-Anti-Ligature Knob |
| Lever/Knob Design Family | Anti-Ligature Knob |
| Cylinder Type | Mortise Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schlage C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/8" |
| Cam Type | Schlage L |
| Cam Number | 2102 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Strike Number | 9035 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
