Marks USA

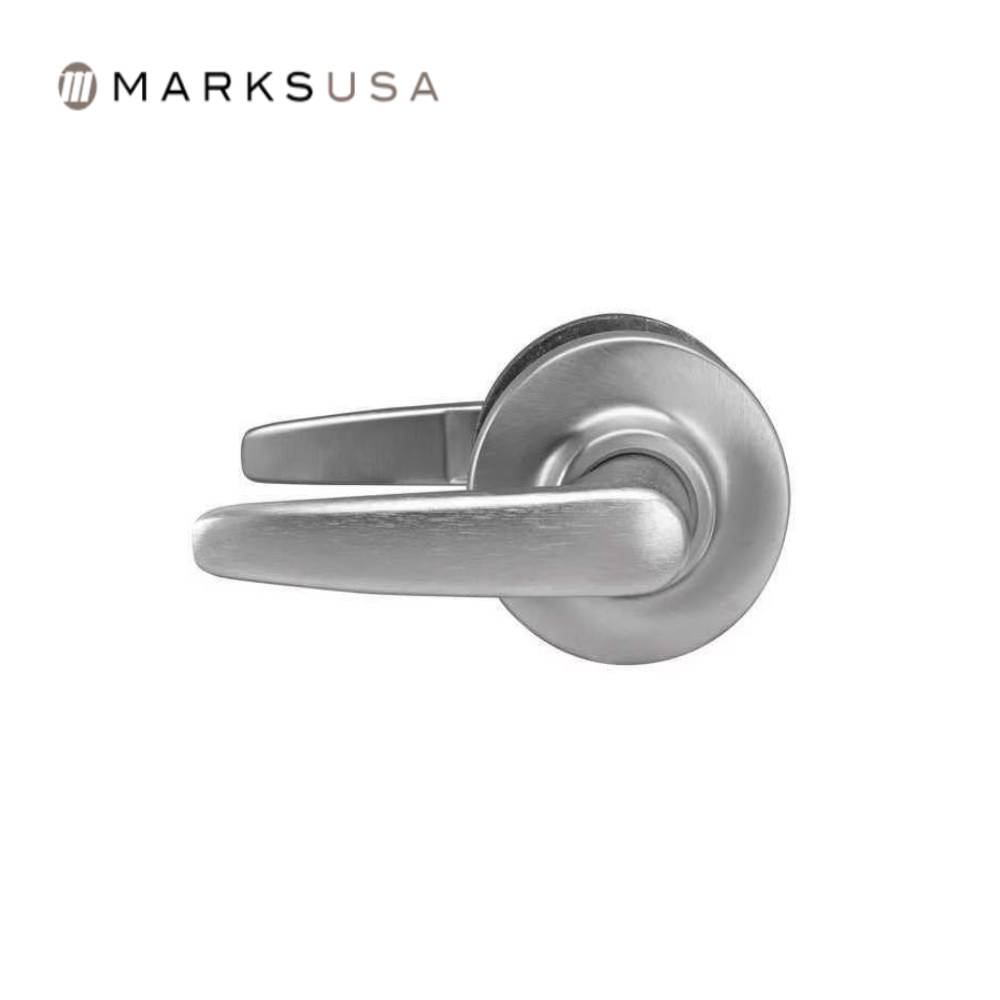

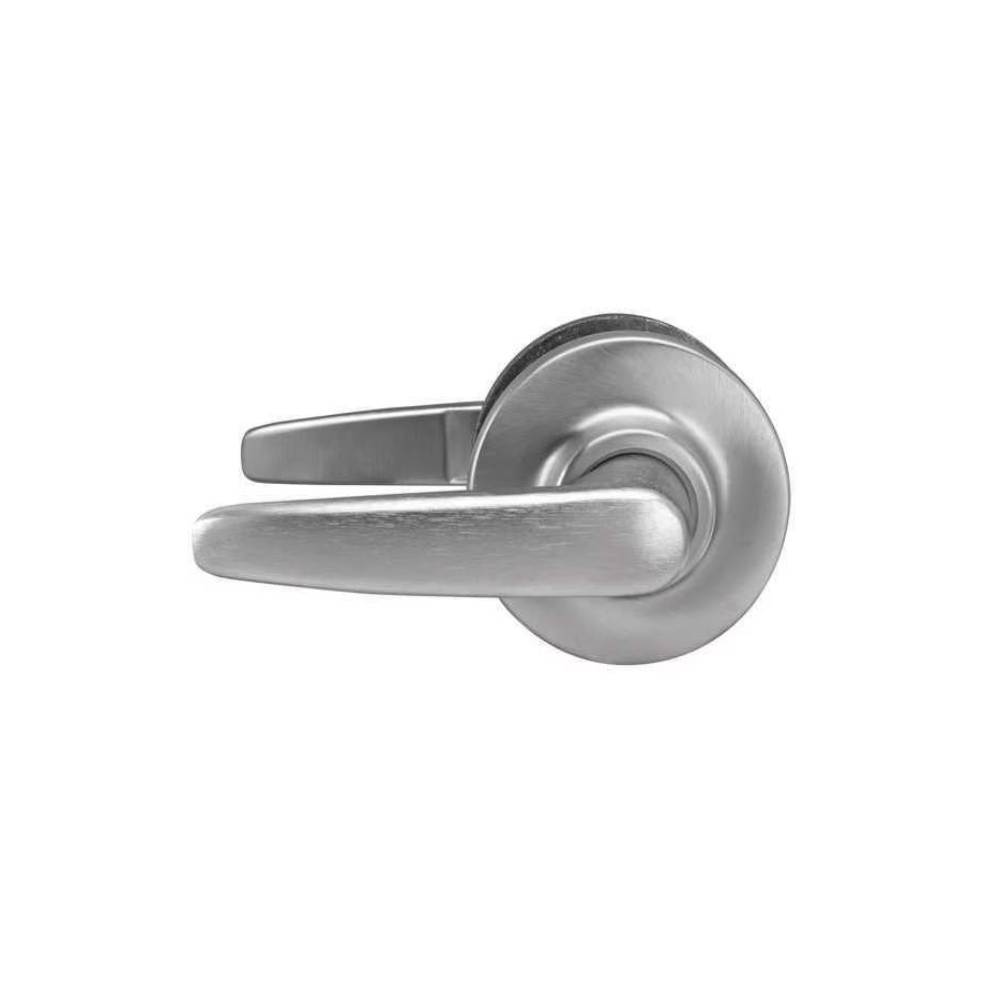

Marks USA - 495N - Passage Function Cylindrical Lock - Non-keyed - Titan Lever - 3-7/16 Rose Diameter - 2-3/4 Backset - Non-Handed - F75 ANSI - Grade 1 - Satin Chrome
Marks USA - 495N - Passage Function Cylindrical Lock - Non-keyed - Titan Lever - 3-7/16 Rose Diameter - 2-3/4 Backset - Non-Handed - F75 ANSI - Grade 1 - Satin Chrome
Regular price
$233.77 USD
Regular price
$280.52 USD
Sale price
$233.77 USD
Unit price
per
Couldn't load pickup availability
Marks USA - 495N - Passage Function Cylindrical Lock - Non-keyed - Titan Lever - 3-7/16" Rose Diameter - 2-3/4" Backset - Non-Handed - F75 ANSI - Grade 1 - Satin Chrome
Product Specification:
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 495N/26D |
| UID | MAR495N26D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
Technical Specification:
| Function | N-Passage |
| ANSI Function | F75 |
| Lever/Knob Design | 495 - Titan Lever |
| Lever/Knob Design Family | Straight Lever |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Finish | US26D - Satin Chrome (626) |
| Cylinder Type | Non-Keyed |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 1-7/8" |
| Std. Latch Number | 1834N |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 9/16" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 1135 |
| Std. Strike Type | ASA Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
