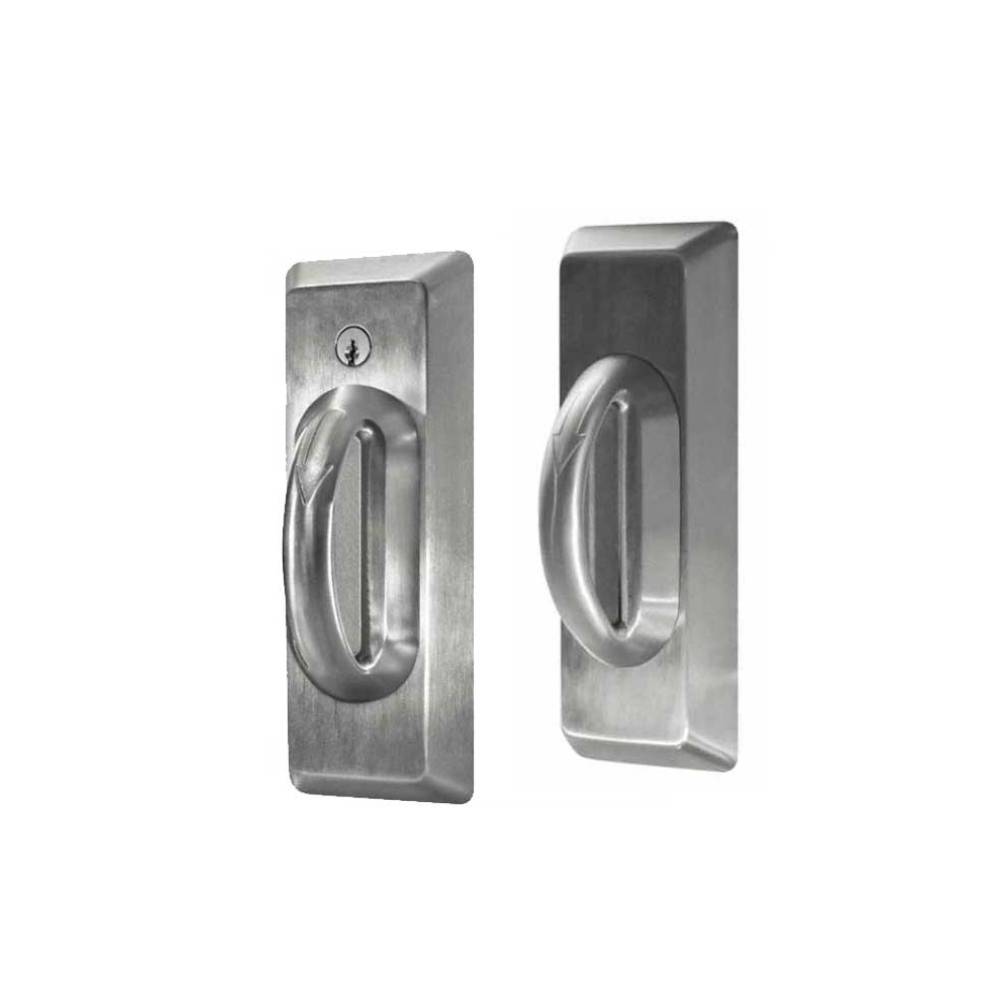

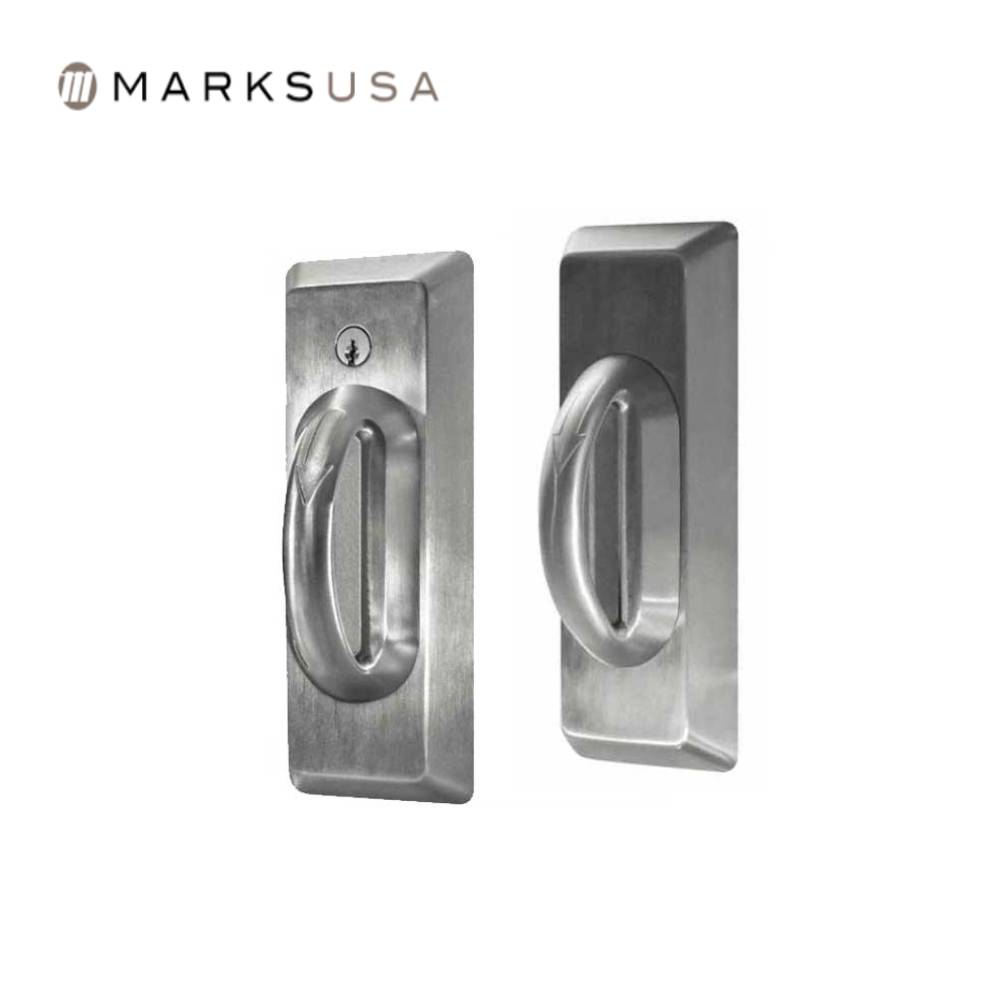

Marks USA - 195BHF - Storeroom Cylindrical Lock - Key in Lever Cylinder - D-Lig Slide - Non-Handed - Grade 1 - Satin Stainless Steel
Marks USA - 195BHF - Storeroom Cylindrical Lock - Key in Lever Cylinder - D-Lig Slide - Non-Handed - Grade 1 - Satin Stainless Steel
Regular price
$967.94 USD
Regular price
$1,161.53 USD
Sale price
$967.94 USD
Unit price
per
Couldn't load pickup availability
Marks USA - 195BHF - Storeroom Cylindrical Lock - Key in Lever Cylinder - D-Lig Slide - Non-Handed - Grade 1 - Satin Stainless Steel
Product Specification:
| Vendor | Napco Security Technologies |
| Manufacturer | Marks |
| SKU | 195BHF/32D |
| UID | MAR195BHF32D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | 3 Hours {A} |
Technical Specification:
| Function | F-Storeroom |
| ANSI Function | F86 |
| Lever/Knob Design | BH-D-Lig Slide |
| Lever/Knob Design Family | Anti-Ligature Pull |
| Cylinder Type | Key in Lever Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schlage C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" |
| Std. Latch Number | 1834A |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Bolt Projection | 9/16" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 1135 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Cylindrical Lock |
