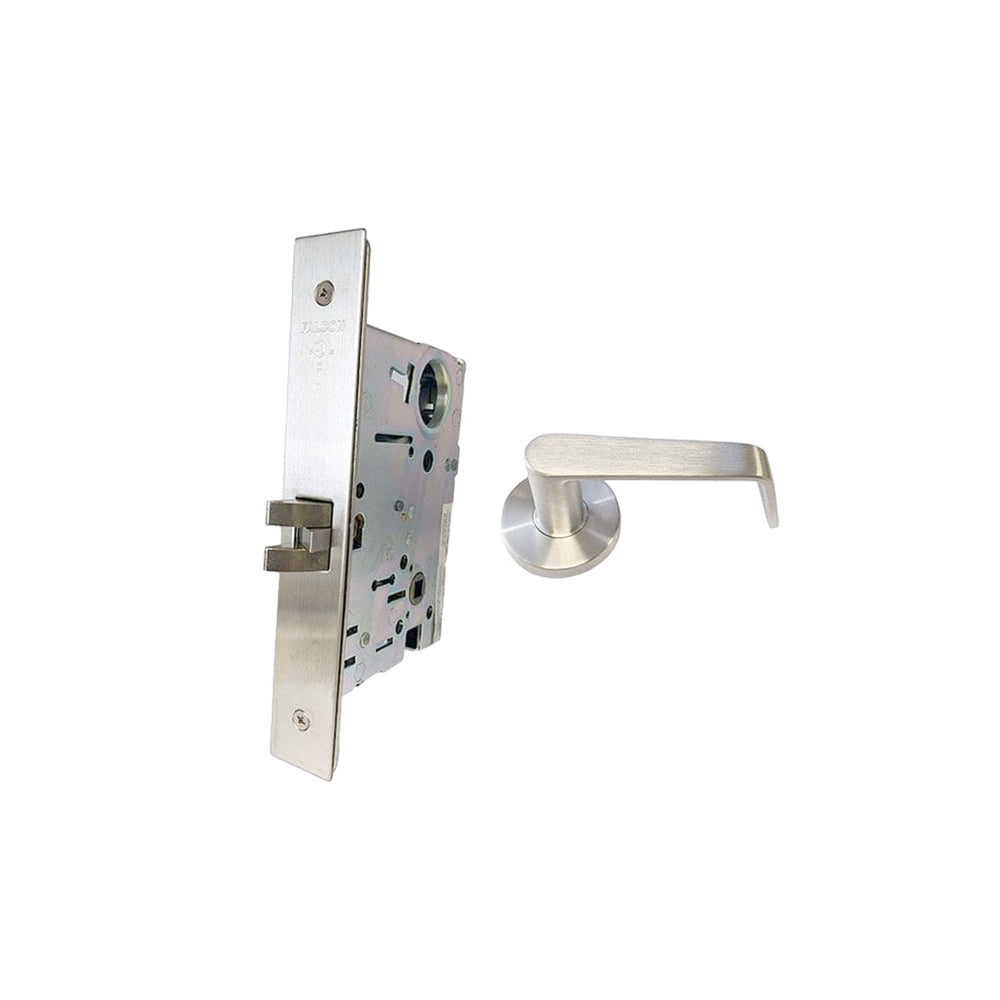

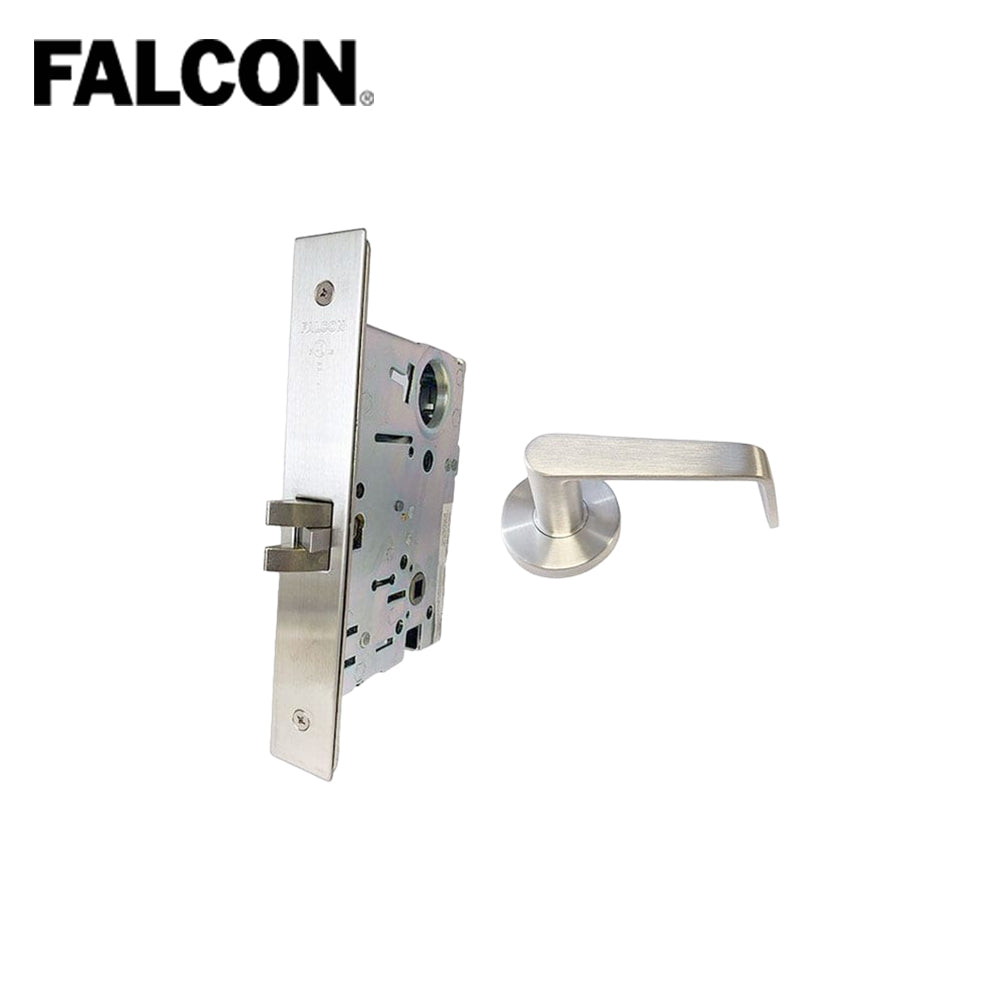

Falcon Mortise Lock Passage latchset with Dane Gala Lever - Grade 1 - 626 (Satin Chrome)
Falcon Mortise Lock Passage latchset with Dane Gala Lever - Grade 1 - 626 (Satin Chrome)
Couldn't load pickup availability
Falcon Mortise Lock Passage latchset with Dane Gala Lever - Grade 1 - 626 (Satin Chrome)
Passage Mortise Lock is a Latch bolt operated by knob/lever from either side at all times. Inside knob/lever always free for immediate egress. The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon's toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications. And, with generous trim and finish styles, the MA Series makes it easy to match existing or new design choices.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Falcon |
| SKU | MA101 DG 626 |
| UID | FAL100MA101DG626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | EACH |
| Base Material | Brass or Bronze |
Technical Specifications:
| Function | MA101-Passage/Closet Latchset |
| ANSI Function | F01 - Passage |
| Lever/Knob Design | D - Dane Lever |
| Rose/Escutcheon Design | G - Gala |
| Product Type | Mortise Lock |
| Handing | Right hand is standard; left hand optional. |
| Keyway | G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways |
| Trim | Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening. |
| Escutcheon | Falcon Napa Style |
| Door Thickness | Standard accommodates thickness of 1-3/8” to 2-1/2”. |
| Cylinder | 5 Pin Mortise Cylinder; Drilled for 6 |
| Backset | 2 3/4" Backset |
| Case | Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available. |
| Latch | Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection |
| Strike | Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed. |
| Finish | 626 - 26D - Satin Chrome |
| ANSI | 156.13 |
| Certifications | Locksets comply with UL10B - neutral pressure and UL10C/UBC 7-2 –positive pressure testing requirements. All locks shall be UL listed for 3 hour fire door. |
| Manufacturer Warranty | 10-Year |
