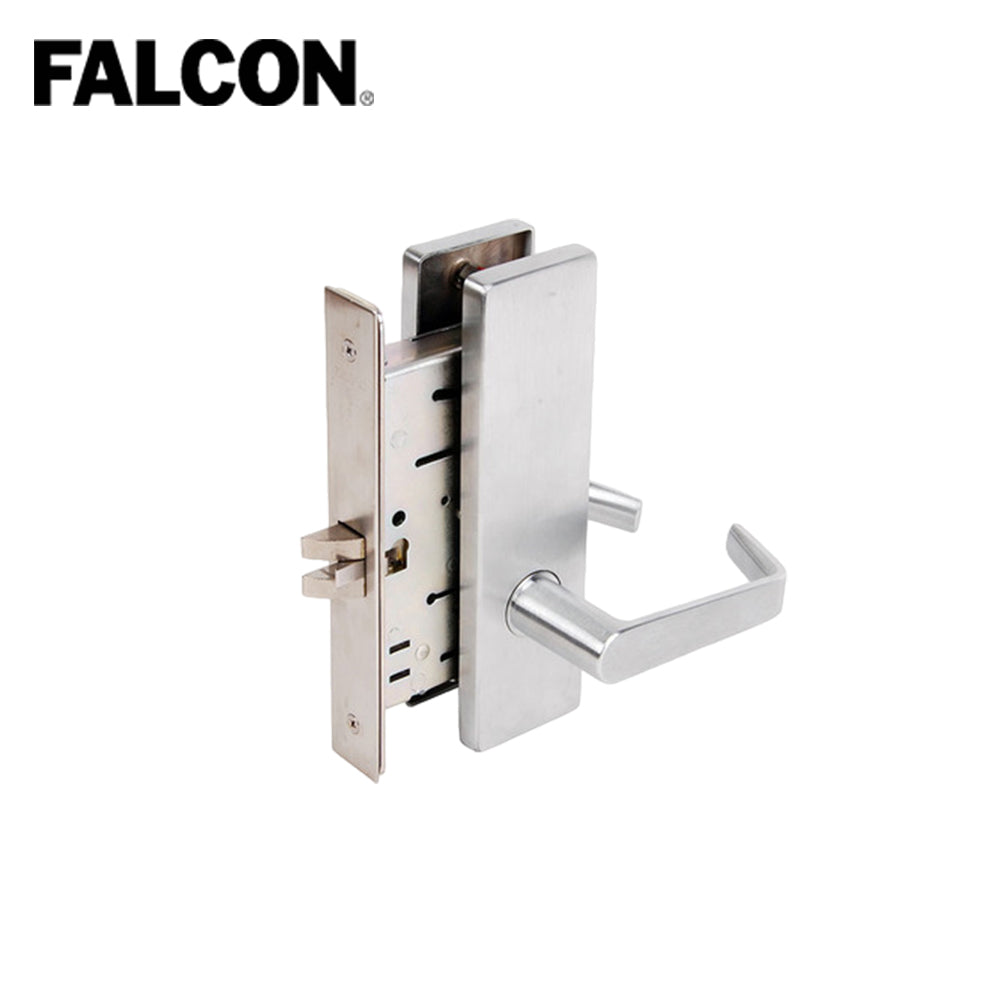

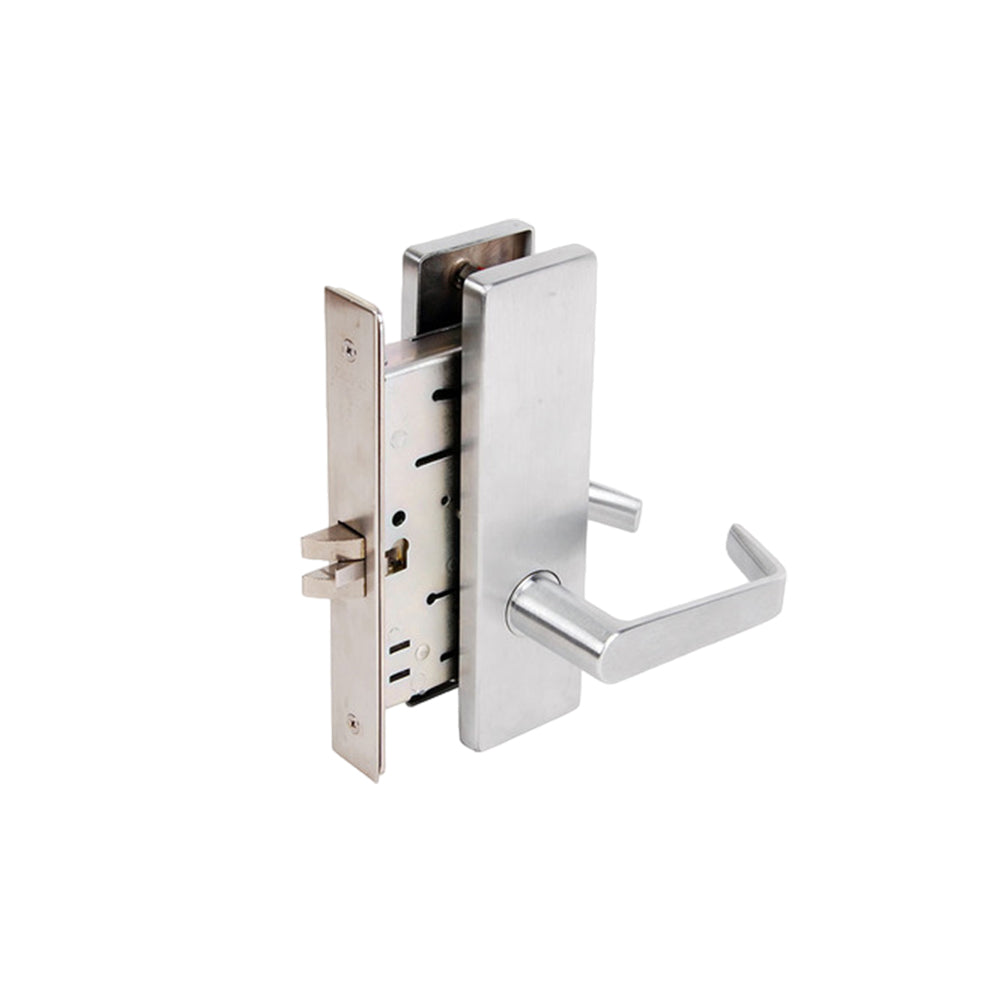

Falcon Mortise Lock Apartment Corridor Door - Grade 1 - 626 (Satin Chrome)
Falcon Mortise Lock Apartment Corridor Door - Grade 1 - 626 (Satin Chrome)
Couldn't load pickup availability
Falcon Mortise Lock Apartment Corridor Door - Grade 1 - 626 (Satin Chrome)
The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon's toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications. And, with generous trim and finish styles, the MA Series makes it easy to match existing or new design choices. Cylinders offered include the Small Format Interchangeable Core cylinders that can be removed quickly for easy, fast re-keying in high turnover environments.
Features:
- Accepts conventional and SFIC cylinders
- Ability to easily re-hand the lock in the field
- Flexible trim and finish styles to match any design
- 2-piece anti-friction stainless steel, field reversible latch bolt
- Grade 1 certified
- One of Falcon's toughest locks– built to stand up to constant use without fail
Specifications:
| Lock Function | MA531 Apartment Corridor Lock |
| Handing | Right hand is standard; left hand optional. Reversible in the field. |
| Levers | Falcon Dane Style |
| Keyway | G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways |
| Trim | Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening. |
| Escutcheon | Falcon Napa Style |
| Door Thickness | Standard accommodates thickness of 1-3/8” to 2-1/2”. |
| Cylinder | 5 Pin Mortise Cylinder; Drilled for 6 |
| Backset | 2 3/4" Backset |
| Case | Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available. |
| Latch | Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection |
| Strike | Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed. |
| Finish | 626 - 26D - Satin Chrome |
| ANSI | 156.13 |
| Certifications |
Locksets comply with UL10B - neutral pressure and UL10C/UBC 7-2 –positive pressure testing requirements. All locks shall be UL listed for 3 hour fire door. |
| Manufacturer Warranty | 10-Year |
